Optimizing the Packing Process for Large Industrial Bearings

Large industrial bearings, critical components in heavy machinery, wind turbines, and various manufacturing applications, require meticulous handling and packaging to prevent damage and corrosion during storage and transit. Manual packing methods can be time-consuming, inconsistent, and pose ergonomic challenges. This article explores the automated process for packing big size bearings, ensuring their integrity until deployment.

Why Proper Packaging is Essential for Large Bearings

Large bearings are precision components, often with significant weight and specific surface finish requirements. Improper packaging can lead to:

• Corrosion: Exposure to moisture and air can cause rust and oxidation, compromising bearing performance and lifespan.
• Physical Damage: Impacts, vibrations, or inadequate support during shipping can lead to dents, scratches, or brinelling on raceways and rolling elements.
• Contamination: Dirt, dust, and other particles can enter the bearing, leading to premature wear upon installation.

Automated packing systems address these risks by providing consistent, robust protection tailored to the bearing's dimensions and requirements.

Key Stages in Automated Bearing Packing

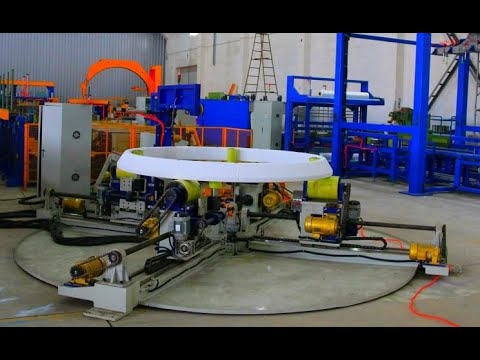

The video showcases a typical automated machine designed for efficiently packing large bearings. The process generally involves several key stages:

1. Loading and Positioning

The bearing is carefully loaded, often onto a turntable conveyor or similar handling system. This mechanism accurately indexes the bearing, positioning it precisely for the subsequent packing steps.

2. Corrosion Protection Application

A critical step is applying a protective layer against corrosion. This often involves:

• Oil Spray System: A nozzle precisely applies a measured amount of rust-inhibiting oil or lubricant onto the bearing surfaces, particularly the raceways and rolling elements. This ensures even coverage without excess waste.
• VCI Application (Alternative/Supplement): Volatile Corrosion Inhibitor (VCI) materials (paper or film) may also be incorporated into the packaging layers. These materials release compounds that form a protective molecular layer on the metal surface.

3. Packaging Material Dispensing and Cutting

The system utilizes automatic dispensers for various packing materials:

• Primary Wrap: Often VCI paper or stretch film to provide the initial protective layer and corrosion inhibition.
• Secondary Wrap: May include cardboard, foam, or heavier-duty films for cushioning and structural protection.
• Automatic Cutting: A mechanism accurately measures and cuts the required length of packing material based on the specific bearing size being processed, minimizing waste.

4. Wrapping and Forming

Rotating arms, guide rolls, and forming mechanisms precisely wrap the dispensed materials around the bearing. This creates a snug, multi-layered protective cover conforming tightly to the bearing's geometry, eliminating gaps where moisture or contaminants could penetrate. Different wrapping techniques like stretch wrapping or orbital wrapping might be employed depending on the machine design and protection requirements.

5. Sealing and Securing

Once wrapped, the packaging might be sealed using heat, adhesive, or banding to ensure the layers remain intact and the bearing is securely contained.

6. Discharge

The fully packed bearing is indexed by the turntable or conveyor system to a discharge point, ready for palletizing or further handling.

Core Technologies and Features

Modern automated bearing packing machines incorporate several technologies for efficiency and safety:

• PLC Controls: Programmable Logic Controllers (PLCs) manage the machine's operations, allowing users to set parameters for different bearing sizes, material types, and wrapping configurations via a touchscreen interface (HMI - Human Machine Interface).
• Sensors: Various sensors detect the bearing's presence, position, and dimensions, ensuring accurate material dispensing, cutting, and wrapping.
• Automated Material Handling: Integrated conveyors and indexing systems streamline the flow of bearings through the machine.
• Safety Systems: Light curtains, emergency stops, and physical guarding are essential to protect operators from moving parts, complying with industrial safety standards.

Benefits of Automated Large Bearing Packing

Transitioning from manual to automated packing for large bearings offers significant advantages:

• Consistency: Ensures every bearing receives the same level of protection with precise oiling and material application.
• Increased Throughput: Significantly faster than manual methods, boosting overall productivity.
• Material Efficiency: Automatic dispensing and cutting minimize material waste compared to manual estimation.
• Enhanced Protection: Tightly formed, multi-layer packaging provides superior protection against corrosion and physical damage.
• Improved Ergonomics and Safety: Reduces manual handling of heavy bearings and repetitive motions, minimizing operator fatigue and risk of injury.
• Reduced Labor Costs: Frees up personnel for other tasks.
• Traceability: Systems can potentially integrate with tracking systems for better inventory management.




  Conclusion

Automated packing machines provide a robust, efficient, and reliable solution for protecting large industrial bearings. By employing precise application of corrosion inhibitors and multi-layered wrapping materials, these systems ensure bearings remain in optimal condition during storage and transportation. The consistency, speed, and safety offered by automation are crucial for industries relying on these critical components.

For more information specific to bearing packing machinery options, you can explore resources like the bearing packing machine details available from equipment providers or consult industry best practices for bearing storage and handling. Contact: info@fhopepack.com
