Optimizing Aluminum Profile Packaging: A Guide to Automatic Sub-Bundle Wrapping and Strapping

Efficient and secure packaging is crucial in aluminum extrusion handling. Sub-bundles, common groupings for specific orders or further processing, present unique challenges requiring protection from damage and stability for transport. Manual packaging methods can often be time-consuming, labor-intensive, and result in inconsistent package quality. This guide explores the operation, features, and advantages of automatic sub-bundle wrapping and strapping systems designed to streamline this critical stage in aluminum fabrication.

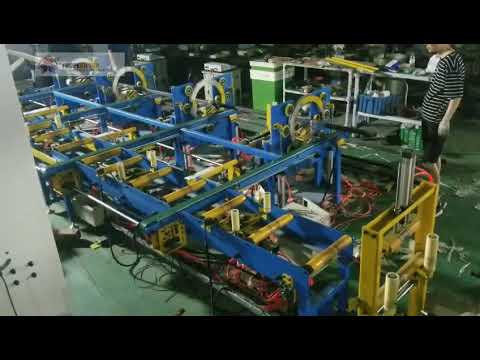

The video demonstrates the process of an Automatic aluminum sub-bundle wrapping & strapping machine in action.

https://www.fhopepack.com/Aluminum_wrapping_machine.html

This system showcases high-speed sub-bundle unitizing using stretch film wrapping, followed by automated strapping.

Understanding the Automated Wrapping and Strapping Process

Automatic aluminum sub-bundle wrapping and strapping machines integrate multiple functions into a seamless workflow, significantly enhancing packaging efficiency. The typical operational sequence involves:

1. Infeed: Sub-bundles of aluminum profiles are loaded onto an in-feed conveyor system. This conveyor automatically transports the bundles into the main processing area of the machine.
2. Stretch Wrapping: The bundle moves into the wrapping station. Here, an orbital wrapping mechanism applies layers of stretch film around the sub-bundle. Film tension and the number of wraps are usually adjustable parameters to ensure optimal containment and protection based on the bundle's size and weight.
3. Strapping: Following the wrapping cycle, the bundle proceeds to the strapping station. Strapping heads automatically apply, tension, and seal plastic (typically PP or PET) or steel straps around the wrapped bundle, adding further security and rigidity. The number and position of straps can often be pre-programmed.
4. Discharge: Once strapped, the completed bundle is transferred onto an out-feed or discharge conveyor, ready for staging, storage, or shipment.





   The automatic profile bundle strapping by film is followed by shifting to the in-feeding conveyor of the next process stage automatically.

https://www.fhopepack.com/blog/aluminum-profile-packing-machine-with-tape-banding-machine-video/

Key Features and Capabilities

Modern automatic aluminum sub-bundle wrapping and strapping machines incorporate several features designed for flexibility, efficiency, and durability:

• Adjustable Bundle Configuration: These systems accommodate a wide range of aluminum profile lengths, widths, and shapes. Operators can typically adjust settings to define the sub-bundle size and specify how many sub-bundles are combined into a larger master bundle, catering to specific order or handling requirements.
• Automated Film and Strapping Application: The core automation lies in the machine's ability to apply both stretch film and straps without manual intervention, drastically reducing labor requirements and ensuring consistent application quality. Mechanisms for automatic film cutting/clamping and strap feeding/sealing are standard.
• Integrated Conveyor Systems: Robust in-feed and out-feed conveyors facilitate a smooth, continuous flow of bundles through the machine, minimizing bottlenecks and enabling integration into larger automated production lines.
• Variable Speed Controls: Operators can often adjust the speed of the wrapping ring, conveyor belts, and strapping cycle. This allows optimization for different bundle sizes and throughput requirements, balancing speed with package integrity.
• Sturdy Industrial Construction: Designed for demanding industrial environments, these machines feature heavy-duty frames, high-quality motors, and durable components to ensure reliable operation and longevity with appropriate maintenance. (Ensure all images associated with this post have descriptive alt text, e.g., "Close-up of orbital stretch wrapping mechanism on aluminum profile packer.")

Benefits of Automating Aluminum Sub-Bundle Packaging

Implementing an automated wrapping and strapping system offers significant advantages for aluminum fabricators:

• Improved Product Protection: Tightly applied stretch film acts as a barrier against surface scratches, abrasions, dust, and moisture during handling, storage, and transit. Strapping adds structural integrity, preventing bundle collapse or profile shifting.
• Enhanced Bundle Stability and Security: Properly wrapped and strapped bundles are stable units, easier and safer to handle with forklifts or cranes, and less prone to shifting during transport, reducing the risk of damage.
• Increased Throughput and Productivity: Automation drastically speeds up the packaging process compared to manual methods, allowing facilities to handle higher volumes and meet tighter deadlines.
• Reduced Labor Costs and Improved Safety: Automating the repetitive tasks of wrapping and strapping frees up personnel for other value-added activities and reduces the ergonomic risks associated with manual bundling.
• Consistent Package Quality: Automated systems apply film and straps with consistent tension and placement, leading to uniform package appearance and reliable protection every time.
• Potential Material Savings: Advanced systems often feature controlled stretch film pre-stretching capabilities, optimizing film usage and potentially reducing consumable costs compared to manual application.

Considerations for Implementation

When evaluating an automatic sub-bundle wrapping and strapping system, consider factors such as:

• Profile Range: Ensure the machine can handle the minimum and maximum dimensions (length, width, height) and weight of your typical sub-bundles.
• Throughput Needs: Match the machine's cycle time and speed capabilities to your production output requirements.
• Level of Automation: Determine the required integration with existing upstream and downstream equipment.
• Plant Layout: Consider the machine's footprint and space requirements for operation and maintenance.
• Consumables: Factor in the types and availability of compatible stretch film and strapping materials.
• Budget and ROI: Analyze the initial investment against projected savings in labor, material, and damage reduction.

Maintaining Optimal Performance

Like any industrial machinery, regular maintenance is key to ensuring the long-term reliability and performance of automatic wrapping and strapping systems. This typically includes routine checks of:

• Film and strap loading mechanisms
• Tensioning systems
• Cutting and sealing components
• Conveyor belts and rollers
• Safety sensors and guards
• Lubrication points

Consulting the manufacturer's documentation for specific maintenance schedules and procedures is essential. [Add link to a relevant authoritative source here, e.g., an industry best practice guide or association resource like the Aluminum Extruders Council - ensure it's non-promotional and credible].

Conclusion

Automatic aluminum sub-bundle wrapping and strapping machines represent a significant technological advancement for optimizing packaging operations within the aluminum extrusion industry. By automating the process, these systems deliver enhanced product protection, improved bundle security, increased operational efficiency, and greater packaging consistency. For fabricators looking to improve throughput, reduce costs, and ensure their products reach customers in optimal condition, investing in automated wrapping and strapping technology is a strategic consideration.
