Optimizing Copper Tube Packaging: A Deep Dive into Vertical Coil Wrapping Machines

1. Understanding the Vertical Copper Tube Coil Packing Machine

Copper tube coils, essential components in HVAC, refrigeration, and plumbing systems, require robust protection during handling, storage, and transit. Damage like scratches, dents, or contamination can compromise their integrity. The Vertical Copper Tube Coil Packing Machine, often referred to as an eye-vertical wrapper, provides a specialized automated solution for this critical packaging task. Unlike horizontal wrappers, these machines handle the coil with its central axis oriented vertically (eye to the sky or eye to the floor), which can be advantageous for specific production line layouts and handling requirements.

These machines are engineered to apply protective materials, such as stretch film (LLDPE), VCI (Volatile Corrosion Inhibitor) film, or specialized paper wraps, tightly and uniformly around the outer diameter of the copper tube coil. This secures the coil, shields it from environmental factors like dust and moisture, and prevents surface damage.

2. Key Features and Technical Specifications

Modern vertical copper coil wrappers incorporate features designed for efficiency, reliability, and flexibility. While specifications vary by model and manufacturer, typical parameters include:

• Coil Compatibility:
  • Inner Diameter (ID): Range catered to standard copper tube coil sizes.
  • Outer Diameter (OD): Accommodates various coil builds.
  • Width/Height: Defines the maximum coil dimension the machine can handle.
  • Weight Capacity: Maximum coil weight supported by the loading/wrapping system.
• Wrapping Materials:
  • Stretch Film (LLDPE): Most common; provides load containment and protection. Film width and thickness specifications are critical.
  • VCI Film/Paper: Offers corrosion protection, crucial for copper.
  • Other Options: Pre-printed logo film, woven materials, or specialized tapes depending on application needs.
• Machine Performance:
  • Ring Speed (RPM): Speed at which the wrapping material shuttle rotates around the coil.
  • Conveyor/Roller Speed: Adjustable speed for moving coils into and out of the wrapping station.
  • Wrapping Efficiency: Typically measured in coils per hour, depending on coil size and wrap layers.
• Control System:
  • PLC (Programmable Logic Controller): Provides reliable automated control over the wrapping cycle.
  • HMI (Human-Machine Interface): Touchscreen or panel for easy operation, parameter adjustment (e.g., wrap counts, tension), and diagnostics.
• Construction & Power:
  • Frame: Heavy-duty steel construction for durability.
  • Power Requirements: Standard industrial voltage (e.g., 380V/480V, 3-Phase).
  • Pneumatic System: Often required for film clamping, cutting, or other actuators.
• Safety Features:
  • Emergency stop buttons, safety interlocks on access doors, light curtains.

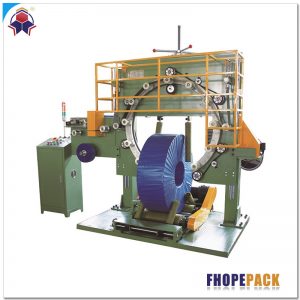

(Image: Vertical Copper Tube Coil Packing Machine in operation - ensure descriptive alt text)

3. The Wrapping Process: A Step-by-Step Look

From an operational standpoint, the process is designed for efficiency and consistency:

1. Coil Loading: The copper tube coil is typically loaded onto the machine's infeed conveyor or roller section, often via crane, forklift, or integrated handling system. Correct positioning is key.
2. Cycle Initiation: The operator starts the wrapping cycle via the HMI. The machine may automatically sense the coil's presence and dimensions.
3. Material Application: The wrapping ring, carrying the roll of stretch film or other material, begins to rotate around the stationary or slowly rotating coil (depending on the specific machine design). A powered pre-stretch mechanism often elongates the film, maximizing yield and ensuring tight application.
4. Overlap Control: The system controls the overlap percentage of the wrapping material as the ring or coil moves, ensuring complete coverage.
5. Film Clamping, Cutting, and Wiping: Once the programmed number of wraps is complete, the machine automatically clamps the leading edge of the film, cuts it cleanly, and wipes the tail end against the coil to secure it.
6. Coil Discharge: The fully wrapped coil is transported out of the wrapping station via the outfeed conveyor or rollers, ready for the next stage (palletizing, storage, shipping).

Users often report that the automated cutting and sealing mechanism is a significant time-saver compared to manual or semi-automatic methods, reducing operator intervention and ensuring a consistent finish.

4. Benefits for Copper Tube Manufacturers and Distributors

Investing in a vertical copper tube coil packing machine offers tangible advantages:

• Enhanced Product Protection: Tightly wrapped coils are shielded from dust, moisture, scratches, and minor impacts, significantly reducing the risk of damage during transit and storage. VCI materials add crucial corrosion resistance.
• Improved Packaging Efficiency: Automation drastically cuts down manual labor time and effort compared to hand-wrapping. Consistent cycle times lead to predictable throughput.
• Material Cost Savings: Powered pre-stretch systems can stretch film by 200-300%, optimizing material usage and reducing consumable costs per coil.
• Professional Product Presentation: Uniformly wrapped coils present a more professional image to customers, reinforcing product quality.
• Increased Throughput: Automated wrapping cycles are significantly faster than manual methods, boosting overall production line output.
• Enhanced Workplace Safety: Reduces the need for manual handling and repetitive motions associated with hand wrapping, minimizing risks of strains or injuries.

(Video: Demonstration of the wrapping cycle - ensure descriptive alt text/caption if needed)

5. Integration and Customization

These machines are rarely standalone units. They are typically integrated into larger production or packaging lines. Common integration points include:

• Infeed/Outfeed Conveyors: Connecting to coil processing lines or automated storage systems.
• Weighing Systems: Integrated scales for capturing final packed weight.
• Labeling Applicators: Automatically applying product identification or shipping labels post-wrapping.
• Palletizing Systems: Robots or automated systems to stack wrapped coils onto pallets.

Manufacturers often offer customization options to meet specific needs, such as accommodating non-standard coil dimensions, integrating specific control systems, or providing stainless steel construction for demanding environments.

In conclusion, the vertical copper tube coil packing machine is a vital asset for businesses handling copper tubing. By automating the wrapping process, it delivers significant improvements in protection, efficiency, cost-effectiveness, and presentation, ensuring copper coils reach their destination in optimal condition.
