Adjustable press down orbital wrapper

Adjustable press down orbital wrapper

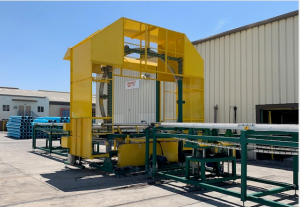

An adjustable press down orbital wrapper represents a specialized category of horizontal stretch wrapping machinery, engineered for the secure and efficient unitization of long, bulky, or irregularly shaped products. Its design centers around a horizontally oriented ring assembly through which the product load longitudinally travels. A key differentiator is the integrated adjustable press-down mechanism, which applies controlled vertical pressure during the wrapping cycle. This ensures consistent film contact and tension across the product's surface, resulting in a tightly secured and stabilized load, crucial for preventing damage during handling and transit.

1. Core Technology and Operating Principles

Understanding the fundamental mechanisms provides insight into the machine's capabilities and application suitability.

1.1 Orbital Wrapping Mechanism

The core of the machine is the rotating ring carrying the stretch film roll. As the product feeds horizontally through the ring's aperture, the film carriage orbits around it, dispensing the stretch film in a spiral pattern. The speed of rotation and the longitudinal feed rate of the product determine the film overlap, a critical parameter influencing load containment and material consumption.

1.2 Adjustable Press-Down System

This system, typically actuated pneumatically or hydraulically, consists of one or more top pressure platens or rollers. Its primary functions are:

• Load Stabilization: Prevents vertical movement or bouncing of lighter or less rigid products during wrapping.
• Consistent Film Application: Ensures the film adheres closely even to uneven top surfaces.
• Variable Pressure Control: Allows operators to adjust the downward force based on product fragility and stability requirements, preventing product damage while ensuring secure wrapping. The adjustability is key for handling a diverse range of product profiles within a single machine.

1.3 Film Delivery and Tension Control

Modern orbital wrappers feature sophisticated film delivery systems. A powered pre-stretch unit elongates the film before application (often up to 200-300%), maximizing film yield and enhancing load holding force. Electronic tension control systems dynamically adjust film tension throughout the wrap cycle, accommodating product irregularities and ensuring uniform containment without excessive constriction.

2. Key Technical Specifications (Example Parameters)

The following parameters illustrate typical specifications for this class of machinery. Note that these may not precisely match the equipment shown in the video; always consult the manufacturer for exact specifications tailored to your application.

• Machine Type: Orbital Stretch Wrapper with Adjustable Top Press
• Ring Diameter (Adjustable Range): Typically 500mm to 2000mm (influences maximum product cross-section)
• Compatible Film Types: Linear Low-Density Polyethylene (LLDPE) stretch film is standard. Compatibility with PVC or other films may vary.
• Maximum Product Length: Theoretically unlimited, dependent on conveyor configuration.
• Wrapping Speed: Variable, often ranging up to 60-100 loads per hour depending on product length, wrap pattern complexity, and automation level.
• Operational Modes: Semi-automatic (operator initiates cycle) or fully automatic (integrated into a production line).
• Press Mechanism: Pneumatic or hydraulic actuation for the adjustable top press.
• Power Requirements: Commonly 240V/480V, 60Hz, 3-phase (confirm specific requirements).
• Typical Machine Footprint (Approximate): Length: 3200mm; Width: 1800mm; Height: 2200mm (excluding infeed/outfeed conveyors).
• Standard Safety Features: Emergency stop buttons, safety fencing/light curtains, interlocked access doors, film break sensors.

3. Applications and Operational Insights

The unique combination of orbital wrapping and adjustable top pressure makes this equipment particularly valuable in specific industrial contexts:

1. Logistics for Metal Extrusions, Tubing, and Piping: Long metal products are prone to shifting and surface abrasion during transport. The orbital wrapper bundles them securely. The adjustable press-down feature is critical here; it prevents longer, potentially flexible tubes from bouncing during the wrap, ensuring a tight, uniform wrap along the entire length without damaging the surface finish. Operational Insight: Calibrating the press-down force is crucial to avoid deforming thin-walled tubes while still achieving necessary load stability. Pre-stretch levels should be optimized to balance containment force with material cost.
2. Furniture Manufacturing and Distribution: Components like bundled table legs, bed rails, or assembled flat-pack furniture sections benefit significantly. The adjustable ring accommodates various product dimensions, while the top press ensures that stacked or irregularly shaped furniture parts are held firmly together under the film. This minimizes movement within the bundle, reducing chafing and impact damage during handling and shipping. Operational Insight: For delicate wood finishes, consider using softer pressure pads on the top press or exploring specialized film formulations offering cling without excessive tack.
3. Packaging Lumber, Flooring, and Building Materials: Bundles of lumber, hardwood flooring, PVC trim, or similar construction materials require robust containment. The orbital wrap provides TTB (Tight-to-Board) packaging, while the top press manages variations in bundle height and prevents individual pieces from shifting. This improves handling efficiency and reduces product damage throughout the supply chain. Operational Insight: Dust and debris are common in these environments. Regular cleaning of the film carriage and press mechanism is essential for reliable operation. Ensure the film tension is adequate to prevent slippage of heavy, smooth materials.




   4. Operational Considerations and Maintenance

Effective utilization requires attention to operational practices and preventative maintenance:

• Operator Training: Personnel should understand film threading, tension/pre-stretch settings, press-down pressure adjustment, and selecting appropriate wrap programs for different products.
• Film Selection: Using the correct type, gauge, and quality of stretch film is critical for performance and cost-effectiveness.
• Routine Checks: Daily inspection of film rollers, cutting/clamping mechanisms, and safety sensors. Check pneumatic/hydraulic pressures.
• Preventative Maintenance: Regularly scheduled lubrication, inspection of wear parts (drive belts, rollers, bearings), and cleaning are essential to minimize downtime and ensure consistent wrap quality. Refer to the manufacturer's recommended maintenance schedule.
• Troubleshooting: Common issues include film breaks, inconsistent tension, or improper film sealing. Understanding basic troubleshooting steps can resolve minor issues quickly.

5. Safety Features Integration

Safety is paramount in automated packaging operations. Standard features include:

• Emergency Stops: Strategically located buttons to halt machine operation immediately.
• Physical Guarding: Fencing or barriers to prevent personnel from entering the operational area during the cycle.
• Interlocked Doors: Access doors that automatically stop the machine if opened.
• Light Curtains/Area Scanners: Electronic safety devices that detect intrusion into hazardous zones and stop the machine.
• Film Break/End Sensors: Alert operators or stop the machine if the film runs out or breaks.


  6. Conclusion

The adjustable press down orbital wrapper offers a specialized solution for efficiently securing long or challenging product profiles. By combining the principles of horizontal stretch wrapping with controlled top pressure, it delivers enhanced load stability and protection compared to standard orbital or rotary arm wrappers for specific applications. Proper specification, operation, and maintenance are key to leveraging its full potential in improving packaging efficiency and reducing transit damage in industries dealing with elongated goods.
