Understanding the Semi-Automatic Horizontal Stretch Wrapper: Operation and Applications

A Semi-Automatic Horizontal Stretch Wrapper is a specialized packaging machine designed for efficiently wrapping elongated or bulky products, such as timber bundles, metal extrusions, plastic pipes, doors, and windows. This machinery applies stretch film around the items, providing protection, stability, and easier handling during storage and transportation. The "semi-automatic" aspect means that while the core wrapping process is automated, operator intervention is typically required for tasks like loading the product onto the machine, starting the cycle, and cutting the film post-wrapping. Its horizontal orientation makes it ideal for items that are too long or cumbersome to wrap vertically.

1. Operational Video Demonstration

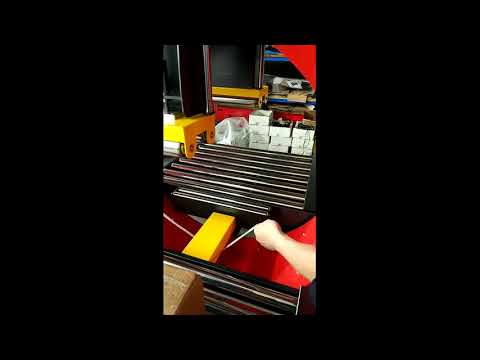

Watch this video to see a semi-automatic horizontal stretch wrapper in action, demonstrating key processes like film loading, film feeding, automatic wrapping, and film cutting:

This operation video showcases the essential steps involved in using a horizontal stretch wrapper, including film handling and the automated wrapping cycle.

2. How a Semi-Automatic Horizontal Stretch Wrapper Works

The operation involves several key steps:

1. Product Loading: The operator places the long product onto the machine's infeed conveyor rollers.
2. Cycle Initiation: The operator starts the wrapping cycle, often via a control panel or foot switch.
3. Film Application: A rotating ring or arm, holding the stretch film roll, revolves around the product as it moves horizontally through the machine on the conveyors. The film is dispensed and stretched (often using a pre-stretch system) as it wraps around the item.
4. Conveyance: Powered rollers move the product smoothly through the wrapping ring.
5. Film Cutting and Securing: Once the product is fully wrapped, the operator manually cuts the film, or a semi-automatic cutting mechanism assists, and secures the film tail to the load.
6. Product Unloading: The wrapped product exits the machine via the outfeed conveyor, ready for storage or shipping.




   3. Key Features and Components

Understanding the main parts helps in appreciating the machine's function:

• Conveyor System: Infeed and outfeed rollers (often powered) to transport the product through the wrapping zone.
• Rotating Ring/Arm: The core component that carries the film roll and revolves around the product.
• Film Carriage System: Holds the stretch film roll and often includes a powered pre-stretch mechanism to maximize film efficiency and load containment.
• Control Panel: Typically features PLC (Programmable Logic Controller) based controls and a touch screen interface for setting parameters like ring speed, conveyor speed, and wrap counts.
• Clamping and Cutting Unit: Mechanisms (manual or semi-automatic) to hold the film at the start and cut it at the end of the cycle.
• Safety Features: Includes emergency stop buttons, safety guards, and sensors to protect operators.

4. Benefits of Using a Semi-Automatic Horizontal Wrapper

Employing this type of wrapper offers several advantages:

• Enhanced Product Protection: Shields products from dust, moisture, dirt, and surface damage during handling and transit.
• Improved Load Stability: Tightly wraps items, preventing shifting or damage, especially for bundled goods.
• Reduced Labor Costs: Automates the wrapping process, significantly faster and less labor-intensive than manual wrapping.
• Material Savings: Powered pre-stretch systems can significantly extend the yield of stretch film, reducing packaging costs.
• Versatility: Can handle a wide range of product lengths, shapes, and sizes.
• Professional Appearance: Provides a neat, consistent wrap, enhancing product presentation.




  5. Step-by-Step Operation Guide

While specific controls vary by model, a typical operating procedure follows these steps:

1. Preparation: Ensure the machine is powered on and perform basic checks. Load the correct type and size of stretch film onto the film carriage, threading it properly through the rollers and pre-stretch system.
2. Product Loading: Carefully place the product to be wrapped onto the infeed conveyor rollers, ensuring it is centered and stable.
3. Machine Setup: Adjust side guides or supports if necessary to suit the product dimensions. Select the appropriate wrapping program or parameters (wrap overlap, tension, conveyor speed) via the control panel.
4. Initiate Wrapping Cycle: Secure the leading edge of the film to the product (or use the clamping unit if available) and press the start button or foot pedal to begin the wrapping cycle.
5. Monitor Process: Observe the machine as it automatically conveys the product through the rotating ring, applying the stretch film. Ensure the wrap is consistent and secure.
6. Cycle Completion: The machine will typically stop automatically once the product has passed completely through the wrapping zone according to the set parameters.
7. Film Cutting & Sealing: Manually cut the stretch film using a safety knife, or activate the semi-automatic cutting mechanism. Smooth the film tail against the wrapped product to secure it.
8. Product Unloading: Move the fully wrapped product off the outfeed conveyor.

6. Applications Across Industries

Semi-automatic horizontal stretch wrappers are invaluable in various sectors:

1. Timber and Lumber: Efficiently wraps long wooden planks, beams, posts, and bundled lumber. The stretch film protects the wood from moisture, dust, and handling damage, ensuring it arrives at construction sites or retail locations in good condition.
2. Metal Fabrication: Ideal for wrapping metal rods, bars, extrusions (like aluminum profiles), and pipes. The film prevents scratches, corrosion, and keeps bundles secure for safe transport to automotive, construction, or manufacturing clients.
3. Plastics Industry: Wraps various plastic products, including pipes (PVC, HDPE), conduits, profiles, and sheeting. This protects against UV degradation, scratches, and prevents items like pipes from becoming tangled during storage and shipping.
4. Textiles: Useful for wrapping long rolls of fabric, carpets, or rugs, protecting them from dirt and moisture.
5. Building Materials: Wraps items like doors, windows, insulation panels, and siding, providing protection and easier handling on job sites.

7. Technical Specifications Example

Note: The following parameters are indicative examples and may not exactly match the equipment shown in the video or specific models available. Always consult the manufacturer or supplier for precise specifications relevant to your needs.

• Machine Type: Semi-Automatic Horizontal Stretch Wrapper / Orbital Wrapper
• Typical Products: Timber, metal profiles, plastic pipes, doors, panels, bundled items.
• Wrapping Material: LLDPE Stretch Film
• Max Product Length: Often theoretically unlimited (depends on conveyor setup).
• Max Product Cross-Section (Example): Up to 500mm x 500mm (Varies greatly by model)
• Film Delivery System: Powered Pre-stretch (e.g., up to 250%)
• Operational Mode: Semi-automatic (Manual load/unload/cut)
• Power Requirements: Commonly 380V/50Hz/3-Phase or adaptable.
• Approximate Machine Dimensions (Example): Length: 6000mm; Width: 1200mm; Height: 1600mm (Varies significantly)
• Approximate Machine Weight (Example): Around 1000kg
• Typical Throughput: Up to 15-20 loads per hour (dependent on product length and operator efficiency)
• Control System: PLC with HMI (Touch Screen) Interface
• Safety: Emergency Stop circuits, safety guarding, operational interlocks.

8. Maintenance and Safety Considerations

Proper operation and maintenance ensure longevity and safety:

• Regular Cleaning: Keep the machine free from dust, debris, and film residue.
• Lubrication: Follow the manufacturer's schedule for lubricating moving parts like chains and bearings.
• Component Checks: Regularly inspect rollers, belts, the rotating ring, and the film cutting mechanism for wear or damage.
• Safety System Checks: Periodically test emergency stops and safety sensors.
• Operator Training: Ensure only trained personnel operate the machine, fully aware of safety procedures.
• Film Handling: Use appropriate techniques when loading heavy film rolls.

Conclusion

The semi-automatic horizontal stretch wrapper is a vital tool for businesses handling long or unwieldy products. By automating the wrapping process, it enhances product protection, improves load security, increases operational efficiency, and reduces packaging costs compared to manual methods. Understanding its operation, features, and applications allows businesses to leverage this technology effectively within their logistics and packaging workflows.
