Optimizing PET Coil Packaging: A Guide to High-Speed Stretch Wrapping Technology

Polyethylene terephthalate (PET) coils require careful handling and packaging to ensure they reach their destination undamaged and ready for use. Manual packaging methods can be slow, labor-intensive, and inconsistent. Automated high-speed PET coil stretch wrapping offers a robust solution, enhancing efficiency and product protection.

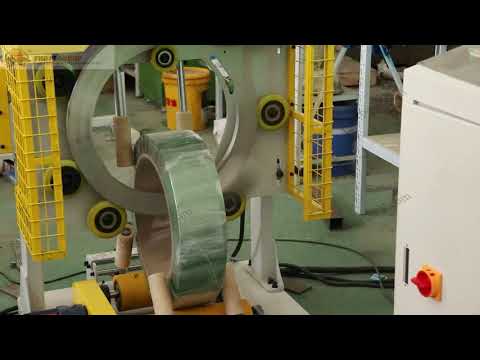

Below is a demonstration of a typical automated PET coil stretch wrapping process:

PET coil wrapping machine, PET belt packing machine, PET WRAPPER

Video Caption: High-speed automated stretch wrapping of a PET coil.

1. Understanding PET Coil Stretch Wrapping

PET coil stretch wrapping is an industrial packaging process where layers of elastic polymer film (stretch film) are tightly wrapped around a coil of PET material. This technique is widely used to secure coils for storage and transportation.

automatic cable coil strapping machine manufacturer2
automatic cable coil strapping machine manufacturer2

  • Purpose: The primary goals are to stabilize the coil, prevent unwinding, protect it from environmental factors like dust and moisture, and reduce the risk of damage during handling.
  • Material: Stretch film offers excellent load retention and puncture resistance, making it ideal for securing heavy or irregularly shaped items like coils.

2. The Automated Wrapping Process Explained

Modern PET coil wrapping machines automate several steps for increased speed and consistency. A typical operational sequence includes:

  1. Loading: The PET coil is placed onto the machine's wrapping station, often via a conveyor system or manual loading onto a turntable or through the eye of the coil for orbital wrappers.
  2. Wrapping: The machine automatically dispenses and applies stretch film around the coil. This might involve rotating the coil on a turntable while a film carriage moves vertically, or passing the film roll through the eye of the coil using a rotating ring (orbital wrapping). Key machine sub-systems include:
    • Film Carriage: Holds the stretch film roll and often includes a pre-stretch mechanism to maximize film yield and optimize load containment.
    • Wrapping Mechanism: Turntable, rotating arm, or rotating ring that creates the relative motion between the coil and the film.
    • Clamping and Cutting System: Automatically grips the film at the start of the cycle and cuts it upon completion.
  3. Cutting: Once the programmed number of wraps is complete, the machine automatically cuts the stretch film. Some systems also include a wiping mechanism to secure the film tail to the coil.
  4. Unloading: The fully wrapped PET coil is removed from the machine, typically via an exit conveyor or manually.

For detailed specifications on specific machinery, you can explore options like the PET coil wrapping equipment.

3. Key Features and Customization Options

Automated stretch wrappers for PET coils can be configured with various features:

  • Variable Speed Control: Adjust wrapping speed based on coil size and stability requirements.
  • Adjustable Film Tension & Pre-stretch: Optimize film usage and load containment (pre-stretch ratios can often exceed 250%, significantly reducing film consumption).
  • Coil Size and Weight Capacity: Machines are designed to handle specific ranges of coil diameters, widths, and weights.
  • Automation Level: Options range from semi-automatic (requiring manual loading/unloading) to fully automatic in-line systems integrated with production lines.
  • Wrapping Programs: Pre-set programs for different coil types or wrapping requirements (e.g., number of top/bottom wraps, reinforcement wraps).

4. Benefits of High-Speed PET Coil Stretch Wrapping

Implementing automated stretch wrapping provides significant advantages:

  • Enhanced Efficiency: Dramatically increases packaging throughput compared to manual methods. High-speed machines can wrap numerous coils per hour.
  • Improved Load Security: Consistent application and tension ensure coils are tightly secured, reducing shifting during transit.
  • Material Savings: Pre-stretch systems maximize the yield from each roll of stretch film, lowering material costs.
  • Reduced Labor Costs: Automation minimizes the manual labor required for the wrapping process, freeing up personnel for other tasks.
  • Superior Product Protection: Creates a barrier against dust, dirt, moisture, and minor impacts.
  • Wrapping Consistency: Ensures every coil is wrapped to the same standard, improving quality control.

5. Operational Considerations

To maximize the benefits of automated stretch wrapping:

  • Film Selection: Choose the appropriate type, gauge (thickness), and quality of stretch film based on the coil weight, dimensions, and shipping conditions.
  • Machine Maintenance: Regular inspection and maintenance are crucial for reliable operation and longevity. Follow manufacturer recommendations for lubrication, cleaning, and component checks.
  • Safety: Ensure operators are trained on safe operating procedures and that all machine guards and safety interlocks are functional.

6. Applications in Industry

hose coil film wrapper3
hose coil film wrapper3

High-speed PET coil stretch wrappers are essential in various sectors, including:

  • PET film and sheet manufacturing facilities.
  • Plastics processing plants.
  • Distribution centers and warehouses handling PET materials.
  • Industries where PET strapping or banding coils are used.

Conclusion

Automated high-speed stretch wrapping technology offers a highly effective solution for packaging PET coils. By improving efficiency, ensuring load stability, reducing costs, and enhancing product protection, these machines are a valuable asset for any operation handling significant volumes of PET coils. Investing in the right equipment streamlines the packaging process, contributing to overall productivity and profitability.
