Mastering Large Load Handling: A Guide to Operating a Pallet Turner
Handling large, heavy, or unstable loads presents significant challenges in logistics and manufacturing environments. A pallet turner, also known as a pallet inverter, is specialized material handling equipment designed to safely and efficiently rotate or exchange pallets without requiring manual unloading and reloading. This guide details the proper operating procedure, emphasizing safety and efficiency.
1. Understanding the Purpose and Benefits
The primary function of a pallet turner is to rotate a loaded pallet, typically by 180 degrees. This is essential for various tasks, such as:
- Switching from wooden pallets to plastic or hygienic pallets.
- Replacing damaged pallets beneath a load.
- Turning goods for access or further processing.
- Recovering slip sheets.
Using a pallet turner offers significant advantages:
- Enhanced Safety: Dramatically reduces the risks associated with manual handling of heavy or awkward loads, minimizing potential back injuries and accidents.
- Increased Efficiency: Speeds up the process of pallet exchange or load rotation compared to manual methods.
- Reduced Product Damage: Gentle and controlled rotation minimizes the risk of damage to sensitive goods.
- Improved Ergonomics: Creates a better working environment for operators.
2. Pre-Operation Safety Checks
Before operating the pallet turner, always prioritize safety:
- Inspect the Equipment: Check for any visible damage, hydraulic leaks, or malfunctioning controls. Ensure safety guards are in place and functional.
- Clear the Operating Area: Ensure the space around the pallet turner is free from obstructions, personnel, and other equipment.
- Understand Load Capacity: Verify that the weight and dimensions of the load do not exceed the machine's rated capacity.
- Personal Protective Equipment (PPE): Ensure the operator is wearing appropriate PPE, such as safety shoes and high-visibility clothing.
3. Step-by-Step Operating Procedure

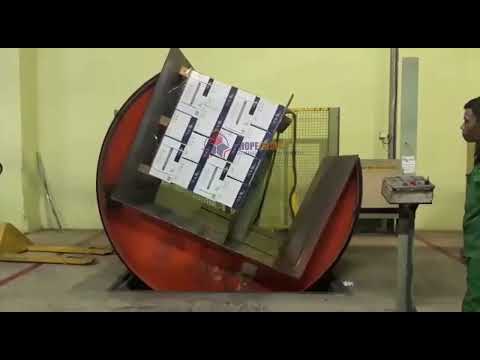

The video demonstration illustrates the core process. Here’s a breakdown of the steps for safe and effective operation:
3.1 Positioning and Loading
- Carefully approach the pallet with the pallet turner, ensuring the machine is correctly aligned.
- Adjust the forks or clamping mechanism to the appropriate height for the pallet entry points.
- Position the machine securely, ensuring the load is centered and stable before lifting or clamping. Depending on the model, this may involve driving forks under the pallet or positioning the load within a clamping chamber.
3.2 Securing the Load
- Engage the clamping mechanism to securely hold both the pallet and the load. Ensure pressure is adequate to prevent shifting during rotation but not excessive to cause damage.
- Double-check that the load is stable and properly secured before initiating rotation.
3.3 Rotation Process
- Using the controls, initiate the rotation sequence. Most pallet turners rotate 180 degrees.
- Operate the controls smoothly and deliberately, observing the load throughout the rotation process.
- Stop the rotation once the desired orientation (typically fully inverted) is reached.
3.4 Lowering and Unloading/Pallet Exchange
- If exchanging pallets, the original pallet can now be removed and replaced with the new one.
- Carefully lower the load (now on the new pallet, if exchanged) back to the floor or its original starting height.
- Release the clamping mechanism once the load is stable and resting securely.
- Carefully withdraw the pallet turner from the load.
4. Key Safety Considerations During Operation
- Never Exceed Load Limits: Overloading can cause equipment failure and serious accidents.
- Maintain Visibility: Ensure a clear line of sight during operation. Use mirrors or ask for assistance if visibility is compromised.
- Smooth Operation: Avoid sudden starts, stops, or jerky movements, which can destabilize the load.
- Keep Clear: Ensure no personnel are near the machine during the rotation cycle.
- Stable Ground: Operate the pallet turner only on level, stable surfaces.
5. Post-Operation Procedures
- Park the pallet turner in its designated location.
- Lower any forks or clamping mechanisms to the ground.
- Perform a quick visual check for any potential issues that arose during operation.
- Report any malfunctions or damage immediately.
Conclusion
Operating a pallet turner correctly is crucial for leveraging its benefits in safety and efficiency for large load handling. By adhering to proper procedures, conducting pre-operation checks, and prioritizing safety throughout the process, businesses can effectively manage pallet exchange and load rotation tasks. This specialized equipment is an invaluable tool for optimizing warehouse logistics, reducing manual labor risks, and protecting valuable goods during handling. Regular maintenance and operator training are key to ensuring the long-term reliability and safety of the equipment.
