Understanding Numerical Control Automatic Coiling and Packing Machines for Hose and Pipe
Automated systems play a crucial role in modern manufacturing, enhancing efficiency and consistency. One such system is the numerical control (NC) automatic coiling and packing machine, specifically designed for handling hoses and pipes. These machines streamline the process of coiling lengths of hose or pipe and preparing them for shipment or storage.
What is an NC Automatic Coiling and Packing Machine?
This type of equipment automates the repetitive tasks of coiling flexible materials like industrial hoses, hydraulic hoses, PVC tubing, and various types of pipes (PE, PEX, etc.) into neat coils, followed by securing and often wrapping them. The integration of numerical control allows for precise management of the coiling parameters and packaging steps, reducing manual labor and improving product presentation. These machines are vital in industries requiring high-volume processing of hoses and pipes.
Core Functionality and Technology
The operation typically involves several key stages managed by the NC system:
- Material Feeding: The hose or pipe is fed into the machine from a source like an extruder or payoff stand.
- Length Measurement: Precise sensors measure the required length of the material.
- Cutting: An automated cutter cleanly cuts the material once the target length is reached.
- Coiling: Mechanical arms or a rotating drum coil the material according to pre-programmed parameters (coil diameter, winding pattern).
- Securing: The coil is automatically secured using straps, ties, or other binding methods.
- Packing/Wrapping (Optional): Many machines integrate stretch wrapping or other packaging methods to protect the coil and maintain its shape.
- Ejection: The finished coil is ejected onto a conveyor or collection area.
Key Features Driving Efficiency
Modern NC automatic coiling and packing machines offer several features essential for efficient operation:
- Automated Coiling: Eliminates manual coiling, significantly reducing labor time and costs while ensuring consistent coil quality.
- Programmable Control (NC/PLC): Allows operators to set and store parameters for different product types via a Human-Machine Interface (HMI). This includes:
- Coil Length: Precise digital length measurement and cutting.
- Coil Diameter: Adjustable inner and outer diameter settings.
- Coiling Speed: Variable speed control to match material properties and production rates.
- Coiling Tension: Adjustable tension control prevents material damage and ensures a tight, stable coil.
- Integrated Automatic Packing: Seamlessly transitions from coiling to packing (e.g., stretch film wrapping), securing the coil for handling, storage, and transport.
- Customizable Operations: Programs can be tailored for specific coiling patterns, strapping positions, and packing requirements.
- User-Friendly Interface: HMIs, often with touch screens, simplify operation, parameter adjustments, and troubleshooting. Language options (e.g., English) are typically available.
- Error Detection & Safety: Equipped with sensors for fault detection (e.g., material jams, incorrect positioning) and safety features like guarding and emergency stops, often complying with standards like CE.
Benefits for Manufacturing and Fabrication
Integrating an automatic coiling and packing system provides tangible advantages:
- Increased Throughput: Faster processing cycles compared to manual methods.
- Reduced Labor Costs: Frees up personnel from repetitive coiling and packing tasks.
- Improved Consistency: Uniform coil size, shape, and tension enhance product quality and appearance.
- Enhanced Safety: Reduces risks associated with manual handling and coiling.
- Optimized Material Usage: Precise length measurement minimizes material waste.
- Streamlined Logistics: Neatly packed coils are easier to handle, stack, store, and ship.
Common Applications
These machines are utilized across various sectors involved in the production or distribution of:
- PVC, PE, HDPE, PEX pipes
- Hydraulic and industrial hoses
- Garden hoses
- Flexible tubing
- Wires and cables (in some configurations)

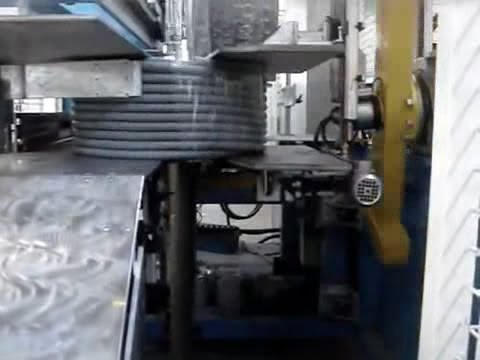

hose coil packing machinery fhope System Considerations
When evaluating such systems, factors like the range of hose/pipe diameters, required coiling speeds, level of automation desired, types of packing materials (e.g., stretch film, strapping), and integration with existing production lines should be considered. The control system's flexibility and ease of use are also critical for adapting to different product requirements.
Automatic coiling and packing solutions offer a significant step forward in automating end-of-line processes for hose and pipe manufacturers, contributing to overall operational efficiency and product quality.
