Optimizing Insulation Board Packaging: A Guide to Automatic Shrink Wrapping Systems

Proper packaging is crucial for protecting insulation boards during transport and storage. Ensuring these often bulky or fragile materials arrive undamaged requires efficient and reliable packaging methods. Automatic shrink wrapping systems offer a robust solution for manufacturers and fabricators seeking consistency, protection, and speed in their packaging operations.

This guide explores the components, process, and benefits of using an automatic board shrinking machine specifically tailored for insulation and similar panel materials.

What is an Automatic Board Shrinking Machine?

An automatic board shrinking machine is an integrated packaging system designed to encase single boards or stacks of boards in a protective layer of shrink film. The system typically combines automated product handling, film application, sealing, cutting, and heat shrinking into a continuous process, minimizing manual intervention.

Key Components and Their Function

Understanding the main parts of the system helps clarify its operation:

1. Infeed System (Pushing Device)

This mechanism, often a conveyor or pusher, automatically feeds the insulation boards or stacks into the wrapping station at a controlled pace, ensuring proper positioning for the film application.

2. Film Dispensing Unit (Material Roll)

This holds the roll of shrink film (commonly polyolefin or polyethylene) and precisely dispenses the required amount to envelop the product. Tension control systems ensure the film is applied smoothly.

3. Sealing and Cutting Mechanism (Heat Cutter)

After the board is enveloped in film, this component creates a secure seal around the product. Common methods include L-bar sealers (for sealing front, bottom, and trailing edges) or side sealers combined with a cross-seal bar. A heated wire or blade simultaneously cuts the film, separating the wrapped board from the continuous film supply.

4. Heat Shrink Tunnel (Conveyor Shrinking Machine)

The sealed board then travels through a heated tunnel via a conveyor. Controlled hot air circulates within the tunnel, causing the shrink film to tighten uniformly around the contours of the board(s). This creates a snug, protective package.

5. Control System (PLC)

A Programmable Logic Controller (PLC) manages the entire process, synchronizing the different components, controlling speeds, temperature, and timing for consistent results. Operator interfaces (HMIs) allow for adjustments and monitoring.

The Shrink Wrapping Process Step-by-Step

1. Infeed: Insulation boards are loaded onto the infeed conveyor or positioned for the pusher.
2. Film Envelopment: The board moves into the film curtain dispensed by the film unit.
3. Sealing & Cutting: The sealing mechanism activates, enclosing the board completely in film and cutting it free.
4. Heat Shrinking: The package transfers onto the tunnel conveyor and passes through the heat zone, shrinking the film tightly.
5. Cooling & Exit: After exiting the tunnel, the film cools rapidly, maintaining its tight form around the product. The finished package moves to an outfeed or accumulation area.

Visualizing the Process

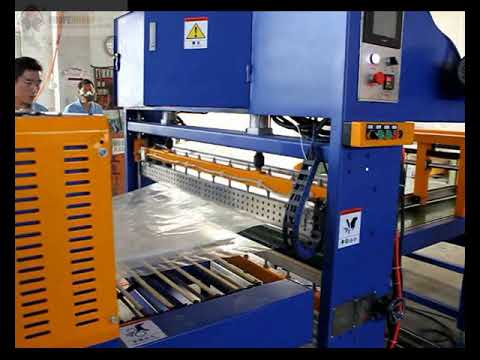

See an example of an automatic board shrinking system in operation:

Key Operational Parameters

These systems offer flexibility, but typical ranges include:

• Adjustable Sizing: Can accommodate various board widths and lengths. Stack height or number of panels per pack can often be adjusted.
• Shrink Tunnel Temperature: Often adjustable up to approximately 200°C (392°F), depending on the film type and thickness.
• Sealing Speed: Cycle times can vary, but sealing might take around 3-5 seconds per package, contributing to overall throughput. Program control via PLC allows for integration into online packaging lines.

Benefits of Automated Shrink Wrapping for Insulation Boards

Implementing an automatic system provides several advantages:

• Enhanced Product Protection: The tightly shrunk film protects boards from moisture, dust, dirt, and surface scratches during handling and shipping. It also helps unitize stacks, preventing shifting.
• Improved Efficiency: Automation significantly increases packaging throughput compared to manual methods.
• Reduced Labor Costs: Frees up personnel from manual wrapping tasks for other duties.
• Package Consistency: Ensures every board or stack is wrapped uniformly, presenting a professional appearance.
• Material Optimization: Precise film dispensing can reduce waste compared to less controlled methods.
• Versatility: Can often handle different board sizes and configurations with adjustments.

Considerations for Implementation

When evaluating an automatic board shrinking machine, consider:

• Product Dimensions: Ensure the machine can handle your minimum and maximum board length, width, height, and weight.
• Throughput Requirements: Match the machine's speed capabilities to your production output needs.
• Film Specifications: Verify compatibility with the type and gauge of shrink film you intend to use.
• Integration: How will the machine fit into your existing production or packaging line?
• Operator Skill & Maintenance: Assess the requirements for operation, routine maintenance, and troubleshooting.




  Conclusion
