EPS and LC TS Board Shrink Wrap Packing Machine: A Comprehensive Guide

Expanded Polystyrene (EPS) and Low Conductivity Thermal Insulation Sheets (LC TS Board) are vital materials in the construction and packaging industries due to their excellent insulation properties. However, they are also susceptible to damage from moisture, dust, and handling. The EPS and LC TS Board Shrink Wrap Packing Machine provides an automated solution for protecting these valuable materials.

This guide details the functionality, specifications, and applications of this specialized packaging equipment, designed to efficiently wrap insulation boards using polyethylene (PE) shrink film.

How the Shrink Wrap Packing Machine Works

This automated system typically involves several key stages to securely wrap insulation boards:

1. Infeed Conveyor: Boards are fed into the machine, often automatically via a conveyor system.
2. Film Dispensing and Sealing: The machine dispenses the appropriate amount of PE shrink film. Sealing bars create a bag or sleeve around the board.

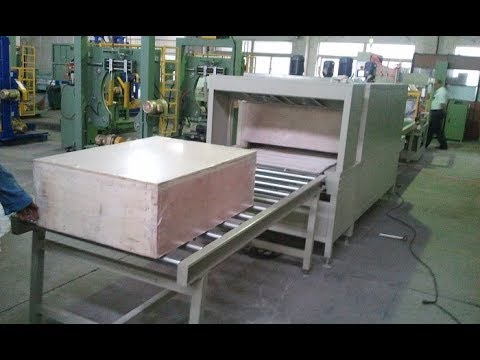

3. Heat Tunnel: The wrapped board passes through a convection heat tunnel. Controlled hot air causes the film to shrink tightly around the product, creating a secure, protective layer.
4. Cooling and Outfeed: After exiting the tunnel, the wrapped product may pass through a cooling zone to set the film before moving onto an outfeed conveyor for removal or further processing.




   Key Features and Components

• Automated Operation: Reduces manual labor and increases throughput.
• Adjustable Sealing System: Accommodates various board dimensions within the machine's limits.
• Precise Temperature Control: Digital controls ensure the heat tunnel operates at the optimal temperature for PE film shrinkage without damaging the insulation material.
• Variable Speed Conveyors: Allows synchronization with production line speed.
• Robust Construction: Designed for industrial environments and continuous operation.

Technical Specifications

Please Note: The parameters listed below provide a general overview. Specifications may vary, and the equipment shown in the video may have different characteristics. For exact details tailored to your needs, please consult with the manufacturer.

• Machine Type: Automatic Shrink Wrap System for Insulation Materials
• Applicable Materials: Expanded Polystyrene (EPS), Low Conductivity Thermal Insulation Sheets (LC TS Board)
• Maximum Product Size (Example): Length: 3000mm; Width: 1200mm; Height: 100mm
• Shrinking Film Type: Polyethylene (PE)
• Film Roll Specifications (Example): Maximum Diameter: 400mm; Width: 500mm
• Heating System: Convection heat tunnel
• Temperature Control: Digital, adjustable up to approx. 160°C
• Production Capacity (Example): Up to 20 boards per hour (dependent on size and film)
• Power Supply (Example): 480V, 60Hz, three phase
• Machine Dimensions (Approximate): Length: 6200mm; Width: 2600mm; Height: 2800mm

Applications of the EPS and LC TS Board Shrink Wrap Packing Machine

This equipment is crucial across various sectors requiring effective insulation packaging:

Construction Insulation Suppliers

Businesses supplying insulation for building projects rely on this machine to ensure EPS and LC TS boards are protected during storage and transport. The shrink wrap acts as a barrier against moisture, dust, and minor impacts, preserving the material's thermal performance until installation.

Cold Chain Logistics

In temperature-controlled logistics, the integrity of insulation is critical. This machine securely wraps insulation boards used within refrigerated containers or packaging systems, ensuring they maintain their structural and thermal properties, safeguarding temperature-sensitive goods during transit.

Manufacturers of Prefabricated Panels and Building Components

Companies producing prefabricated wall panels, roof sections, or other building elements often incorporate EPS or LC TS boards. Shrink wrapping these finished components protects the integrated insulation from environmental factors and handling damage on route to construction sites, ensuring quality and readiness for assembly.

Benefits of Using an Automated Shrink Wrap System

• Enhanced Protection: Shields boards from moisture, dirt, UV radiation (with appropriate film), and scuffing.
• Improved Handling and Stability: Bundles multiple boards or secures single large boards for easier and safer handling.
• Increased Efficiency: Automates the packaging process, significantly boosting throughput compared to manual methods.
• Professional Presentation: Provides a clean, consistent appearance for finished goods.
• Reduced Material Waste: Optimized film usage compared to manual wrapping.

By implementing an EPS and LC TS Board Shrink Wrap Packing Machine, manufacturers and suppliers can ensure their insulation products maintain quality from the production line to the point of use.
