Optimizing Door and Window Packaging: A Guide to Vertical Stretch Wrapping Machines
Handling and packaging large, flat items such as doors and windows presents unique challenges in manufacturing and logistics. Ensuring product integrity during transport and storage requires a robust and efficient solution. Vertical stretch wrapping machines offer a specialized approach designed specifically for these types of products, providing secure containment and protection.
Understanding Vertical Stretch Wrapping for Doors
Unlike traditional turntable wrappers where the pallet rotates, vertical stretch wrappers typically keep the product stationary or move it linearly while the film carriage rotates around it in a vertical plane or applies film as the product passes through. For doors and windows, specific designs often involve rotating the product vertically while applying stretch film. This method ensures even film application across tall, narrow profiles.
Key Features and Operational Workflow
Modern vertical door and window wrappers incorporate several features to automate and streamline the packaging process:
Automated Tilting for Loading and Unloading
Many systems feature powered infeed and outfeed tilting conveyors. These mechanisms can typically tilt products like doors or windows between angles (e.g., from a near-vertical loading angle to 90 degrees for wrapping, and back if needed for unloading). This significantly reduces manual handling requirements and integrates smoothly into production lines.
Adjustable Guardrails for Product Stability
To ensure the door or window remains stable and properly positioned during the tilting and feeding process, adjustable guardrails are often included on the conveyor sections. These guides can typically be adjusted for both height and width, accommodating a variety of product dimensions and preventing tipping or misalignment.
Secure Clamping and Automated Wrapping Cycle
Central to the process is the automated clamping and wrapping system. Key components include:
- Top Clamps: These devices activate once the product is in the wrapping station, securing the top edge to orientate, lock, and fix the door or window during the wrapping cycle.
- Protective Supports/Hands: Often cylinder-controlled, these supports engage during wrapping to provide additional stability. They are typically designed to retract or lower after wrapping to allow the packaged product to be conveyed out without obstruction.
The typical wrapping sequence follows these steps:
- Infeed: A door or window is placed onto the infeed tilter.
- Tilting: The tilter adjusts the product's angle (e.g., to 90 degrees) for wrapping.
- Transfer: The product is automatically pushed or conveyed into the main wrapping station.
- Clamping: The top clamp and protective supports engage to securely fix the product.
- Wrapping: The stretch film carriage applies film around the product automatically as it's rotated or held stationary, depending on the machine design. The clamping and support mechanisms are wrapped along with the product.
- Release: Once wrapping is complete, the clamp might maintain its position briefly while the protective supports retract or lower.
- Outfeed: The wrapped product is pushed or conveyed onto the outfeed tilter.
- Unloading: The outfeed tilter adjusts the angle for removal, or the product is conveyed directly off the line.
Watch the Process in Action

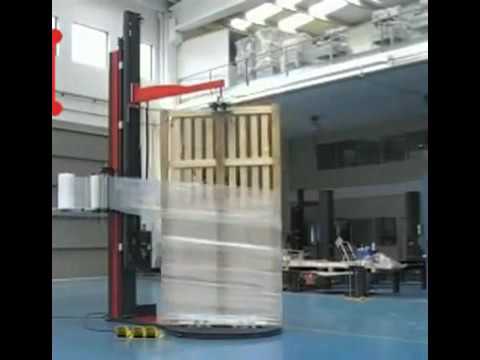

Visualizing the machine's operation can clarify its benefits and workflow. See a similar automated wrapping process here:
Advantages of Vertical Stretch Wrapping for Doors and Windows
Employing a dedicated vertical stretch wrapper offers several operational benefits:
- Product Protection: Provides a tight, secure wrap that protects surfaces from scratches, dust, and moisture during handling and shipping.
- Load Stability: Ensures tall, potentially unstable items like doors are unitized securely.
- Efficiency: Automates a labor-intensive process, increasing throughput and consistency.
- Reduced Labor: Minimizes the need for manual wrapping and handling, freeing up personnel for other tasks.
- Material Savings: Optimized film usage compared to manual methods.
Implementation Considerations
When considering a vertical stretch wrapping solution, factors to evaluate include:
- Product size and weight range compatibility.
- Required throughput speed.
- Type of stretch film to be used.
- Integration capabilities with existing production or conveyor lines.
- Level of automation required (semi-automatic vs. fully automatic).
Enhancing Your Packaging Operations
Vertical stretch wrapping machines provide an effective and automated solution for packaging doors, windows, and other large, flat products. By securing the product effectively and streamlining the handling process, these systems contribute to improved product protection, operational efficiency, and reduced labor costs in demanding manufacturing and distribution environments.
