Optimizing Packaging: Understanding the Corrugated Hose Coil Film Packing Machine

Handling and transporting corrugated hose coils presents unique challenges. These items can be bulky, prone to kinking or damage, and susceptible to environmental factors like dust and moisture. Efficiently preparing them for storage or shipment requires a specialized solution. Enter the Corrugated hose coil film packing machine.

This guide delves into the functionality, benefits, and key considerations surrounding these essential pieces of industrial packaging equipment.

What is a Corrugated Hose Coil Film Packing Machine?

A corrugated hose coil film packing machine, often referred to as a hose coil wrapper or stretch wrapper, is automated or semi-automated machinery designed specifically to wrap coils of corrugated hoses (and often other flexible pipes or cables) securely using stretch film. The primary goal is to unitize the coil, protect it from external elements, and make it easier and safer to handle, store, and transport.

Why Specialized Wrapping is Crucial for Corrugated Hoses

Standard packaging methods often fall short when dealing with corrugated hose coils. Here’s why a dedicated machine offers significant advantages:

• Product Integrity: Prevents unwinding, kinking, and abrasion during handling.
• Protection: Shields the hose material from dust, dirt, moisture, and UV exposure (depending on the film).
• Stability: Creates a tight, stable unit load, reducing movement and potential damage during transit.
• Handling Efficiency: A well-wrapped coil is easier to manage with forklifts or manual handling, improving logistical operations.

Core Components and How They Work

While designs vary, most corrugated hose coil film packing machines share common components that work in concert:

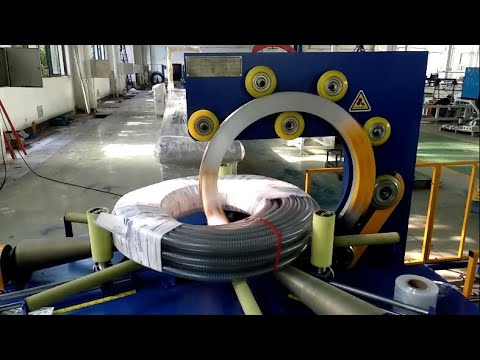

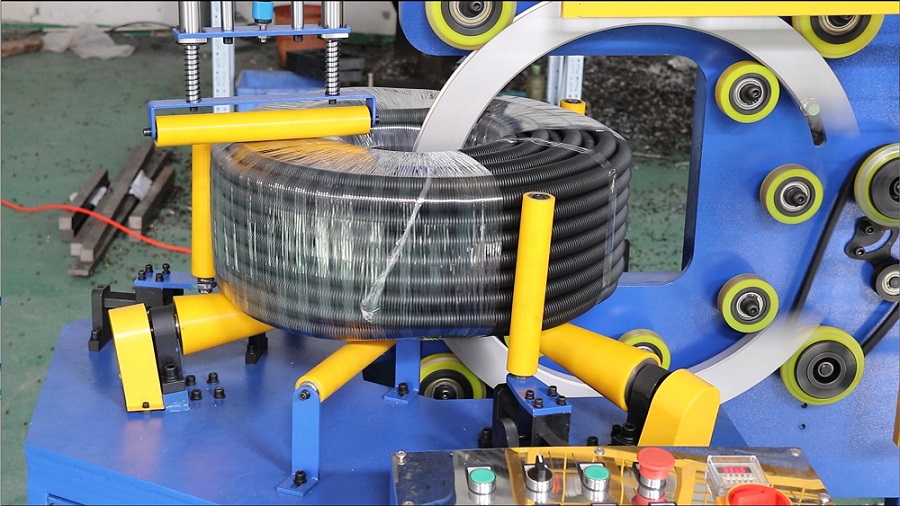

1. Turntable or Rotating Ring: This is where the hose coil is placed. It rotates the coil, allowing the film to be applied evenly around its circumference. Some designs use a rotating ring that moves around a stationary coil.
2. Film Carriage System: Holds the roll of stretch film. This system typically includes a pre-stretch mechanism, which stretches the film before application. Pre-stretching maximizes film yield and enhances load containment.
3. Wrapping Arm/Applicator: Moves vertically (or the coil moves vertically relative to it) as the coil rotates, ensuring complete coverage from top to bottom.
4. Control System (PLC): The brain of the operation. Allows operators to set parameters like:
   • Rotation speed
   • Film tension
   • Number of top and bottom wraps
   • Film overlap percentage
   • Wrapping height

The typical wrapping cycle involves placing the coil, initiating the cycle via the control panel, automatic film attachment, wrapping according to pre-set parameters, and finally, automatic film cutting and sealing.

Key Features to Look For

Modern hose coil wrapping machines often incorporate advanced features:

• Adjustable Wrapping Parameters: Flexibility to handle various coil diameters, heights, and weights.
• Programmable Logic Controller (PLC): Enables saving multiple wrapping programs for different product types, ensuring consistency.
• Automatic Film Cut and Clamp: Automates the start and end of the wrapping cycle, boosting efficiency and safety.
• Variable Pre-Stretch: Allows adjustment of film stretch levels (often up to 250-300%) to optimize film usage and load security based on the hose type and stability needs. Learn more about the properties of LLDPE Stretch Film for packaging applications.
• Safety Features: Light curtains, safety fences, emergency stops, and guarded components are crucial for operator protection.
• Top Platen (Optional): A pressure plate applied to the top of unstable coils to ensure stability during rotation.

Tangible Benefits of Automation

Investing in a corrugated hose coil film packing machine translates to several operational advantages:

• Enhanced Product Protection: Consistent, secure wrapping minimizes transit damage and contamination.
• Increased Throughput: Automated wrapping is significantly faster than manual methods.
• Reduced Labor Costs: Frees up personnel for other value-added tasks.
• Improved Safety: Reduces manual handling risks associated with wrapping bulky coils.
• Optimized Material Usage: Pre-stretch systems significantly reduce the amount of film consumed per coil compared to manual wrapping.
• Professional Presentation: Neatly wrapped coils enhance product appearance and customer perception.

Selecting the Right Machine: Key Considerations

Choosing the appropriate machine requires careful evaluation:

• Coil Specifications: What are the minimum/maximum diameter, height, and weight of the coils you need to wrap?
• Throughput Needs: How many coils per hour or shift need to be processed?
• Automation Level: Do you require a semi-automatic (operator assists loading/unloading) or fully automatic (integrated into a conveyor line) system?
• Film Type: Ensure compatibility with the desired stretch film (gauge, width, properties).
• Operating Environment: Consider space constraints and facility layout.
• Budget and ROI: Evaluate the initial investment against projected savings in labor, materials, and damage reduction.

Conclusion

The corrugated hose coil film packing machine is a vital tool for manufacturers and distributors dealing with hose products. By automating the wrapping process with stretch film, these machines deliver consistent product protection, improve operational efficiency, reduce costs, and enhance workplace safety. Understanding their function, features, and benefits is key to optimizing the packaging and logistics of corrugated hose coils in today's demanding industrial landscape.
