Optimizing Heavy Coil Handling: A Guide to Coil Transfer Cars

Handling heavy metal coils, such as steel, aluminum, and copper, presents significant logistical and safety challenges in fabrication and processing environments. Manual or inefficient handling methods can lead to production bottlenecks, increased labor costs, and potential workplace injuries. Coil transfer cars offer a robust, engineered solution designed to streamline the movement of these bulky materials, enhancing both efficiency and safety.

What is a Coil Transfer Car?

A coil transfer car is a specialized material handling vehicle engineered for the primary purpose of transporting heavy coils within an industrial facility. Typically operating on rails or directly on the floor, these cars consist of a sturdy frame and a platform, often featuring a V-deck or similar cradling structure, to securely hold cylindrical coils during transit. They serve as a critical link between storage areas, processing lines (like slitting or stamping), and shipping zones.

How Coil Transfer Cars Operate

The fundamental operation involves loading a coil onto the car's platform, usually via an overhead crane or C-hook. The car then transports the coil along a predetermined path to its destination, where it can be unloaded onto machinery (e.g., an uncoiler mandrel) or into a storage position. Movement is typically powered electrically, and control systems range from simple pendant controls to sophisticated remote or fully automated operations integrated with plant logistics systems.

Types of Coil Transfer Cars

Coil transfer cars are available in various configurations to suit specific operational needs:

• Rail-Mounted (Tracked): These cars run on fixed rails installed on or in the floor. They are ideal for repetitive movements along a defined path, offering high stability and load capacity.
• Trackless (Steerable): Utilizing wheels (often polyurethane), these cars offer greater flexibility in movement and do not require fixed tracks. They are suitable for navigating complex paths or facilities where track installation is impractical.
• Power Sources: Common power options include:
  • Cable Reel: Power supplied via a retractable electrical cable. Suitable for shorter, straight travel paths.
  • Battery Powered: Offers unrestricted movement, ideal for longer distances or complex routes. Requires charging cycles.
  • Busbar: Power collected from an electrified conductor bar along the travel path.
• Control Methods:
  • Pendant Control: Wired handheld controller allowing the operator to walk alongside the car.
  • Remote Control: Wireless operation providing greater operator freedom and visibility.
  • Automated (AGV): Fully automated operation, often guided by lasers, magnetic tape, or integrated with a plant management system for driverless transport.

Key Features and Specifications

When evaluating coil transfer cars, consider these critical parameters:

• Load Capacity: Ranging from a few tons to over 100 tons, matching the weight of the coils being handled.
• Platform Design: V-decks are standard for securing coils, but flat decks or custom fixtures are also possible.
• Travel Speed: Typically ranges from 5 to 20 meters per minute, often adjustable via variable frequency drives (VFDs) for smooth acceleration and deceleration.
• Power System: Selection based on travel distance, duty cycle, and facility infrastructure (as detailed in "Types").
• Control System: Ranging from basic manual controls to advanced automation and positioning systems (e.g., automatic positioning for loading/unloading).
• Safety Features: Essential components include emergency stops, warning lights/horns, anti-collision sensors, and overload protection.
• Operating Environment: Designed for indoor or outdoor use, considering factors like floor condition, temperature, and exposure to elements.




  Applications in Metal Fabrication and Processing

Coil transfer cars are indispensable in various stages of metal processing:

• Slitting Lines: Transporting master coils to the uncoiler and moving slit coils away.
• Stamping Operations: Feeding coils to press lines.
• Roll Forming Lines: Supplying coil stock to the forming equipment.
• Tube Mills: Moving coils to the entry point of the mill.
• Warehouse & Inventory Management: Transferring coils between storage racks, processing bays, and shipping/receiving docks.
• Inter-Bay Transfer: Moving heavy coils between different sections of a large manufacturing plant.

Benefits of Utilizing Coil Transfer Cars

Integrating coil transfer cars into handling processes yields significant advantages:

• Enhanced Operational Efficiency: Streamlines material flow, reduces waiting times at processing stations, and minimizes reliance on overhead cranes for simple transfers.
• Improved Workplace Safety: Reduces the risks associated with manually guiding heavy suspended loads or using less stable transport methods. Eliminates ergonomic hazards related to manual handling.
• Reduced Material Damage: Secure cradling and controlled movement minimize the risk of damage to coil edges or surfaces during transport.
• Increased Productivity: Faster, more reliable coil movement contributes to higher throughput on processing lines.
• Integration Potential: Can be integrated with automated storage and retrieval systems (AS/RS) and production line controls for seamless operation.




  Selecting the Right Coil Transfer Car

Choosing the appropriate coil car requires careful consideration of:

• Maximum Coil Weight and Dimensions: Ensures the car has adequate capacity and a suitable platform.
• Travel Path and Distance: Determines whether a tracked or trackless system is better, and influences power source selection.
• Floor Conditions: Critical for trackless models; requires smooth, level surfaces. Rail systems are less sensitive to floor variations along the track path.
• Operating Environment: Indoor/outdoor use, temperature extremes, presence of debris or moisture.
• Integration Requirements: Need for communication with other equipment or plant control systems.
• Frequency of Use (Duty Cycle): Impacts the choice of power system (e.g., battery life vs. continuous power).
• Safety Standards: Compliance with relevant industry and regulatory safety requirements (e.g., [Link to OSHA or relevant safety standard body]).

Video Demonstration

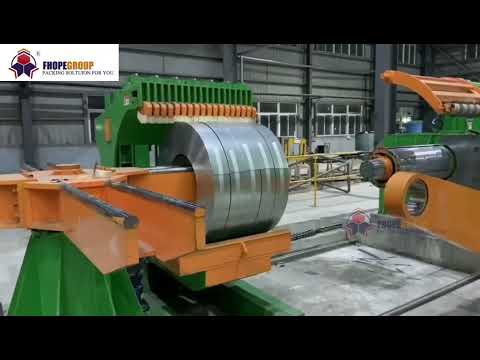

See a coil transfer car in action, demonstrating its role in handling heavy coils efficiently within a production line context:

Conclusion

Coil transfer cars are essential equipment in modern metal processing facilities handling heavy coils. By automating and optimizing the transport process, they contribute significantly to increased efficiency, improved safety, reduced material damage, and overall productivity. Selecting the right type and configuration based on specific operational needs ensures a reliable and effective material handling solution.

For further details on specific coil car configurations:
Coil Transfer Car Specifications
