Understanding Box Shrinking Machines and Bag Shrink Wrap Equipment

Shrink wrapping is a widely adopted packaging process used across numerous industries to protect, bundle, and enhance the appearance of products. Box shrinking machines and bag shrink wrap equipment are integral components of modern packaging lines, providing efficient and reliable solutions for applying heat-shrinkable plastic film around items. This guide explores the functionality, benefits, types, and considerations associated with this essential packaging technology.

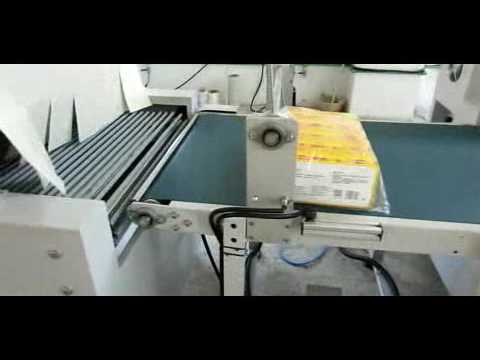

Video illustrating the operation of an automatic shrink wrapping system.

How Shrink Wrapping Works

The fundamental principle behind shrink wrapping involves enveloping a product or group of products in a specialized polymer plastic film. When heat is applied to this film, it shrinks tightly around the item(s), creating a conforming, protective layer.

1. Film Selection: Common shrink films include Polyolefin (POF), Polyvinyl Chloride (PVC), and Polyethylene (PE). The choice depends on factors like required clarity, strength, shrink ratio, and product type (e.g., food-safe POF for edibles).
2. Sealing: The product is first enclosed within the shrink film. This often involves an L-bar sealer (creating seals on two sides) or a side sealer (for continuous wrapping of varying length products).
3. Heat Application: The loosely wrapped product then passes through a heat tunnel or chamber. Controlled hot air circulation causes the film to shrink uniformly, conforming tightly to the product's shape.
4. Cooling: After exiting the heat tunnel, the film cools rapidly, retaining its tightly shrunk form and creating a secure package.

Types of Shrink Wrap Equipment

Shrink wrap machinery ranges from simple manual devices to fully automated systems integrated into high-speed production lines.

• Manual Systems: Typically involve a handheld heat gun and a separate sealing unit. Suitable for very low volume or occasional use.
• Semi-Automatic Systems: Often feature an L-bar sealer where an operator places the product and initiates the sealing cycle. The product is then manually or automatically transferred to a shrink tunnel. Ideal for low-to-medium volume operations.
• Fully-Automatic Systems: These machines automate the entire process – product feeding, film wrapping, sealing, and shrinking – requiring minimal operator intervention. They utilize technologies like side sealing or overlap sealing for continuous operation and are designed for high-volume packaging lines. ([Link to relevant internal page on Packaging Automation], if available)




  Key Benefits of Shrink Wrapping

Utilizing box shrinking machines and bag shrink wrap equipment offers several advantages:

• Protection: Creates a barrier against dust, moisture, and dirt, safeguarding products during transit and storage.
• Tamper Evidence: A broken or torn shrink wrap seal clearly indicates potential tampering, enhancing product security, especially crucial for pharmaceuticals and food items.
• Bundling: Efficiently groups multiple items together (e.g., multi-packs of beverages), simplifying handling and inventory management.
• Enhanced Presentation: Clear shrink film can improve product visibility and shelf appeal. Printed films can incorporate branding and marketing messages.
• Versatility: Suitable for a wide array of product shapes, sizes, and types, from individual boxes to irregularly shaped items.

Common Applications

The versatility of shrink wrapping makes it applicable across various sectors:

• Manufacturing & Fabrication: Protecting finished metal parts, components, or sub-assemblies from environmental factors and scratches.
• Electronics: Securely packaging sensitive electronic devices (smartphones, components, accessories) against dust and moisture.
• Food and Beverage: Wrapping individual items, creating multi-packs, and providing tamper evidence for containers. ([Link to external resource on Food Packaging Safety Standards], e.g., FDA)
• Pharmaceuticals & Healthcare: Ensuring product integrity and tamper evidence for medicines and medical devices.
• Print & Publishing: Bundling books, magazines, and printed materials.
• Consumer Goods: Packaging toys, cosmetics, software boxes, and housewares.

Selecting the Right Shrink Wrap Equipment

Choosing the appropriate machine depends on several factors:

• Product Dimensions & Shape: Ensure the machine's sealing area and tunnel aperture can accommodate your largest and smallest products.
• Speed Requirements: Match the machine's output (packages per minute) to your production line's throughput needs.
• Film Type Compatibility: Verify the machine can effectively seal and shrink the specific type(s) of film you intend to use.
• Level of Automation: Determine whether a manual, semi-automatic, or fully-automatic system best fits your budget, labor availability, and volume.
• Integration: Consider how the machine will fit into your existing packaging line (conveyor compatibility, upstream/downstream equipment).
• Budget: Factor in the initial investment cost, as well as ongoing operational expenses (energy, film, maintenance).

Operational Considerations

• Safety: Ensure machines have necessary safety features like emergency stops, guarded sealing areas, and proper heat shielding. Operators should receive thorough training. ([Link to OSHA or relevant safety guidelines], e.g., OSHA machine guarding)
• Maintenance: Regular cleaning, inspection of sealing wires/blades, and tunnel maintenance are crucial for consistent performance and longevity. Follow manufacturer recommendations.
• Temperature Control: Precise temperature settings in the shrink tunnel are vital. Too low, and the film won't shrink properly; too high, and it can burn or damage the product.

Example Technical Specifications (Illustrative)

Note: The technical specifications provided below are illustrative examples for a potential automatic side-seal shrink wrapping system (like the Fhope-S600 mentioned in the table). Specific machine capabilities will vary by model and manufacturer. Always consult manufacturer documentation for precise details regarding a particular machine.

• Equipment Type: Automatic Side Sealer + Shrink Tunnel Combination
• Sealing Method: Continuous Side Seal (allows for unlimited product length)
• Compatible Films: POF, PE
• Maximum Package Height: ≤ 250mm (Example)
• Maximum Package Width: ≤ 650mm (Example)
• Combined Width + Height Limit: W + H ≤ 650mm (Example)
• Shrinking Speed: Variable, dependent on product length and film type (e.g., up to 40 m/min tunnel speed)
• Power Requirement: Typically 380V/50-60Hz/3 Phase (Varies)
• Air Supply: Often required for pneumatic functions (e.g., ≤ 0.5MPa / 5 bar)
• Control System: PLC control (e.g., Siemens, Schneider components) with HMI panel
• Conveyor Options (Tunnel): Chain, Roller, Teflon Mesh
• Working Height: Adjustable (e.g., 750-820mm)
• Construction Material: Carbon steel frame (Stainless options may be available)

Detailed Parameter Table (Example: Fhope-S600)

Conclusion

Box shrinking machines and bag shrink wrap equipment are essential tools for modern packaging operations. By understanding the different types of machinery, the shrink wrapping process, and key selection criteria, businesses can implement effective solutions that protect products, enhance presentation, and optimize packaging efficiency. Careful consideration of application needs, volume requirements, and operational factors ensures the chosen equipment delivers value and reliability.
