Automatic Rotary Arm Reel Packing Machine

Understanding the Automatic Rotary Arm Reel Packing Machine: Secure Wrapping for Large Loads

In industries handling large, cylindrical products like cable reels, paper rolls, or textile bolts, ensuring product integrity during storage and transit is paramount. The Automatic Rotary Arm Reel Packing Machine offers an efficient and reliable solution for applying protective stretch film to these often heavy and cumbersome items. This guide explores the functionality, benefits, and applications of this essential piece of industrial packaging equipment.

How Rotary Arm Wrappers Operate

Unlike traditional turntable stretch wrappers where the load rotates, an automatic rotary arm machine keeps the heavy reel stationary. A motorized arm, equipped with a stretch film carriage, rotates around the load. This method provides several key advantages:

• Stability: Ideal for very heavy, tall, or unstable loads that might shift or topple on a rotating platform.
• Speed: Rotary arms can often achieve higher wrapping speeds compared to turntable models, boosting throughput.
• Integration: Easily integrates into automated conveyor lines as the load path remains linear.

The machine typically features adjustable film tension control, allowing users to optimize the wrapping force for different product types and containment requirements. An integrated cutting and clamping system automates the start and end of the wrap cycle, minimizing operator intervention. The robust construction is designed to withstand the dynamic forces of the high-speed rotating arm and support substantial load weights safely.

Key Features and Technical Specifications

While specific configurations vary, typical features of automatic rotary arm reel wrappers include:

• Machine Type: Automatic Rotary Arm Stretch Wrapper
• Load Compatibility:
  • Reel Diameter: Typically accommodates ranges like 500mm to 2000mm (or larger).
  • Reel Width: Commonly up to 1600mm (or tailored to requirements).
• Wrapping Material: Primarily designed for Linear Low-Density Polyethylene (LLDPE) [stretch film], but can potentially handle other films like PE or PVC depending on configuration.
• Performance:
  • Rotation Speed: Variable, often up to 15 RPM or higher.
  • Film Stretch Rate: Pre-stretch capabilities up to 300% or 400% are common, maximizing film efficiency and load containment.
• Control System: Programmable Logic Controller (PLC) with Human-Machine Interface (HMI) for setting parameters, diagnostics, and recipe management.
• Power Requirement: Typically requires three-phase power (e.g., 415V, 50Hz, specific to region and model).
• Safety: Equipped with emergency stops, safety fencing or light curtains, and power-off resets conforming to industry safety standards.
• Automation Features: May include automatic load height detection, automatic film cutting and clamping, and remote operation capabilities.

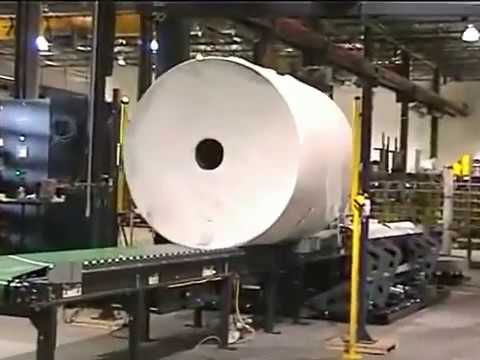

  Note: The parameters listed above represent typical specifications. For exact details matching specific models, including the equipment potentially shown in the video, direct consultation with the manufacturer is recommended.

Advantages Over Traditional Wrapping Methods

Choosing a rotary arm wrapper offers significant benefits, particularly for reel-shaped products:

• Superior Load Stability: Eliminates the risk associated with rotating heavy or unbalanced reels.
• Enhanced Throughput: Faster wrap cycles compared to manual or semi-automatic methods.
• Optimized Film Consumption: High pre-stretch ratios reduce the amount of film needed per load, lowering material costs.
• Consistent Wrap Quality: Automated control ensures uniform tension and placement for reliable load containment, meeting established load containment standards.
• Improved Operator Safety: Reduces manual handling and potential hazards associated with moving large reels.

Core Applications Across Industries

The versatility of the automatic rotary arm reel packing machine makes it invaluable in various sectors:

• Cable and Wire Manufacturing: Protects valuable reels of electrical cable, fiber optic cable, or wire rope from environmental damage (moisture, dust) and prevents unwinding during handling and shipping. Ensures product arrives ready for installation.
• Textile Industry: Secures large rolls of fabric, nonwovens, or carpet, preserving cleanliness and preventing damage from snags or moisture, critical for maintaining material quality for subsequent processing or sale.
• Paper and Printing Industries: Wraps large paper rolls for printing presses or converting lines. Protects against moisture absorption and edge damage, crucial for smooth operation in printing and packaging processes.
• Metals Industry: Used for wrapping coils of steel, aluminum, or other metals to provide protection against corrosion and secure the coil during transport.
• Building Materials: Applicable for wrapping rolls of roofing felt, insulation, or other cylindrical building supplies.

For manufacturers seeking integrated systems, exploring comprehensive automatic packing line solutions can provide further efficiencies by combining wrapping with conveying, labeling, and palletizing.
