Evaluating Automatic Rotary Arm Pallet Wrappers: With vs. Without Top Sheet Film Covering

In modern logistics and manufacturing, ensuring the stability and protection of palletized goods during handling, storage, and transportation is paramount. The automatic rotary arm pallet wrapping machine stands out as a highly efficient and reliable solution for load containment using stretch film. However, a key consideration is whether to opt for a machine equipped with a top sheet film covering function. This article provides a detailed comparison to help you determine the optimal configuration for your operational requirements.

1. Understanding Automatic Rotary Arm Pallet Wrapping Machines

1.1 What Are They?

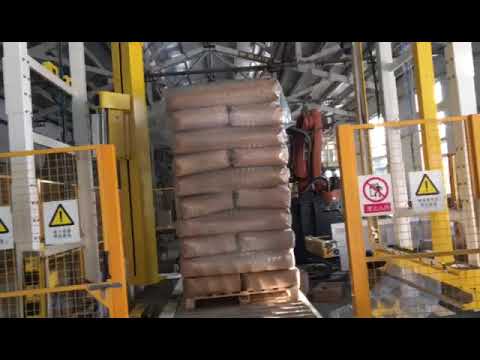

Automatic rotary arm pallet wrappers are sophisticated packaging systems designed to apply stretch film around palletized loads. Unlike turntable wrappers where the pallet rotates, here the load remains stationary while a rotary arm carrying the film dispenser revolves around it. This method is particularly advantageous for wrapping very heavy, tall, light, or unstable loads that might shift or collapse if rotated at high speeds.

1.2 Key Features and Parameters

These machines offer significant advantages in automated packaging lines. Key operational features often include:

• Wrapping Speed: Typically ranging from 20 to 70+ pallets per hour, depending on the model, load size, and wrap pattern complexity.
• Load Handling Capacity: Designed to accommodate various pallet dimensions (e.g., length, width, height) and weights (often up to 2000kg or more).
• Film Pre-stretch Capabilities: Advanced systems offer high pre-stretch ratios (up to 300% or more), maximizing film efficiency and reducing material costs while ensuring strong load containment.
• Automation Level: Fully automatic machines integrate seamlessly into conveyor lines, requiring minimal operator intervention for film application, cutting, and sealing.
• Suitability for Difficult Loads: The stationary pallet approach makes them ideal for unstable, heavy, or unusually shaped loads.
• Programmable Wrap Cycles: Allow customization of wrap patterns (e.g., number of top/bottom wraps, variable tension) for different load types.
• Integration Potential: Can be easily integrated with upstream and downstream automation like palletizers, conveyors, and automated guided vehicles (AGVs).




  2. The Function and Value of Top Sheet Film Covering

2.1 What is Top Sheet Film Covering?

Top sheet film covering is an additional function integrated into the wrapping cycle. Before or during the primary stretch wrapping process, the machine automatically dispenses and places a separate layer of polyethylene film over the top surface of the palletized load.

2.2 Benefits of Top Sheet Film Covering

2.2.1 Enhanced Environmental Protection

The primary advantage is superior protection against environmental contaminants and conditions. The top sheet acts as a barrier, safeguarding goods from:

• Dust and Dirt: Crucial for maintaining product cleanliness during storage in warehouses or transit.
• Moisture and Rain: Provides weather resistance, preventing water damage, especially for goods stored outdoors temporarily or transported on open flatbeds.
• UV Rays: Certain top sheet films can offer UV protection for light-sensitive products.
• Pilferage Deterrent: A fully enclosed wrap (sides and top) can discourage tampering.

2.2.2 Improved Load Stability and Containment

While the primary stretch wrap secures the sides, the top sheet helps to unitize the top layer of the load, preventing individual items from shifting upwards or becoming dislodged. It contributes to the overall integrity and containment of the pallet, especially for stacked boxes or uneven surfaces.

2.3 Drawbacks of Top Sheet Film Covering

2.3.1 Increased Material Costs and Consumption

Utilizing a top sheet inherently requires additional film material, leading to higher consumable costs per pallet wrapped. This also increases the total amount of plastic used in the packaging process, which has environmental implications.

2.3.2 Potential Impact on Throughput

The process of dispensing, cutting, and applying the top sheet adds extra time to the overall wrapping cycle (potentially several seconds per pallet). In high-volume operations, this can slightly reduce the maximum achievable throughput compared to machines without this function.

3. Comparing Rotary Arm Wrappers: With vs. Without Top Sheet

3.1 Initial Investment vs. Long-Term Value

Machines equipped with integrated top sheet dispensers typically have a higher initial purchase price due to the additional mechanics, sensors, and control logic. However, the long-term value derived from reduced product damage, fewer rejected shipments, and enhanced customer satisfaction (especially for sensitive goods) can often justify the higher upfront cost.

3.2 Throughput and Cycle Time

For operations where maximum speed and throughput are the primary drivers (e.g., high-volume distribution centers handling durable goods), a machine without the top sheet function will offer faster cycle times. The necessity of top protection must be weighed against the need for speed.

3.3 Application Suitability and Versatility

Rotary arm wrappers with top sheet capability offer greater versatility. They are indispensable in industries where product protection and hygiene are non-negotiable.

• Top Sheet Recommended: Food & Beverage, Pharmaceuticals, Electronics, Chemicals, Consumer Goods susceptible to contamination or moisture.
• Top Sheet Often Optional: General Manufacturing (durable goods), Building Materials, Logistics (where secondary packaging provides sufficient protection).

4. Key Industry Use Cases

4.1 Food and Beverage

In the food and beverage industry, maintaining hygiene and preventing contamination is critical. Top sheet covering provides an essential barrier against dust, moisture, and pests, ensuring products meet stringent quality and safety standards throughout the supply chain.

4.2 Pharmaceuticals

For pharmaceutical products, protection from environmental factors (moisture, particulates) and maintaining supply chain integrity are paramount. Top sheet covering adds a crucial layer of security, helping to ensure compliance and product efficacy.

4.3 Manufacturing and Warehousing

In general manufacturing and warehousing contexts, the need for a top sheet depends on the product's nature and storage conditions. For robust, well-packaged items stored indoors, a standard rotary arm wrapper may suffice, prioritizing speed and lower material cost. However, if products are sensitive or stored in demanding environments, the top sheet provides valuable protection.

5. Innovations in Rotary Arm Wrapping Technology

5.1 Automation, IoT, and Smart Features

Modern rotary arm wrappers are increasingly incorporating advanced technologies aligned with Industry 4.0 principles:

• PLC Controls & HMI: Sophisticated interfaces for easy operation, diagnostics, and cycle customization.
• Remote Monitoring & Diagnostics: IoT connectivity allows for real-time performance tracking, predictive maintenance alerts, and remote troubleshooting, minimizing downtime.




• Variable Film Tension Control: Electronically controlled tension ensures optimal film usage and load containment for different parts of the pallet.
• Integration with WMS/ERP: Seamless communication with plant management systems for automated order processing and data logging.

5.2 Sustainability and Eco-Efficiency

Responding to environmental concerns, manufacturers are focusing on:

• High-Efficiency Pre-stretch: Maximizing film yield reduces plastic consumption per pallet.
• Thinner, Stronger Films: Compatibility with newer generations of high-performance, down-gauged films.
• Energy-Efficient Components: Use of servo motors and intelligent power management reduces energy consumption.
• Recyclable/Biodegradable Film Compatibility: Designing machines capable of handling more sustainable film options.

5.3 Customization and Modular Design

Machines are increasingly designed with modularity, allowing for easier customization to specific plant layouts, conveyor heights, and integration requirements. Flexibility in configuration enables businesses to tailor the solution precisely to their needs.

6. Evaluating the ROI: Case Examples

6.1 Example: High-Value or Sensitive Goods Logistics

A distributor of consumer electronics implemented rotary arm wrappers with top sheets. While the cycle time increased slightly, they observed a significant reduction in damage claims related to water ingress and dust contamination during warehousing and LTL shipping. The savings from reduced product loss and improved customer satisfaction quickly offset the higher machine and material costs.

6.2 Example: High-Volume Beverage Manufacturing

A beverage bottling plant prioritized speed to match their high-volume production line. They opted for high-speed rotary arm wrappers without top sheet dispensers, as their products were robustly packaged in shrink-wrapped trays and stored indoors. This maximized throughput and minimized per-pallet wrapping costs, aligning perfectly with their operational priorities. [Internal Link: Pallet Wrapping Best Practices]

7. Making the Right Choice for Your Operation

Ultimately, the decision between an automatic rotary arm pallet wrapping machine with or without top sheet film covering hinges on a careful analysis of your specific operational context. Consider these factors:

• Product Sensitivity: Are your goods susceptible to damage from moisture, dust, or contamination?
• Storage & Transit Conditions: Will pallets be stored outdoors, in dusty environments, or shipped via open transport?
• Required Throughput: Is maximizing pallets-per-hour a critical operational metric?
• Budget: What is the balance between initial investment and long-term value (reduced damage vs. higher costs)?
• Sustainability Goals: How does the additional material usage align with your company's environmental targets?

By thoroughly evaluating these aspects against the capabilities and costs associated with each machine type, businesses can select the rotary arm wrapping solution that best optimizes protection, efficiency, and cost-effectiveness for their unique palletizing needs.
