Automatic Profile Wrapping and Bundling Machine

Optimizing Efficiency: Understanding Automatic Profile Wrapping and Bundling Lines

Handling and packaging long or complex profiles, such as aluminum extrusions, presents unique challenges for manufacturers. Manual methods can be labor-intensive, inconsistent, and risk damaging the product finish. Automatic profile wrapping and bundling machines offer a streamlined solution, improving efficiency, product protection, and overall operational workflow. This article explores the functionality, key features, and benefits of these automated packaging systems.

automaic pipe bundling and banding machine (2)
automaic pipe bundling and banding machine (2)

The Need for Automated Packaging in Profile Handling

Manually bundling and wrapping profiles often involves:

  • Significant labor costs.
  • Inconsistent wrapping tension, potentially leading to loose bundles or damaged profiles.
  • Slower throughput compared to automated systems.
  • Increased risk of scratches or deformation during handling.

Automated systems directly address these issues by providing consistent, high-speed packaging tailored to the specific needs of profile manufacturers.

Core Functionality: From Infeed to Wrapped Bundle

A typical automatic aluminum profile packaging line integrates several stages to transform loose profiles into securely wrapped bundles:

  1. Infeed and Staging: Profiles are fed into the system, either directly from the production line (online) or from a staging area (offline). Conveyors transport the profiles to the accumulation and counting section.
  2. Counting and Collation: Sensors accurately count the profiles to form a bundle of a predetermined size. Mechanisms collate the counted profiles into the desired bundle shape.
  3. Bundling: The collated profiles are secured together. This might involve strapping or banding, depending on the machine's configuration, creating a stable unit for wrapping.
  4. Wrapping: The secured bundle moves into the wrapping station. Often utilizing a horizontal stretch wrapper, this unit applies layers of stretch film around the bundle. The film provides protection against dust, moisture, and surface damage during transit and storage.

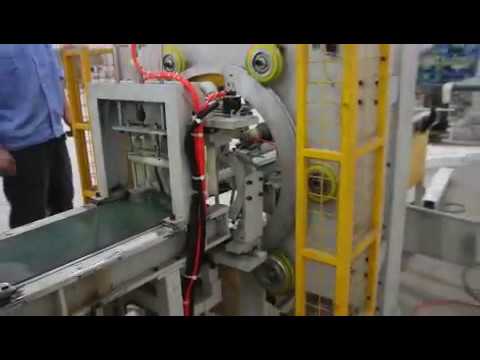

The following video demonstrates a typical automatic profile wrapping and bundling process:

Key Features Driving Performance

Modern automatic profile packaging lines incorporate features designed for reliability, flexibility, and ease of use:

  • System Integration: Designed for seamless integration into existing production flows, offering both online (continuous flow) and offline (batch processing) feeding options.
  • Flexibility: Capable of handling various profile lengths, shapes, and bundle sizes. System parameters can often be adjusted via control interfaces to switch between different product runs quickly. This adaptability means individual processing stations can often be activated or bypassed as needed.
  • Optimized Wrapping: Precise control over film tension and overlap ensures bundles are secure without excessive material use or damaging the profiles. The stretch wrapping provides a protective cocoon around the product.
  • Advanced Control Systems: Utilize PLCs (Programmable Logic Controllers) and HMIs (Human-Machine Interfaces) for intuitive operation, recipe management, and system monitoring.

Designing for Reliability and Maintenance

Machine uptime is critical in production environments. Manufacturers of these systems focus on:

  • Robust Construction: Utilizing high-quality components and optimized mechanical design to withstand continuous operation.
  • Standardized Parts: Employing standardized components simplifies spare parts inventory and speeds up replacement when necessary.
  • Diagnostic Tools: Integrated monitoring software can help identify operational issues or potential mechanical faults quickly. Alarms and diagnostic screens pinpoint the location, aiding maintenance personnel in troubleshooting and reducing downtime.
    automatic pipe bagging machine for pvc and ppr (1)
    automatic pipe bagging machine for pvc and ppr (1)

    Software and System Optimization

Intelligent software plays a crucial role in maximizing the efficiency of the packaging line. By coordinating the actions of different modules (infeed, counting, bundling, wrapping), the control system minimizes delays and prevents bottlenecks. This ensures a smooth, continuous flow, reducing unnecessary waiting times between stages and maximizing overall throughput.

Conclusion

Automatic profile wrapping and bundling machines represent a significant advancement for manufacturers dealing with extrusions and other profile types. By automating the packaging process, these systems deliver substantial benefits in terms of labor savings, improved product protection, consistent package quality, and increased operational efficiency. Careful consideration of features like integration capabilities, flexibility, and maintenance support ensures the chosen system effectively meets specific production requirements.

Learn more about the specifications of an Automatic Profile Wrapping and Bundling Machine.
