Understanding the Automatic Pallet Shrink Machine: Natural Gas Operation and Applications

1. Introduction to Natural Gas Powered Pallet Shrink Machines

The Automatic Pallet Shrink Machine utilizing natural gas represents a cornerstone technology in modern industrial packaging. Designed for high-volume operations, this equipment efficiently applies heat shrink wrap to palletized goods, creating secure, stable, and protected loads ready for storage or transport.

By employing natural gas as its primary fuel source, this type of shrink machine often presents a more economical and energy-efficient alternative compared to electrically heated models, particularly in facilities with existing gas infrastructure. Its core function involves enveloping a pallet load within a specialized shrink film hood and then applying controlled heat generated by gas combustion. This process causes the film to shrink tightly around the contours of the load, providing excellent unitization and environmental protection.

Key components typically include:

• A robust frame and shrink tunnel or chamber where the heating process occurs.
• An advanced natural gas heating system designed for uniform heat distribution.
• Automated conveyor systems for seamless pallet infeed and outfeed.
• Sophisticated control systems for precise management of temperature, time, and conveyor speed.
• Comprehensive safety mechanisms to prevent overheating and ensure operator protection.

2. How Does an Automatic Natural Gas Pallet Shrink Machine Work?

The operational sequence of a typical automatic natural gas pallet shrink machine follows these steps:

1. Pallet Infeed: A loaded pallet enters the machine, usually via an automated conveyor system.
2. Film Application (Shrink Hooding): The machine automatically places a pre-made bag or creates a hood of shrink film over the pallet load.
3. Transfer to Heating Zone: The hooded pallet is conveyed into the shrink tunnel or heating chamber.
4. Controlled Heat Application: Inside the chamber, the natural gas burner system activates, circulating hot air evenly around the pallet load. The temperature and duration are precisely controlled based on the film type and load characteristics.
5. Film Shrinking: The heat causes the polymer film to shrink uniformly, conforming tightly to the shape of the palletized goods, thus securing the load.
6. Cooling (Optional but Common): Some systems incorporate a cooling cycle after heating to help set the film quickly, improving load rigidity.
7. Pallet Outfeed: The securely wrapped pallet exits the machine via the conveyor system, ready for the next stage in the logistics chain.

Image Placeholder: Include an image here illustrating the shrink wrapping process or a key component.
![Diagram illustrating the pallet shrink wrapping process with heat application](placeholder-image-url.jpg "Pallet Shrink Wrapping Workflow")
(Remember to replace placeholder-image-url.jpg with the actual image URL and update the alt text description accordingly.)

3. Key Features and Technical Specifications

While specific configurations vary, common features and typical parameters include:

• Machine Type: Automatic Pallet Shrink Wrap Machine / Shrink Hooding System
• Primary Fuel: Natural Gas
• Heating System: Indirect or direct forced hot air circulation for even heat distribution.
• Typical Wrappable Pallet Dimensions: Often accommodates standard pallet sizes up to 1200mm x 1200mm (or larger, depending on model). Height capacity also varies.
• Compatible Shrink Films: Designed for use with various industrial shrink films (e.g., LDPE, Polyolefin) of different thicknesses.
• Operating Temperature: Adjustable, typically within a range like 100°C to 200°C, tailored to film requirements.
• Throughput: Dependent on model and load size, can range from 30 to 100+ pallets per hour.
• Conveyor System: Integrated powered conveyors with adjustable speed (e.g., up to 8 meters per minute or higher).
• Control System: PLC-based controls with HMI (Human-Machine Interface) for setting parameters, diagnostics, and operation modes.
• Safety Features: Essential components include overheat protection sensors, emergency stop buttons, safety interlocks on doors, and proper gas combustion controls.
• Energy Efficiency: Optimized burner design and chamber insulation contribute to high thermal efficiency and potentially reduced CO2 emissions compared to less efficient systems.

Important Note: The specific parameters below are indicative and may not precisely match the equipment shown in the video. Always consult the manufacturer or supplier for exact specifications relevant to a particular model.

• Type: Pallet Shrink Wrap Machine
• Fuel Type: Natural Gas
• Heating System: Even heat distribution
• Wrappable Pallet Size: Up to 1200mm x 1200mm (Example)
• Shrink Wrap Material Compatibility: All standard industrial films
• Operating Temperature Range: 100°C to 150°C (Example Range)
• Conveyor Speed: Adjustable, up to 8 meters per minute (Example)
• Safety Features: Overheat protection, emergency shutdown
• Machine Dimensions (Example): Length: 4000mm; Width: 2500mm; Height: 1800mm
• Energy Efficiency: High efficiency with reduced CO2 emissions

4. Advantages of Using Natural Gas Automatic Shrink Machines

Employing this technology offers several key benefits for industrial packaging operations:

• Cost-Effectiveness: Natural gas is often less expensive than electricity per BTU, potentially leading to significant operational cost savings, especially in high-throughput environments. [External Link to a resource comparing industrial energy costs, e.g., EIA data summary - ensure credible source].
• Enhanced Load Stability: The tight, uniform shrink provides excellent load containment, preventing shifting during handling and transit, which minimizes product damage.
• Product Protection: The shrink film acts as a barrier against dust, moisture, and UV radiation (depending on film type), safeguarding product integrity. It can also offer a degree of tamper evidence.
• High Throughput: Automation features, including conveyor integration and optimized heating cycles, enable rapid processing of pallet loads, boosting overall packaging line efficiency.
• Operational Efficiency: Automated systems reduce manual labor requirements and ensure consistent wrapping quality compared to manual or semi-automatic methods.
• Versatility: These machines can typically handle a wide range of load sizes, shapes, and weights, along with different types of shrink film.




  5. Common Industry Applications

Automatic pallet shrink machines powered by natural gas are vital in numerous sectors requiring robust and efficient pallet packaging:

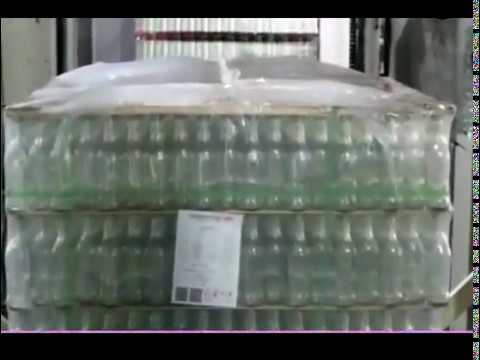

• Beverage Industry Warehousing: Essential for beverage companies, this machine enables rapid shrink wrapping of large pallet loads of bottles or cans. This secures them for safe storage and distribution, ensuring strong sealing without damaging packaging and maintaining product quality during transit.
• Construction Material Distribution: For distributing heavy materials like bricks, cement bags, tiles, and roofing supplies, the natural gas shrink wrap machine provides a powerful solution for securing bulky and often irregular loads. The strong wrapping minimizes shifting during transport, reducing damage risks and streamlining loading/unloading at distribution centers and job sites.
• Pharmaceutical Logistics: In the pharmaceutical industry, maintaining product security and preventing contamination is critical. This shrink wrap machine, with its precise temperature control, safely encases palletized pharmaceutical products. The tight seal protects against moisture, dust, and potential tampering, crucial for preserving sterility and efficacy throughout the supply chain.
• Chemical Industry: Securely wrapping pallets of drums, bags, or containers of chemicals is vital for safety and compliance. Shrink wrapping provides containment and protection during storage and transport.
• Food Processing: Packaging pallet loads of bagged goods, cartons, or containers requires efficient and protective wrapping to maintain hygiene and prevent damage before reaching retailers.

6. Considerations When Implementing Natural Gas Shrink Systems

Before investing in or installing a natural gas pallet shrink machine, consider these factors:

• Natural Gas Availability & Infrastructure: Ensure a reliable and adequate natural gas supply line is available at the installation site.
• Ventilation Requirements: Proper ventilation is crucial to safely exhaust combustion byproducts. Comply with all local regulations and safety standards.
• Space Allocation: These machines require significant floor space for operation, maintenance access, and associated conveyor lines.
• Maintenance Needs: Regular maintenance of the burner system, conveyors, and controls is essential for optimal performance and safety.
• Film Selection: Choose the appropriate type and thickness of shrink film based on the load characteristics, required holding force, and environmental exposure. [Internal Link to a post about choosing shrink film, if available].
• Safety Regulations: Adhere strictly to all relevant industrial safety standards for gas-fired equipment and automated machinery.

7. Conclusion

Automatic pallet shrink machines powered by natural gas offer a highly efficient, cost-effective, and reliable method for securing and protecting palletized goods across diverse industries. By leveraging the benefits of automation and the thermal efficiency of natural gas, these systems enhance load stability, provide excellent product protection, and contribute significantly to optimizing logistics and packaging operations. When properly selected, installed, and maintained, they represent a valuable asset for any high-volume distribution or manufacturing facility.
