Enhancing Efficiency and Protection: An Overview of Automatic Packing Machines for Reels and Coils
Manually packing heavy or bulky reels and coils of materials like cable, wire, pipe, or hose presents significant challenges. It's often a time-consuming, labor-intensive process prone to inconsistencies, potentially leading to inadequate product protection during storage and transportation. Fortunately, automated packaging solutions offer a robust alternative, streamlining operations and ensuring product integrity.
What is an Automatic Packing Machine for Reels and Coils?
An automatic packing machine for reel and coil is specialized industrial equipment designed to efficiently wrap cylindrical products using materials such as stretch film, VCI paper, or woven fabric. These machines automate the wrapping process, providing a secure, consistent, and protective covering for items ranging from electrical cables and steel wires to hoses and bearings. The goal is to prepare these products securely for handling, storage, or shipment.
How Does It Work?
While designs vary, the typical operational cycle involves:
- Loading: The reel or coil is placed onto the machine, often via conveyor or integrated handling system.
- Wrapping: The machine rotates the product while dispensing and applying the chosen wrapping material (like stretch film) around its circumference and often through the eye of the coil for full coverage.
- Cutting & Sealing: Once the wrapping cycle is complete according to pre-set parameters, the machine automatically cuts and secures the wrapping material.
- Unloading: The securely wrapped product is discharged from the machine, ready for the next stage.
Modern machines often feature Programmable Logic Controllers (PLC) allowing for customized wrap programs, variable speed control, and integration with existing production lines.
Key Features and Typical Specifications
Automated reel and coil wrappers come with various features designed for efficiency and adaptability.

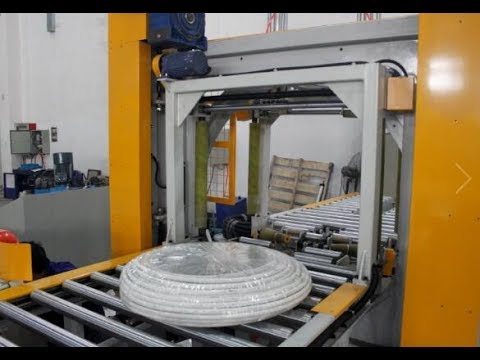

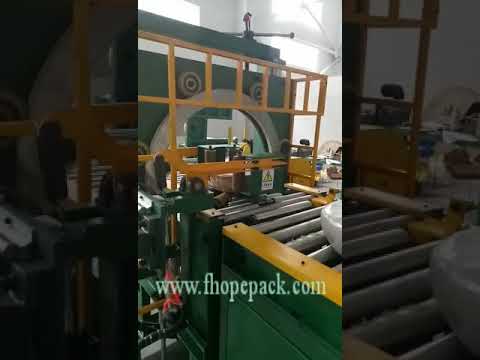

Note: The parameters listed below represent typical specifications and may not exactly match the equipment shown in the videos. For precise details tailored to specific models or applications, direct consultation is recommended.
- Machine Type: Automatic Coil and Reel Stretch Wrapping Machine
- Product Compatibility: Suitable for cables, wires, steel coils, hoses, tyres, bearings, and similar coiled products.
- Wrapping Materials: Commonly uses Stretch Film, VCI Film/Paper, Woven Fabric, Crepe Paper.
- Typical Maximum Coil Weight: Can range widely, e.g., up to 500kg (configurable based on model).
- Operational Speed: Varies by model and coil size, e.g., up to 15 coils per hour (application-dependent).
- Control System: PLC control with HMI (Human Machine Interface) for easy operation and program settings.
- Wrapping Modes: Options often include full wrap, partial wrap, and reinforced wraps.
- Tension Control: Automatic and adjustable film tension control ensures consistent wrap quality.
- Power Requirements: Specific to model and region (e.g., 480V, 50/60Hz, three-phase).
- Safety Features: Standard inclusions like safety barriers, interlocked doors, and emergency stop buttons.
- Approximate Dimensions: Varies significantly (e.g., Length: 3500mm; Width: 2100mm; Height: 2200mm).
Benefits of Automating Reel and Coil Packaging
Integrating an automatic wrapping machine offers several advantages:
- Increased Throughput: Automates a typically manual process, significantly boosting packaging speed and overall line efficiency.
- Improved Product Protection: Provides consistent, tight wrapping that protects products from dust, moisture, abrasion, and handling damage. Using materials like VCI film can also prevent corrosion for metal products.
- Enhanced Load Stability: Secure wrapping stabilizes the coil, preventing unwinding or shifting during transport and storage.
- Reduced Labor Costs: Frees up personnel previously assigned to manual wrapping tasks for other value-added activities.
- Optimized Material Usage: Precise control over film stretch and application minimizes material waste compared to manual methods.
- Improved Workplace Safety: Reduces the need for manual handling of heavy reels and repetitive wrapping motions, minimizing risks of worker injury.
pipe coil wrap machine5 Applications Across Industries
Automatic reel and coil packing machines are valuable assets in various sectors:
- Wire and Cable Manufacturing: Essential for securely wrapping coils of electrical wire, communication cables, and fiber optics, ensuring product integrity from factory to installation site. Proper wrapping prevents tangling and protects sensitive insulation.
- Steel and Metals Industry: Used for wrapping coils of steel wire, aluminum wire, copper tubing, and other metal products. This protects against surface damage, corrosion (especially with VCI materials), and facilitates safer handling of heavy items.
- Hose and Pipe Production: Efficiently packages coils of industrial hoses, hydraulic hoses, flexible pipes, and tubing, maintaining their coiled form and protecting them during shipping and storage.
- Textile and Rope Manufacturing: Suitable for large reels of fabric, rope, twine, or netting, ensuring they remain clean, contained, and easy to manage.
- Automotive and Bearing Industries: Used for wrapping items like tires or large bearings, providing protection and facilitating automated handling processes.
Conclusion
Automatic packing machines for reels and coils represent a significant upgrade over manual methods. By enhancing operational efficiency, improving product protection, optimizing material usage, and increasing safety, these machines offer a compelling solution for industries dealing with coiled products. Investing in this technology can lead to tangible benefits in productivity, cost reduction, and overall product quality assurance throughout the supply chain.
