Streamlining Cable Packaging: A Guide to Automatic Strapping and Shrink Wrapping Lines

Efficient and secure packaging is paramount in the cable manufacturing industry. Protecting cable coils from damage during handling, storage, and transportation is critical to maintaining product integrity and customer satisfaction. Automated packaging lines integrating strapping and shrink wrapping offer a robust solution, significantly improving throughput and consistency compared to manual or semi-automatic methods.

This guide explores the components, processes, and benefits of implementing an automatic cable strapping and shrinking machine packing line.

Understanding the Core Components

An integrated automatic cable packaging line typically consists of several key pieces of equipment working in sequence:

1. Infeed System: Conveyors transport the finished cable coils from the coiling or winding station to the packaging line. An Automatic Coiling Machine often precedes this step.

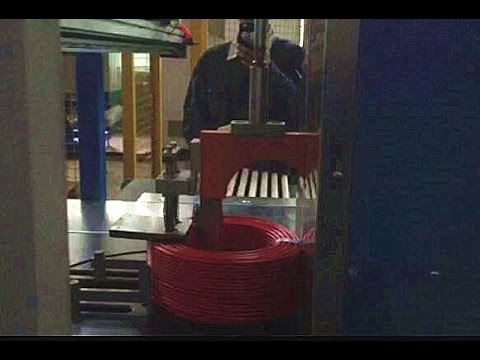

2. Cable Strapping Machine: This unit automatically applies and secures straps around the cable coil.

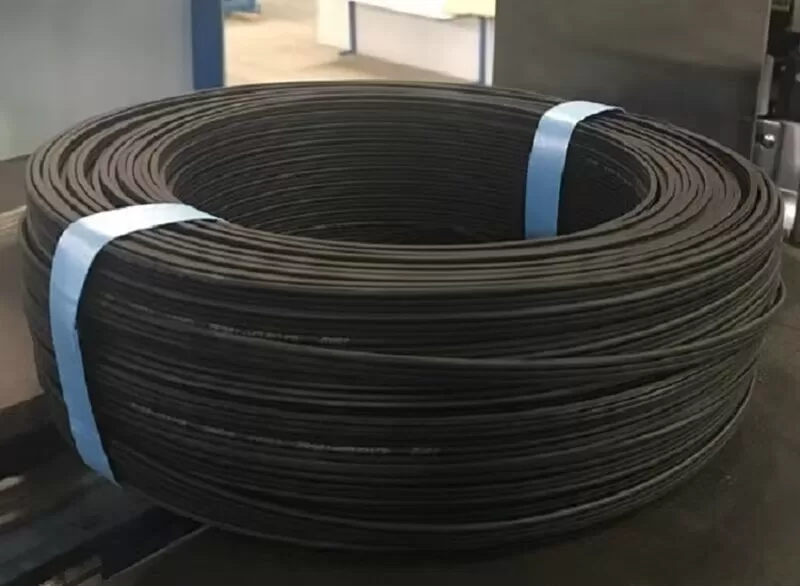

   • Function: Compresses the coil slightly and maintains its shape, preventing unwinding.
   • Materials: Commonly uses Polypropylene (PP) strapping, known for its flexibility and cost-effectiveness. Polyethylene terephthalate (PET) straps may be used for heavier or more demanding applications.

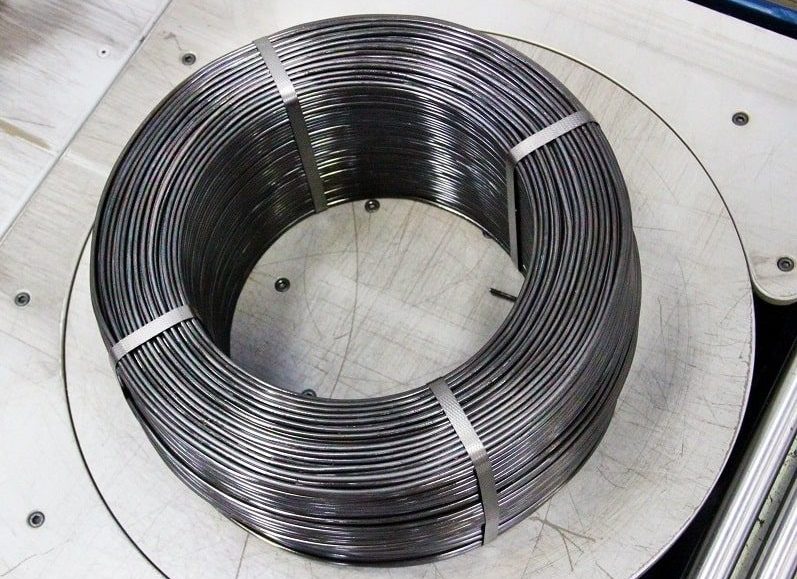

   • Process: The machine feeds the strap around the coil, tensions it to a pre-set level, seals it (often using heat or friction welding), and cuts the strap. Multiple straps can be applied radially or circumferentially depending on the configuration.
3. Shrink Wrapping Machine (Shrink Tunnel): After strapping, the coil moves into the shrink wrapping station.
   • Function: Encases the strapped coil in a protective plastic film.
   • Materials: Low-Density Polyethylene (LDPE), Polyolefin (POF), or Polyvinyl Chloride (PVC) films are common. Material choice depends on required clarity, toughness, shrink ratio, and cost.
   • Process: The coil is typically enveloped or draped with shrink film. It then passes through a heated shrink tunnel where controlled hot air circulation causes the film to shrink tightly around the coil, creating a sealed, protective layer.
4. Cooling Zone (Optional but Recommended): Allows the shrink film to cool and set properly after exiting the heat tunnel, ensuring a tight and durable wrap.
5. Outfeed System: Conveyors transport the fully packaged cable coils to the next stage, which might include labelling, palletizing, or direct shipment preparation.
6. Control System (PLC): A Programmable Logic Controller typically manages the entire line, synchronizing the different machines, monitoring sensors, and allowing for parameter adjustments (e.g., strap tension, tunnel temperature, conveyor speed).

(Note: Ensure any images included on the page have descriptive alt text explaining the image content, e.g., "alt='Automatic strapping machine applying PP strap to a blue cable coil'".)

The Automated Packaging Process: Step-by-Step

While specific configurations vary, a typical workflow involves:

1. Coil Transfer: A finished cable coil is fed onto the line's infeed conveyor.
2. Positioning: Sensors detect the coil and position it correctly for strapping.
3. Strapping: The strapping machine applies one or more straps as programmed.
4. Transfer to Shrink Wrapper: The strapped coil moves via conveyor to the shrink wrapping station.
5. Film Application: The shrink wrapping machine applies the appropriate amount of film around the coil.
6. Shrink Tunnel Passage: The coil travels through the heat tunnel, causing the film to shrink uniformly.
7. Cooling (if applicable): The wrapped coil passes through a cooling zone.
8. Discharge: The finished, packaged coil exits the line via the outfeed conveyor, ready for further handling.

Key Benefits of Automated Cable Strapping and Shrinking Lines

Integrating these automated processes delivers significant advantages:

• Enhanced Throughput and Efficiency: Automated lines operate continuously at higher speeds than manual methods, drastically reducing packaging time per coil and increasing overall production output.
• Improved Product Protection: Strapping secures the coil's form, while shrink wrapping provides a barrier against dust, moisture, dirt, and minor abrasions during transit and storage. This reduces the risk of product damage and associated costs.
• Increased Operator Safety: Automating the strapping and wrapping processes eliminates repetitive manual tasks and reduces operator exposure to moving machinery components, strapping tension, and heat sources, minimizing the risk of workplace injuries.
• Consistent Packaging Quality: Automation ensures every coil is strapped and wrapped according to pre-defined parameters (strap tension, number of straps, film coverage, shrink consistency), leading to a uniform and professional appearance and reliable protection.
• Optimized Material Usage: Automated systems can be finely tuned to use the precise amount of strapping and film required for each coil size, potentially reducing material waste compared to less controlled manual application. Learn more about packaging film properties from reliable sources like Plastics Industry Association resources (Note: Link provided as an example of an authoritative external source type).
• Labor Cost Reduction: By automating these tasks, skilled labor can be reallocated to more complex or value-added activities within the facility.




  Implementation Considerations

When considering an automatic line, factors to evaluate include:

• Production Volume: High volumes generally provide the best return on investment.
• Cable Coil Variety: Assess the range of coil sizes, weights, and types the line needs to handle.
• Required Throughput: Define the target packaging speed (coils per hour/minute).
• Available Floor Space: Ensure adequate space for the entire line, including infeed, outfeed, and maintenance access.
• Integration: How will the line connect with upstream (coiling/winding) and downstream (palletizing/logistics) processes?
• Budget: Account for the capital cost of the equipment, installation, integration, and training.




  Conclusion

For modern cable manufacturers, an automatic cable strapping and shrink wrapping packing line represents a vital investment in operational efficiency, product protection, and workplace safety. By automating and integrating these crucial packaging steps, companies can achieve higher throughput, ensure consistent package quality, reduce waste, and lower labor costs, ultimately strengthening their position in a competitive market. Carefully evaluating specific needs and choosing the right system configuration is key to unlocking the full potential of streamlined cable packaging.
