Mastering Profile Wrapping: A Deep Dive into FHOPEPACK's Automatic Horizontal Orbital Wrapper with Advanced Film Tension Control

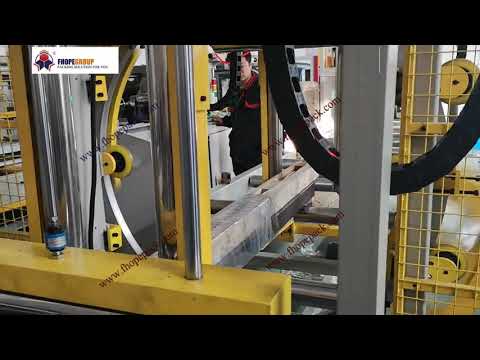

Efficiently wrapping long, variable-dimension products like aluminum extrusions, timber profiles, plastic pipes, or steel sections presents unique challenges for manufacturers and fabricators. Achieving a consistently tight, protective wrap across items with significant variations in length, width, or shape requires specialized equipment. FHOPEPACK specializes in designing and manufacturing customized horizontal orbital wrapping machines engineered to address these demanding applications, as demonstrated in the video above. A key element differentiating their solutions is the sophisticated film tension control system, crucial for optimal wrapping performance across diverse product specifications.
1. The Challenge: Wrapping Diverse and Oversized Profiles
Manually wrapping long or bulky items is often inefficient, inconsistent, and labor-intensive. Standard wrapping machines may struggle with:
- Varying Dimensions: Applying consistent film tension across products with significantly different cross-sections or lengths is difficult without advanced controls.
- Product Protection: Insufficient or uneven tension can lead to loose wraps, film tears, inadequate protection against scratches or environmental factors, and potential product damage during handling and transit.
- Material Waste: Inconsistent application often results in excessive stretch film consumption.
- Operational Bottlenecks: Manual or semi-automatic processes can slow down production lines, especially when dealing with a wide range of product sizes.
Horizontal orbital wrappers address these issues by passing the product horizontally through a rotating ring carrying the stretch film roll, ensuring a continuous, tightly wound protective layer.
2. The Solution: FHOPEPACK's Customized Horizontal Orbital Wrapper

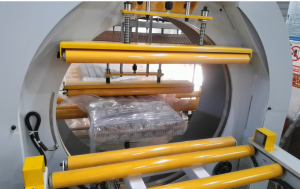

FHOPEPACK's automatic horizontal orbital wrapping machines are specifically engineered for wrapping elongated products common in industries like building materials, furniture, and metal fabrication.
- Customization: Recognizing that no two applications are identical, FHOPEPACK excels in tailoring machine design—including ring diameter, conveyor systems, and control logic—to specific customer requirements regarding product dimensions, throughput speeds, and integration needs.
- Versatility: These machines are adept at handling a wide spectrum of materials, from delicate finished surfaces requiring careful tension control to heavy-duty industrial components.
3. Core Design Features and Advanced Components
The effectiveness of the FHOPEPACK wrapper stems from its robust design and integration of key technologies:
- Orbital Ring Assembly: The heart of the machine, the rotating ring is precision-engineered for smooth, high-speed operation. Drive systems are selected for reliability and consistent rotational speed, critical for uniform film overlap.
- Conveyor System: Typically equipped with powered roller or belt conveyors, designed to handle the weight and length of the specified products. Variable speed control allows synchronization with production line flow. Options for non-marking rollers protect sensitive surfaces.
- Film Carriage and Pre-Stretch Unit: Incorporates a powered pre-stretch mechanism (often achieving ratios of 200-300%), significantly reducing film consumption while enhancing load stability and wrap strength. Easy film loading designs minimize downtime.
- Advanced Film Tension Control: This is a critical differentiator. FHOPEPACK integrates a dynamic tensioning system that automatically adjusts film tension based on the product's profile or pre-programmed settings. This ensures:
- Optimal Tightness: Sufficient tension secures the load without crushing or damaging softer materials.
- Consistency: Uniform tension is maintained even as the product's dimensions change along its length or between different batches.
- Adaptability: Effectively handles wrapping bundles, irregular shapes, and products with varying widths/heights seamlessly.
- PLC Control System with HMI: A user-friendly touchscreen interface (HMI) allows operators to easily set parameters like ring speed, conveyor speed, wrapping overlap, film tension levels, and program recipes for different product types. Provides diagnostic information and operational status.
- Safety Features: Comprehensive safety measures, including light curtains, emergency stops, and physical guarding, ensure operator safety during operation.
4. Technical Data Overview (Typical Ranges - Customizable)
| Feature | Specification Range | Benefit |
|---|---|---|
| Product Size Handling | Accommodates diverse inventory | |
| - Max Width/Height | 500mm - 2000mm+ (customizable) | Versatility for large profiles |
| - Min Width/Height | 50mm - 100mm (customizable) | Handles smaller items effectively |
| - Max Length | 2000mm - 12000mm+ (conveyor based) | Suitable for long extrusions, pipes, timber |
| Wrapping Performance | Efficiency and wrap quality | |
| - Ring Speed (RPM) | 30 - 100+ RPM (model dependent) | Balances throughput speed and wrap integrity |
| - Conveyor Speed (m/min) | 5 - 20+ m/min (variable) | Synchronizes with line speed, controls overlap |
| - Film Pre-stretch Ratio | Up to 300% (powered) | Maximizes film yield, enhances load containment |
| - Film Tension | Electronically Adjustable | Precise control for different product types/fragility |
| Film Specifications | Compatibility and operational ease | |
| - Film Roll Width | 100mm / 250mm / 500mm (common) | Adaptable to different wrapping needs |
| - Film Roll Outer Diameter | Up to 280mm | Longer runs between film changes |
| - Film Roll Core Diameter | 76mm (standard) | Industry standard compatibility |
| Utilities | Operational requirements | |
| - Power Supply | 380V/50Hz/3Ph (or per requirement) | Standard industrial power |
| - Compressed Air (if needed) | 5-7 bar | For pneumatic actuators (cut/clamp systems) |
(Note: Specifications are indicative and highly dependent on the specific machine model and customization level.)
5. Operational Advantages and Return on Investment (ROI)
Investing in an automatic horizontal orbital wrapper like those from FHOPEPACK delivers tangible benefits:
- Increased Throughput: Significantly faster wrapping cycles compared to manual or semi-automatic methods.
- Consistent Quality: Automated control ensures every product receives a uniform, professional wrap, enhancing product presentation and protection.
- Reduced Film Costs: Powered pre-stretch maximizes film efficiency, leading to substantial savings on consumables. Precise tension control prevents excessive film use.
- Labor Savings: Frees up personnel previously dedicated to manual wrapping for more value-added tasks.
- Enhanced Product Protection: A tight, secure wrap minimizes damage from handling, moisture, and dust during storage and shipping.
- Improved Safety: Reduces manual handling risks associated with wrapping large or heavy items.
6. User Experience and Customization in Practice
From a user perspective, these machines are designed for ease of operation and maintenance.
- Intuitive Controls: The HMI simplifies setup and adjustments, allowing operators to quickly select or modify wrapping programs.
- Reliability: Robust construction using quality components ensures dependable performance in demanding industrial environments.
- Maintenance: Accessible components and clear documentation facilitate routine maintenance.
- FHOPEPACK's Customization Edge: Operators benefit directly from machines tailored to their specific product range. This might include specialized infeed/outfeed conveyors, top pressers for unstable loads, or automatic film cut-and-clamp systems for fully automated lines. The ability to fine-tune the film tension dynamically is frequently cited by users as a key factor in achieving perfect wraps across diverse production runs without constant manual intervention.
7. Conclusion: Optimizing Your Wrapping Process
For businesses handling long products with varying dimensions, FHOPEPACK's automatic horizontal orbital wrappers represent a significant upgrade in efficiency, consistency, and product protection. The integration of advanced features, particularly the dynamic film tension control system, allows these machines to adapt seamlessly to diverse wrapping requirements, ensuring optimal performance whether handling delicate architectural profiles or robust industrial materials. By investing in tailored wrapping automation, fabricators can reduce costs, improve product quality, and streamline their end-of-line packaging operations.
To explore how a customized horizontal orbital wrapping solution can benefit your specific application, consider contacting FHOPEPACK for a detailed consultation.
