Automated Wire Coil Wrapping with Stretch Film: A Comprehensive Guide
Wrapping wire coils with stretch film using an automated coil wrapping machine is an essential process for protecting these valuable components from various environmental factors and physical damage during storage and transit. Proper wrapping safeguards against corrosion, dust, and moisture, ensuring coil integrity upon arrival. This method also effectively secures loose coil ends, preventing unraveling and maintaining coil form. This guide dives into the intricacies of automated wire coil wrapping using stretch film, highlighting its benefits, key features, and the operational principles behind the machinery.
Why Use Automated Stretch Film Wrapping for Wire Coils?
Compared to manual wrapping methods, automated systems offer significant advantages which translate to operational improvements and cost savings. These benefits include:
- Enhanced Protection: Stretch film provides a robust barrier against moisture, dust, and physical abrasion, elements that can compromise wire coil quality.
- Coil Stabilization: Securing loose ends prevents unraveling, making coils easier to handle and store.
- Increased Efficiency: Automated machines dramatically increase throughput compared to manual wrapping.
- Consistent Quality: Machine-applied wrapping ensures uniform tension and overlap, leading to consistently high-quality results.
- Material Optimization: Automated systems precisely control film usage, minimizing waste and reducing material costs.
- Improved Safety: Reducing manual handling minimizes the risk of injuries associated with manipulating heavy coils and sharp edges.
- Reduced Labour Costs: Automation significantly reduces labour costs.
Key Features of a Wire Coil Wrapping Machine
Modern wire coil wrapping machines incorporate several key features designed for optimal performance and adaptability:
- Versatile Coil Handling: Machines must accommodate a wide range of coil diameters, thicknesses, and weights. This is often achieved through adjustable rollers, centering devices, and robust drive systems. Technical consideration: Load Capacity, for example, ranges from 500kg to 3000kg, driven by a motor power from 0.75kW to 2.2kW.
- Consistent Tension Control: Maintaining uniform film tension is crucial for secure and effective wrapping. This is achieved via mechanical or electronic tensioning systems that carefully control the film feed rate. Technical Consideration: The rotating and tensioning speed for a coil wrapping machine is 20-80 RPM, as well as the tension force for the machine is 5-20N which ensure that the machine works effectively to cover the coil.
- Automatic Film Cutting and Sealing: Upon completion of the wrapping cycle, the machine automatically cuts the film and seals the end for a secure closure. This is typically accomplished using a hot wire or heat sealing mechanism.
- Adjustable Wrapping Parameters: Operators can adjust the number of film layers, overlap, and tension to suit specific coil and packaging requirements. This adjustability is crucial for dealing with different wire gauges, coil weights, and environmental conditions.
- Safety Mechanisms: Safety is paramount. Machines are equipped with emergency stop buttons, light curtains, and overload sensors to protect operators and prevent damage.
- Programmable Logic Controller (PLC): PLC control allows for simple programming and customization of wrapping cycles. This enables operators to easily adapt the machine to different coil types and wrapping patterns. The PLC system helps to optimize the machine for production, helping it to run as fast as possible.
- Robust Construction: These machines operate in demanding industrial environments and are built with heavy-duty frames, durable components, and corrosion-resistant materials to ensure long-term reliability. Frame material normally is made of carbon steel which are powder coated.
The Mechanics of Automated Coil Wrapping
Understanding how these machines work requires delving into the core mechanics. Here's a simplified breakdown:

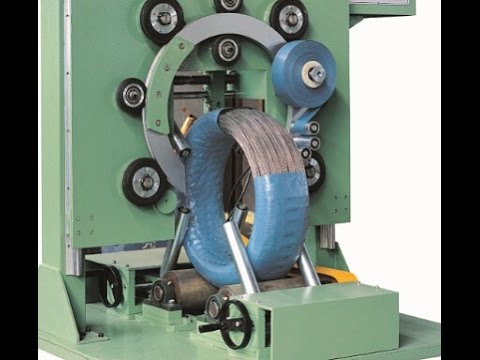

- Coil Placement: The wire coil is placed onto a rotating platform or fed through an eye system, depending on the machine type.
- Film Application: A film dispenser, typically mounted on a rotating ring or arm, applies stretch film to the coil as it rotates. The film dispenser moves up and down along the coil's axis to ensure complete coverage.
- Tension Control: The film passes through a tensioning mechanism that ensures consistent and even pressure is applied to the coil. Some systems use a simple friction brake, while others employ more sophisticated electronic tension controllers.
- Rotation and Overlap: The rotation speed of the platform and the vertical movement of the film dispenser are synchronized to achieve the desired film overlap and coverage.
- Cutting and Sealing: Once the wrapping cycle is complete, a cutting mechanism severs the film. A heat sealing or hot wire system then seals the film end to the coil, creating a secure closure.
Material Considerations: Stretch Film
The effectiveness of automated coil wrapping heavily relies on the quality and properties of the stretch film used. Key considerations include:
- Film Thickness: Thicker films offer greater strength and puncture resistance for heavier or irregularly shaped coils.
- Stretchability: High stretch films can be stretched significantly before breaking, reducing material consumption and increasing wrapping force. Techincal analysis: It can reach from 150% to 500% which minimize the usage.
- Cling: Adequate cling ensures that the film layers adhere to each other, creating a tight and secure wrap.
- UV Resistance: If coils are stored outdoors, UV-resistant films prevent degradation and maintain film integrity.
Applications Across Industries
Automated coil wrapping is valuable across a variety of industries, including:
- Wire and Cable Manufacturing: Protecting finished wire and cable coils for shipment and storage.
- Metal Processing: Wrapping steel, aluminum, and copper coils to prevent corrosion and damage.
- Automotive: Securing coils of wire used in vehicle electrical systems.
- Construction: Protecting coils of rebar and other construction materials.
Integrating Automation for Productivity and Efficiency
Adopting automated wire coil wrapping can significantly boost productivity, reduce operational costs, and enhance product protection. By understanding the key features, operational principles, and material considerations, businesses can select the optimal system for their specific needs and achieve substantial improvements in their coil handling processes.
For example, Fhope coil warpping machine help client to reach around 20 sec per coil in steel industry, which save more the 50% packing material. This is driven by optimization of machine runing speed under premiss of safty.
