Enhancing Efficiency: A Guide to Automatic Plastic Pipe Bundling Machines

Handling long lengths of plastic pipes efficiently and safely is a common challenge in manufacturing and extrusion operations. Manual bundling can be time-consuming, labor-intensive, and lead to inconsistent package quality. Automated systems, specifically plastic pipe bundling machines, offer a robust solution to streamline this process. This guide explores the functionality, benefits, and applications of these machines, featuring a video demonstration of one such system in action.

What is an Automatic Plastic Pipe Bundling Machine?

An automatic plastic pipe bundling machine is a specialized piece of industrial equipment designed to automate the post-extrusion process of handling plastic pipes. Its primary function is to automatically count, collect, arrange, and securely bundle specific quantities of pipes (like PVC, PPR, HDPE pipes) into manageable units for storage, transport, or further processing. These machines are often integrated directly into production lines.

Key Features and Functions

Modern pipe bundling machines incorporate several advanced features:

• Automatic Pipe Counting: Utilizes sensors or vision systems to accurately count pipes as they arrive from the production line, ensuring precise bundle quantities.
• Pipe Gathering and Alignment: Efficiently collects pipes and aligns them properly to form a neat, structured bundle.
• Strapping/Wrapping Stations: Secures the formed bundle using plastic straps (PP or PET) or stretch film. Systems can be equipped with multiple stations (e.g., two, three, or four) for faster throughput or specific wrapping patterns.
• Bundle Ejection/Handling: Once secured, the machine automatically ejects the completed bundle, often transferring it to a designated area, such as a storage basket or conveyor system.
• Integration Capabilities: Designed to work seamlessly with upstream equipment like extrusion lines, haul-offs, and cutters, enabling fully automated end-to-end processing.

How it Works: The Automated Process

The typical operational sequence for an automatic pipe bundling machine involves:

1. Infeed: Pipes exiting the production line (e.g., cutter or cooling tank) are fed into the bundling machine.
2. Counting: Sensors detect and count each pipe until the pre-set number for a bundle is reached.
3. Collection & Alignment: Pipes are collected in a designated area within the machine and aligned into the desired bundle shape (e.g., square, hexagonal).
4. Bundling: The aligned pipes are automatically strapped or wrapped at one or more points along their length.
5. Ejection: The finished, secured bundle is moved out of the bundling station, ready for removal or downstream handling.

The embedded video below provides a clear visual representation of this automated sequence.

Benefits of Automation in Pipe Bundling

Implementing an automatic pipe bundling system offers significant advantages:

• Increased Efficiency: Drastically reduces the time required compared to manual bundling, increasing overall production throughput.
• Improved Consistency: Ensures every bundle is uniform in count, shape, and tightness, improving handling and storage.
• Reduced Labor Costs: Minimizes the need for manual labor in the bundling process, allowing personnel to focus on higher-value tasks.
• Enhanced Safety: Reduces the ergonomic risks and potential injuries associated with manually handling long, potentially heavy pipes.
• Product Protection: Secure and consistent bundling helps protect pipes from damage during handling and transportation.

Applications

Automatic pipe bundling machines are versatile and used across various sectors involved in plastic pipe production and distribution. They are suitable for bundling a wide range of pipe types, including:

• PVC (Polyvinyl Chloride) pipes
• PPR (Polypropylene Random Copolymer) pipes
• HDPE (High-Density Polyethylene) pipes
• Conduits and other extruded profiles

Industries benefiting from these systems include construction material manufacturing, plumbing supply, agriculture (irrigation pipes), and telecommunications (ducts).

Video Demonstration

Watch the automatic pipe bundling machine in operation, demonstrating the counting, gathering, strapping, and bundle ejection process:

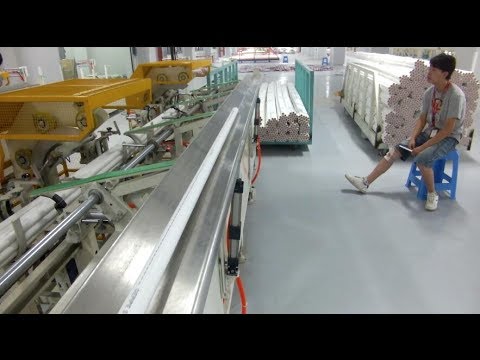

This video showcases the machine's capability to handle pipes online, perform counting and gathering, secure the bundle with strapping, and deposit the finished bundle into a collection basket.

Choosing the Right System

When considering an automatic pipe bundling system, factors such as the range of pipe diameters and lengths to be handled, required throughput speed (bundles per hour), the type of bundling material (strap or film), and integration requirements with existing lines should be carefully evaluated.

Conclusion

Automatic plastic pipe bundling machines represent a significant advancement in pipe handling automation. By replacing manual processes with efficient, reliable machinery, manufacturers can achieve higher productivity, better consistency, improved safety, and reduced operational costs. As seen in the video, these systems effectively manage pipe counting, gathering, and securing, making them a valuable asset in modern plastic pipe production facilities.

For more detailed specifications on plastic pipe packaging lines and related solutions, you can explore further resources:
Plastic Pipe Packing Line Information
