Automating Steel Tube Handling: Hexagon and Square Bundle Making Explained

Efficiently handling and packaging steel tubes, particularly those with non-circular profiles like hexagon and square shapes, presents unique challenges in manufacturing and processing environments. Manual bundling is labor-intensive, slow, and can lead to inconsistent bundle quality and potential safety hazards. Automated steel tube bundlers offer a robust solution, streamlining the process for improved productivity and safety.

Understanding Steel Tube Bundlers for Hexagon and Square Profiles

A steel tube bundler for hexagon and square bundle making is specialized automated equipment designed to receive individual steel tubes, arrange them into predetermined layers, and form them into stable hexagonal or square bundles suitable for storage and transport. These systems integrate several key processes to manage tubes from production output or storage through to a ready-to-ship bundle.

Key Components and Operational Flow

Modern steel tube bundlers typically consist of several integrated modules working in sequence:

1. Automated Tube Lifting and Infeed (Automatic Lifter)

This initial stage receives tubes, often from a production line or buffer storage. A lifting mechanism carefully handles individual tubes or groups of tubes, transferring them onto the bundler's infeed conveyor, ensuring proper orientation and spacing for the next stage.

2. Precise Layer Formation (Automatic Layer Making)

Once on the infeed, tubes are precisely arranged to form a single layer according to the desired bundle configuration (hexagon or square). This often involves mechanical guides, pushers, or robotic arms to ensure accurate alignment, which is critical for bundle stability, especially with shaped tubes.

3. Bundle Assembly (Automatic Bundle Making)

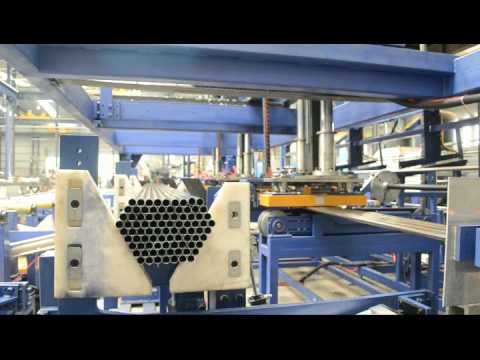

Successive layers are stacked according to the programmed bundle pattern. The machine uses clamps, supports, and forming mechanisms to hold the layers securely as the bundle builds vertically or horizontally. This stage ensures the final bundle shape (hexagon or square) is achieved accurately and tightly.

4. Bundle Transport and Discharge (Automatic Carriage & Conveyor)

After formation, the completed bundle is transferred away from the assembly area. This might involve an automated carriage system that moves the bundle onto an exit conveyor or directly to a strapping/wrapping station. The conveyor system then moves the finished bundle to a storage area or the next step in the logistics chain.

5. Integrated Control System

The entire process is orchestrated by a Programmable Logic Controller (PLC). The control system manages the timing and sequence of each module, allows operators to select bundle recipes (size, shape, tube count), monitors sensors for proper operation, and integrates safety features.

Advantages of Automated Tube Bundling

Implementing an automated system for hexagon and square tube bundling offers significant operational benefits:

• Increased Throughput: Automation significantly speeds up the bundling process compared to manual methods, increasing overall production output.
• Consistent Bundle Quality: Machines ensure each bundle meets precise shape, dimension, and tightness specifications, improving stability for handling and transport.
• Enhanced Worker Safety: Automating the lifting, arranging, and bundling of heavy steel tubes reduces manual handling risks, minimizing potential musculoskeletal injuries and accidents. Systems are equipped with safety guarding and emergency stop functionalities.
• Reduced Labor Costs: By automating repetitive tasks, facilities can reallocate personnel to more value-added activities, optimizing labor utilization.
• Optimized Material Flow: Seamless integration with upstream and downstream processes (like cutting lines or strapping machines) creates a smoother, more efficient production flow.

Selecting the Right Bundling System

Choosing the appropriate steel tube bundler requires careful consideration of several factors:

• Tube Specifications: Define the range of tube sizes (diameter/width, wall thickness, length), shapes (hexagon, square, potentially others), and weights the machine must handle.
• Bundle Requirements: Specify the desired bundle configurations (e.g., number of tubes per bundle, final bundle dimensions, maximum weight).
• Throughput Needs: Determine the required bundling speed (bundles per hour or tubes per minute) to match production capacity.
• Level of Automation: Decide the required degree of automation – from semi-automatic components to fully integrated lines including strapping and weighing.
• Available Footprint: Ensure the machine dimensions fit within the allocated space in your facility.
• Manufacturer Reliability and Support: Select a reputable manufacturer known for robust equipment and reliable technical support, service, and spare parts availability.

Emphasis on Safety Features

Safety is paramount in automated systems handling heavy materials. Look for bundlers equipped with comprehensive safety features, such as:

• Physical Guarding: Barriers and fencing to prevent access to moving parts during operation.
• Light Curtains or Safety Scanners: To detect personnel entering hazardous zones and stop machine movement.
• Emergency Stop Buttons: Strategically located for quick access to halt the machine in case of an emergency.
• Interlocked Access Doors: Ensuring the machine stops if access gates are opened during operation.




  Conclusion

Automated steel tube bundlers for hexagon and square profiles are essential technology for modern tube mills and metal processing centers. By replacing manual labor with efficient, precise, and safe automated processes, these systems directly contribute to increased productivity, consistent product quality, and a safer working environment. Careful evaluation of operational needs and system capabilities will ensure the selection of a bundler that effectively optimizes tube handling and packaging operations.
