Optimizing Steel Coil Packaging: An In-Depth Look at Pallet Turntable Stretch Wrap Machines

Handling and transporting heavy steel coils presents unique challenges. Ensuring their stability and protection against environmental factors like moisture and dust is crucial. An automated steel coil pallet turntable stretch wrap machine offers a robust solution for efficiently securing coils onto pallets using stretch film.

This specialized equipment significantly streamlines the packaging workflow, moving beyond manual methods to deliver consistency, speed, and safety. Let's explore how these machines operate and the benefits they bring to steel processing and logistics.

1. Core Functionality: How Turntable Stretch Wrappers Work

The fundamental principle involves rotating a palletized load while dispensing stretch film around it. Here's a breakdown of the process:

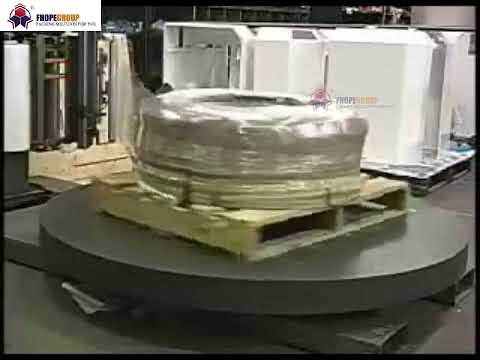

1. Loading: The steel coil, already placed on a pallet, is loaded onto the machine's turntable. This can be done via forklift or integrated conveyor systems in fully automated lines.
2. Rotation: The turntable begins to rotate at a controlled speed.
3. Film Application: A vertical mast holds the stretch film carriage. This carriage moves up and down as the turntable spins, dispensing the stretch film and applying it around the coil and pallet.
4. Stretching: Modern machines incorporate pre-stretch mechanisms. This stretches the film before it's applied to the load (often by 150% to 300%), maximizing film yield, improving load containment, and reducing material costs.
5. Tension Control: Sophisticated sensors and controls maintain consistent film tension throughout the wrap cycle, ensuring the load is secured tightly without damaging the coil edges.
6. Wrapping Parameters: Operators or automated systems can typically control various parameters:
   • Turntable speed
   • Film carriage ascent/descent speed
   • Number of top and bottom wraps
   • Film tension
   • Film pre-stretch ratio
7. Cutting and Securing: Once the wrapping cycle is complete, the film is automatically cut and secured (often wiped down) to the load, leaving the pallet ready for removal.

2. Key Features and Components

While designs vary, typical features of an automated steel coil pallet turntable wrapper include:

• Heavy-Duty Turntable: Designed to support the significant weight of steel coils and pallets, often featuring robust construction and reliable drive systems.
• Powered Pre-Stretch Film Carriage: Ensures optimal film usage and load security.
• Programmable Logic Controller (PLC): Allows for easy setup, storage of different wrap programs, and precise control over the wrapping process.
• Variable Speed Drives: For both the turntable and the film carriage, allowing customization for different load types and stability requirements.
• Automatic Film Cut and Wipe System: Enhances automation and reduces manual intervention.
• Safety Features: Essential elements include emergency stop buttons, safety fencing or light curtains, and sensors to prevent operation if obstructions are detected.

3. Advantages of Automated Stretch Wrapping for Steel Coils

Implementing an automated turntable stretch wrapper provides significant operational benefits:

• Enhanced Load Stability: Consistent, tight wrapping secures the coil to the pallet, minimizing shifting during handling and transit, reducing the risk of damage.
• Improved Protection: Stretch film provides a barrier against dirt, dust, and moisture, preserving the quality of the steel coil. Opaque films can also offer UV protection.
• Increased Throughput: Automation dramatically speeds up the packaging process compared to manual or semi-automatic methods, boosting overall productivity.
• Reduced Labor Costs: Frees up personnel from the physically demanding task of manual wrapping, allowing them to focus on other value-added activities.
• Optimized Film Consumption: Pre-stretch technology significantly reduces the amount of film needed per pallet, leading to substantial material cost savings and environmental benefits.
• Consistent Wrap Quality: Automation eliminates variability inherent in manual wrapping, ensuring every pallet is wrapped to the same standard.
• Improved Safety: Reduces the risks associated with manual wrapping, such as repetitive strain injuries and accidents related to walking around moving loads.

4. Applications in the Steel Industry

These machines are vital in various stages of the steel supply chain:

• Steel Mills: Wrapping finished coils for storage or shipment.
• Service Centers: Securing processed or slit coils onto pallets before distribution.
• Distribution Centers: Preparing coils for final delivery to end-users.
• Manufacturing Facilities: Protecting incoming coils before use in production processes.

5. Considerations for Implementation

When selecting a steel coil pallet turntable stretch wrapper, consider:

• Load Weight and Dimensions: Ensure the machine's capacity matches the heaviest and largest coils handled.
• Required Throughput: Match the machine's speed and automation level to your operational needs.
• Level of Automation: Choose between semi-automatic (requiring operator intervention for loading/unloading and cycle start) and fully automatic systems (integrating with conveyors).
• Space Availability: Consider the machine's footprint and required safety clearances.
• Maintenance Requirements: Understand the recommended maintenance schedule to ensure longevity and reliability.

By automating the pallet wrapping process, facilities handling steel coils can achieve greater efficiency, improved load security, enhanced product protection, and a safer working environment. These machines represent a valuable investment in optimizing logistics and preserving the quality of steel products.
