A Comprehensive Guide to Steel Coil Handling Equipment

Steel coils are fundamental raw materials in numerous industries, including automotive manufacturing, construction, appliance production, and general metal fabrication. These large, heavy rolls of sheet metal require careful and specialized handling to ensure worker safety, prevent costly damage to the material, and maintain efficient production workflows. Understanding the various types of coil handling equipment available is crucial for any facility processing steel coils.

Why Proper Coil Handling Matters

Handling steel coils, which can weigh several tons, presents significant challenges. Improper techniques or inadequate equipment can lead to:

• Safety Hazards: Risk of serious injury or fatality from falling coils or equipment malfunction.
• Material Damage: Dents, scratches, edge damage, or telescoping coils can render valuable material unusable.
• Inefficiency: Slow or cumbersome handling processes can create bottlenecks in production.
• Increased Costs: Resulting from damaged material, workplace accidents, and production delays.

Utilizing dedicated coil handling equipment mitigates these risks, promoting a safer and more productive operational environment.

Key Types of Steel Coil Handling Equipment

A range of specialized machines and tools are designed specifically for moving, lifting, tilting, and storing steel coils safely and efficiently. Here are some common types:

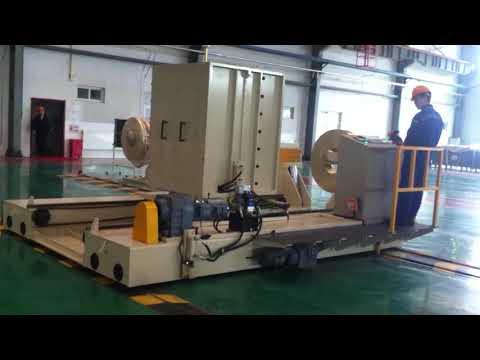

1. Coil Cars

Coil cars are robust machines designed to transport coils horizontally, typically used for loading coils onto uncoilers/decoilers or moving them between storage areas and processing lines.

• Function: Transport coils safely along a predefined path.
• Types: Can be rail-mounted for fixed paths or trackless for more flexibility. Often feature powered lift and travel.
• Key Features: V-shaped saddle or adjustable supports to secure the coil, powered mechanisms for lifting and traversing.
• Applications: Feeding processing lines (stamping, cutting), moving coils from receiving to storage.

2. Coil Lifters

These devices are essential for lifting and moving coils, often used with overhead cranes or hoists.

• Function: Securely grip and lift coils for vertical movement and placement.
• Types:
  • C-Hooks: Simple, durable, and widely used. Require sufficient aisle space for maneuvering.
  • Motorized Grabs: Offer powered clamping arms for secure gripping, often with rotating capabilities.
  • Vertical Eye Coil Lifters: Engage the coil through the eye (center hole) when stored vertically.
  • Pressure Lifters: Grip the outer diameter, useful when eye access is limited.
• Considerations: Load capacity, coil width range, headroom requirements, and safety features (e.g., locking mechanisms).

3. Coil Tilters (Upenders)

Coil tilters, also known as upenders, are used to reorient coils between horizontal ("eye-to-the-sky") and vertical ("eye-to-the-wall") positions.

• Function: Safely rotate coils by 90 degrees.
• Importance: Essential for loading coils onto pallets, preparing them for certain storage systems, or positioning them correctly for specific processing equipment.
• Types: Typically powered by hydraulic or electromechanical systems, featuring platforms or cradles designed to support the coil during rotation.
• Applications: Receiving areas, shipping departments, integration into automated lines.

4. Coil Conveyors

Coil conveyors automate the movement of coils along a production or processing line.

• Function: Transport coils horizontally between different workstations or processes.
• Types: Can utilize heavy-duty rollers, belts, or chain systems depending on the application and coil weight.
• Benefits: Improve workflow efficiency, reduce manual handling, integrate seamlessly with other automated equipment.
• Applications: Feeding slitting lines, cut-to-length lines, stamping presses.

5. Coil Storage Systems

Proper storage is vital for protecting coils and optimizing floor space.

• Function: Provide safe, organized, and accessible storage for steel coils.
• Types:
  • Coil Racking: Specialized heavy-duty racks designed to cradle coils securely, often allowing for high-density storage.
  • Floor Storage: Requires careful planning, often using designated areas with saddles or chocks to prevent rolling. Less space-efficient but simpler.
• Considerations: Coil size and weight, inventory management needs (e.g., FIFO - First-In, First-Out), available space, interaction with handling equipment.

Choosing the Right Coil Handling System

Selecting the appropriate equipment involves considering several factors:

• Coil Specifications: Weight, width, inner/outer diameter.
• Handling Frequency: How often are coils moved?
• Facility Layout: Available space, ceiling height, floor capacity, existing infrastructure (e.g., cranes).
• Process Requirements: Integration with existing production lines.
• Safety Standards: Compliance with regulations (e.g., OSHA in the US).
• Budget: Initial investment versus long-term operational savings and safety benefits.

Safety First: Best Practices for Steel Coil Handling

Regardless of the equipment used, safety must always be the top priority:

• Operator Training: Ensure personnel are thoroughly trained on equipment operation and safety procedures.
• Regular Maintenance: Keep equipment in optimal working condition through scheduled inspections and maintenance.
• Load Limits: Never exceed the rated capacity of lifting or transport equipment.
• Clear Pathways: Maintain clear, unobstructed routes for coil movement.
• Proper PPE: Ensure operators use appropriate Personal Protective Equipment.
• Load Securement: Always verify that coils are properly secured before lifting or moving.
• Awareness: Maintain situational awareness in areas where coils are being handled.

Consulting resources like the Occupational Safety and Health Administration (OSHA) or equivalent local bodies can provide detailed guidance on safe material handling. [Link to OSHA or relevant safety authority website]

Conclusion

Efficient and safe steel coil handling is fundamental to successful operations in many industries. By investing in the right combination of coil cars, lifters, tilters, conveyors, and storage systems, facilities can significantly enhance productivity, minimize material damage, and most importantly, create a safer working environment for their employees. Carefully evaluating specific needs and adhering to best safety practices are key to harnessing the full potential of specialized coil handling equipment.
