Understanding Semi-Automatic Horizontal Coil Wrappers for Efficient Packaging

Protecting coiled materials like metal sheets, wires, cables, or tubing during transport and storage is crucial. A semi-automatic horizontal coil wrapper offers an efficient and consistent solution for applying protective packaging layers. This guide explores what these machines are, how they work, their key features, and important considerations.

1. What is a Semi-Automatic Horizontal Coil Wrapper?

A semi-automatic horizontal coil wrapper is specialized packaging equipment designed to wrap coils positioned horizontally (resting on their side). The "semi-automatic" designation means that while the wrapping process itself is automated, tasks like loading the coil onto the machine and unloading it after wrapping, as well as initiating the cycle, typically require operator intervention.

These machines apply materials like stretch film, VCI paper, bubble film, or crepe paper around the coil's circumference and often through its eye, providing protection against dust, moisture, and physical damage.

2. How Does it Work?

The typical operation sequence for a semi-automatic horizontal wrapper involves:

1. Loading: An operator manually places the coil onto the machine's designated loading area, often using a crane, forklift, or conveyor.
2. Initiation: The operator secures the leading edge of the wrapping material to the coil and starts the wrapping cycle via a control panel or foot switch.

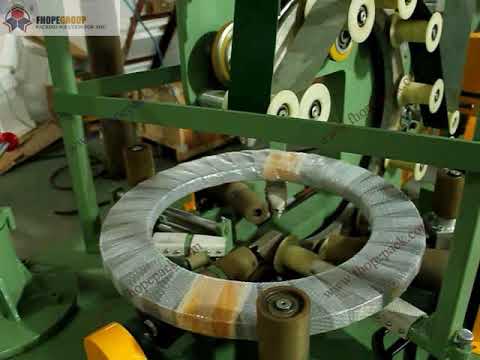

3. Wrapping: The machine automatically rotates the coil (or a wrapping ring rotates around the stationary coil) while dispensing and applying the packaging material according to pre-set parameters (e.g., overlap, number of layers). The film carriage moves through the eye of the coil for through-the-eye wrapping if required.
4. Cutting & Securing: Once the cycle is complete, the machine (or operator, depending on the model) cuts the wrapping material. The operator may need to manually secure the trailing edge.
5. Unloading: The operator removes the fully wrapped coil from the machine.

3. Key Features and Benefits

Semi-automatic horizontal coil wrappers come equipped with features designed for efficiency and consistent results:

1. Adjustable Speed and Tension Control: Allows operators to fine-tune the wrapping process based on the coil type, weight, and packaging material, ensuring optimal wrap tightness and consistency without damaging the product.
2. Automatic Film Feeding and Cutting: Many models automatically feed the correct amount of film and cut it at the end of the cycle, reducing manual effort and material waste.
3. Variable Wrapping Patterns: Enables customization of the wrap, such as adjusting the overlap percentage or the number of layers applied, to meet specific protection requirements.
4. User-Friendly Controls: Typically feature intuitive interfaces like touch screens or push buttons, simplifying operation, setup, and monitoring.
5. Robust Construction: Built for industrial environments, these machines feature sturdy frames and high-quality components for durability and longevity.
6. Flexibility: Can handle a range of coil sizes and weights, though specific machine capabilities vary.

Benefits include:

• Increased packaging speed compared to manual wrapping.
• Improved consistency and quality of the wrap.
• Reduced labor costs and operator fatigue.
• Better protection for coiled products.
• Optimized use of packaging materials.

4. Common Applications

These wrappers are widely used in industries dealing with coiled materials, including:

• Metals: Steel coils, aluminum coils, copper strips, wire rods.
• Wire & Cable: Spools of electrical wire, communication cables, fiber optics.
• Plastics: Tubing, hoses, pipes.
• Other: Paper rolls, textiles, rubber hoses.

5. Considerations When Choosing a Machine

Selecting the right semi-automatic horizontal coil wrapper involves evaluating:

• Coil Dimensions: Minimum and maximum Inner Diameter (ID), Outer Diameter (OD), and Width the machine can handle (e.g., ID: 300-500mm, OD: 500-700mm, Width: 10-200mm).
• Coil Weight: The maximum weight capacity of the machine (e.g., 10-100kg).
• Wrapping Materials: Compatibility with required materials (stretch film, VCI paper, bubble film, etc.).
• Throughput Needs: The required wrapping speed (coils per hour).
• Space Availability: The machine's footprint and required operating area.
• Budget: Initial investment cost versus long-term operational savings.
• Safety Features: Emergency stops, safety guards, interlocks.

6. Wrapping Materials

Common materials used with these machines include:

• Stretch Film: Provides containment and protection from dust and moisture.
• VCI Paper/Film: Volatile Corrosion Inhibitor materials protect metals from rust and corrosion.
• Crepe Paper: Offers cushioning and moisture absorption.
• Bubble Film: Provides cushioning against impacts.
• Woven PP Belt: Strong material often used for securing heavy coils.

7. Maintenance and Safety

Regular maintenance is essential for ensuring the longevity and reliability of the coil wrapper. Adhering to manufacturer guidelines and implementing standard industrial safety protocols during operation are crucial for protecting personnel and equipment.

Conclusion

Semi-automatic horizontal coil wrappers provide a valuable bridge between manual wrapping and fully automated systems. They enhance packaging efficiency, ensure product protection, and deliver consistent results for a wide variety of coiled products. By carefully considering application requirements and machine specifications, businesses can select a wrapper that significantly improves their packaging operations.
