Understanding Plastic Pipe Wrapping Machines: Operation, Benefits, and Applications

Plastic pipe wrapping machines are essential equipment in industries utilizing plastic piping, providing crucial protection during storage, handling, and transportation. This automated or semi-automated machinery applies protective films or tapes around pipes, safeguarding them from environmental factors, physical damage, and corrosion. This guide explores the operation, components, benefits, and common applications of these vital systems.

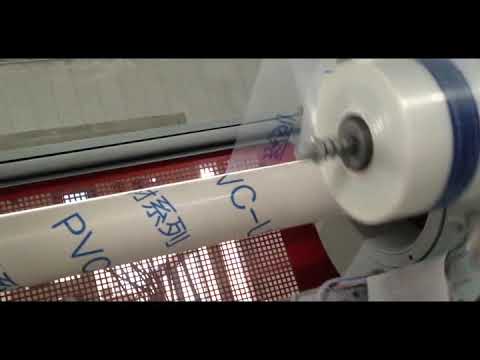

Above: Demonstration of an online pipe wrapping machine incorporating film application and tapping.

How Plastic Pipe Wrapping Machines Operate

The core function of a plastic pipe wrapping machine involves securely applying a continuous layer of protective material around the circumference of a pipe as it moves through the system. The typical operational sequence includes:

1. Pipe Feeding: Pipes are loaded onto an infeed conveyor system, either manually or automatically. This system transports the pipe towards the wrapping station.
2. Wrapping Application: As the pipe enters the wrapping station, a rotating ring or shuttle dispenses the wrapping material (like PE stretch film or specialized tape). The ring orbits the pipe while the pipe simultaneously moves longitudinally. This synchronized movement ensures a consistent, overlapping spiral wrap.
3. Tension Control: The machine maintains optimal tension on the wrapping material to ensure a tight, secure fit without damaging the pipe.
4. Cutting and Sealing: Once the pipe is fully wrapped, an automated mechanism cuts the material and often seals the end to prevent unwrapping.
5. Pipe Outfeed: The wrapped pipe exits the machine via an outfeed conveyor, ready for storage or further processing.

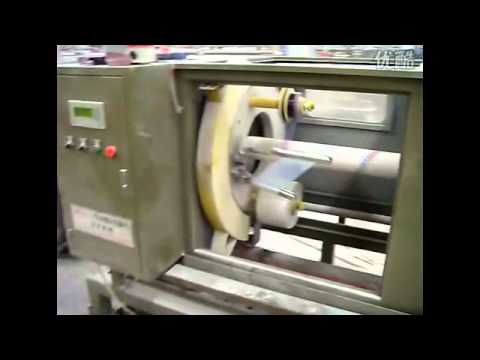

Above: Example of a pipe wrapping process showcasing material application.

Key Components and Features

A standard plastic pipe wrapping machine comprises several integrated components:

• Conveyor System: Infeed and outfeed conveyors (often roller or belt types) manage the controlled movement of pipes through the machine.
• Wrapping Ring/Shuttle: The core component that holds the material roll and rotates around the pipe to apply the wrap. Speed and overlap are typically adjustable.
• Material Dispenser & Tension Control: Holds the roll of wrapping material and includes mechanisms (mechanical or motorized pre-stretch) to control the application tension precisely.
• Clamping Devices: Pneumatic or mechanical clamps hold the pipe securely during the initial wrap and final cut/seal process.
• Control System (PLC): A Programmable Logic Controller manages the machine's functions, synchronizing conveyor speed, ring rotation, cutting, and clamping, allowing for automated operation and parameter adjustments via an HMI (Human-Machine Interface).
• Safety Features: Includes emergency stop buttons, safety guards, and sensors to ensure operator safety during operation.

Common Wrapping Materials and Their Advantages

The choice of wrapping material depends on the specific protection required:

• Polyethylene (PE) Stretch Film: Widely used for general protection against dust, moisture, scratches, and UV radiation (if UV-inhibited film is used). Cost-effective and versatile.
• Polyvinyl Chloride (PVC) Tape: Offers good abrasion resistance and can provide a tighter wrap. Often used for bundling or specific protective requirements.
• Anti-Corrosion Tapes: Specialized tapes incorporating VCI (Volatile Corrosion Inhibitors) or barrier layers are used to protect metal components sometimes associated with plastic pipe systems or the pipes themselves in harsh environments.
• Woven Fabric/Paper: Used in some applications for heavier-duty protection or specific packaging needs.

Core Benefits of Automated Pipe Wrapping

Utilizing automated pipe wrapping equipment offers significant advantages:

• Enhanced Pipe Protection: Provides consistent, uniform coverage, minimizing damage from handling, environmental exposure (UV, moisture), and preventing surface scratches or contamination.
• Increased Efficiency: Automates a previously manual process, significantly increasing throughput and reducing packaging time.
• Reduced Labor Costs: Minimizes the need for manual labor in the wrapping process, freeing up personnel for other tasks.
• Improved Wrap Quality: Ensures consistent overlap and tension, leading to a more secure and reliable protective layer compared to manual methods.
• Material Savings: Precise control over film stretch and overlap can optimize material usage, reducing waste.
• Enhanced Safety: Reduces manual handling risks associated with wrapping large or heavy pipes.

Industry Applications

Plastic pipe wrapping machines are indispensable in various sectors:

1. Water Supply and Utilities

In water distribution projects, plastic pipes (like HDPE, PVC) are fundamental. Wrapping machines apply protective films (often UV-resistant PE) shielding pipes from sunlight degradation, physical impacts during transport and installation, and potential chemical exposure in the ground. This extends pipe lifespan, ensures reliable water delivery, and cuts down on maintenance for municipal and rural water systems.

2. Agriculture and Irrigation

Maintaining the integrity of plastic pipes in irrigation systems is vital for water conservation and crop yield. Automated wrapping provides a tight, durable layer that protects against UV damage, abrasion during field placement, and prevents potential punctures from small animals or root intrusion. This ensures irrigation systems remain efficient and leak-free over long operational periods.

3. Construction and Plumbing

Large volumes of plastic pipes are used for plumbing, drainage, and conduit in residential and commercial construction. Wrapping machines prepare these pipes efficiently, applying a protective layer that minimizes scratches, scuffs, and contamination during site delivery, storage, and installation. This ensures the integrity of the final plumbing or utility systems, preventing costly leaks or failures.

Typical Machine Specifications

The following parameters represent typical capabilities of automatic plastic pipe wrapping machines. Specific models may vary. For exact specifications tailored to your requirements, direct consultation is recommended.

• Machine Type: Automatic Orbital Pipe Wrapping Machine
• Control: Programmable Logic Controller (PLC) with HMI
• Pipe Diameter Range: Commonly handles diameters from 20mm up to 400mm (specific ranges vary by model)
• Pipe Length: Accommodates various standard lengths, often customizable conveyor lengths available.
• Wrapping Materials: Compatible with PE stretch film, PVC tapes, anti-corrosive materials, etc.
• Wrapping Ring Speed: Adjustable, often up to 100 RPM or higher depending on ring size.
• Conveyor Speed: Adjustable, typically up to 20 meters per minute or more.
• Overlap Rate: Adjustable (e.g., 10% - 90%) via PLC settings.
• Power Supply: Standard industrial voltages (e.g., 380V/415V, 50/60Hz, 3-phase)
• Pneumatic System Requirement: Typically requires compressed air (e.g., 0.5-0.7 MPa).
• Operational Noise: Generally maintained below 75 dB.
