Mastering Pallet Wrapper Operation: Ensuring Load Stability and Efficiency

In modern manufacturing and logistics, ensuring that products reach their destination safely and securely is paramount. Pallet wrapping machines play a crucial role in this process. A Pallet wrapping machine, also known as a stretch wrapper, is an essential piece of equipment designed to unitize pallet loads using stretch film, significantly improving load stability and providing protection against dust, moisture, and tampering during storage and transportation.

Understanding the proper operation of these machines is key to maximizing efficiency and ensuring the integrity of shipped goods.

Understanding the Pallet Wrapping Process

The core function of a pallet wrapper involves applying layers of stretch film around a loaded pallet. While specific operations vary between models (manual, semi-automatic, fully automatic), the fundamental steps generally include:

1. Load Placement: The loaded pallet is placed onto the machine's turntable or positioned within the wrapping zone (for rotary arm models).
2. Film Attachment: The leading edge of the stretch film is manually or automatically attached to the pallet base or load.

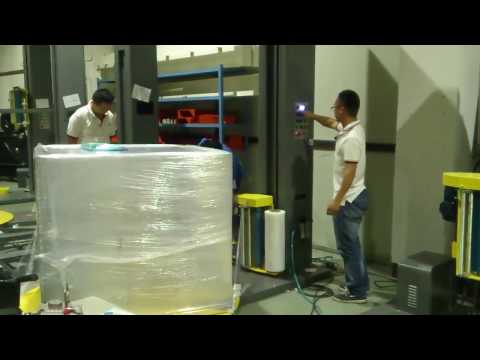

3. Wrapping Cycle Initiation: The operator or automated system starts the wrapping cycle via a control panel.
4. Rotation and Film Dispensing: The turntable rotates the pallet (or an arm rotates around a stationary pallet). Simultaneously, the film carriage, holding the roll of stretch film, moves vertically along a mast.
5. Film Stretching: A critical feature is the pre-stretch mechanism within the film carriage. This system stretches the film before it's applied to the load (often achieving 150% to 300% stretch). Pre-stretching significantly increases film yield (reducing costs) and enhances load containment force.
6. Layer Application: The combination of rotation and vertical carriage movement ensures the load is wrapped from bottom to top (and often back down) with overlapping layers of film.
7. Film Cutting and Sealing: Once the programmed wrap pattern is complete, the film is automatically or manually cut and secured (often wiped) against the load.
8. Load Removal: The securely wrapped pallet is removed from the machine.

Key Components and Their Functions

• Turntable/Rotary Arm: The component responsible for relative motion between the load and the film roll. Turntables are common for standard loads, while rotary arms suit very heavy, unstable, or light loads that might shift on a turntable.
• Film Carriage: Holds the stretch film roll and houses the pre-stretch system. It travels vertically on the mast.
• Mast: The vertical structure supporting and guiding the film carriage.
• Control Panel (PLC - Programmable Logic Controller): The machine's brain, allowing operators to set and adjust wrapping parameters (e.g., rotation speed, wrap counts, film tension).
• Pre-stretch System: A set of rollers in the film carriage that elongates the film before application, optimizing film usage and load security.

Optimizing Performance: Key Operational Parameters

Achieving optimal wrap quality requires careful adjustment of machine settings based on the load characteristics. Operators typically manage:

• Turntable/Arm Speed: Controls how fast the load rotates or the arm revolves. Needs balancing with film carriage speed for proper overlap.
• Film Carriage Speed (Up/Down): Determines the rate of vertical movement, influencing the film overlap between layers. More overlap generally means greater stability but uses more film.
• Film Tension Control: Regulates how tightly the film is applied to the load. Proper tension is crucial; too loose fails to secure the load, too tight can crush fragile products.
• Pre-stretch Ratio: Often adjustable (or fixed based on roller configuration), determining how much the film is stretched before application. Higher pre-stretch saves film but requires quality film to avoid breaks.
• Top and Bottom Wrap Counts: Allows setting extra wraps at the top and bottom of the pallet, critical areas for load stability.
• Wrap Pattern: Pre-programmed options might include standard up/down cycles, reinforce wrapping, or one-way wrapping.

Note: The specific parameters achievable depend heavily on the machine model. Always refer to the manufacturer's documentation for precise capabilities and operating instructions.

Best Practices for Effective Pallet Wrapping

• Load Preparation: Ensure goods are stacked stably on the pallet before wrapping. Interlocking patterns and avoiding overhangs improve results.
• Film Selection: Use high-quality stretch film appropriate for the machine's pre-stretch capabilities and the load type (gauge, width, properties).
• Consistent Settings: Once optimal settings are found for a specific load type, document and use them consistently.
• Regular Inspection: Periodically check wrapped loads to ensure the desired containment force and protection are being achieved.
• Proper Film Threading: Ensure the film is threaded correctly through the carriage and pre-stretch rollers as per the manufacturer's guide.




  Essential Safety Protocols for Pallet Wrapper Operation

Safety is non-negotiable when operating machinery:

• Operator Training: Ensure only trained personnel operate the pallet wrapper.
• Clearance Zones: Maintain clear areas around the machine during operation, especially around rotating turntables or arms.
• Emergency Stops: Know the location and function of all emergency stop buttons.
• Guarding: Never operate the machine with safety guards removed or disabled.
• Film Handling: Be cautious when handling film rolls and cutting mechanisms.

Routine Maintenance for Longevity and Performance

Preventative maintenance ensures reliable operation and extends machine life:

• Cleaning: Regularly clean rollers, sensors, and the general machine area.
• Lubrication: Follow manufacturer guidelines for lubricating moving parts.
• Inspections: Periodically check belts, chains, rollers, and electrical connections for wear or damage.
• Film Roll Changes: Perform film roll changes safely according to procedure.

Real-World Applications in Manufacturing and Fabrication

Pallet wrappers are indispensable across various sectors, including:

1. Metal Fabrication: Securing bundles of steel profiles, aluminum extrusions, or fabricated sheet metal parts onto pallets prevents shifting and surface damage during handling and transport. Proper wrapping maintains the quality of finished goods.
2. Component Manufacturing: Wrapping pallets of machined parts, castings, or sub-assemblies ensures they remain organized, protected from contaminants, and stable for movement to assembly lines or for shipment to customers. This reduces loss from damage or displacement.
3. Appliance and Equipment Manufacturing: Large, bulky items like industrial machinery components or assembled units require robust wrapping to protect surfaces and secure them effectively on the pallet, preventing costly damage during transit.

By mastering pallet wrapper operation and adhering to best practices, fabricators and manufacturers can significantly enhance their packaging processes, reduce product damage, lower material costs, and improve overall logistical efficiency and safety.
