Optimizing Your Wire Packaging: An Overview of Reel Packing Machine Solutions
Proper packaging is crucial for protecting wire and cable reels during storage and transportation, ensuring product integrity and facilitating efficient handling. As manufacturers navigate various requirements, understanding the available wire reel packing solutions is essential. This guide explores common approaches and automated systems used in the industry.
Core Approaches to Wire Reel Packaging
There are several fundamental methods for packing wire reels, often integrated into automated lines:
1. Direct Wire Reel Wrapping and Protection
This method focuses on applying protective layers directly to the wire reel itself, primarily covering the outer diameter (OD) and sometimes the flanges. Common techniques include:
- Stretch Wrapping: Applying layers of stretch film around the reel provides stability, protection from dust, moisture, and minor abrasions.
- Protective Sheeting: Using materials like PE film, corrugated sheets, or Kraft paper for enhanced protection against environmental factors or impacts.
This approach is suitable when the reel itself is the primary shipping unit.
2. Re-coiling, Spooling, and Packaging Smaller Units
For distribution or retail purposes, wire from larger master reels is often transferred to smaller spools or formed into coils. This process typically involves:
- Pay-off: Unwinding the wire from the master reel in a controlled manner.
- Re-coiling/Re-spooling: Winding the wire onto smaller, manageable spools or forming compact coils.
- Securing/Strapping: Applying straps to maintain the coil's shape or secure the wire end on the spool.
- Individual Packaging: Wrapping or boxing the smaller coils/spools.

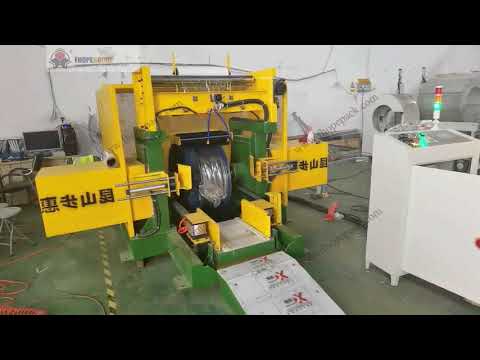

Example: Pay-off and Re-spooling into Small Coils

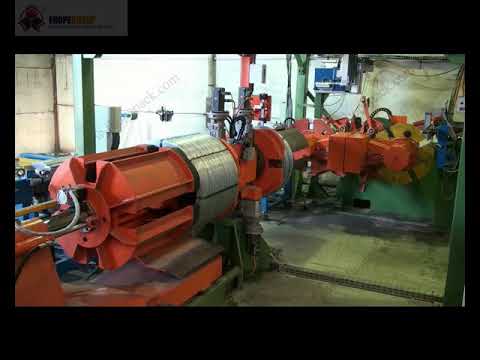

Example: Pay-off for Re-winding and Strapping
Automated Wire Reel Packing Lines
Many manufacturers utilize fully automated packing lines to enhance efficiency, consistency, and throughput. Here are two common configurations:
Machine Line 1: Automated Reel-to-Carton Box Packing
This line is designed to pack individual wire reels securely into cardboard boxes. The typical sequence includes:
- A. Reel Weighing: Accurately measures the weight for inventory, shipping, or quality control.
- B. Stretch Wrapping: Applies stretch film around the reel for initial protection and stability.
- C. Online Label Printing & Application (Reel): Prints and applies labels with product information, barcodes, or tracking data directly onto the wrapped reel.
- D. Box Erecting: Automatically forms flat cardboard blanks into ready-to-fill boxes.
- E. Reel Transfer into Carton: Places the wrapped and labeled reel into the erected carton.
- F. Box Folding & Sealing: Closes the carton flaps and seals them, typically with tape.
- G. Online Label Printing & Application (Box): Applies shipping or final product labels to the sealed box.
Reel Specifications (Example for Box Packing):
- Height: 160 - 400mm
- Diameter: 250 - 400mm
Machine Line 2: Automated Reel-to-Pallet Packing

This line prepares reels for bulk shipment, often securing them onto pallets. The process usually involves:
- A. Reel Weighing: Initial weight capture.
- B. Stretch wrapping the reel: Primary wrapping for protection.
- C. Online Label Printing & Application (Reel): Labeling the individual reel.
- D. Protective Layer Application: Wrapping the reel in materials like PE air cavity film, corrugation sheet, or Kraft Paper for enhanced cushioning and protection.
- E. Edge Guard Application: Fixing protective paper edge guards on reel flanges to prevent damage during handling and stacking.
- F. Final Stretch Wrapping: Applying a final layer of stretch wrap to consolidate the protective layers and secure the reel.
- G. Online Label Printing & Application (Final): Applying final labels post-packaging.
- (Optional Palletizing): Although not explicitly listed in the original points, this line often concludes with stacking the prepared reels onto a pallet and stretch wrapping the entire pallet load for stability.
Reel Specifications (Example for Pallet Packing):
- Height: 250 - 700mm
- Diameter: 250 - 500mm
Key Considerations for Packing Lines
- Automation Level: Lines can range from semi-automatic (requiring some manual intervention) to fully automatic.
- Control Systems: Often utilize PLCs (Programmable Logic Controllers) for integrated control, with components potentially sourced from manufacturers like Siemens.
- Conveying Systems: Automated transfer of reels between stations via conveyors is standard in high-throughput lines.
- Packing Speed: Throughput varies significantly based on line complexity and reel size (e.g., up to 120 reels/hour as cited in the example).
- Flexibility: Modern lines may offer adjustments for varying reel dimensions.
Conclusion
Selecting the appropriate wire reel packing machine or automated line depends heavily on factors like reel size and weight, wire type, required level of protection, desired throughput, and downstream handling processes (individual sale vs. bulk shipment). Understanding the different methods—from direct wrapping to re-coiling and integrated automated lines—allows manufacturers to implement efficient, protective, and cost-effective packaging solutions tailored to their specific needs.
