Optimizing Wire Coil Handling: A Guide to Automatic Packing Lines

Handling and packaging large wire coils – whether steel, aluminum, or copper – presents significant logistical and safety challenges in manufacturing and distribution environments. Manual methods are often slow, labor-intensive, and can lead to inconsistent package quality. Automatic wire coil packing lines offer a robust, efficient, and reliable solution to streamline these critical end-of-line processes.

These integrated systems automate the wrapping, strapping, and handling of coils, preparing them securely for storage or shipment. Understanding their components and benefits is key for facilities looking to improve productivity and safety.

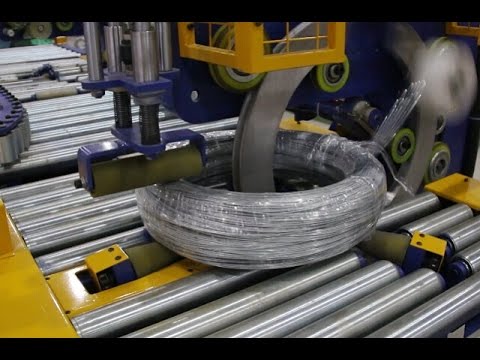

Watch an example of an automatic wire coil packing line in operation:

Understanding the Core Components of an Automatic Wire Coil Packing System

A typical Automatic wire coil packing machine line consists of several key stations working in sequence:

Coil Handling and Infeed Conveyors

The process begins with moving the wire coil into the packaging line. This is usually achieved via automated conveyor systems, such as roller or chain conveyors, designed to handle the specific weight and dimensions of the coils. Proper infeed ensures correct positioning for subsequent wrapping and strapping operations.

Wrapping Station: Protecting the Coil

This is where the primary protective layer is applied. Most commonly, orbital stretch wrappers are used.

• Orbital Wrapping: The coil remains stationary or rotates slowly while a film carriage revolves around and through the coil's eye, applying stretch film tightly to all exposed surfaces.
• Material Options: While stretch film is prevalent for moisture and dust protection, other materials like VCI (Vapor Corrosion Inhibitor) paper or film can be integrated for enhanced corrosion protection, especially for steel wire.

Strapping Unit: Securing the Load

After wrapping, the coil typically moves to an automatic strapping station to secure the package and prevent unwinding.

• Strap Types: Depending on the coil weight and application requirements, either PET (polyester) or steel strapping is used.
• Automated Process: The steel wire packing machine automatically feeds the strap around the coil circumference (radially) or through the eye (axially), tensions it to a pre-set level, and seals it (usually via heat seal for PET or mechanical crimp for steel). Multiple straps can be applied for added security.

Control System and Programmability

Modern packing lines are managed by a central Programmable Logic Controller (PLC) accessible via a Human-Machine Interface (HMI). This allows operators to:

• Set parameters for different coil sizes (diameter, width, weight).
• Adjust wrapping patterns (film overlap, number of wraps).
• Define strapping configurations (number of straps, tension levels).
• Monitor system status and diagnostics.

Safety Features

Given the heavy loads and moving machinery, safety is paramount. Standard features include:

• Perimeter guarding and safety fencing.
• Light curtains or laser scanners at entry/exit points to detect personnel presence and halt operation.
• Emergency stop buttons readily accessible.
• Interlocked access doors.

Key Advantages of Automated Coil Packaging

Implementing an automatic wire coil packing line provides numerous operational benefits:

• Increased Throughput and Efficiency: Automation significantly speeds up the packaging process compared to manual methods, handling a higher volume of coils per shift.
• Consistent Package Quality: Automated systems apply wrapping and strapping materials uniformly every time, ensuring consistent protection and load stability.
• Enhanced Product Protection: Proper wrapping and secure strapping minimize damage from handling, moisture, dust, and corrosion during transit and storage.
• Reduced Manual Labor and Ergonomic Risks: Automating repetitive and physically demanding tasks like wrapping and strapping reduces labor requirements and minimizes the risk of musculoskeletal injuries for workers.
• Improved Safety: Integrated safety features and reduced manual interaction with heavy coils contribute to a safer working environment.

Considerations for Implementation

When selecting or designing an automatic wire coil packing line, key factors include:

• Coil Specifications: Minimum/maximum diameter, width, and weight.
• Throughput Requirements: Coils per hour/shift needed.
• Packaging Materials: Type of wrap (stretch film, VCI) and strap (PET, steel).
• Level of Automation: Degree of integration with upstream and downstream processes (e.g., automated coil loading, labeling, palletizing).
• Footprint: Available floor space for the equipment.




  The Role of Automation in Modern Wire Processing

Automatic wire coil packing lines are essential tools in modern wire manufacturing and processing facilities. They represent a significant step towards optimizing end-of-line operations, ensuring that valuable wire products are packaged efficiently, consistently, and safely, ready for the next stage in the supply chain. By reducing labor costs, enhancing product protection, and increasing throughput, these systems offer a compelling return on investment for businesses handling substantial coil volumes.
