Automatic Pallet Wrapping Machine for Steel Coil

Understanding Automatic Pallet Wrapping Machines for Steel Coil Protection

Steel coils, whether hot-rolled, cold-rolled, or coated, represent significant value and require careful handling and packaging to prevent damage during storage and transit. Automatic pallet wrapping machines specifically designed for steel coils provide a robust solution for applying protective stretch film, enhancing load stability, and safeguarding against environmental factors like moisture and dust that can lead to corrosion.

How Automatic Steel Coil Wrappers Work

These specialized machines automate the process of encasing heavy, cylindrical steel coils in stretch film. The typical operational flow involves:

1. Coil Loading: Coils are often loaded onto the machine's heavy-duty turntable or designated wrapping area via integrated roller conveyors, forklift, or overhead crane, depending on the system design.
2. Wrapping Cycle Initiation: Once the coil is positioned, the automated cycle begins. The machine securely clamps the leading edge of the stretch film to the coil or pallet base.

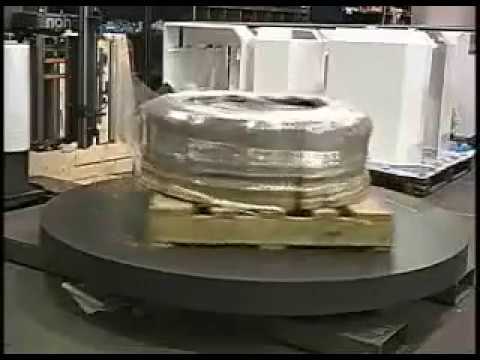

3. Film Application: The core of the process involves either the turntable rotating the coil while a stationary film carriage dispenses film, or a rotary arm moving around a stationary coil. The film delivery system precisely controls the tension and pre-stretch applied to the film.
4. Pattern Control: Advanced PLC (Programmable Logic Controller) systems allow operators to define specific wrapping patterns, including the number of top and bottom wraps, overlap percentage, and reinforcement banding wraps, ensuring complete and secure coverage tailored to the coil's dimensions and stability needs.
5. Film Cut and Seal: Upon cycle completion, the machine automatically cuts the stretch film and typically seals the tail end to the coil using a heat or wipe-down mechanism, preventing unraveling.
6. Coil Unloading: The wrapped coil is then ready for removal, often facilitated by powered conveyors or accessible for forklift/crane unloading.




   Essential Components and Features

Automatic steel coil wrappers are built for demanding industrial environments and incorporate several key components:

• Heavy-Duty Turntable or Rotary Arm: Engineered to support multi-ton coil weights. Turntables rotate the coil itself, while rotary arm systems are often preferred for extremely heavy or potentially unstable loads, keeping the coil stationary while the film arm orbits around it.
• Film Delivery System (Film Carriage): Features a powered pre-stretch mechanism (often capable of stretching film from 150% up to 300% or more). Pre-stretching optimizes film usage, reduces packaging costs, and significantly improves load containment force. Tension control ensures consistent application without damaging the coil edges.
• Control System (PLC): The brain of the machine, offering a touchscreen interface for setting parameters, storing different wrap recipes for various coil sizes/types, adjusting speeds, and providing diagnostic feedback.
• Automated Film Clamp, Cut, and Seal: Enables true automation, reducing manual intervention, improving cycle times, and enhancing operator safety.
• Integrated Conveyance (Optional): Powered roller or chain conveyors can be integrated for seamless loading and unloading, creating a fully in-line packaging process.
• Safety Features: Essential elements include safety fencing, light curtains at entry/exit points, emergency stop buttons, and pressure-sensitive sensors to protect personnel during operation.

Typical Technical Specifications

Note: Specifications can vary significantly based on the specific model, manufacturer, and customization required for an application. The parameters below represent typical ranges for heavy-duty steel coil wrapping systems.

• Machine Type: Automatic Coil Stretch Wrapper (Turntable or Rotary Arm)
• Primary Application: Steel coils (bare or on pallets/skids)
• Maximum Coil Weight: Typically ranges from 2,000 kg up to 30,000 kg or more
• Coil Diameter Range: Accommodates various industry standard diameters
• Coil Width Range: Designed for common slit coil and master coil widths
• Film Delivery System: Powered pre-stretch, often adjustable up to 250-300%
• Wrapping Speed: Variable, commonly 10-20 rotations per minute (RPM) or arm equivalent
• Operation Mode: Fully automatic sequence with manual override capabilities
• Control System: PLC with HMI (Human Machine Interface) touchscreen
• Power Requirements: Typically 380V/480V, 50/60Hz, 3-Phase (application specific)
• Safety Compliance: Designed to meet relevant safety standards (e.g., CE, OSHA)

Applications in the Steel Industry

Automatic wrapping machines are indispensable in various stages of the steel supply chain:

• Steel Mills & Production Facilities: Protects freshly produced coils from immediate environmental exposure (humidity, contaminants) preserving surface quality, particularly for sensitive products like galvanized or painted steel.
• Metal Service Centers & Processors: Ensures coils remain protected after slitting, cutting, or other value-added processes. Proper wrapping maintains coil integrity and prevents edge damage or telescoping during handling within the facility and prior to shipment.
• Shipping and Logistics: Provides crucial load stabilization for transport via truck, rail, or sea. Securely wrapped coils are less likely to shift or sustain damage, reducing claims and ensuring safe arrival at the destination. The wrap offers protection against road grime, salt spray, and moisture ingress during transit.
• Warehousing and Storage: Safeguards coils during short-term or long-term storage, preventing dust accumulation and corrosion initiation. Tightly wrapped coils can sometimes allow for more stable stacking (depending on coil specifics and safety guidelines).
