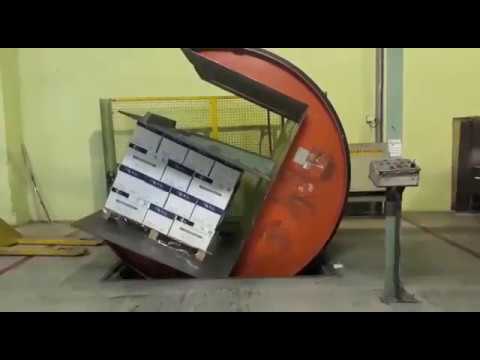

Understanding the 180-Degree Underground Pallet Turner and Pallet Turning Machine

A 180-degree turner, often referred to as a pallet turning machine or pallet inverter, is a specialized piece of material handling equipment. Its primary function is to rotate pallets or other unitized heavy loads by a full 180 degrees. This guide focuses specifically on models designed for underground or pit-mounted installation, commonly utilized in sectors like warehousing, logistics, food and beverage, pharmaceuticals, and manufacturing where efficient and safe load repositioning is critical.

How Does an Underground Pallet Turner Work?

While designs vary, the fundamental operation involves several key steps:

1. Loading: The palletized load is typically moved onto the machine's platform, often via a conveyor system or forklift.
2. Clamping: Secure hydraulic or mechanical clamps engage the load and pallet, holding them firmly in place.
3. Rotation: The turntable mechanism rotates the clamped load 180 degrees.
4. Release & Unloading: Once rotation is complete, the clamps release, and the inverted load can be removed.

The core components facilitating this process generally include:

• Base Frame: Provides structural support, often designed for pit mounting.
• Turntable/Rotation Mechanism: The powered unit that performs the 180-degree rotation.
• Clamping System: Jaws or pressure plates that secure the load during inversion.
• Control System: PLC-based controls for precise, automated, and safe operation, often with variable speed and pressure settings.
• Conveyor Integration (Optional): Input and output conveyors for seamless integration into automated lines.

Advantages of the Underground (Pit-Mounted) Design

Installing a pallet turner underground, or "pit-mounted," offers distinct advantages, particularly where floor space is a premium or seamless workflow is desired:

• Space Optimization: By recessing the machine, valuable above-ground floor space is preserved for traffic, storage, or other operations.
• Flush Floor Access: Pit mounting allows the machine's loading platform to be level with the surrounding floor. This eliminates the need for ramps and enables easy loading/unloading with standard forklifts or pallet jacks.
• Streamlined Workflow: Integration with floor-level conveyor systems becomes simpler, facilitating smoother material flow in automated environments.

Key Applications and Uses

180-degree pallet turners address several common material handling challenges:

• Load Transfer: Efficiently switching loads from in-house pallets to shipping pallets, or vice-versa (e.g., wood to plastic hygienic pallets).
• Damaged Pallet Replacement: Quickly replacing broken or damaged pallets at the bottom of a stack without manual restacking.
• Product Inversion: Rotating products for freezing, drying, or other processing requirements.
• Slip Sheet Operations: Exchanging pallets for slip sheets or vice-versa.
• Accessing Bottom Layers: Allowing access to goods at the bottom of a palletized load for order picking or quality inspection.

Enhancing Efficiency and Safety

Automating the load inversion process with a 180-degree turner provides significant benefits:

• Increased Efficiency: Dramatically reduces the time and labor compared to manual restacking or alternative methods.
• Improved Ergonomics and Safety: Eliminates strenuous and potentially hazardous manual handling tasks, reducing the risk of musculoskeletal injuries. Complies with safe material handling practices.
• Product Protection: Gentle and controlled rotation minimizes the risk of damage to sensitive goods during inversion.
• Operational Flexibility: Handles a wide range of load sizes, weights, and types (subject to machine specifications).

Modern machines incorporate essential safety features, such as:

• Perimeter guarding or light curtains to prevent access during operation.
• Pressure sensors to ensure proper clamping force.
• Emergency stop circuits.
• Interlocks integrated with conveyors or safety gates.




  Conclusion

The 180-degree underground pallet turner, or pit-mounted pallet inverter, is a robust solution for specific material handling needs. By enabling safe, efficient, and automated 180-degree rotation of heavy palletized loads while optimizing floor space, these machines play a crucial role in modern logistics and manufacturing operations. Their ability to integrate seamlessly at floor level makes them particularly valuable in space-constrained facilities or highly automated production lines, contributing significantly to operational safety and productivity.
