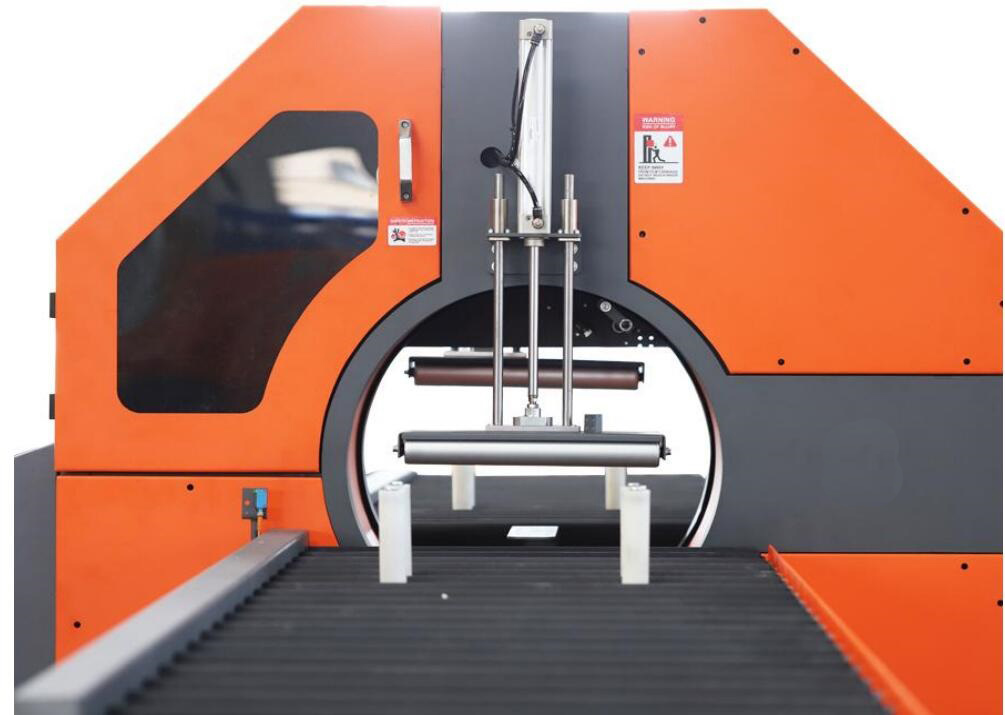

High-Speed Automatic Horizontal Stretch Wrapper: Customizable ODM Solutions for Diverse Industrial Packaging
In today's demanding industrial environments, efficient and reliable packaging solutions are paramount. For businesses requiring tailored machinery to handle unique product dimensions or integration needs, Original Design Manufacturer (ODM) services offer a critical advantage. This automatic horizontal stretch wrapper exemplifies a high-performance packaging solution developed through such an ODM partnership, designed for flexibility and high throughput.
1. Addressing Unique Packaging Challenges with ODM Flexibility
The core strength of this offering lies in its ODM nature. Unlike standard off-the-shelf machines, an ODM approach allows for significant customization:
- Tailored Dimensions: The machine's frame, ring size, and conveyor system can be adapted to accommodate a wide range of product lengths, widths, and profiles – from long extrusions and pipes to panels, doors, and bundled items.
- Specific Integration: Seamless integration into existing production lines, including specific conveyor heights, communication protocols (e.g., Profibus, Ethernet/IP), and automated loading/unloading sequences.
- Material Handling: Solutions can be engineered for delicate surfaces, heavy loads, or unconventional shapes, ensuring product integrity throughout the wrapping process.
- Environment Specifics: Modifications for specific operating environments, such as washdown requirements or extreme temperatures.
This flexible solution ensures that the final automatic horizontal stretch wrapper precisely meets the user's operational requirements.
2. Technical Deep Dive: High-Speed Orbital Wrapping Technology
At the heart of this machine is its high-speed orbital wrapping mechanism, delivering efficiency and secure load containment.
- Rotational Speed: The orbital ring can achieve speeds of up to 200 RPM (Revolutions Per Minute), enabling rapid wrapping cycles crucial for high-volume production lines.
- Wrapping Principle: The product is conveyed horizontally through the rotating ring, which dispenses stretch film around it, creating a tight, protective layer. This method is ideal for long or unstable products that are difficult to wrap on traditional turntable machines.
- Structural Integrity: The machine features a robust bearing ring assembly engineered for durability and smooth high-speed operation. This strong structure reliably supports heavy film rolls, minimizing downtime and ensuring consistent performance even under demanding continuous use.
3. Key Components and Design Features
A closer look reveals the engineering details contributing to the machine's performance and reliability:
- Wrapping Ring Assembly: Precision-engineered ring utilizing durable bearings and a reliable drive system (often belt or direct drive) for consistent rotation and minimal maintenance.
- Film Carriage System: Incorporates an adjustable powered pre-stretch unit (often achieving 200-300% stretch), maximizing film yield and ensuring optimal load tension. Features may include automatic film clamping, cutting, and wiping systems for fully automated operation.
- Control System: Typically managed by a Programmable Logic Controller (PLC) with a user-friendly Human-Machine Interface (HMI) touchscreen. This allows operators to easily set parameters, store wrapping programs for different products, adjust overlap, tension, and monitor machine status and diagnostics.
- Conveyor System: Integrated powered conveyors (roller or belt type) synchronized with the wrapping ring for smooth product transit. Options include variable speed control and automatic infeed/outfeed sections.
- Safety Systems: Comprehensive safety measures including safety interlocks on access doors, light curtains at entry/exit points, and emergency stop buttons readily accessible, ensuring operator safety compliance with industry standards.
4. Technical Specifications Overview
While ODM solutions are customized, typical performance parameters for a high-speed horizontal wrapper include:
| Feature | Specification Example (FHO-ODM Series) | Notes |
|---|---|---|
| Max. Ring Speed | Up to 200 RPM | Dependent on product size and stability |
| Max. Package Size | Customizable (e.g., 1200mm W x 1200mm H) | Length typically unlimited/conveyor dependent |
| Film Roll Width | 500 mm (standard) | Other widths available |
| Film Roll OD | Up to 250 mm | |
| Film Roll Core ID | 76 mm (standard) | |
| Film Pre-Stretch | 200% - 300% (Powered) | Adjustable via HMI |
| Control System | PLC (e.g., Siemens, Allen-Bradley) + HMI | Programmable wrapping cycles |
| Conveyor Type | Powered Rollers or Belt | Speed synchronized with ring |
| Power Requirements | 3 Phase, 480V/60Hz or local specification | |
| Air Requirements | 6 bar (approx. 90 PSI) | For pneumatic components (cut/clamp) |
| Safety | CE / OSHA Compliance Features | Light curtains, E-stops, interlocked guarding |
(Note: These are illustrative specifications. Actual values depend on the specific ODM configuration.)
5. Operational Experience and Application Versatility
From a user perspective, these machines offer significant advantages:
- Ease of Operation: Modern HMI interfaces simplify setup and product changeovers. Stored programs allow operators to switch between different wrapping requirements quickly.
- Reduced Labor: Automation of the wrapping process, including film cutting and application, minimizes manual intervention, freeing up labor for other tasks.
- Improved Load Security: Consistent wrapping tension and adjustable pre-stretch ensure loads are stable and protected during transit and storage, reducing product damage.
- Film Savings: Powered pre-stretch significantly increases the yield from each roll of stretch film, leading to considerable cost savings over time compared to manual or less advanced wrapping methods.
- Versatility: The inherent design, coupled with ODM customization, makes these machines suitable for a vast array of industries, including:
- Building materials (lumber, pipes, profiles, insulation panels)
- Furniture manufacturing (tables, chairs, components)
- Door and window production
- Textiles (rolled fabrics, carpets)
- Aluminum and steel industries (extrusions, bars)
6. Partnering for Customized Wrapping Solutions
This high-speed automatic horizontal stretch wrapper demonstrates the power of ODM collaboration in delivering specialized industrial packaging equipment. By working closely with manufacturers, companies can acquire machines precisely engineered for their specific products, line speeds, and integration needs.
For businesses seeking advanced, reliable, and customized wrapping automation, exploring an ODM solution offers a path to optimized performance and efficiency.
For further details on automatic horizontal stretch wrapper configurations and ODM capabilities:
- Explore general information and options here: Automatic Horizontal Stretch Wrapper Solutions
- Discover more about horizontal wrapping machinery: Horizontal Wrapping Machines Overview
CONTACT US to discuss your specific packaging requirements and explore a custom ODM solution tailored to your needs.
