Mechanical mold upender that is a mold upending solution that includes two main structures: Driving bas and turning frame. The working table size can be designed per different mold load specification.
1.Powerful motor driving machine with soft start&stop.
2. Speed adjustment by inverter
3. Individual electric control box and panel.
4. Inverter controlling speed running and softly to start and stop.
5. Steady contractual, with worm speed reducer.
6. Electric and Mechanical displacement restrictions adopted to grantee a safety operation.
7. Position locking system allow machine stop anytime during working.
8. With Strong durable structure of machine.
9. CE standard for machine covering and power connection.
Application: Mold, Die
Delivery: 30-50 days
Driving: Motor & Gear
Customized: Capable
Warranted: 1 Year
Power supply: 380V 50Hz or per your local supply
Packaging: Sea worth
Working mode: Auto/Semiauto
Motor: a. SEW,SIEMENS, ABB
b. GPG, JIEMAI...
Sensor: Autonics, Omron, Sick
Connector: Schneider
Light beam： SICK，HKS
Machine material： A3 carbon steel
|
Name |
Power |
Table size |
Max.Loading |
|---|---|---|---|
|
FPCT-01 |
0.75 Kw |
1000x1000mm |
1T |
|
FPCT-03 |
1.5Kw |
1200x1200mm |
3T |
|
FPCT-05 |
1.5Kw |
1400x1400mm |
5T |
|
FPCT-10 |
2.2Kw |
1600x1600mm |
10T |
|
FPCT-20 |
3.2Kw |
1800x1800mm |
20T |
|
FPCT-30 |
5.0Kw |
2000x2000mm |
20T |
|
FPCT-50 |
10Kw |
2500x2500mm |
20T |
|
FPCT-100 |
25Kw |
Per load size |
20T |
Hydraulic mold upender is an mold handling equipment that includes two main structure: hydraulic driving system and working table frame.
1. Speed of tilting is adjustable by Hydraulic motion or force.
2. Hydraulic tilter is able to stop at any angle.
3. Power cylinders with synchronized action.
4. Smooth, accurate and noise lower
5. Easy operation and simple maintenance.
6. Hydraulic pump drive, hydraulic ram push for tilting.
7. Working table can be customized per mold shape
Application: For Mold, Die
Delivery: 30-45 days
Driving: Hydraulic pump & cylinder
Customized: Capable
Speed: 20-35 sec per turning
Warranted: 1 Year
Power supply: 380V 50Hz or per your local supply
Packaging: Sea worth
Working mode: Auto/Semiauto
Hydraulic system:
a. Rexroth
b. Yuken
Sensor: Autonics, Omron, Sick
Connector: Schneider
Light beam： SICK，HKS
Machine material： A3 carbon steel
|
Name |
Power |
Table size |
Max.Loading |
|---|---|---|---|
|
FPHT-01 |
3.0Kw |
a. 1000x1000mm |
1T |
|
FPHT-05 |
3.5Kw |
a.1200x1200mm |
5T |
|
FPHT-10 |
4.5Kw |
a.1400x1400mm
|
10T |
|
FPHT-20 |
7.5Kw |
a.1400x1400mm
|
20T |
|
FPHT-30 |
10Kw |
a.1600x1600mm
|
30T |
|
FPHT-40 |
12Kw |
a.2000x2000mm
|
40T |
A Heavy Capacity Hydraulic was designed and manufactured to rotate mold from the vertical position to the horizontal or horizontal to vertical position. To assure safety and provide smooth, even transition during the tilting operation the tilter features durable acting hydraulic cylinder.
1. To ensure the inversion operation by crane.
2. Two working table 90 degree turning the mold.
3. Heavy designed structure.
4. Speed of turning is adjustable.
5. Automatic stop. And the machine can be stop any angle with pressure keeping.
6. Actuation: double acting hydraulic cylinders..
7. Way of loading: via fork lift / crane/ hoist.
8. Control: pedestal mounted hydraulic power unit up-down.
9. Automatic position lock up and position soft reset for accident power off.
Working tasble Working table：
A table & B table
(Can be designed per mold size)
Hydraulic Cylinder: 2 cylinders per each table
Power supply: 380V 60Hz

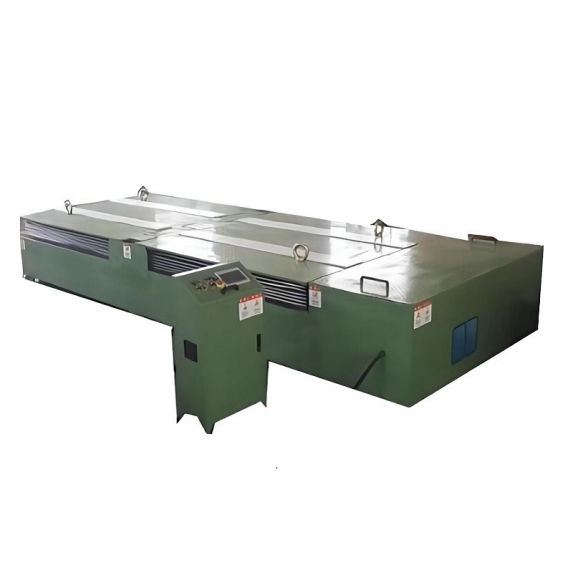

A slight operation mistake may cause a serious accident in mold handling. So this machine consist of two flat table platforms with separated and independent 90 degrees turning. By using a Mold Flipper Lift Table, the mold handling and repairing can perform an inversion operation easy and safety.
|
Name |
Power |
Machine Size |
Max.Loading |
Oil Liter |
|---|---|---|---|---|
|
FPHF-05 |
3.7Kw |
3010x1200x300mm |
5T |
10 |
|
FPHF-10 |
5.5Kw |
3440x1400x350mm |
10T |
20 |
|
FPHF-15 |
6.0Kw |
3810x1600x400mm |
15T |
25 |
|
FPHF-20 |
7.5Kw |
4240x1800x450mm |
20T |
30 |
|
FPHF-25 |
8.0Kw |
4640x2000x500mm |
25T |
40 |
|
FPHF-30 |
10.0Kw |
5200x2000x550mm |
30T |
50 |
|
FPHF-40 |
12.0Kw |
5500x2200x600mm |
40T |
85 |
