Heavy Duty Steel Coil Wrapping Machine: Automatic Solutions for Steel Mills
Robust, reliable wrapping protection for master coils, steel strips, and heavy metal products.
The Heavy Duty Steel Coil Wrapping Machine is an industrial-grade Metal Coil Wrapper engineered to handle massive loads (up to 30 tons). It integrates automatic material handling to apply VCI paper and stretch film, providing the ultimate wrapping protection against corrosion and physical damage during storage and transport.
Trusted by Steel Mills & Industry Leaders
Global manufacturers rely on FHOPE heavy duty packaging equipment
Protecting High-Value Steel Assets
Steel coils, especially Cold Rolled (CR) or Galvanized steel, are high-value assets that are extremely vulnerable during storage and sea freight.
Corrosion Risk
A tiny amount of moisture can lead to "white rust" or oxidation, ruining the entire coil. Sea freight and humid environments are major threats.
Physical Damage
Heavy coils are prone to impact damage during crane or forklift handling. Edges are particularly vulnerable to nicks and dents.
Labor Safety
Manually wrapping a 20-ton coil is slow and dangerous for workers. Automated solutions remove operators from the hazard zone.
VCI Technology: The Science of Wrapping Protection
For steel mills, rust is the enemy. Our machines are specifically calibrated to work with VCI (Volatile Corrosion Inhibitor) materials to ensure your product arrives in perfect condition.
-
Dual-Layer Wrapping
The machine can simultaneously or sequentially apply an inner layer of VCI paper and an outer layer of LLDPE stretch film.
-
The VCI Barrier
The wrapping process creates a tight enclosure where VCI molecules are released, forming a molecular barrier on the metal surface that inhibits oxidation.
-
Seaworthy Ready
This "eye-through" wrapping method is the global standard for seaworthy export packaging of steel coils.
Heavy Duty Features & Automation
This is not just a packaging machine; it is a heavy industrial asset built for 24/7 operation in steel mills.
High Load Capacity
Reinforced roller stations capable of supporting 10T, 20T, and even 30T coils without deformation.
Automatic Material Cutting
Mechanical hands automatically clamp, cut, and wipe the film, removing the need for operator intervention.
Auto Strip Wrapping
For slit coils, the machine automatically detects the coil width and adjusts the wrapping path for optimal coverage.
Shuttle Technology
Patented shuttle track design allows the film carriage to pass through the eye of huge master coils reliably.
What Can You Wrap?
Master Coils (CR / HR / GI)
Designed for the "Big Boys." Whether it's Hot Rolled, Cold Rolled, or Galvanized coils, our machine handles large Outer Diameters (OD) up to 2000mm+ with ease.
Slit Coil & Steel Strip
Precision is key. The machine adapts to narrow widths, ensuring the automatic steel strip wrapping is tight and uniform, preventing the strips from telescoping (sliding out).
Non-Ferrous Metals
Ideal for Aluminum and Copper coils where surface finish is critical. The machine offers "Soft Start/Stop" modes to protect softer metals from scratches.
From Standalone Wrapper to Full Packing Line
While the Heavy Duty Wrapper is the heart of the protection system, many steel mills require a fully integrated flow. For a complete turnkey solution including strapping and stacking, explore our Automatic Packing Lines.
Explore Automatic Coil Packing LinesStandard Series Specifications
| Model | FPS-800 | FPS-1000 | FPS-Master 30T |
|---|---|---|---|
| Max Load | 5 Tons | 8 Tons | 30 Tons |
| Coil Width | 200mm - 800mm | 600mm - 1000mm | 800mm - 2500mm |
| Wrapping Material | Stretch Film / Knit Belt | VCI Paper / PE Film | Paper + Film Combined |
| Control System | PLC + HMI (Programmable Logic Controller) | ||
| Voltage | 380V/440V 3-Phase 50/60Hz | ||

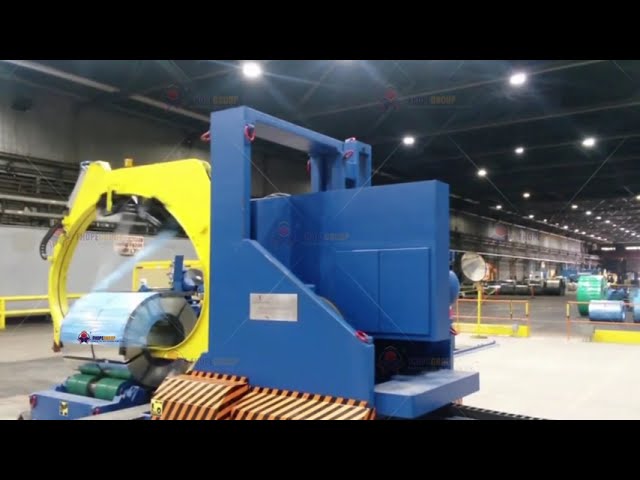

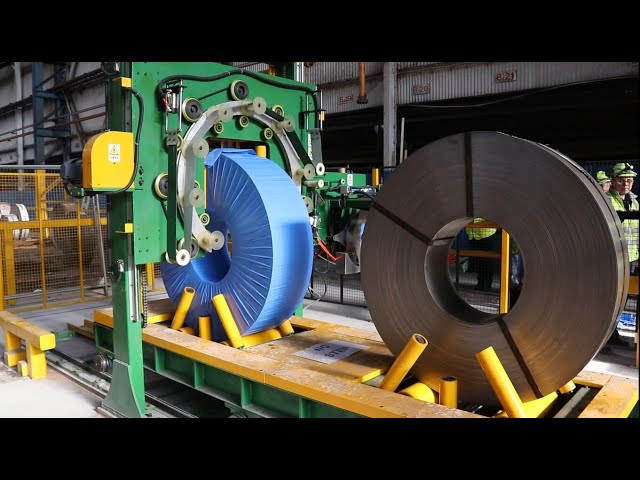

Seeing is Believing
Watch our heavy duty steel coil wrapping machines in action.
Heavy Duty Wrapping Questions
Can the machine apply VCI paper and Stretch film in one pass?
How do you load a 20-ton coil onto the wrapper?
Is the machine compatible with existing crane systems?
Can it wrap with galvanized steel sheet?
How does the machine handle different coil widths automatically?
Looking for a heavy-duty packaging solution?
Contact FhopePack for the best Heavy Duty Steel Coil Wrapper price. Our engineers are ready to help you configure the right protection system for your mill.
- 30+ Ton Load Capacity
- Automatic VCI Paper Wrapping
- Global Installation & Support
