Engineering Focus: Automating Short-Length Cable Coil Strapping for Enhanced Productivity and Logistics
The efficient handling and packaging of short-length cable and wire coils present unique challenges in various industrial sectors, from electrical manufacturing to automotive supply chains. Manual or semi-automated processes often struggle with consistency, speed, and labor costs, impacting overall operational efficiency. Addressing this critical need, the Automatic Cable Wire Strapping Machine specifically engineered for short-length coils offers a robust solution, integrating advanced automation principles to streamline packaging operations.
Drawing inspiration from advancements in material handling automation and packaging technology, often detailed in industry publications and patent literature (e.g., patents focusing on tension control mechanisms and automated coil feeding systems), this type of machine is designed for high throughput and reliability. It typically incorporates a precision feeding mechanism to accurately position coils, minimizing the risk of tangling or misalignment – common issues with shorter, often more flexible, cable lengths. The core of the system is the automated strapping head, utilizing materials like Polypropylene (PP) or Polyester (PET) straps, which applies consistent, pre-set tension before sealing the strap (often via heat or ultrasonic welding), ensuring package integrity without damaging sensitive wires or insulation.
Control is managed via a Programmable Logic Controller (PLC), allowing for easy adjustment of parameters such as strap tension, coil size accommodation, and cycle speed via a user-friendly interface. This programmability is crucial for adapting to diverse production requirements and coil specifications, reflecting design principles emphasized in modern industrial automation equipment for flexibility and user control.
Key Technical Specifications (Model CWS-500Mini - Representative)

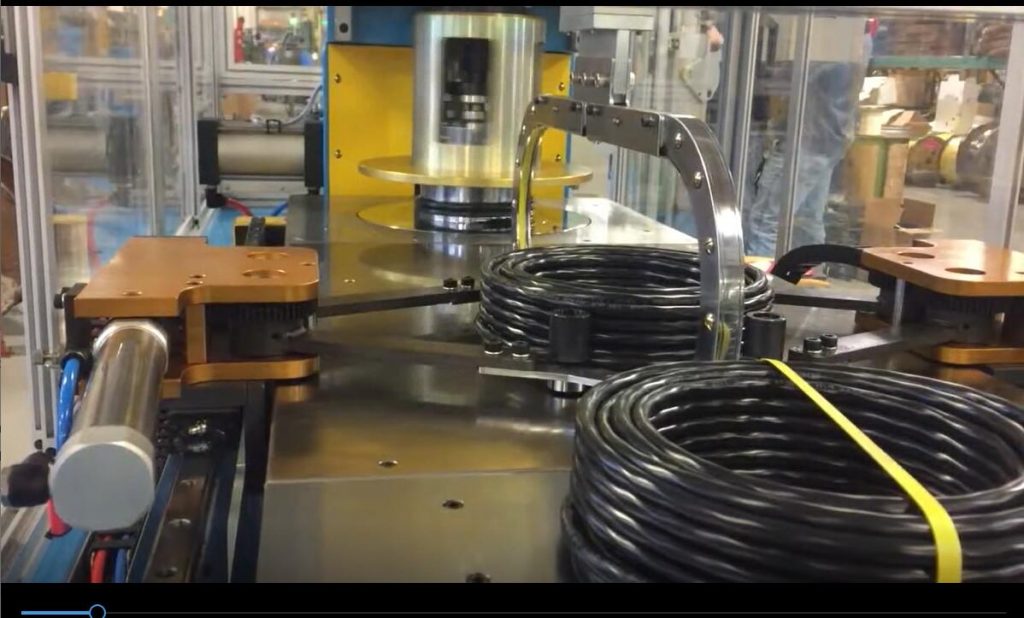

Disclaimer: The parameters listed below are indicative and may not precisely match the equipment depicted in the video. For exact specifications tailored to your application requirements, please consult directly with the manufacturer.
- Machine Type: Automatic Cable Wire Strapping Machine
- Designation: Model CWS-500Mini
- Year of Design: 2023
- Coil Diameter Capacity: Up to 500mm
- Compatible Strapping Material: Polyester (PET) or Polypropylene (PP) straps
- Operational Cycle Rate: Capable of up to 20 straps per minute
- Control Architecture: Programmable Logic Controller (PLC) with Human-Machine Interface (HMI)
- Power Requirements: 220V, Single Phase (Consult for alternatives)
- Machine Footprint (L x W x H): Approx. 1200mm x 800mm x 1500mm
- Estimated Weight: Approximately 450kg
- Strap Tension Range: Adjustable, typically 100-600N (Application dependent)
- Strap Width Compatibility: 8mm - 16mm
- Safety Systems: Integrated Emergency stop circuits, safety guarding with interlocks
- Acoustic Output: Engineered for operation below 75 dB
- Compliance Certifications: Designed to meet standards such as ISO 9001, CE marked
- Standard Finish: Industrial Blue and Grey (Customizable options may be available)
- Standard Warranty: 2-year comprehensive coverage
- Support: Operator and maintenance training typically included
Core Advantages and Engineering Benefits
Investing in automated strapping technology for short-length coils yields significant operational advantages:
- Increased Throughput: Automating the strapping cycle dramatically increases packaging speed compared to manual methods, directly boosting production output. Cycle rates of up to 20 straps/minute facilitate integration into high-volume manufacturing lines.
- Consistent Package Quality: Precisely controlled strap tension ensures each coil is secured uniformly, preventing strap loosening during handling and transit, thereby safeguarding product integrity and reducing potential waste or damage.
- Labor Optimization and Ergonomics: Redirects manual labor from repetitive strapping tasks to more complex, value-added activities. Reduces ergonomic risks associated with manual bundling and tensioning.
- Operational Flexibility: PLC-based controls allow quick adaptation to varying coil dimensions (diameter, height) and specific strapping pattern requirements without extensive mechanical changes.
- Space Efficiency: The typically compact design minimizes the required floor space, advantageous for integration into existing lines or facilities with spatial constraints.
- Enhanced Logistics: Securely strapped coils are easier and safer to handle, stack, store, and transport, improving overall material flow and warehouse management efficiency.
Application Spotlight: Electrical Manufacturing
In the electrical component manufacturing sector, where numerous short-length wire and cable coils are produced for appliances, electronics, and power distribution, this machine streamlines the final packaging stage. Consistent, secure bundling is essential for protecting delicate conductors and insulation, ensuring compliance with quality standards (e.g., UL, CE) and preparing coils for subsequent automated assembly or kitting processes. The machine's speed supports the high-volume demands typical of this industry.
Application Spotlight: Logistics and Warehouse Operations
For distribution centers and warehouses managing inventories of cable and wire, the automatic strapping machine enhances storage density and handling efficiency. Uniformly strapped coils are more stable for stacking on pallets or shelving, optimizing vertical storage space. This standardization simplifies inventory management, order picking, and reduces the risk of handling errors or product damage within the warehouse environment, potentially integrating with Warehouse Management Systems (WMS) for improved tracking.
Application Spotlight: Automotive Component Supply Chains
The automotive industry demands rigorous quality control and just-in-time (JIT) logistics. Short-length cables are integral to wiring harnesses and complex electronic modules. This strapping machine ensures these critical components are securely packaged to prevent damage or tangling during transit between Tier suppliers and assembly plants. Reliable, consistent strapping supports lean manufacturing principles and meets the stringent packaging requirements often mandated by automotive OEMs (conforming to standards like IATF 16949 indirectly through quality preservation).
Conclusion: A Strategic Asset for Cable Handling
The Automatic Cable Wire Strapping Machine for short-length coils represents a strategic investment for manufacturers and logistics providers seeking to enhance efficiency, ensure product quality, and optimize labor utilization. By leveraging automation, precision control, and robust engineering, this equipment addresses the specific challenges associated with handling smaller coils, contributing significantly to streamlined operations and improved bottom-line performance in competitive industrial landscapes.
