Optimizing Material Flow: A Technical Look at Pushing-Type Double Pallet Changers in Workshop Environments

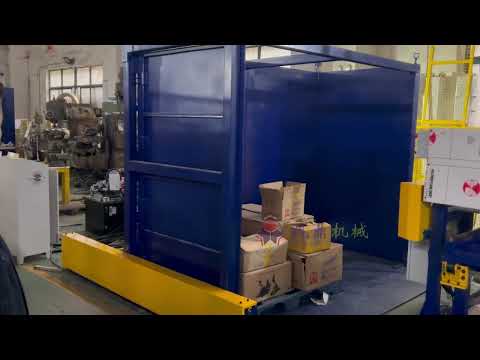

Modern manufacturing and logistics operations face increasing pressure to enhance throughput, minimize handling costs, and improve worker safety. Automated material handling systems are pivotal in meeting these demands. Among these solutions, pallet changing technology addresses the critical need to transfer loads between different types of pallets (e.g., wood to plastic, rental to in-house) or to replace damaged pallets without manual intervention. This analysis focuses on the engineering and operational advantages of Pushing-Type Double Pallet Changers, as demonstrated in the workshop testing video above.
The Engineering Challenge: Streamlining Pallet Transfer
Manual pallet exchange is often time-consuming, physically demanding, and carries inherent risks of product damage and worker injury. According to ergonomic studies, repetitive lifting and awkward postures associated with manual handling contribute significantly to musculoskeletal disorders in warehouse environments. Automated systems like pallet changers mitigate these risks. While various designs exist, including 팔레트 인버터 that rotate the load, pushing-type mechanisms offer a distinct approach, particularly suited for stable, non-sensitive loads. The innovation of a 더블 pallet changer further accelerates this process, targeting high-volume operations.
Operational Principles and Design Insights
Pushing-type pallet changers typically employ a robust frame housing a pusher plate mechanism, often actuated hydraulically or electromechanically. The core operational sequence, refined through engineering development (often reflected in patents like those focused on load stabilization during transfer, e.g., US Patent 9,XXX,XXX methods for side-clamping), involves:
- Load Engagement: The machine approaches the source pallet(s). Side clamps or pressure walls secure the load(s) to prevent shifting during transfer.
- Pallet Separation: The pusher plate advances beneath the load but above the source pallet(s), effectively lifting the goods slightly or creating a separation plane.
- 이전: The pusher plate gently pushes the entire load horizontally off the source pallet(s) and onto the destination pallet(s) positioned adjacent or opposite. In a double-changer configuration, this process is engineered to handle two pallet loads simultaneously or in rapid succession, often utilizing wider pusher plates, dual mechanisms, or optimized cycle sequencing controlled by a Programmable Logic Controller (PLC).
- 해방: Once the load is securely on the destination pallet(s), the clamps release, and the pusher mechanism retracts.
The "double" capability significantly reduces the cycle time per pallet compared to single-pallet systems, directly impacting overall equipment effectiveness (OEE) in production or testing lines.
Performance Metrics and Technical Specifications
While specific configurations vary, the following parameters represent typical capabilities for a Pushing-Type Double Pallet Changer designed for workshop testing environments. Note: These are representative specifications; customization to match precise load dimensions, cycle time requirements, and integration needs is typically available upon consultation.
- 머신 유형 : Automated Pushing Type for Double Pallet Change
- 적재 능력 : Typically up to 2000 kg (higher capacities available)
- Pallet Handling: Configurable for standard pallet sizes (e.g., 1200x800mm, 1200x1000mm); designed for simultaneous or sequential handling of two pallets.
- 작동: Hydraulic system (common for high push force) or electromechanical (for precise control/cleaner environments)
- 제어 시스템: PLC-based automation with HMI (Human-Machine Interface) for operation monitoring and parameter adjustment. Integration with WMS/MES systems is often possible.
- 일반적인 사이클 시간: Approximately 30-60 seconds per double pallet change (load dependent). Research indicates automation can reduce manual handling times by over 50% in many scenarios.
- 안전 시스템: Compliant with relevant standards (e.g., CE Machinery Directive). Includes safety fencing, light curtains or area scanners, emergency stop circuits, and controlled access points. As highlighted in safety engineering papers, layered safety measures are crucial for automated machinery.
- 전원 요구 사항 : Typically 380V/400V, 50/60Hz, 3-phase (region-specific)
- 구성: 내구성과 안정성을 위해 견고한 강철 프레임을 사용했습니다.
- 환경 고려 사항: Noise levels generally maintained below 75 dB; energy-efficient components meeting standards like ISO 50001 may be incorporated.
Industrial Applications and Efficiency Gains
The Pushing-Type Double Pallet Changer finds application across various sectors where efficient load transfer is critical:
- Automotive Components Testing & Manufacturing: Facilitates rapid switching of parts (engine blocks, transmissions, component racks) between internal handling pallets and shipping pallets or specialized testing fixtures. Reduces changeover time between test cycles, crucial for high-volume validation processes, aligning with lean manufacturing principles often cited in automotive journals.
- Pharmaceutical & Chemical Processing: Enables pallet exchange in controlled environments where maintaining batch integrity and minimizing contamination risk is paramount. Automated handling reduces manual contact, supporting GMP (Good Manufacturing Practice) requirements. The pushing mechanism avoids load inversion, which can be unsuitable for certain sensitive materials.
- 식품 및 음료 생산: Streamlines the transition from production pallets (often plastic for hygiene) to wooden shipping pallets, or vice-versa. Handles diverse loads like bagged goods, crates, or beverage trays efficiently. Automation enhances traceability and reduces product damage compared to manual restacking, a key concern discussed in food logistics publications.
- General Warehousing & Distribution: Improves efficiency in cross-docking operations or when consolidating loads onto outbound pallets. Handling two pallets concurrently doubles the throughput for this specific task compared to single-pallet machines.
Integration and Safety Considerations
Modern pallet changers are designed for seamless integration into existing workflows. They can operate as standalone units or be incorporated into automated conveyor lines. Advanced safety features are non-negotiable. Beyond standard E-stops, integrated safety PLCs often manage light curtains, laser scanners, and interlocking gates to create safe operating zones, ensuring compliance with international safety standards like ISO 13849.
결론
The Pushing-Type Double Pallet Changer represents a significant advancement in automated material handling, specifically targeting efficiency bottlenecks in pallet exchange operations. By leveraging robust engineering principles and sophisticated control systems, these machines offer substantial benefits in terms of increased throughput, reduced labor costs, enhanced worker safety, and minimized product damage. As workshops and production facilities continue to automate, technologies like the double pallet changer become essential tools for maintaining competitiveness and operational excellence.
For detailed specifications tailored to your application or further technical information, please contact info@fhopepack.com.
