Price of Automatic Slit Copper Strips Packing Systems with Integrated Analytics

1. Executive Summary

The landscape of industrial manufacturing, particularly in the processing of high-value materials such as slit copper strips, is undergoing a significant transformation. The decision to invest in automatic packing systems is evolving from an operational upgrade to a strategic imperative. This shift is propelled by a confluence of factors including persistent labor market pressures, escalating demands for superior product quality and consistency, and the distinct competitive advantages conferred by data-driven manufacturing methodologies.

This report provides a comprehensive price analysis of automatic packing systems tailored for slit copper strips, with a particular focus on the integration and value of advanced analytics. Typical price ranges for these systems vary significantly, from tens of thousands of dollars for basic configurations to several hundred thousand dollars or more for highly customized, fully automated lines incorporating sophisticated analytics. The critical role of integrated analytics—encompassing Manufacturing Execution Systems (MES), Overall Equipment Effectiveness (OEE) tracking, and Predictive Maintenance (PdM)—cannot be overstated. These technologies transform packing lines from mere mechanical operations into intelligent, self-optimizing assets.

Primary drivers for Return on Investment (ROI) include substantial labor savings, increased throughput, reduced material waste, minimized product damage (a crucial factor for valuable copper), and enhanced safety. The integration of analytics further amplifies these benefits by providing actionable insights for continuous process improvement and operational excellence. Strategic recommendations emphasize a holistic approach, beginning with a thorough needs assessment, diligent vendor evaluation focusing on TCO rather than just initial price, and a clear strategy for analytics integration. The transition towards intelligent, data-driven packaging solutions is not merely a trend but a fundamental requirement for maintaining competitiveness and achieving sustainable growth in the slit copper strip industry.

2. Introduction: The Strategic Importance of Automated Packing for Slit Copper Strips

The automation of packaging processes for slit copper strips represents a critical investment for manufacturers seeking to enhance efficiency, ensure product integrity, and maintain a competitive edge. Understanding the unique characteristics of slit copper strips and their demanding packaging requirements is fundamental to appreciating the value proposition of advanced automated systems.

Overview of Slit Copper Strips

Slit copper strips are flat, elongated pieces of copper metal, precisely cut from larger sheets or coils, resulting in crisp, squared-off edges.¹ These strips are available in various gauges (thicknesses) and tempers (hardness levels, such as 1/2-hard), influencing their formability and suitability for different applications.¹ Copper itself is renowned for its excellent electrical and thermal conductivity, malleability, and corrosion resistance.² These properties make slit copper strips indispensable in a wide array of industrial and commercial applications. Common uses include electrical wiring, power distribution components like bus bars and switchgear, transformer windings, electronics, and even architectural elements and artisan crafts like cuffs and bangles.¹ Some specialized copper alloys, like white copper (cupronickel), offer enhanced corrosion resistance, ductility, and specific electronic properties, finding use in telecommunications, medical equipment, and precision instruments.³

Given copper’s intrinsic value and its application in sensitive and high-performance products, maintaining its pristine condition from production to end-use is paramount. The material’s malleability, while beneficial for forming, also makes it susceptible to physical damage if not handled and packaged correctly. Furthermore, its surface condition is often critical, especially in electronics where a flat, smooth surface is necessary for optimal performance.²

Critical Packaging Requirements and Challenges for Slit Copper Strips

The packaging of slit copper strips must address several critical requirements to safeguard the material’s integrity throughout handling, storage, and transportation. These include:

Protection from Physical Damage: Slit coils, particularly those of thinner gauges, are susceptible to edge damage, deformation, and surface scratches.⁴ Reel breaks, which are deformations caused by pressure from winding mandrels, can damage multiple wraps within a coil.⁵ Proper packaging must provide robust physical buffering.
Corrosion Prevention: Copper, while corrosion-resistant, can tarnish or corrode under adverse environmental conditions, especially during maritime transport (saltwater exposure) or prolonged storage in humid environments.⁴ Packaging must act as an effective barrier against moisture and corrosive agents. Volatile Corrosion Inhibitor (VCI) paper or film, often formulated specifically for non-ferrous metals like copper, is a common requirement.⁴
Contamination Control: For applications in electronics or medical devices, preventing contamination of the copper surface is crucial. Packaging must provide a barrier against dust, oils, and other environmental contaminants.⁴
Stability and Security: Coils must be securely packaged to prevent movement during transit, which could lead to damage or create safety hazards. This involves appropriate strapping, palletizing, and potentially specific coil orientations (e.g., "eye-to-sky" or "eye-to-wall").⁴

Handling the variability in coil sizes (width, diameter) and weights presents an ongoing challenge. Packaging solutions must be adaptable or specifically designed for the range of products being processed. The cost associated with failed or inadequate packaging is a significant consideration. For materials like copper, which are high in value and often integral to high-value end products such as electronics or medical devices², the financial impact of damage, corrosion, or rework can be substantial. Reports indicate that improper packaging in the metal coil industry can lead to a 10% increase in damage claims, and returns due to defects can escalate operational costs by as much as 20%.⁶ Surface and edge damage can necessitate costly reprocessing, reduce material yield, and incur additional inspection expenses.⁵ These potential losses significantly bolster the justification for investing in reliable, high-quality automated packaging systems.

Furthermore, the integrity of packaged copper strips is not merely an internal concern for the supplier; it directly impacts the end-user. If a customer receives damaged or corroded copper strips, their own manufacturing processes can be disrupted, leading to downtime and inefficiency. This underscores the role of packaging as a critical control point in the broader supply chain, protecting not only the product but also customer relationships and operational continuity.

3. Understanding Automatic Packing Systems for Slit Copper Strips

Automatic packing systems for slit copper strips are engineered to address the specific challenges of handling and protecting this valuable material. These systems integrate various modules into a cohesive production line, designed to enhance efficiency, ensure consistency, reduce costs, and improve workplace safety.

Core Components and Operational Workflow of a Typical Automated Line

A fully automated packing line for slit copper strips typically comprises several interconnected stations and components, managed by a central control system. While specific configurations vary based on requirements, a common setup includes⁴:

Infeed System: Coils arrive from the slitter or storage area via conveyors or automated coil cars.
Coil Identification: Barcode scanners or RFID readers identify each coil, linking it to production data.
Weigh Station: Integrated scales accurately record the weight of each coil for documentation and quality control.
Centering Devices: Mechanisms ensure the coil is precisely positioned for subsequent operations.
Inner Wrap Application: Automated dispensers apply protective inner layers, such as VCI paper or film, to the coil surfaces, particularly the eye and outer diameter. This is crucial for corrosion prevention.⁴

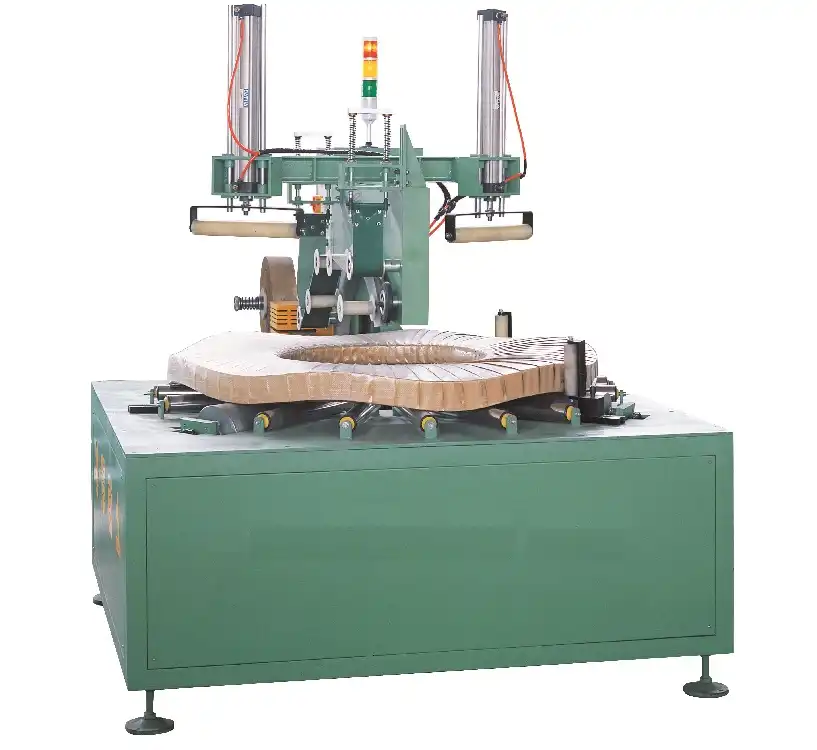

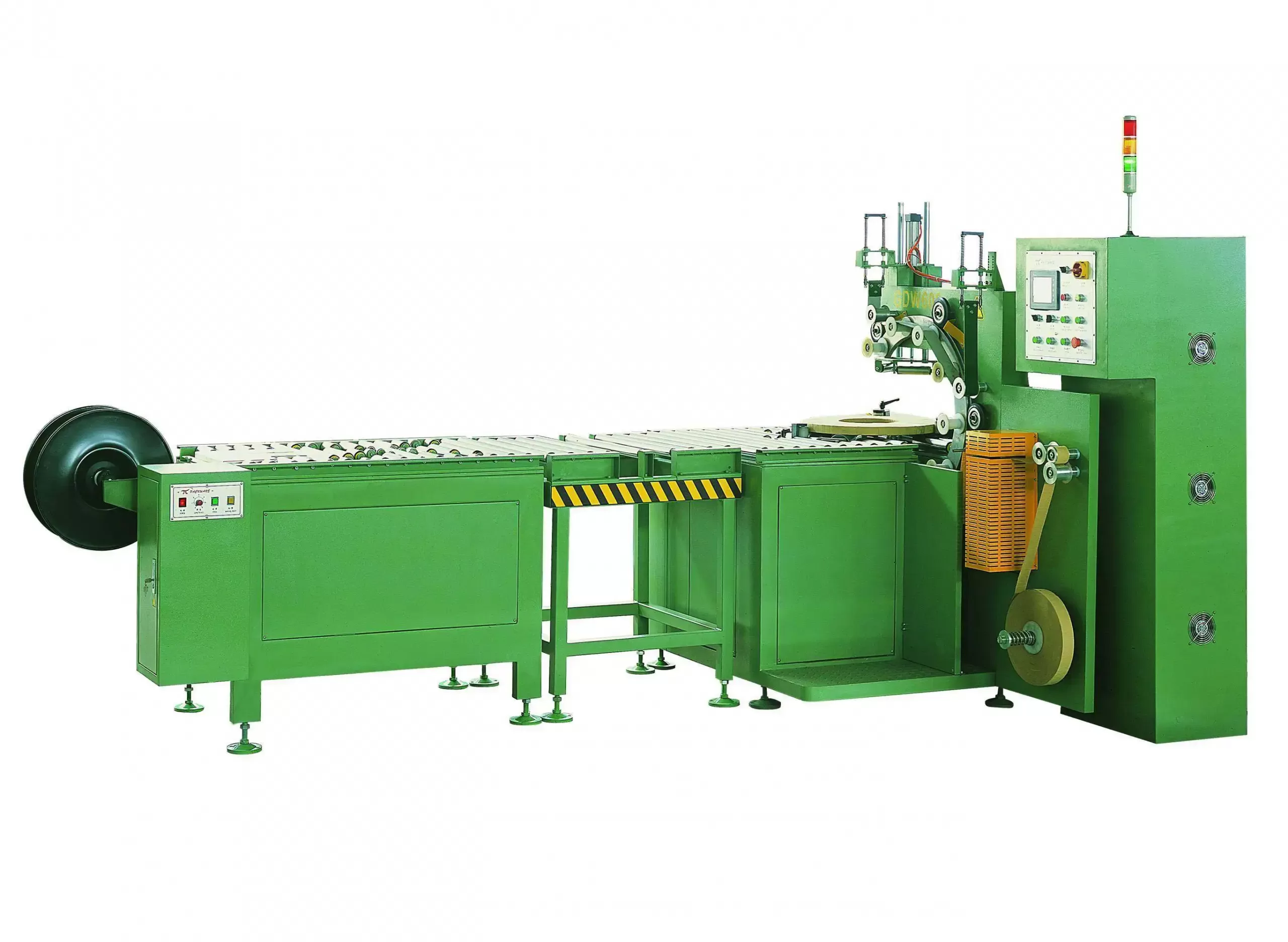

Coil Wrapping Machine: Horizontal or vertical wrapping machines apply stretch film or other wrapping materials circumferentially and/or through the eye of the coil, providing further protection and containment.
Edge Protector Application: Automated systems place edge protectors (e.g., made from paperboard or plastic) on the inner and outer edges of the coil to prevent physical damage.⁴
Coil Strapping Machine: Radial (around the circumference) and/or axial (through the eye) strapping is applied using materials like PET (polyester) or steel, securing the coil and packaging materials.⁴
Pallet Dispenser: Automatically dispenses pallets as needed.
Coil-to-Pallet Placement: Robotic arms or automated stackers carefully lift and place the packaged coil onto a pallet. Some systems may involve down-enders or tilters to orient the coil correctly.⁷
Pallet Wrapping/Strapping: The entire palletized load may be stretch-wrapped or strapped for additional stability during transit.
Label Printer and Applicator: Automatically prints and applies labels with product information, tracking codes, and shipping details.
Outfeed System: Conveyors or Automated Guided Vehicles (AGVs) transport the fully packaged and labeled coils to the shipping or storage area.
Control System: A Programmable Logic Controller (PLC) with a Human-Machine Interface (HMI) orchestrates the entire line. Modern systems often feature data integration capabilities, allowing connectivity with Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) systems.⁴

The workflow generally follows these steps, with the coil moving sequentially through each automated station, minimizing manual intervention and ensuring a consistent packaging process for every coil.⁴

Key Benefits: Efficiency, Consistency, Cost Reduction, and Safety

The adoption of automatic packing systems for slit copper strips offers a multitude of benefits that contribute to improved operational performance and a stronger bottom line:

Increased Efficiency and Throughput: Automation significantly accelerates the packaging process, enabling higher throughput and reduced cycle times compared to manual methods.⁴ Faster cycle times allow manufacturers to process more coils per hour, meeting demand more effectively.⁸
Enhanced Product Quality and Consistency: Automated systems apply packaging materials with precision and uniformity, reducing the variability and potential errors inherent in manual processes.⁴ This leads to improved product protection, fewer damages, and enhanced brand perception.⁹
Reduced Labor Costs: One of the most significant advantages is the substantial reduction in manual labor requirements.¹⁰ Fewer operators are needed to run the line, leading to lower wage bills, benefits, and overtime expenses. Studies and case examples indicate labor cost reductions averaging 20-30% in the first year, with some specific automation projects achieving up to 40% labor reduction.⁸ This allows for the strategic redeployment of the workforce. Instead of merely cutting labor, automation enables companies to shift employees to higher-value roles such as quality assurance, system maintenance, data analysis, or process optimization, tasks that are increasingly vital in modern manufacturing.⁸
Optimized Material Usage: Automated systems are designed to use packaging materials (like stretch film and strapping) more efficiently, often with features for controlled stretch and precise application, thereby reducing waste.⁴
Improved Safety and Ergonomics: Automating the physically demanding and often hazardous tasks of lifting, wrapping, and strapping heavy copper coils significantly reduces the risk of worker fatigue, strain injuries, and accidents.⁴ Companies with highly automated packaging lines have reported up to 15% fewer workplace injuries.⁸
Space Optimization: Automated lines can often be designed with a more compact footprint than manual packing stations, leading to better utilization of valuable factory floor space.¹⁰
Enhanced Data Capture and Traceability: Integrated sensors and control systems automatically capture critical data such as coil weight, dimensions, packaging specifications, and production time.⁴ This data is invaluable for quality control, inventory management, and complete traceability of products – a particularly important aspect when dealing with high-value materials like copper that may be subject to stringent quality or regulatory requirements. This foundational data capture is also the essential precursor for leveraging more advanced analytics like MES and OEE.

Beyond these direct cost savings and efficiency improvements, automated packaging systems contribute to significant risk mitigation. They reduce the likelihood of workplace injuries and the associated costs of compensation and lost time.⁴ Consistent, high-quality packaging minimizes the risk of product damage during transit⁹, thereby avoiding the costs of returns, rework, or customer claims.⁶ This comprehensive risk reduction further strengthens the investment case for automation.

4. Comprehensive Price Analysis of Automatic Packing Systems

Determining the precise cost of an automatic packing system for slit copper strips requires a detailed understanding of numerous influencing factors. Prices can range significantly, from tens of thousands of dollars for more basic, semi-automated configurations to several hundred thousand dollars or even more for high-capacity, fully customized, and highly automated lines incorporating advanced robotics and integrated analytics.¹¹ A thorough analysis must extend beyond the initial purchase price to consider the Total Cost of Ownership (TCO).

Key Factors Determining System Costs

Several variables contribute to the overall investment required for an automated packing system:

Level of Automation: The extent of automation is a primary cost driver. Semi-automatic systems, requiring some manual intervention, will be less expensive than fully automated "lights-out" operations.¹¹
Coil Specifications: The system’s capacity to handle the specific range of slit copper strip coils—including minimum/maximum width, inner/outer diameter, and weight—will impact its design complexity and cost.¹¹ Systems designed for heavier or larger coils typically require more robust construction and powerful components.
Throughput Requirements: Higher desired throughput (coils packaged per hour) necessitates faster mechanisms, more powerful drives, and potentially more sophisticated control logic, all of which add to the cost.¹²
Complexity of Packaging: The types and number of packaging operations influence cost. For example, a system that only applies stretch wrap will be less expensive than one that also applies VCI paper, edge protectors, multiple straps, and performs automated palletizing.⁴
Material Handling Integration: Integration with existing or new material handling systems, such as AGVs, robotic arms for coil transfer, or overhead cranes, can add significant cost but also enhance overall line efficiency.⁴
Degree of Customization: Off-the-shelf solutions are rare for specialized applications like slit copper strip packaging. Customization to fit specific plant layouts, product variations, or unique packaging requirements will increase engineering and manufacturing costs.¹¹ Systems designed specifically for slit copper strips may carry a "premium" over standard steel coil lines. This is due to the unique properties of copper, such as its malleability, high value, susceptibility to certain types of corrosion, and the need for gentle handling to avoid surface damage or contamination that could affect its electrical properties.¹ Specialized features like non-ferrous VCI applicators or precision handling for delicate edges contribute to this potential cost difference.
Software and Analytics Integration: The sophistication of the control system (PLC/HMI) and the integration of analytics modules like MES, OEE tracking, or PdM systems are major cost factors.¹³ This includes software licenses, sensor packages, and integration services.
Installation and Commissioning: These services, performed by skilled technicians, involve assembling, calibrating, testing, and ensuring the system performs to specification. Costs can vary based on system complexity and vendor travel.¹²
Training: Operator and maintenance personnel training is essential and adds to the initial investment.¹²
Ongoing Maintenance and Spare Parts: The cost of service contracts, preventative maintenance schedules, and a stock of critical spare parts should be factored into the TCO.¹³
Vendor Reputation and Support: Established vendors with a strong track record and comprehensive support services may command higher prices, but this can translate to better long-term reliability and assistance.¹⁴
Regulatory Compliance: Meeting specific safety, environmental, or industry-specific standards (e.g., for packaging materials in contact with certain grades of copper) may require specialized components or certifications, impacting cost.¹³

Indicative Price Tiers and Total Cost of Ownership (TCO) Considerations

While precise figures require custom quotations, general price tiers can be outlined:

Basic Semi-Automatic Systems: For simpler operations with lower throughput, entry-level wrappers or strappers might range from a few thousand dollars (e.g., some basic coil wrappers listed on platforms like Alibaba are in the $900 – $5,000 range¹⁵) to tens of thousands. However, these simpler systems may not be suitable for the rigorous demands of industrial copper coil packaging or offer significant automation.
Integrated Semi-Automatic Lines: More comprehensive semi-automatic lines incorporating several packaging steps could range from $20,000 to $100,000, depending on features and capacity.
Fully Automatic Lines: Fully automated packing lines for slit coils, offering higher throughput and minimal manual intervention, typically start from $100,000 and can extend to several hundred thousand dollars or more, particularly when extensive customization, robotics, and advanced analytics are included.¹¹ Some highly specialized or large-capacity systems can exceed $500,000.

It is crucial to look beyond the initial purchase price and evaluate the Total Cost of Ownership (TCO). TCO encompasses all costs associated with the system over its entire operational lifespan.¹¹ This includes:

Initial purchase price and acquisition costs.
Installation, commissioning, and integration fees.
Operational costs: energy consumption, consumables (wrapping materials, strapping, VCI), labor for operation and supervision.
Maintenance and repair costs: scheduled maintenance, spare parts, technician services.
Software licenses and subscription fees for analytics platforms.
Training costs for operators and maintenance staff.
Potential costs associated with downtime (planned and unplanned).
End-of-life disposal or decommissioning costs.¹⁶

A comprehensive TCO analysis often reveals that a system with a higher initial price but greater efficiency, reliability, and lower operating costs may offer better long-term value than a cheaper, less sophisticated alternative.¹¹ The substantial long-term savings from labor reduction, material optimization, and minimized product damage frequently justify a higher upfront investment in a more robust and intelligent system.

Overview of Leading System Manufacturers and Their Offerings

Several manufacturers specialize in coil processing and packaging automation, offering solutions that can be adapted for slit copper strips. Key players include:

FHOPEPACK: This company specializes in automatic copper coil packaging lines and offers a range of solutions including coil identification, weighing, inner/outer wrapping, strapping, edge protection, palletizing, and stacking. They emphasize customization and can integrate their systems with ERP/MES for data tracking and inventory management.⁴
Red Bud Industries: A prominent name in coil processing, Red Bud Industries manufactures slitting lines and slit coil packaging lines known for speed, precision, and automation. Their packaging systems range from basic to advanced, featuring automated downlayers, semi-automatic or fully-automatic banding stations, robotic coil handling, sortation tables, and stretch wrappers. They highlight their "hands-free" threading and strong customer support.¹⁴
SHJLPACK (Shanghai Jinglin Packaging Machinery Co., Ltd.): SHJLPACK provides custom-built automatic coil packing lines for various metals, including copper. Their systems are PLC-controlled and can include modules for weighing, printing, wrapping (VCI paper/film, stretch film), strapping, and stacking. They offer both horizontal and vertical coil packing solutions.¹⁷
Amova (part of SMS group): Amova designs and installs tailor-made packaging systems for coils, including those made of sensitive materials. Their offerings include semi-automatic and fully automatic modules for stretch-foil wrapping, paper/cardboard wrapping, application of edge protectors, pallet and cover feeding, and strapping. They emphasize integration with plant logistics and MES, handling coils up to 35 tons with throughputs up to 20 coils per hour.¹⁸
Other Potential Suppliers: Companies specializing in slitting lines, such as The RDI Group and ALCOS Machinery Inc., also offer slit coil packaging systems.¹⁹ While their primary focus might be broader, their expertise in coil handling could be relevant.

Selecting a vendor should involve more than just comparing price quotes. It signifies the beginning of a long-term partnership, especially concerning ongoing maintenance, technical support, system upgrades, and the future evolution of analytics integration.¹¹ The complexity of these automated systems means that reliable vendor support is critical for sustained operational success.

Table 1: Comparison of Key Automatic Slit Copper Strip Packing System Manufacturers

Manufacturer	Relevant System/Series (Examples)	Key Features for Copper Strips	Stated Analytics/Integration Capabilities	Customization Focus	Indicative Price Tier (General Coil Lines)
FHOPEPACK	Custom Copper Coil Packaging Lines	VCI application, gentle handling options, precise wrapping/strapping, automated stacking, various coil orientations.⁷	ERP/MES integration, IoT-enabled systems.⁷	High, solutions tailored to user requirements.⁷	Mid-Range to High-End
Red Bud Industries	Slit Coil Packaging Lines (Basic, Intermediate, Advanced)	Automated downlayers, edge protection options, robust handling for various gauges, stretch wrapping.²⁰	Focus on line control and automation efficiency.	High, systems matched to slitter output.¹⁴	Mid-Range to High-End
SHJLPACK	Automatic Coil Packing Lines (custom for copper)	VCI paper/film, protective wrapping, options for delicate handling, PLC control.¹⁷	PLC-based control, potential for data output.¹⁷	High, custom build based on user needs.¹⁷	Mid-Range
Amova (SMS group)	Custom Coil Packaging Lines	Gentle coil handling, various wrapping materials (stretch-foil, paper), edge protectors, suitable for sensitive materials.¹⁸	MES integration, line control visualization.¹⁸	High, tailor-made modular systems.¹⁸	High-End
Note: Indicative Price Tiers are general estimates for coil packaging lines and can vary significantly based on the specific scope and features for slit copper strips.

Table 2: Estimated Cost Components of an Automatic Packing System for Slit Copper Strips

Cost Component	Estimated Cost Range/Percentage of Total (Illustrative)	Key Considerations/Influencing Factors
Core Machinery (Wrapper, Strapper, Stacker)	30-50%	Capacity, speed, type of wrapping/strapping technology, level of automation within modules.¹¹
Infeed/Outfeed Conveyors & Handling	10-20%	Length, complexity, load capacity, integration with coil cars or AGVs.⁴
Robotics (if applicable)	10-25% (can be higher for complex cells)	Payload, reach, speed, number of robots, end-of-arm tooling, programming.¹⁶
Control System & HMI	5-15%	PLC sophistication, HMI size/features, networking capabilities.⁴
Specialized Dispensers (VCI, Edge Protect.)	3-10%	Type and number of specialized material applicators required for copper.⁴
Safety Guarding & Systems	5-10%	Extent of guarding, light curtains, emergency stop systems, compliance with safety standards.¹⁴
Software Licenses (Basic PLC/Control)	1-5%	Base software for machine operation; analytics software is separate.²¹
Installation & Commissioning	10-20%	System complexity, site preparedness, vendor labor rates, travel.¹³
Operator & Maintenance Training	2-5%	Duration, number of trainees, on-site vs. off-site.¹²
Initial Spare Parts Package	2-5%	Critical components recommended by vendor.¹³
Shipping & Logistics	2-8%	Size and weight of equipment, distance, specialized transport needs.¹³
Analytics Modules & Integration	(See Table 3)	Cost varies significantly based on type (MES, OEE, PdM) and scope.
Contingency	5-15%	Allowance for unforeseen issues, scope changes, or cost overruns.²¹
Note: Percentages are illustrative and can vary widely based on project specifics.

5. The Value of Integrated Analytics in Packing Automation

The integration of analytics into automatic packing systems for slit copper strips elevates these lines from simple automated machinery to intelligent, data-driven assets. By leveraging Manufacturing Execution Systems (MES), Overall Equipment Effectiveness (OEE) data, and Predictive Maintenance (PdM) capabilities, companies can unlock significant improvements in process optimization, efficiency, and uptime.

Leveraging Manufacturing Execution Systems (MES) for Process Optimization

A Manufacturing Execution System (MES) is a comprehensive software solution designed to manage and monitor work-in-progress on the factory floor in real-time.²² When integrated with an automatic packing line for slit copper strips, an MES provides a powerful platform for:

Real-time Production Tracking: Monitoring the status of each coil as it moves through the packing line, from infeed to final packaging.
Order Fulfillment Verification: Ensuring that coils are packaged according to specific customer orders and specifications.
Material Traceability: Linking packaged copper coils back to their original production batches, heats, or master coils, providing complete genealogy. This is crucial for quality control and in case of recalls for high-value materials like copper.²²
Performance Analysis: Collecting data on cycle times, throughput, and adherence to production schedules.
ERP Integration: Seamlessly exchanging data with Enterprise Resource Planning (ERP) systems for inventory management, order processing, and financial reporting.⁴
Quality Data Collection: Recording quality parameters and inspection results at various stages of the packing process.
Downtime Tracking and Analysis: Identifying causes and duration of line stoppages for targeted improvement efforts.²²

Typical MES features relevant to packing lines include interfaces for production scheduling, tools for quality data input and analysis, modules for tracking downtime and its causes, and comprehensive reporting dashboards.²² The investment for MES can range from tens of thousands for basic modules to several hundred thousand dollars, or even over a million for large, multi-site enterprise deployments, including hardware, software licenses, and implementation services.²²

Enhancing Overall Equipment Effectiveness (OEE) through Data Insights

Overall Equipment Effectiveness (OEE) is a standard metric for measuring manufacturing productivity. It is calculated as the product of three factors: Availability, Performance, and Quality (OEE = A x P x Q).²³ Integrated sensors and software on the packing line collect data on:

Availability: Actual run time versus planned production time, accounting for all stop times (both unplanned breakdowns and planned stops like changeovers).
Performance: Actual operating speed versus the ideal or designed cycle time, accounting for small stops and slow cycles.
Quality: Good coils produced versus total coils processed, accounting for rejects or rework.

Real-time OEE dashboards provide immediate visibility into the packing line’s efficiency.²⁴ This data helps identify bottlenecks, understand the root causes of lost productivity (e.g., frequent short stops, slow cycle times, high defect rates), and prioritize improvement initiatives.²³ OEE software can range from relatively inexpensive monthly subscriptions per machine (e.g., around €159/month/machine for some solutions²⁵) to more comprehensive IoT-based OEE systems costing $150,000 to $600,000+.²⁴ The benefits are tangible, with potential for 10-30% reduction in manufacturing costs and a 20-30% improvement in OEE.²⁴

Implementing Predictive Maintenance (PdM) for Reduced Downtime

Predictive Maintenance (PdM) utilizes sensor data (monitoring parameters like vibration, temperature, current draw, etc.) from critical packing line components (motors, gearboxes, bearings, wrapping arms, strapping heads) and applies analytical algorithms or machine learning to predict potential equipment failures before they occur.²⁶ This proactive approach offers several advantages:

Reduced Unplanned Downtime: Maintenance can be scheduled during planned outages, minimizing disruptive and costly emergency breakdowns.²⁷
Extended Equipment Life: Addressing minor issues before they escalate into major failures can prolong the operational life of components.
Optimized Maintenance Schedules: Maintenance is performed when needed, rather than on a fixed (and potentially unnecessary) time-based schedule.
Lower Maintenance Costs: Reduces overtime for emergency repairs and minimizes secondary damage caused by catastrophic failures.

The cost of PdM systems includes sensors (ranging from $100 to thousands of dollars per sensor), data acquisition hardware, CMMS (Computerized Maintenance Management System) software (which can start around $400/user/year or have free/basic tiers from $45/user/month for some products), specialized data analytics tools, and potentially the cost of skilled maintenance engineers or data analysts to interpret the findings.²⁷ Despite these costs, PdM directly addresses unplanned downtime, a major factor impacting TCO and productivity.¹¹

Cost Implications and ROI of Analytics Integration

The investment in integrated analytics involves costs for software licenses, sensors, IT infrastructure, integration services, and training. However, these investments are typically offset by significant returns:

MES: Can lead to improved yield, better resource utilization, reduced scrap, and enhanced compliance. Some analyses suggest ROI of 400% over 3 years with payback periods as short as 6 months for MES implementations.²²
OEE Systems: Directly contribute to increased throughput, reduced waste, and better labor utilization by identifying and addressing efficiency losses. Improvements in OEE of 20-30% are achievable.²⁴
PdM Systems: Lead to significant reductions in unplanned downtime (potentially 50-70%²⁴), lower repair costs, and improved equipment availability.

These analytics tools are not merely isolated solutions; they offer synergistic value. MES provides the operational context (orders, materials, schedules), OEE measures the efficiency of executing those operations, and PdM ensures the equipment is reliably available to meet MES schedules and OEE performance targets.⁴ This interconnectedness creates a comprehensive, real-time view of the packing operation, enabling a higher level of control and optimization. As packing lines incorporate more advanced automation like robotics²⁸, such analytical capabilities shift from being a luxury to a fundamental necessity for managing complexity and maximizing the return on sophisticated hardware investments. A phased implementation, perhaps starting with OEE for immediate line optimization and gradually adding PdM for critical assets, followed by broader MES integration, can be a pragmatic approach to manage costs and demonstrate value at each stage.²²

Table 3: Cost-Benefit Analysis of Integrated Analytics Modules for Slit Copper Strip Packing Lines

Analytics Type	Typical Implementation Cost Range (Illustrative)	Key Benefits for Copper Packing	Estimated ROI Horizon (Illustrative)	Integration Complexity
MES (Manufacturing Execution System)	$100,000 – $500,000+ (can be higher for enterprise-wide)²²	Full traceability of high-value copper strips, adherence to customer-specific packaging protocols, real-time production visibility, improved quality control, efficient order management.²²	2-4 years²²	Medium to High
OEE Software & Systems	Software: $1,000 – $20,000/year/line.²⁵ Full IoT System: $50,000 – $200,000+²⁴	Maximizing throughput of valuable copper material, minimizing scrap/waste from packing errors, identifying and reducing bottlenecks in the packing line, optimizing cycle times.²⁴	6-18 months	Low to Medium
Predictive Maintenance (PdM) System	Sensors & Basic Software: $5,000 – $50,000+ (plus expertise/personnel)²⁷	Preventing unexpected breakdowns that could damage delicate copper strips or cause line jams, reducing maintenance costs, extending equipment life, ensuring high availability of the packing line.	1-3 years	Medium
Note: Cost ranges are indicative and depend heavily on the scope of implementation, number of assets monitored, level of integration, and vendor selected.

6. Evaluating the Return on Investment (ROI) for Automated Systems

Investing in an automatic packing system for slit copper strips, especially one with integrated analytics, represents a significant capital expenditure. Therefore, a thorough Return on Investment (ROI) analysis is essential to justify the decision and understand its financial impact.

Methodology for ROI Calculation in Automated Packing

The fundamental ROI calculation is:

$$
ROI(\%)=\frac{Net Profit}{Cost of Investment}\times 100
$$ ¹⁰

Where:

Net Profit (or Net Annual Benefit): This is calculated as the total annual savings generated by the automation minus the annual operating costs of the new automated system.¹⁰
Cost of Investment: This includes the total upfront costs for purchasing, installing, and commissioning the system, including any software and initial training.¹⁰

Another key metric is the Payback Period, which indicates how long it takes for the accumulated net benefits to cover the initial investment:

$$
Payback Period (Years)=\frac{Total Investment Cost}{Annual Net Benefit}
$$ ¹⁰

For a more sophisticated financial analysis, especially for long-term investments, it is advisable to consider the time value of money using metrics like Net Present Value (NPV) and Internal Rate of Return (IRR).¹⁰ These methods discount future cash flows to their present value, providing a more accurate picture of the investment’s profitability over its lifespan. The Total Cost of Ownership (TCO) should also be compared against the projected benefits to ensure a comprehensive evaluation.¹⁶

Primary ROI Drivers

The financial benefits that drive the ROI for automated packing systems are multifaceted:

Labor Savings: This is often the most significant driver. Automation reduces the number of operators required per shift, minimizes the need for manual handling, lowers recruitment and training expenses, and can reduce overtime costs.¹⁰ Case studies show labor cost reductions ranging from 20-30% in the first year to 40% in specific applications.⁸ The global material handling equipment market is partly driven by companies seeking to reduce labor costs through automation.²⁹
Increased Throughput & Productivity: Automated lines operate faster and more consistently than manual processes, leading to higher output per shift and overall increased production capacity.⁴ Some automated packaging systems have demonstrated throughput increases of up to 30%⁸, and some coil production automation has doubled output.³⁰
Reduced Material Waste: Precise application of packaging materials like stretch film and strapping, optimized by automated controls, minimizes overuse and waste.⁴ Consistent application also reduces the need for rework due to faulty packaging.
Damage Reduction: Proper, consistent packaging significantly minimizes damage to valuable slit copper strips during handling, storage, and transit.¹⁰ Given that improper packaging can increase damage claims by 10% and returns due to defects can raise operational costs by up to 20% in the metal coil industry⁶, this is a critical saving. Reducing damage to sensitive copper surfaces and edges also prevents yield loss and reprocessing costs.⁵
Improved Quality & Consistency: Automation ensures that every coil is packaged to the same high standard, reducing errors and enhancing customer satisfaction due to reliable product presentation and protection.⁴
Space Optimization: Automated systems can often be designed with a more compact footprint compared to manual packing areas, allowing for more efficient use of factory space.¹⁰
Enhanced Safety & Reduced Injury Costs: By automating strenuous and repetitive manual tasks, the risk of workplace injuries is significantly lowered. This leads to reduced costs associated with workers’ compensation claims, lost workdays, and potential regulatory penalties.⁴ Automated lines have been linked to 15% fewer workplace injuries.⁸

Case Study Insights (Illustrative Examples)

While specific ROI case studies for automated slit copper strip packing lines with integrated analytics are not detailed in the provided materials, analogous examples from general packaging automation and coil processing highlight the potential returns:

General Packaging Automation: A company automating its picking and packing process saw a 4 to 5 times improvement in efficiency, significant labor savings, and reduced shipping costs due to right-sized packaging.³¹ The Association for Packaging and Processing Technologies (PMMI) reports that companies implementing packaging automation see an average 20-30% reduction in labor costs within the first year.⁸ Productivity is a top goal for CPG companies, with automation being a key strategy.³²
Coil Processing/Handling Automation: One company implementing an automated valve coil production line reduced its coil production team by 40% and doubled production, achieving a payback period of under two years.³⁰ Another enterprise using an automated wire drawing and packaging line significantly improved packaging efficiency and reduced labor costs, with production data uploaded directly to ERP/MIS systems.³³ For MES implementations, ROIs of 400% over 3 years with a 6-month payback have been reported.²²

These examples underscore the substantial financial and operational benefits achievable through automation. The "cost of inaction"—that is, the escalating problems of labor shortages²⁹, rising labor costs, quality inconsistencies, and competitive disadvantage from not automating—should also be considered. If competitors adopt automation and a company does not, it risks falling behind in efficiency, cost structure, and product quality, effectively incurring a "negative ROI" by maintaining manual processes.

Beyond quantifiable financial returns, qualitative benefits also contribute to the overall value. These include improved employee morale due to safer and less physically demanding work⁸, enhanced brand reputation from consistent product quality and reliable delivery¹⁰, and increased business agility and scalability to meet fluctuating market demands. The ROI is not a static figure; as integrated analytics like OEE systems help optimize the line’s performance over time²⁴, the net annual benefit can increase, potentially shortening the payback period and enhancing the overall return beyond initial projections.

Table 4: ROI Projection Framework for Automated Slit Copper Strip Packing System (Illustrative)

Category	Item	Estimated Annual Figure (Example)	Notes
A. Investment Costs (One-Time)
	System Purchase Price (Hardware & Base Software)	$\text{[X1]}$	Based on vendor quotes for selected system¹¹
	Installation & Commissioning	$\text{[X2]}$	Typically 10-20% of hardware cost¹³
	Software & Analytics Modules (MES, OEE, PdM licenses/setup)	$\text{[X3]}$	See Table 3 for component estimates²²
	Initial Training (Operator & Maintenance)	$\text{[X4]}$	¹²
	Freight & Rigging	$\text{[X5]}$	¹³
	Contingency (e.g., 10%)	$\text{[X6]}$	For unforeseen expenses²¹
Total Investment (A)		$$\text{$$}$$
B. Annual Operational Savings			Compared to current manual or semi-automatic process¹⁰
	Labor Cost Reduction (Operators, Handlers)	$$\text{$$}$$	(Number of FTEs reduced x Avg. Annual Cost per FTE)¹⁰
	Material Cost Reduction (Film, Strapping, VCI)	$$\text{$$}$$	(Reduced consumption % x Annual Material Cost)⁴
	Reduced Product Damage/Scrap Costs	$$\text{$$}$$	(Reduction in damage rate % x Value of Damaged Goods)⁶
	Increased Throughput Value (if applicable)	$$\text{$$}$$	(Additional units processed x Profit per unit)⁸
	Reduced Rework/Re-packaging Costs	$$\text{$$}$$	Estimated savings from improved consistency¹⁰
Gross Annual Savings (B)		$$\text{$$}$$
C. Annual Operational Costs (New System)			¹⁰
	Maintenance & Spare Parts	$\text{[C1]}$	Typically 2-5% of system cost annually
	Energy Consumption	$\text{[C2]}$	(kWh consumed x Cost per kWh)¹¹
	Software Subscriptions/Licenses (Ongoing for Analytics)	$\text{[C3]}$	²⁵
	Ongoing Training/Skills Upkeep	$\text{[C4]}$
Annual Operating Costs (C)		$$\text{$$}$$ \$$
D. Net Annual Benefit	B – C	$$\text{$$}$$ \$$
E. Payback Period (Years)	A / D	$$\text{$$}$$ \$$	¹⁰
F. Simple ROI (%)	*(D / A) 100%**	$$\text{$$}$$ \$$
Note: $\text{[Xn]}$, $\text{$$}$, and $\text{[Cn]}$ represent placeholder values to be filled with specific project data.

7. Advanced Features, Customization, and Future Outlook

The evolution of automatic packing systems for slit copper strips is marked by increasing sophistication in customization, the integration of advanced robotics, and a growing emphasis on sustainable practices. These trends are shaping the future of coil packaging, enabling manufacturers to meet diverse customer needs more effectively while addressing broader operational and environmental goals.

Tailoring Systems: Customization Options and Flexibility

Given the wide variation in slit copper strip dimensions (width, thickness, coil ID/OD), weight, and specific end-user packaging preferences, customization is often a fundamental necessity rather than a mere option.² Leading manufacturers of automated packing lines emphasize their ability to provide custom-built or tailor-made solutions.⁷ Key areas for customization include:

Coil Handling Capacity: Systems can be designed to accommodate the specific range of coil sizes and weights processed by a facility.
Packaging Materials and Methods: Options for various types of VCI films or papers, different grades and types of stretch wrap, specific edge protector materials and placement, and choices in strapping materials (e.g., PET vs. steel) and patterns (radial, axial, number of straps).³⁴
Modular Design: Many modern systems feature a modular design, allowing companies to select and configure specific packaging stations (e.g., wrapping, strapping, labeling, palletizing) according to their needs and budget. This also facilitates future upgrades or modifications.¹⁸
Layout Integration: Systems can be customized to fit existing plant layouts, integrating smoothly with upstream processes (like slitting lines) and downstream operations (like warehousing or shipping docks).
Level of Automation: Different modules within a line can have varying degrees of automation, allowing for a phased approach or a balance between automation and manual oversight where appropriate.
Data and Control Integration: Customization of data reporting formats, HMI screens, and integration protocols for communication with existing MES/ERP systems.⁷

This level of customization ensures that the automated packing line is optimized for the specific products and operational context of the copper processor, maximizing efficiency and product protection.

The Role of Robotics in Modern Coil Packaging

Industrial robotics are playing an increasingly significant role in automating various aspects of coil packaging, offering enhanced precision, speed, flexibility, and the ability to operate continuously in demanding environments.²⁸ Applications in slit copper strip packaging include:

Coil Handling and Transfer: Robots can accurately pick up slit coils from conveyors or turnstiles, orient them, and place them onto subsequent processing stations or pallets. This is particularly beneficial for heavy or awkwardly sized coils.⁴
Palletizing: Robotic palletizers can build stable and optimized stacks of packaged coils on pallets according to pre-programmed patterns.
Material Application: Robots can be used for the precise application of packaging materials, such as placing edge protectors exactly where needed or manipulating wrapping heads for complex coil geometries. A patent exists for a robotic system using two industrial robots for coil packaging, featuring inclined travel for wrapping material application.³⁵
Quality Inspection: Robots equipped with vision systems can potentially assist in automated quality inspection tasks, identifying surface defects or packaging inconsistencies.

The integration of robotics is a key enabler for achieving higher levels of flexibility, potentially supporting more agile manufacturing environments where "lot size one" or highly varied product mixes are common. Robots are inherently reprogrammable and can adapt to different coil sizes, weights, and packaging routines with minimal downtime, which is crucial for handling diverse customer orders for slit copper strips.²⁸

Innovations in Sustainable Packaging Materials and Practices for Copper Coils

Sustainability is a growing priority in all industries, and packaging is no exception. For slit copper strips, this involves both the materials used and the efficiency of the packaging process itself:

Recycled and Recyclable Materials: There is a move towards using packaging components made from recycled content and that are themselves easily recyclable. Examples include edge protectors made from 100% recycled paperboard³⁶ and recyclable polyethylene (PE) based stretch films and protective sheets.³⁷ Some suppliers offer recycling programs for their plastic packaging products.³⁷
Environmentally Considerate VCI: While VCI is crucial for corrosion protection, manufacturers are developing VCI formulations that are more environmentally friendly.
Optimized Material Usage: Automated systems contribute to sustainability by ensuring precise application of packaging materials, minimizing overuse and waste.⁴ This reduces the consumption of resources like plastic film and cardboard.²⁸
Energy Efficiency: Modern automated machinery is often designed with energy efficiency in mind, reducing the overall environmental footprint of the packaging operation.¹² This includes energy-saving modes and components that consume less power.
Reduced Damage: Effective packaging that prevents damage to copper strips avoids the environmental impact associated with scrapping and remanufacturing damaged goods.

The holistic view of sustainability encompasses not just the "greenness" of the materials but also the overall efficiency of the automated system in terms of energy consumption per unit packed and the reduction of waste throughout the product lifecycle.

8. Strategic Recommendations for System Selection and Implementation

Selecting and implementing an automatic packing system for slit copper strips is a significant undertaking that requires careful planning and strategic decision-making. To maximize the return on investment and ensure the system meets current and future needs, the following recommendations should be considered:

Conduct a Thorough Needs Assessment:
Before engaging with vendors, perform a detailed internal analysis. This should include:
- Current packaging processes, identifying bottlenecks, inefficiencies, and pain points.
- Specific throughput requirements (coils per hour/shift/day) and anticipated future growth.
- A comprehensive list of all slit copper strip specifications: range of IDs, ODs, widths, weights, and types/grades of copper.
- Current and desired packaging standards, including types of materials (VCI, wraps, edge protectors, strapping) and pallet configurations.
- Existing plant layout constraints and integration points with upstream (slitting) and downstream (storage/shipping) processes.
- Data management and reporting needs.¹⁰
Perform Diligent Vendor Evaluation:
Evaluate potential vendors based on a comprehensive set of criteria:
- Experience: Prioritize vendors with demonstrated experience in packaging slit coils, particularly non-ferrous metals like copper, or materials with similar handling sensitivities.
- Technological Capabilities: Assess their expertise in automation, robotics, and crucially, their ability to integrate advanced analytics (MES, OEE, PdM) effectively.
- Customization Offerings: Ensure the vendor can tailor the system to meet specific requirements rather than offering a one-size-fits-all solution.¹⁷
- Installation Support and Commissioning: Clarify the scope of installation services, commissioning procedures, and performance validation.
- Training Programs: Evaluate the comprehensiveness of operator and maintenance training programs.¹²
- After-Sales Service and Support: Inquire about warranty terms, availability of spare parts, technical support responsiveness, and options for service contracts.¹³
- Customer References: Request and check references from companies with similar applications.
Focus on Total Cost of Ownership (TCO), Not Just Upfront Price:
As detailed earlier, the initial purchase price is only one component of the total cost. A thorough TCO analysis, considering operational costs, maintenance, consumables, energy, and potential downtime over the system’s lifespan, will provide a more accurate basis for comparing vendor proposals and making a financially sound decision.¹¹
Prioritize and Plan for Analytics Integration:
Recognize the strategic value of integrated analytics. From the outset, plan for how MES, OEE, and PdM functionalities will be incorporated. This involves defining data requirements, integration points with existing enterprise systems (ERP, etc.), and how the insights will be used to drive continuous improvement.⁴ Effective analytics integration necessitates a clear data strategy: determine what data needs collection, storage, security protocols, user access levels, and its application in decision-making processes. Developing this strategy concurrently with system selection is crucial for ensuring that the investment in analytics yields actionable intelligence.
Consider a Phased Implementation for Complex Systems:
For highly complex, fully automated lines or extensive analytics rollouts, a phased implementation approach can mitigate risk, manage capital expenditure more effectively, and allow for learning and adjustments along the way. Early wins in one phase can help build momentum and justification for subsequent phases.²²
Emphasize Future-Proofing through Modularity and Scalability:
Select systems that offer modularity and scalability. This allows for future upgrades, the addition of new packaging capabilities, integration of new technologies (like advanced robotics or AI-driven analytics), or expansion to accommodate increased production volumes without requiring a complete system overhaul.¹⁸
Involve Key Stakeholders Throughout the Process:
Engage a cross-functional team including representatives from operations, maintenance, engineering, IT (especially for analytics integration), finance, and procurement in the needs assessment, vendor selection, and implementation planning. This ensures all perspectives are considered, promotes buy-in, and facilitates a smoother transition.
Explore a Pilot Project or Proof-of-Concept:
For significant investments, particularly those involving substantial customization for sensitive materials like copper, consider requesting a pilot project or a detailed proof-of-concept with the shortlisted vendor(s). This can help validate performance claims, identify potential issues early, and de-risk the full-scale implementation. While not always feasible, it provides invaluable assurance for complex automation projects.

By adhering to these strategic considerations, companies can navigate the complexities of acquiring and implementing an automatic packing system for slit copper strips, ensuring the chosen solution delivers optimal performance, strong ROI, and a lasting competitive advantage.

9. Conclusion

The investment in automatic packing systems for slit copper strips, particularly those enhanced with integrated analytics, represents a strategic imperative for manufacturers aiming for operational excellence and sustained competitiveness. The evidence strongly suggests that while the initial capital outlay can be considerable, the long-term benefits in terms of efficiency, cost reduction, product quality, and process control offer a compelling justification.

Slit copper strips, due to their value and sensitivity, demand packaging solutions that are not only robust but also precise and consistent. Automation directly addresses these needs by minimizing manual handling errors, optimizing material usage, and ensuring that each coil is packaged to exacting standards. This leads to tangible returns through reduced labor costs, increased throughput, minimized product damage, and lower material waste.

The integration of analytics—MES for overarching production management and traceability, OEE for maximizing equipment effectiveness, and PdM for ensuring reliability and minimizing downtime—transforms these packing lines into intelligent systems. This data-driven approach empowers manufacturers with the insights needed for continuous improvement, proactive maintenance, and informed decision-making, further amplifying the ROI.

The journey towards automated, intelligent packaging is not merely an incremental upgrade; it is a transformational step. It enables slit copper strip processors to align with smart factory paradigms, enhance the resilience and responsiveness of their supply chains, and consistently meet evolving customer expectations for quality, reliability, and increasingly, sustainable practices. As robotics become more prevalent and the demand for sustainable packaging solutions grows, the adaptability and intelligence of these automated systems will become even more critical. Ultimately, a well-planned investment in an automatic packing system with integrated analytics is an investment in the future viability and success of operations within the copper processing industry.
