Optimizing Steel Tube Packing Systems: From Bundle Formation to Warehousing

1. Introduction: Advancements in Steel Tube Packing Systems

Overview of Evolution and Importance

The landscape of steel tube manufacturing has been significantly reshaped by continuous technological advancements, positioning steel tube mills at the vanguard of industrial transformation towards enhanced efficiency and sustainability.¹ Historically, the production of steel tubes was a labor-intensive endeavor, characterized by multiple discrete steps. However, modern steel tube mills have embraced automation, computer numerical control (CNC) systems, and robotics, which have collectively streamlined operations, markedly improving precision, production speed, and overall efficiency.¹ This evolution in manufacturing has profound implications for downstream processes, particularly steel tube packing systems.

The packing system, once viewed as a mere necessity for containment and transport, has evolved into an integral component of the overall production and quality assurance continuum. The primary contribution of modern mills is the consistent output of high-quality steel tubes meeting stringent industry standards.¹ Consequently, the packing system must be sophisticated enough to preserve this achieved quality, ensuring that the tubes maintain their integrity from the point of production until they reach the end-user. A failure in the packing stage, such as damage incurred during bundling or strapping, can negate the significant investments made in upstream quality production. Therefore, the efficiency and efficacy of the packing system are paramount.

Key Objectives of Modern Steel Tube Packing Systems

The design and operation of contemporary steel tube packing systems are driven by a trifecta of core objectives: ensuring product integrity, maximizing operational efficiency, and safeguarding worker safety.

Product Integrity:

A primary goal is to protect steel tubes from any form of damage—including scratches, dents, and deformation—throughout the bundling, strapping, handling, storage, and transportation phases.² This is especially critical given that the hallmark of modern steel tube production is high-quality output.¹ Maintaining the dimensional accuracy and surface finish of the tubes is essential. For high-value or specially treated tubes, protective packaging measures such as end caps or full wrapping are often employed to ensure their pristine condition upon delivery.³ Furthermore, preventing contamination and corrosion is a key consideration, particularly for specialized tubes or those intended for demanding environments.⁴ Robust packaging, analogous to secure bundles, ensures products arrive "safely and intact," underscoring packing as a value-retention mechanism.⁴

Operational Efficiency:

Modern packing systems aim to significantly boost throughput and productivity. This is largely achieved through the automation of previously manual tasks such as tube counting, stacking, bundle formation, and strapping.¹ Automation directly translates to a reduction in manual labor requirements and associated costs.² Continuous operation, facilitated by automated systems and real-time monitoring, helps minimize downtime and optimize production schedules.¹ The objective is to create a streamlined material flow from the tube mill output directly through the packing line and into warehousing.² Efficient systems also contribute to reducing material waste, particularly in strapping and other packaging consumables.⁵ The packing line itself is viewed as a contributor to overall production efficiency.²

Worker Safety:

Enhancing worker safety is a non-negotiable objective. Automated systems are instrumental in eliminating hazardous manual handling tasks associated with heavy steel tubes and potentially sharp strapping materials.² This, in turn, reduces the risk of common industrial injuries, including those arising from repetitive motion, cuts from strapping, or incidents involving falling materials.⁶ Compliance with occupational safety regulations, such as the U.S. Occupational Safety and Health Administration (OSHA) standard 1910.176 concerning secure storage and material handling, is a fundamental requirement that modern packing systems help address.⁷

The interconnectedness of these objectives means that improvements in one area often positively impact others. For instance, automation not only boosts efficiency but also significantly enhances safety by removing workers from potentially hazardous operations. Similarly, a system designed for optimal product integrity inherently reduces waste and rework, contributing to overall efficiency. Decisions regarding packing system upgrades or new installations must holistically consider these objectives. The quality specifications of the tubes being produced directly influence the sophistication required of the packing system; higher quality or more sensitive tubes logically demand more advanced packing solutions to preserve their value. Thus, investing in a superior packing system can transcend being a mere cost center, becoming a competitive differentiator by reducing damage-related losses, minimizing customer complaints, and ultimately enhancing brand reputation and customer goodwill. Achieving true operational excellence necessitates a systems-thinking approach, viewing bundling, strapping, and warehousing not as isolated activities but as integral, interconnected components of the larger production and logistics ecosystem.

2. Steel Tube Bundle Formation: Technologies and Processes

The formation of steel tube bundles is the foundational step in the packaging process, directly impacting handling efficiency, storage density, and the integrity of the tubes themselves. Modern systems employ a range of automated and semi-automated technologies to count, accumulate, stack, and shape tubes into manageable and stable units.

Automated and Semi-Automated Tube Counting, Accumulation, and Stacking

The journey of a steel tube from the mill to a formed bundle typically begins with its transport to a dedicated packing area, often via a run-out table.² In some automated lines, a pipe turning device may be used to orient the tubes correctly before they are transferred onto a chain transportation device. This device then moves the tubes to a designated counting position.²

At the heart of automated bundle formation are precise counting mechanisms. These systems can be pre-set, often via a Human-Machine Interface (HMI), with the exact number of pipes required for a bundle, a parameter that typically varies according to tube size and customer specifications.² Advanced sensors, such as photoelectric or laser sensors, are employed to accurately count each tube as it passes.⁸ This automated counting eliminates the human error associated with manual counts, ensuring bundle consistency.

Once counted, tubes are accumulated, often layer by layer, to form the bundle.² When the pre-set number of tubes for a layer or the entire bundle is reached, collection devices are activated. These devices might lower and gently push the accumulated pipes into a collection or forming device.² To ensure a neat and stable bundle, an end alignment device is often installed at one end of the collection area, ensuring all tube ends are flush.² The automation of these initial steps—counting, accumulation, and stacking—is fundamental to achieving the high throughput rates demanded by modern tube mills, improving accuracy, and significantly reducing the labor intensity previously associated with these tasks.²

Bundle Shaping: Hexagonal vs. Square Configurations

After accumulation, the tubes are arranged into a specific geometric shape, most commonly hexagonal or square/rectangular. This shaping is typically performed by pneumatically or hydraulically actuated arms, guides, or paddles. These mechanisms are carefully designed and controlled to arrange the tubes into the desired configuration, ensuring tight packing for stability while preventing any damage to the tube surfaces.⁸ Several equipment manufacturers offer systems specifically designed for creating precise hexagonal and square bundles ⁸, with some machines capable of handling round, square, and rectangular tubes and forming them into either hexagonal or square bundles.⁹

Hexagonal Bundles:

Hexagonal bundles are a prevalent choice, particularly for round tubes.

• Pros: This configuration offers the highest packing density for round tubes, maximizing the use of space in storage and transport. The geometry of a hexagonal bundle also lends itself to an inherently stable structure.⁸ The number of pipes in a standard hexagonal bundle can be calculated using established mathematical formulas, aiding in planning and inventory management.¹⁰
• Cons: Forming a perfect hexagonal bundle can be slightly more complex mechanically compared to a square bundle. Furthermore, stacking hexagonal bundles might require specific dunnage or careful orientation to ensure stability, especially if the bundles are not perfectly uniform.⁸

Square/Rectangular Bundles:

These bundles are common for square and rectangular hollow sections and can also be used for round tubes.

• Pros: The geometry is simpler, which can potentially lead to easier stacking, sometimes directly without specialized dunnage. The forming mechanism for square or rectangular bundles may also be slightly less complex.⁸
• Cons: For round tubes, square or rectangular bundles are less space-efficient compared to hexagonal ones, meaning fewer tubes can be packed into a similar volume. The stability of such bundles, particularly with round tubes, might be lower unless they are very tightly strapped.⁸

The choice between hexagonal and square/rectangular bundles is not merely an internal plant decision based on packing density. It often extends to downstream logistical considerations and customer preferences.⁸ For instance, the ease with which bundles can be loaded into trucks or shipping containers, and how readily customers can handle and unbundle them at their sites, can influence the preferred shape. A shape that is optimal for in-plant storage density might prove problematic or more costly for shipping or for the end-user’s handling capabilities.

Table 1: Comparison of Bundle Shapes for Round Steel Tubes

Feature	Hexagonal Bundle	Square/Rectangular Bundle
Packing Density	Highest for round tubes	Lower for round tubes
Inherent Stability	High, due to interlocking geometry	Moderate, relies more on strapping tightness
Formation Complexity	Potentially slightly more complex	Simpler mechanism possible
Stacking Ease	May require dunnage or specific orientation	Potentially easier to stack directly
Dunnage Requirement	More likely for stable multi-layer stacking	Less likely, but depends on bundle uniformity
Suitability	Industry standard for round tubes	Common for square/rectangular tubes; can be used for rounds
Data synthesized from.8

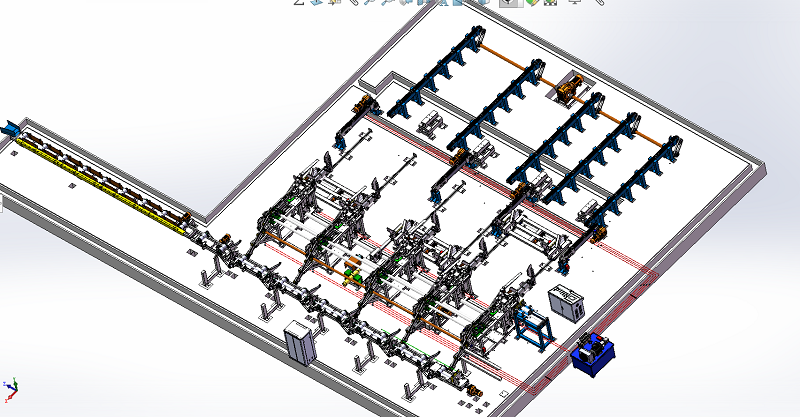

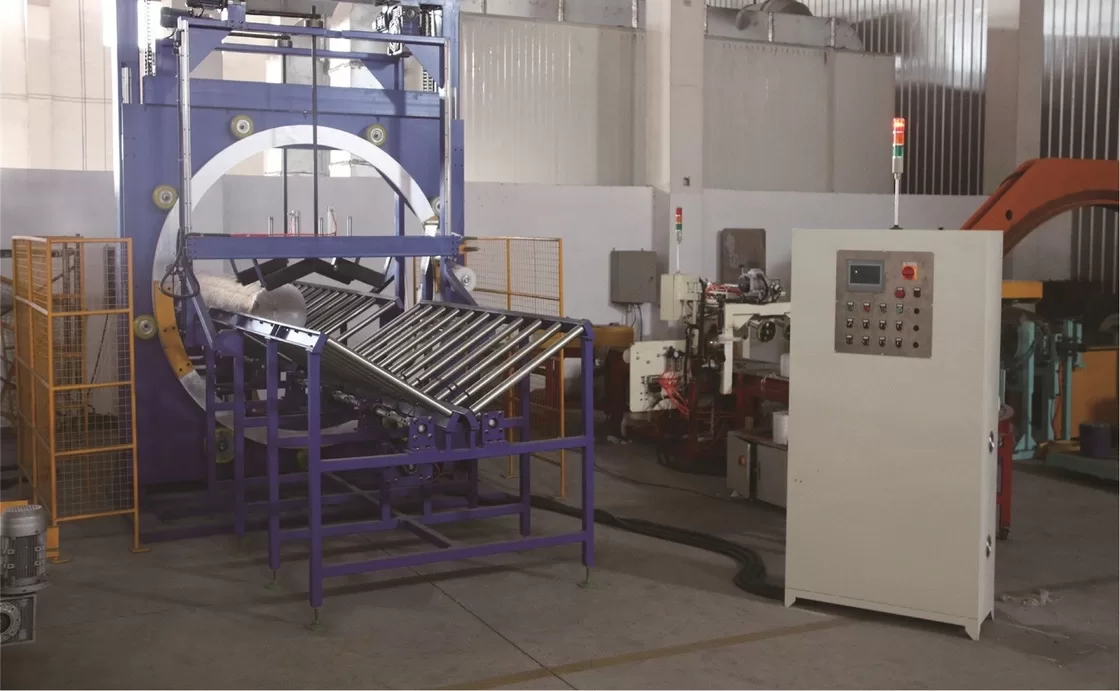

Key Machinery and Components in Automated Bundle Making Lines

A typical automated bundle making line comprises several key components working in concert:

• Infeed Conveyor System: This system, often utilizing driven rollers or chain conveyors, reliably transports tubes from the production line or a staging area into the bundling machine.⁸
• Tube Counting & Accumulation Section: Equipped with precise sensors and mechanical guides, this section accurately counts and gathers the required number of tubes for a single bundle before the formation process begins.²
• Bundle Forming Mechanism: This is the core of the machine, employing pneumatically or hydraulically actuated arms, shaping heads, guides, or paddles to carefully arrange the accumulated tubes into the desired hexagonal or square/rectangular shape.⁸ A critical design consideration for these mechanisms is the "gentle handling" imperative. While speed and accuracy are important, the machinery must handle tubes without causing surface damage like scratches or dents, especially for tubes with special coatings or tight tolerances.² This involves careful design of contact surfaces and controlled actuator movements.
• Pre-Tightening/Holding Station: Once formed, the bundle is often held securely in place, sometimes with a light pre-tightening, to maintain its shape and prepare it for transfer to the strapping station.⁸
• Bundle Transportation Car/Conveyor: After formation (and often pre-tightening), a transporting car or conveyor system moves the complete pipe bundle to the automatic bundling (strapping) position. Once strapped, it’s moved to a storing position or an outfeed conveyor for dispatch.²
• Control System (PLC & HMI): A Programmable Logic Controller (PLC) orchestrates the entire sequence of operations, managing timing, and controlling the functions of all mechanical and pneumatic/hydraulic components. A Human-Machine Interface (HMI), typically a touchscreen panel, allows operators to set parameters (e.g., tube count per bundle, bundle shape, tube diameter, length), monitor the machine’s status, receive diagnostic information, and troubleshoot issues.² The flexibility of these control systems is crucial for plants producing a diverse mix of tube sizes and bundle configurations, allowing for quick changeovers without extensive mechanical readjustments.¹

Examples of such systems include the automatic packing system offered by TUBO Machinery ² and the automatic steel tube strapping machine and bundling line from Fhopepack.⁹ CMP Automation also provides robotic tube bundle assembly systems, including options for semi-automated processes, which can be beneficial for lower volume or more complex assembly tasks.¹¹ The modularity and adaptability of these systems are increasingly important as manufacturers strive to meet diverse market demands for customized tube products.¹

3. Steel Tube Bundle Strapping: Materials and Machinery

Once steel tubes are formed into bundles, securing them with appropriate strapping is essential for maintaining bundle integrity during handling, storage, and transportation. The choice of strapping material and the method of application are critical decisions that impact cost, safety, efficiency, and the condition of the product upon arrival.

Comparative Analysis of Strapping Materials

The primary materials used for strapping steel tube bundles are steel, polyester (PET), and, to a lesser extent, polypropylene (PP). Each has distinct properties, advantages, and disadvantages.

Steel Strapping:

• Properties: Traditionally the go-to for heavy-duty applications, steel strapping offers high tensile strength and minimal to no stretch, ensuring a very firm hold on the load once tensioned.¹² It is resistant to sharp edges and can withstand hot loads, which can be a significant advantage when dealing with freshly processed or cut steel tubes.¹² However, steel is the most expensive strapping material and its weight can add to freight costs.¹² It is also susceptible to rust if not properly treated or if exposed to corrosive environments.⁶
• Applications: Best suited for very large, heavy, and rigid loads that demand maximum restraint, such as large-diameter pipe bundles, structural steel, or products with sharp edges or high temperatures that could compromise plastic strapping.¹² Itipack Systems highlights their TIG Spot Weld Joint technology specifically for steel strapping applications.¹³
• Pros: Unmatched strength for extreme loads; superior resistance to cut-through from sharp edges and high temperatures.¹²
• Cons: Highest material cost; heavy; more difficult and hazardous to work with due to sharp edges and the potential for dangerous recoil when cut under tension; limited recyclability compared to PET.⁶ Requires specialized, often heavy, manual or pneumatic tools.¹⁴

PET (Polyester) Strapping:

• Properties: PET strapping has emerged as a strong, cost-effective alternative to steel for many applications, often yielding material cost savings of up to 50%.¹² Pound for pound, PET can be stronger than steel, meaning a lighter roll of PET can offer comparable break strength to a heavier roll of steel, leading to freight savings.¹² It boasts high tension retention, good shock absorption capabilities, and does not rust.⁶ PET strapping is often made from post-consumer recycled (PCR) content and is itself recyclable.⁶
• Applications: Suitable for a wide range of applications, including heavy-duty loads like lumber and pavers, making it a candidate for many steel tube bundling scenarios, provided certain conditions are met.⁶
• Pros: Significant cost savings (material and freight); lighter weight; much safer and easier to handle (falls safely to the floor when cut, smoother edges reduce product damage and injury risk); good environmental profile (recyclable, PCR content).⁶
• Cons: PET has more elongation (stretch) than steel. While this provides shock absorption, if load shifting within the bundle is a critical concern, this characteristic needs careful evaluation.¹² Crucially for steel tubes, PET strapping is vulnerable to damage from sharp edges; its use should be avoided if direct contact with sharp tube ends or edges is likely, unless protective measures are implemented.⁶ Switching from steel may also require investment in new, PET-compatible tools, although these are often lighter and more ergonomic (e.g., battery-powered).⁶ The "sharp edge" consideration is paramount for steel tubes; while PET offers many benefits, its susceptibility to being cut or abraded by sharp steel edges can compromise bundle security. This may necessitate continued use of steel strapping or the implementation of protective measures like edge protectors if PET is chosen, which could add complexity and offset some cost advantages.

Polypropylene (PP) Strapping:

• Properties: PP is generally the cheapest of the common strapping materials. It is lightweight and flexible, making it suitable for conforming to awkwardly shaped packages or for bundling lighter items.¹²
• Applications: Typically used for light to medium-duty loads, general-purpose packaging, carton closing, and in conjunction with tabletop semi-automatic strapping machines.¹²
• Pros: Most economical option; highly flexible.¹²
• Cons: Lower tensile strength and poorer tension retention compared to steel or PET. Not suitable for heavy, sharp, or unstable loads like most steel tube bundles.¹² It can also degrade more quickly than steel or PET when exposed to harsh environmental conditions or UV light.¹⁴

Table 2: Comparative Analysis of Strapping Materials for Steel Tube Bundles

Feature	Steel Strapping	PET (Polyester) Strapping	Polypropylene (PP) Strapping
Typical Cost (Relative)	Highest	Medium (up to 50% cheaper than steel)	Lowest
Tensile Strength	Very High	High (Stronger lb for lb than steel)	Low to Medium
Elongation/Stretch	Very Low / None	Medium (Higher than steel)	High
Tension Retention	Good	High	Fair to Poor
Shock Absorption	Low	High	Medium
Weight	Heavy	Lightweight	Very Lightweight
Safety (Handling/Cutting)	Lower (sharp edges, recoils dangerously)	Higher (smoother edges, falls safely)	Higher (smoother edges, less recoil)
Suitability for Sharp Edges	Excellent	Poor (can be cut/damaged)	Very Poor
Resistance to Heat	Excellent	Good (but less than steel)	Fair
Rust Resistance	Poor (can rust)	Excellent (will not rust)	Excellent (will not rust)
Tooling	Heavy, specialized (manual/pneumatic)	Lighter, ergonomic (battery-powered, manual)	Lightest, simple (manual, semi-auto machines)
Environmental Impact	Limited recyclability, energy-intensive	Recyclable, often PCR-based	Recyclable, but less commonly than PET
Data synthesized from.6

When selecting a strapping material, a Total Cost of Ownership (TCO) analysis is advisable, extending beyond the per-unit material cost. Factors such as freight (influenced by strap weight), labor costs (application speed, potential for injuries), tooling acquisition and maintenance, the cost of potential product damage (either by the strap itself or due to strap failure), and even insurance or worker compensation impacts should be considered.⁶

Strapping Machine Technologies

The application of strapping can range from entirely manual processes to fully automated lines, catering to different production volumes, budgets, and operational needs.

Manual Strapping Tools/Kits:

• Operation: These systems require operators to manually feed the strap around the bundle, use a tensioning tool to pull it tight, and then apply a separate sealer tool with a metal seal or buckle to join the strap ends.⁵
• Benefits: Most cost-effective initial investment, highly portable, and versatile, as they can be used with steel, PET, or PP strapping depending on the toolset.⁵
• Considerations: Slowest application speed, consistency of tension is highly dependent on operator skill and effort, can be physically demanding for operators, especially with larger or heavier bundles.

Handheld Battery-Powered Strapping Tools:

• Operation: The operator manually wraps the strap around the bundle and inserts both ends into the tool. The tool then automatically tensions the strap to a pre-set level and seals it (often via friction weld for PET/PP).⁵ PET strapping often utilizes these lighter, battery-operated tools, which enhance operator comfort and speed.⁶
• Benefits: Significantly faster and less physically demanding than fully manual kits. Offers improved tension consistency. Highly portable, making them suitable for strapping in various locations within a plant.⁵
• Considerations: Higher initial cost than manual kits; reliant on battery charge; friction welds may not be suitable for all environments or strap types.

Semi-Automatic Strapping Machines:

• Operation: The operator places the bundle onto the machine’s table, manually wraps the strapping around the bundle, and feeds the leading end of the strap into a slot in the machine. The machine then automatically completes the cycle: it tensions the strap, seals it (typically via heat seal for plastic straps, or a mechanical joint for steel), and cuts it.⁵ MASTUBE Mills, for example, offers semi-automatic packaging systems that utilize pneumatic strapping tools for formed bundles.¹⁵
• Benefits: A good balance between cost and automation. Faster than handheld tools for stationary operations. Reduces operator effort for tensioning and sealing, leading to more consistent results.⁵
• Considerations: Bundle still needs to be manually positioned and strap manually wrapped; throughput is lower than fully automatic systems.

Fully Automatic Strapping Machines:

• Operation: These machines are designed for high-volume operations and integrate into automated production lines. Bundles are typically conveyed into the strapping station. The machine automatically positions the bundle (or the strapping head moves to the bundle), feeds the strap around it, tensions it to a precise level, seals the strap (welding, heat seal, or mechanical joint), and cuts it.² Automated bundling lines, like those from Fhopepack or TUBO Machinery, are designed to work seamlessly with such automatic strapping units.² The strapping head mechanism typically sends out the belt (strap), ensures the end connects, tightens, buckles/welds/seals, and then cuts the strap.²
• Benefits: Highest throughput and operational efficiency; minimal manual labor required; highly consistent strap placement and tension; optimizes strap usage, reducing material waste.⁵ Automation in strapping contributes not just to speed, but also to improved quality through consistency and material optimization, as it eliminates variability in tension and strap length common in manual processes.
• Considerations: Highest initial investment; may require more specialized maintenance; less flexible for handling widely varying bundle sizes or shapes without significant adjustments or reprogramming.

Table 3: Overview of Strapping Machine Types for Steel Tube Bundles

Feature	Manual Strapping Kits	Handheld Battery-Powered Tools	Semi-Automatic Machines	Fully Automatic Machines
Mode of Operation	Manual feed, tension, seal, cut	Manual feed, auto tension & seal, manual cut	Manual feed/wrap, auto tension, seal, cut	Auto feed, wrap, tension, seal, cut, convey
Typical Strapping	Steel, PET, PP	PET, PP (some for steel)	PET, PP (some for steel with specific heads)	PET, PP, Steel (depends on head design)
Throughput/Speed	Low	Medium	Medium to High	Very High
Labor Requirement	High	Medium	Low to Medium	Very Low (monitoring)
Tension Control	Operator dependent	Pre-settable, consistent	Pre-settable, consistent	PLC controlled, highly consistent
Seal Type	Metal seals, buckles	Friction weld (plastics), seals (steel)	Heat seal (plastics), mechanical (steel)	Heat/Friction weld (plastics), mechanical/weld (steel)
Portability	High	High	Low (typically stationary)	None (integrated into line)
Relative Cost (Initial)	Very Low	Low to Medium	Medium	High to Very High
Key Benefits	Low cost, versatile	Portable, improved speed/consistency over manual	Faster than manual, good consistency, affordable automation	Highest speed & consistency, minimal labor
Key Limitations	Slow, inconsistent, labor-intensive	Battery dependent, initial cost > manual	Manual bundle positioning/wrapping required	High initial cost, less flexible for diverse loads
Data synthesized from.2

Advanced Strapping Solutions

Beyond standard machinery, specialized and advanced solutions are available:

• Robotic Systems: The integration of robotics into strapping operations is increasing. Itipack Systems, for instance, offers solutions like a Robotic Dunnage Applicator that includes a fully automated plastic strapping head, demonstrating the potential for robots to handle not just strapping but also ancillary tasks.¹³ CMP Automation also leverages industry-standard robots for more comprehensive tube bundle assembly processes, which can include strapping.¹¹
• Custom-Made Machines: For unique operational requirements, such as specific space constraints, complex product handling, or integration with existing proprietary systems, custom-designed strapping machines are an option. Manufacturers like Itipack and FROMM specialize in developing such tailor-made solutions.¹³ This indicates a trend towards more sophisticated, data-driven, and adaptable strapping systems that can be highly optimized for specific production lines and product characteristics.
• Heavy-Duty Strapping Heads: For applications requiring very high tension or using wide and thick straps (e.g., up to 1 ¼” steel or PET), specialized heavy-duty strapping heads are available. FROMM, for example, offers such heads, including their MH611 model designed for small round products but still capable of handling robust strapping.¹⁶ These heads may incorporate features like internal cleaning kits to remove debris and prolong component life.¹⁶
• Specialized Sealing Technologies: Itipack is noted for its TIG Spot Weld Joint technology, which aims to provide a superior and more reliable seal for steel strapping, potentially revolutionizing how steel straps are joined.¹³

Leading Manufacturers of Bundling and Strapping Equipment

Several companies specialize in or offer robust solutions for steel tube bundling and strapping:

• Fives Group: Provides comprehensive packaging systems like Robopack (noted for modularity, advanced software, and suitability for high-productivity lines) and the Taylor-Wilson system (emphasizing safety, reliability, and flexibility for various tube shapes and bundle configurations, including options for mechanical layering and manual strapping stations).¹⁷
• Itipack Systems: A key player known for pioneering Weld Joint Technology for steel strapping and offering a range of custom and robotic strapping solutions tailored to the steel and aluminum industries, including systems for tubes, pipes, and bundles.¹³
• FROMM Strapping Solutions: Manufactures a variety of strapping machines, wrappers, and heavy-duty strapping heads for both steel and PET strap, with a focus on providing custom, turnkey systems.¹⁶
• TUBO Machinery: Offers an Automatic Packing & Bundling System that includes stackers, bundling machines, and packing lines designed for various types of steel pipes.²
• MASTUBE Mills: Produces the PPTM Tube Packaging System, available in semi-automatic and fully automatic on-line configurations for packing round, square, and rectangular tubes into hexagonal or square bundles.¹⁵
• Fhopepack: Showcases an Automatic Steel Tube Strapping Machine and Bundling Line, indicating solutions for integrated bundling and strapping processes.⁹ Other general packaging machinery manufacturers such as Micmachinery, Katahisado Co., Ltd., The Bombay Engineering Works ¹⁸, Mollers North America, American-Newlong, and LPM Systems ¹⁹ also operate in the broader packaging equipment market, though their specific focus on heavy-duty steel tube applications may vary.

4. Warehousing and Logistics for Steel Tube Bundles

Effective warehousing and logistics are crucial for maintaining the quality of steel tube bundles, ensuring efficient inventory management, and facilitating timely dispatch. This involves selecting appropriate storage methods, implementing safe handling practices, and leveraging technology for tracking and control.

Best Practices for Storage

The storage environment and methodology significantly impact the preservation of steel tube quality and warehouse operational efficiency.

Site and Warehouse Conditions:

The fundamental requirement for storing steel products, including tube bundles, is a clean and well-drained site, situated away from sources of harmful gases, dust, or corrosive agents.²⁰ It is imperative to prevent the co-storage of steel tube bundles with materials like acids, alkalis, salt, or cement that can induce corrosion.²⁰ Proper ventilation during dry conditions and protection from moisture during rainy periods are essential to maintain a suitable storage environment.²⁰ The choice between open-air, covered shed, or fully enclosed indoor storage often depends on the type of steel, its surface finish, and its intrinsic value. For instance, high-value, precision, or corrosion-sensitive tubes typically warrant indoor storage, while more robust structural tubes might be stored in well-ventilated sheds or, if suitably protected, in designated open-air areas.²⁰

Racking Systems:

Several types of racking systems are employed for storing steel tube bundles, each offering different trade-offs in terms of cost, space efficiency, accessibility, and handling.

• Cantilever Racks (Static): These are a widely adopted and cost-effective solution for long products like steel tubes.²¹ They consist of vertical columns with horizontal arms providing unobstructed access to the full length of the bundles. Cantilever racks offer good space efficiency by utilizing vertical warehouse height and provide excellent load accessibility using forklifts (often with specialized attachments like ram poles), stackers, hoists, or even manual handling for lighter bundles.²¹ They are versatile, available in numerous configurations and capacities, and can be used both indoors and outdoors, making them a safe and efficient method for extremely heavy and varied loads.²¹
• Crank-Out Cantilever Racks: This is a more advanced and higher-cost variant where the arms supporting the bundles can be cranked out from the main rack structure.²¹ This feature provides excellent space efficiency by allowing for very dense storage, as aisles for forklift access to individual bundle depths are not constantly required. Load accessibility is also excellent, typically for hand or hoist retrieval. Crank-out systems enhance safety by reducing the need for overreaching and allow for safer handling of heavy items from optimal positions. They often incorporate safety interlocks to prevent multiple levels from being extended simultaneously. These are best suited for high-density storage applications or in manufacturing work cells where quick, ergonomic access to specific bundles is paramount.²¹
• Stacking Racks: These are modular, free-standing rack units that can be stacked upon one another, typically 4 to 6 layers high.²¹ They offer flexibility as they are not bolted to the floor and can be easily reconfigured. Stacking racks are generally less expensive upfront than cantilever systems but may require multiple units to support very long bundles. Load accessibility can be limited, as typically only the bundles at the ends of a row or in the topmost layer are directly accessible without moving other racks. They are well-suited for dynamic storage situations where inventory layouts change frequently. Capacities per unit can range from 2,500 to 7,500 pounds.²¹ Safety considerations include ensuring proper weight distribution and careful manual or forklift handling to prevent dislodging racks.²¹
• Pallet Racks: While primarily designed for palletized, unitized loads, standard pallet racks can sometimes be used for storing shorter steel tube bundles, especially if they are of uniform length and can fit within the bay dimensions.²¹ They are relatively inexpensive. However, space efficiency for long items is mediocre, and accessibility is generally limited to the ends of the bundles. For vertical storage of some types of tubes, A-frame attachments can be added to pallet racks. If used, pallet racks must be specified to handle the concentrated weight of steel tube bundles.²¹

The selection of an appropriate racking system involves weighing the upfront investment against long-term operational benefits and potential hidden costs. For example, while floor stacking is the cheapest initially, the potential for product damage, inefficient space use, and difficult access can lead to higher overall costs compared to investing in a well-designed cantilever rack system, especially for valuable or high-turnover inventory.

Table 4: Comparison of Warehouse Racking Systems for Steel Tube Bundles

Racking System Type	Cost (Initial & Install)	Space Efficiency (Vertical & Density)	Load Accessibility	Handling Equipment	Flexibility/ Mobility	Weight Capacity Range	Key Safety Considerations	Ideal Applications for Steel Tubes
Static Cantilever Racks	Medium	Good (Vertical), Medium (Density)	Excellent (Full length access)	Forklift, Stacker, Hoist, Hand	Low (Fixed)	High (Very heavy loads)	Proper loading, regular inspection, load capacity adherence.	Bulk storage, varied lengths/sizes, frequent access needed.
Crank-Out Cantilever Racks	High	Excellent (Vertical & Density)	Excellent (Full access when extended)	Hoist, Hand	Low (Fixed)	High	Ergonomic benefits, interlock systems, proper operation.	High-density storage, work cells, quick access to specific items.
Stacking Racks	Low to Medium	Good (Vertical), Fair (Density)	Limited (Layered, end access)	Forklift, Hand	High (Modular)	Medium (2.5k-7.5k lbs/unit)	Stability of stacks, manual handling limits, forklift care.	Dynamic inventory, temporary storage, varying load types.
Pallet Racks (Std./A-Frame)	Low	Mediocre (Std.), Good (A-Frame Vertical)	Limited (Ends only or individual vertical access)	Forklift (Std./Ram Pole), Hand (A-Frame)	Low (Fixed)	Medium to High	Load distribution, preventing roll-off, safe manual picking.	Shorter bundles, unitized loads, some vertical storage needs.
Floor Stacking	Very Low	Poor (Vertical), Low (Density)	Poor to Fair (Depends on stack/access)	Hoist, Hand (Forklift difficult)	High (Any floor space)	Variable (Stack height limited)	Preventing rolling/sliding (bollards/bands), stack stability.	Slow-movers, bulk reserve stock where space is not a premium.
Data synthesized primarily from 21, with contextual information from.20

Floor Storage (Ground Stacking):

Storing bundles directly on the floor is the least expensive initial option but generally offers poor space efficiency due to limitations on safe stacking height.²¹ Accessibility can also be challenging, especially for specific bundles within a large stack. When floor stacking round tube bundles, it is critical to use chocks, bollards, or secure banding to prevent them from rolling or sliding, which poses a significant safety hazard.²¹ Stacking height for manual operations is often limited to around 1.2 meters, and for mechanical operations to 1.5 meters, with defined requirements for aisle spacing and ensuring the stack bottom is elevated and stable, particularly in open-air storage to allow for drainage.²⁰

Handling and Transportation (Internal and External)

Safe and careful handling is paramount to prevent damage to tube bundles and ensure worker safety.

• Loading/Unloading Equipment: When hoisting bundles, appropriate lifting gear such as wide nylon belts or wire ropes equipped with spreader bars and protective spacers should be used to prevent scratching or crushing the tubes. Direct contact between wire ropes and the tubes should be strictly avoided.²⁰
• Handling Procedures: Lifting and movement operations should be performed steadily, avoiding sudden starts, stops, or swinging motions that could cause bundles to collide or tubes within a bundle to shift and abrade each other.²⁰ Bundles should be loaded and unloaded in sequence to prevent undue stress on lower layers.²⁰
• Maintaining Bundle Integrity: Strapping must be secure enough to maintain the bundle’s shape and prevent tubes from loosening or falling out during transit. Sufficient strapping material should be used, and for very long or heavy bundles, additional measures like snap rings or intermediate straps may be necessary.²⁰
• Vehicle Preparation for Transport: Before loading onto trucks or railcars, the transport bed should be clean and free of debris that could damage the tubes. Sleepers or dunnage should be placed on the bed to provide a stable base, and side protection or spacers may be needed. Bundles must be securely fixed within the vehicle to prevent movement and shifting during transit.²⁰
• Protective Measures for Sensitive Tubes: For high-value, precision, or surface-sensitive tubes (e.g., stainless steel, coated, or thin-walled tubes), additional protective measures are indispensable. This can include individually wrapping tubes, using plastic film or kraft paper to cover entire bundles, and fitting plastic or rubber end caps to protect tube ends from impact and contamination.³ For export or particularly demanding transport conditions, packing bundles in wooden cases (which may require fumigation for international shipping) offers maximum protection.³
• Labeling and Identification: Each bundle must be clearly labeled with essential information, including tube specifications (size, grade, length), quantity, batch or heat number, weight, and any specific customer or handling instructions. This is vital for inventory control, traceability, and ensuring correct dispatch.³ Automated packing systems, like those from MASTUBE Mills, can include integrated bundle information tag printers.¹⁵

Inventory Management and Tracking Solutions

The complexity of managing steel tube inventory—often characterized by various dimensions, grades, lengths (including random lengths and remnants), and specific customer requirements—necessitates robust tracking systems.

Role of ERP/Specialized Software:

Enterprise Resource Planning (ERP) systems, particularly those tailored for the metals industry like RealSTEEL™ software, play a critical role in managing inventory, tracking material attributes throughout production and processing, and maintaining control and visibility across shop floor operations, including unique pricing, processing, and packaging needs.²²

Key Software Features for Steel Tube Inventory:

• Attribute Tracking: The ability to track inventory by multiple attributes such as inner diameter (ID), outer diameter (OD), wall thickness, length, steel grade, heat number, and surface finish is fundamental.²²
• Weight Tracking: Systems should support both theoretical weight calculations (based on dimensions and density) and actual weight capture at various process points.²³
• Remnant and Random Length Management: Efficiently tracking and utilizing remnants and random length pieces is crucial for minimizing waste and optimizing material yield.²²
• Bundle/Skid Management: Software should allow for the creation and tracking of bundles or skids as unique inventory units, associating them with specific heat/lot numbers, package dimensions, and total weight.²²
• Traceability: Parent/child lineage traceability provides a complete history of materials, essential for quality control, certifications, and potential recalls.²³
• Barcode Labeling and Scanning: Integration of barcode generation and scanning capabilities streamlines data entry, improves accuracy, and enhances visibility of material movements.²³
• Multi-Warehouse/Location Support: For operations with multiple storage sites, the system must manage inventory across all locations cohesively.²²
• Integration: Seamless integration with other business functions like production planning, sales order processing, purchasing, and financials is vital for overall operational efficiency.²²

Benefits of Effective Inventory Management Systems:

Such systems lead to more accurate order entry and fulfillment, enhanced visibility into all processes, better cost management (including labor, freight, and services), optimized material utilization (reducing scrap and unnecessary purchases), more efficient inventory control (preventing stockouts or overstocking), and ultimately, improved customer service through reliable delivery and traceability.²² For any reasonably complex steel tube operation, a robust inventory management software solution is no longer a luxury but a fundamental requirement for maintaining operational control, managing costs effectively, and ensuring customer satisfaction.

The interplay between packaging choices and warehousing/logistics efficiency is significant. The shape, size, and strapping integrity of a bundle directly influence how it can be safely and efficiently stored, handled by equipment, and transported. For example, a poorly formed or inadequately strapped hexagonal bundle might lose its shape, becoming unstable and difficult for forklifts to manage or to place securely in cantilever racks. This underscores the need for an integrated approach where decisions made during bundling and strapping explicitly consider downstream warehousing and transportation constraints and requirements.

5. Enhancing Quality and Efficiency in Packing Operations

Beyond the core processes of bundle formation, strapping, and warehousing, further opportunities exist to enhance both the quality of the final packaged product and the overall efficiency of packing operations. Key among these are the deployment of machine vision systems for pre-packaging quality control and the strategic integration of packing lines for optimized workflow.

Role of Machine Vision Systems in Pre-Packaging Quality Control

Technology Overview:

Machine vision technology leverages a combination of cameras, advanced lighting, sensors, and sophisticated software, often incorporating artificial intelligence (AI) and deep learning algorithms, to perform automated visual inspections.²⁴ These systems are designed to emulate human visual inspection but with significantly greater speed, accuracy, consistency, and endurance. In the context of steel manufacturing, machine vision can capture high-resolution images of steel products at various stages of production and analyze them in real-time for a wide array of defects, irregularities, or deviations from specified parameters in terms of shape, dimensions, color, and surface texture.²⁴

Application in Steel Tube Manufacturing:

Machine vision systems can be deployed to inspect steel tubes prior to their entry into the packing process. They are capable of detecting a comprehensive range of potential flaws, including:

• Surface defects such as cracks, splits, tears, scratches, dents, and discoloration.²⁴
• Material inclusions, blowholes, or porosity.²⁵
• Dimensional inconsistencies, such as variations in diameter, ovality, or straightness.²⁵
• Defects related to welding, such as lack of fusion or incomplete penetration, if applicable to the tube type.²⁵ For example, a system could be configured to inspect the surface of each tube as it moves along a conveyor before being counted and stacked for bundling.²⁴

Benefits of Pre-Packaging Machine Vision Inspection:

The integration of machine vision for quality control before packaging offers substantial benefits:

• Real-Time Quality Assurance and Defect Prevention: By identifying defects instantaneously as tubes pass through the inspection station, machine vision allows for immediate action. Defective tubes can be automatically diverted from the main production flow or flagged for manual review and disposition.²⁴ This prevents non-conforming products from being bundled, strapped, and warehoused, saving the resources that would have been expended on packaging defective material.
• Enhanced Accuracy and Consistency: Automated inspection eliminates the subjectivity and fatigue associated with manual visual checks, especially in high-speed production environments. Machine vision systems can inspect thousands of items per minute with remarkable and consistent accuracy, ensuring that quality standards are uniformly applied.²⁴
• Reduction in Waste and Costs: Early detection of defects is crucial for minimizing scrap and rework costs. By identifying flaws before further value (in the form of packaging materials and labor) is added, manufacturers can significantly reduce the overall cost of non-quality.²⁴ Some modern machine vision systems are also becoming more cost-effective to implement, with suppliers like Intelgic claiming their AI-driven solutions can be 4 to 10 times less expensive than traditional, more cumbersome vision systems, often requiring only a simple camera setup.²⁵
• Increased Production Efficiency: Because machine vision systems can operate at high speeds without disrupting the material flow, inspections are performed in-line, and defects can be addressed without necessarily halting the entire production line. This contributes to maintaining high output levels while ensuring consistent quality.²⁴
• Valuable Data Collection for Process Improvement: Machine vision systems do more than just detect defects; they collect extensive data on the types of defects, their frequency, and their location on the tube or within a production batch.²⁴ This data is invaluable for root cause analysis. By identifying patterns, manufacturers can trace quality issues back to specific upstream processes (e.g., mill settings, welding parameters, cutting operations) and implement targeted corrective actions, leading to a reduction in defect occurrence over time.

The strategic placement of machine vision inspection points is critical. Inspecting tubes before they undergo significant packing processes ensures that resources are not wasted on products that are already non-conforming. This makes machine vision a proactive quality gate, safeguarding the efficiency of the packing operations themselves.

Optimizing Workflow: Integration of Packing Lines

For maximum efficiency, steel tube packing operations should not be viewed as a standalone department but as an integrated extension of the manufacturing process.

Seamless Material Flow:

Modern automated steel tube bundlers are often designed as key modules within a larger, continuous automatic pipe packing line. This line ideally connects directly to the output of upstream processes such as the tube mill, cutting lines, or threading and finishing stations.⁸ Such physical and informational integration minimizes intermediate handling, reduces work-in-progress (WIP) inventory, and lessens the chances of damage that can occur during multiple transfer steps.

Integrated Ancillary Processes:

A fully integrated packing line can incorporate a sequence of automated processes beyond just bundling and strapping. These can include in-line weighing of bundles, automatic marking or labeling (e.g., printing and applying tags with bundle information), and optional stretch wrapping for enhanced protection against environmental factors or for improved bundle stability during long-distance transport.⁸ Systems like those offered by MASTUBE Mills provide on-line packaging capabilities with options for automatic coolant drainage from tubes (if applicable), bundle weight measurement systems, and printers for generating bundle information tags detailing tube size, quantity, weight, and other packing data.¹⁵ Similarly, TUBO Machinery’s automatic packing system describes a flow where tubes are stacked and bundled, and then the completed bundles are automatically transported to a designated storing position.²

Benefits of On-Line Integrated Packaging:

The advantages of such integrated, on-line packaging systems are manifold. They ensure that there is minimal loss or damage to tubes that can occur from excessive or improper handling between manufacturing and final packaging.¹⁵ Furthermore, they provide accurate, real-time data crucial for plant management, facilitating better inventory control, more precise production planning, and more reliable delivery commitments to customers.¹⁵

The data generated by integrated packing lines and machine vision systems can fuel powerful continuous improvement cycles. This information, pertaining to defect rates, types, locations, packing efficiency, and material consumption, is not just for immediate operational control but provides a rich dataset for longer-term strategic analysis and process optimization. By analyzing these trends, manufacturers can identify systemic issues and opportunities for improvement, not only within the packing operations but also in the upstream manufacturing stages that influence the quality of tubes entering the packing line. This creates a virtuous cycle of quality enhancement and cost reduction across the entire production value stream. True workflow optimization, therefore, often requires breaking down traditional organizational silos between production and packaging departments, fostering closer collaboration in plant layout design, material flow planning, and information system integration.

6. Regulatory Considerations and Industry Standards

The packaging of steel tubes is governed by a combination of product-specific standards, general material handling regulations, and industry best practices. Adherence to these is crucial for ensuring product quality, facilitating trade, maintaining worker safety, and meeting customer expectations.

Overview of Relevant ASTM Standards for Steel Tube Tolerances and Properties

ASTM International (formerly American Society for Testing and Materials) develops and publishes technical standards for a wide range of materials, products, systems, and services. For steel tubes, several ASTM standards are pertinent, primarily defining the properties and dimensional tolerances of the tubes themselves, which in turn dictates packaging considerations.

ASTM A513 / A513M:

This is a key standard covering Electric-Resistance-Welded (ERW) Carbon and Alloy Steel Mechanical Tubing. Manufacturers like T&B Tube produce tubing within A513 tolerances unless otherwise specified by the customer.²⁶ This standard details critical parameters such as:

• Outside Diameter (OD) tolerances for round tubes across various OD ranges and gauge thicknesses.
• Wall thickness tolerances for both hot-rolled and cold-rolled round tubing, specifying minimum and maximum allowable walls for different nominal gauges and ODs.
• Outside dimension tolerances and gauge tolerances for shaped tubing (e.g., square, rectangular).²⁶ The precise dimensional and wall thickness tolerances stipulated by ASTM A513 directly influence how individual tubes will fit together within a bundle, affecting the bundle’s overall dimensions, density, and weight. Consistent adherence to these tolerances is vital for predictable and stable bundle formation.

Other Relevant ASTM Standards:

Numerous other ASTM standards apply to various types of steel pipes and tubes, depending on their intended application and manufacturing process. Examples include:

• ASTM A530/A530M: Standard Specification for General Requirements for Specialized Carbon and Alloy Steel Pipe.²⁷
• ASTM A618/A618M: Standard Specification for Hot-Formed Welded and Seamless High-Strength Low-Alloy Structural Tubing.²⁷
• ASTM A501/A501M: Standard Specification for Hot-Formed Welded and Seamless Carbon Steel Structural Tubing.²⁷ While these standards primarily define the material properties, manufacturing methods, chemical composition, and mechanical properties of the steel tubes, they indirectly influence packaging. The packaging methods chosen must be adequate to protect these specified properties and ensure the tubes arrive in a condition that meets the standard’s requirements.

API Standards for Specific Casing and Tubing Requirements

For steel tubes intended for use in the oil and gas industry, standards developed by the American Petroleum Institute (API) are paramount.

API Specification 5CT:

This is the primary global standard for Steel Casing and Tubing used in oil and gas drilling and production operations. It provides detailed guidelines for pipe sizes, masses, wall thicknesses, material grades (e.g., J-55, K-55, N-80, L-80, P-110, Q-125, which define yield strength and suitability for specific well environments and conditions), and end-finishes.²⁸

Recent Updates (Addendum to 11th Edition):

API standards are periodically updated to reflect technological advancements and evolving industry needs. For example, an addendum to the 11th edition of API 5CT, announced in May 2025, strengthened manufacturing requirements, introduced provisions for ‘high collapse’ products with enhanced performance ratings, added a new pipe grade (C125), incorporated requirements for end sizing and thermal recovery processes, and clarified testing procedures.²⁸ The specialized nature and often high value of API-grade casing and tubing mean that packaging must be exceptionally robust to prevent any damage that could compromise their specific performance characteristics, critical for well integrity and safety. While the snippets do not detail explicit packaging clauses within API 5CT, the onus is on the manufacturer to ensure delivery in a condition that meets all aspects of the specification. Compliance with API standards is often a non-negotiable requirement for supplying to the oil and gas sector, making the integrity of the product upon arrival, as maintained by its packaging, a critical factor for market access.

General Industry Packaging and Bundling Practices

In addition to formal standards, a set of widely accepted industry best practices has evolved for the packaging and bundling of steel tubes, driven by the need to prevent damage, ensure handling safety, and meet customer expectations. These include:

• Bundling: As a general rule, pipes of the same type, specification, and batch are bundled together. There are often weight restrictions per bundle to facilitate handling and ensure safety. Common materials for securing bundles include steel tape, steel wire, or high-strength plastic tape.³ Bundles can take various forms, including hexagonal (common for round tubes to maximize density), rectangular, or frame-type packaging.³
• Protective Wrapping: For stainless steel tubes, highly polished tubes, or those with special coatings or stringent surface finish requirements, additional protective wrapping is standard. Materials like plastic film, kraft paper, or non-woven fabrics are used to cover individual tubes or entire bundles to prevent scratches, abrasion, or surface contamination.³ For export shipments, waterproof and moisture-proof packaging materials are often employed for enhanced protection during transit.³
• End Protection: The ends of steel tubes, particularly thin-walled or high-precision types, are vulnerable to impact damage and deformation. Plastic caps or rubber sleeves are commonly installed over the pipe mouths to protect them.³
• Wooden Cases: For smaller diameter, high-precision, or particularly delicate seamless steel pipes that require a higher level of protection, packing in wooden cases is a common practice. The pipes are neatly arranged within the case to ensure stability. For international shipments, these wooden cases typically need to be fumigated to comply with phytosanitary regulations.³
• Labeling: Clear and durable labeling of each bundle is essential for identification and traceability. Labels should include key information such as tube specifications (diameter, wall thickness, length, grade), quantity of tubes, material type, production batch or heat number, bundle weight, and any specific customer or handling instructions.³

While these are "best practices," the absence of a single, universally cited "ASTM Standard for Packaging of Steel Tubes" (as distinct from standards for the tubes themselves) means that manufacturers often need to develop comprehensive internal packaging standards. These internal standards would typically be based on a combination of the product’s ASTM/API requirements, the anticipated transportation conditions, specific customer agreements, and overarching safety regulations.

OSHA Guidelines for Safe Material Handling and Storage

In the United States, the Occupational Safety and Health Administration (OSHA) mandates regulations for workplace safety, including the handling and storage of materials.

OSHA 1910.176 – Handling materials – general:

This standard is broadly applicable to the warehousing of steel tube bundles. Key provisions include:

• Secure Storage (1910.176(b)): Materials stored in tiers shall be stacked, blocked, interlocked, or otherwise secured against sliding or collapse.⁷ This directly influences how steel tube bundles can be stacked, whether on the floor or in racking systems, and underscores the importance of bundle integrity and stable stacking patterns.
• Housekeeping (1910.176(c)): Storage areas must be kept free from accumulations of materials that could constitute tripping hazards, fire or explosion risks, or pest harborage. Vegetation control must be exercised where necessary.⁷
• Use of Mechanical Equipment (1910.176(a)): Where mechanical handling equipment (like forklifts or cranes) is used, sufficient safe clearances must be allowed for aisles, at loading docks, through doorways, and wherever turns or passage must be made. Aisles and passageways must be kept clear, in good repair, and appropriately marked if permanent.⁷

While OSHA 1926.152 primarily addresses the storage and handling of flammable liquids ²⁹, some of its underlying principles, such as the need for clear aisles in storage rooms and limitations on stacking heights for containers, reflect broader best practices for organized and safe storage that can be analogously applied to other materials to prevent general hazards.

These OSHA regulations are not mere guidelines but legally binding requirements. Non-compliance can result in significant penalties, operational disruptions, and, most critically, an increased risk of worker injuries. Therefore, the design of steel tube packing systems, warehouse layouts, choice of handling equipment, and operational procedures must all be developed with these safety regulations as fundamental design inputs, ensuring safety is integrated from the outset.

Table 5: Key ASTM/API Standards & OSHA Regulations Relevant to Steel Tube Packaging

Standard/Regulation	Issuing Body	Brief Scope/Relevance to Steel Tube Packaging	Key Requirements/Considerations from Provided Information
ASTM A513 / A513M	ASTM Int’l	ERW Carbon & Alloy Steel Mechanical Tubing. Defines dimensional/wall tolerances crucial for bundle formation and consistency.	Specifies OD tolerances, wall tolerances (hot/cold rolled rounds), OD/gauge tolerances for shapes. Adherence ensures predictable bundle characteristics.26
Other ASTM (examples)	ASTM Int’l	E.g., A530 (General Pipe Req.), A501/A618 (Structural Tubing). Define tube properties that packaging must protect.	Dictate material properties, manufacturing, quality. Packaging must preserve these attributes during transit/storage.27
API 5CT	API	Casing & Tubing for Oil & Gas. Specifies sizes, masses, wall thicknesses, grades, end-finishes. Packaging must protect these critical features.	Crucial for oil/gas sector. Addendum (May 2025) includes ‘high collapse’ products, new grade C125, end sizing/thermal recovery reqs. Packaging must ensure integrity for demanding applications.28
OSHA 1910.176	OSHA (U.S. Gov)	General Material Handling & Storage. Legally binding safety rules for warehousing and handling bundles.	Secure storage (stable stacking, interlocked, height limits), good housekeeping, safe clearances for mechanical equipment, clear/marked aisles.7 Drives design for safety in warehouse layout and packing system operation.

7. Recommendations for Optimizing Steel Tube Packing Systems

Optimizing steel tube packing systems requires a multifaceted approach, addressing everything from initial bundle formation to final warehousing and data management. Based on the analysis of current technologies, materials, and best practices, the following recommendations are proposed:

1. Conduct a Holistic System Audit: Initiate a comprehensive audit of the entire packing and warehousing value stream, encompassing processes from the tube mill exit point through bundling, strapping, internal handling, storage, and final dispatch. The audit should aim to identify current bottlenecks, areas with high manual labor costs or inefficiencies, frequent sources of product damage (scratches, dents, deformation, corrosion), potential safety hazards, and overall system performance gaps. This system-wide perspective is crucial because optimizing isolated components may not yield significant overall improvements if other parts of the system remain inefficient.
2. Implement Strategic Automation: Based on the audit findings and production volumes, strategically implement automation for tasks that are repetitive, labor-intensive, physically demanding, or pose safety risks. Prime candidates for automation include tube counting, layer forming, bundle shaping, and strapping operations.¹ Consider robotic solutions for more complex handling requirements, such as precise dunnage placement or when a high degree of flexibility is needed to handle diverse product mixes.¹¹ Any automation investment should be justified by a thorough Return on Investment (ROI) analysis that includes the Total Cost of Ownership (TCO), factoring in potential reductions in labor, material waste, and product damage, alongside improvements in throughput and safety.
3. Optimize Strapping Material and Method Selection:
   • Material Choice: Perform a rigorous risk assessment before transitioning from steel to PET strapping, paying particular attention to the potential for strap damage from sharp tube edges—a common characteristic of steel tubes.¹² If PET is deemed viable (perhaps with edge protection measures), conduct a comprehensive TCO analysis comparing it against steel, considering material cost, freight, tooling, safety implications, and potential product damage.⁶
   • Machinery Selection: Choose strapping machinery (manual kits, handheld powered tools, semi-automatic, or fully automatic machines – see Table 3) that aligns with current and projected production volumes, the need for consistent strap tension, labor availability and skill, and budget constraints.
   • Tension Consistency: Ensure that the selected strapping method, whether manual or automated, can deliver consistent and appropriate tension to maintain bundle integrity during handling and transport without causing damage (e.g., crushing or deforming) to the tubes themselves.
4. Review and Standardize Bundle Configurations: Evaluate current bundle shapes (e.g., hexagonal, square/rectangular – see Table 1) not only based on in-plant packing density and stability but also considering their impact on downstream logistics (e.g., truck/container space utilization, ease of handling by carriers) and customer preferences or handling capabilities.⁸ Standardizing bundle configurations where possible can simplify handling and storage operations.
5. Modernize Warehouse Operations and Inventory Management:
   • Racking Systems: Select and implement appropriate warehouse racking systems (e.g., static or crank-out cantilever racks, stacking racks – see Table 4) based on the specific inventory profile (tube sizes, bundle weights, turnover rates), available warehouse space and height, accessibility requirements, handling equipment, and budget. Prioritize solutions that maximize vertical space utilization and enhance worker safety.²¹
   • Inventory Management Software: Implement or upgrade to a robust inventory management software system, preferably one specialized for the metals or pipe/tube industry (e.g., RealSTEEL™ or equivalent). Key features should include detailed attribute tracking (ID, OD, wall, length, grade), remnant and random length management, bundle/skid tracking, barcode/RFID capabilities for accurate data capture, and real-time inventory visibility.²²
   • OSHA Compliance: Ensure all warehousing practices, including stack heights, aisle clearances, and housekeeping, strictly adhere to OSHA 1910.176 guidelines to maintain a safe working environment.⁷
6. Integrate Quality Assurance Measures Proactively:
   • Machine Vision: Investigate the feasibility of deploying machine vision systems for automated, in-line inspection of tubes before they enter the bundling and strapping process. This can prevent the packaging of non-conforming products, thereby saving on packaging materials, labor, and reducing the cost of quality failures.²⁴
   • Data-Driven Improvement: Utilize the data collected from automated packing lines, machine vision systems, and inventory management software to drive continuous improvement initiatives. Analyze trends in defect rates, packing efficiency, and material consumption to identify root causes and implement corrective actions both within the packing operations and in upstream manufacturing processes.¹⁵
7. Develop and Document Comprehensive Internal Packaging Standards: Given that explicit, detailed industry-wide standards specifically for the packaging of all types of steel tubes may be limited, it is recommended to develop and maintain comprehensive internal packaging standards. These standards should be tailored to different tube types, sizes, grades, surface finishes, and customer requirements. They must incorporate relevant ASTM/API product specifications, consider anticipated transport conditions, reflect customer agreements, and ensure full compliance with OSHA safety regulations.
8. Invest in Training and Skill Development: The introduction of new automated equipment, software systems, and revised procedures necessitates investment in workforce training. Ensure that operators, maintenance personnel, and supervisors are adequately trained on the operation of new machinery, safety protocols for material handling and equipment interaction, quality control checks, and the use of inventory management software. A skilled and knowledgeable workforce is essential for the successful and sustained optimization of packing systems.
9. Foster Strong Supplier Collaboration: Work closely with equipment suppliers (bundling machines, strapping systems, racking providers) to explore customized solutions that precisely meet specific operational needs and integrate effectively with existing infrastructure.¹³ Collaborate with strapping material suppliers to test and validate the performance of different strap types and grades with specific steel tube products and under representative environmental conditions.

By systematically addressing these areas, steel tube manufacturers and processors can significantly enhance the integrity of their products, improve operational efficiency, ensure a safer working environment, and strengthen their competitive position.

8. Conclusion: Future Trends in Steel Tube Packaging

The optimization of steel tube packing systems is a continuous journey, driven by the pursuit of enhanced product integrity, greater operational efficiency, and improved worker safety. The preceding analysis has underscored the critical decision points that manufacturers face, including the appropriate level of automation, optimal bundle configurations, the selection of strapping materials and machinery, strategic warehousing solutions, and the integration of advanced software and quality control technologies. As the industry moves forward, several emerging technologies and trends are poised to further transform steel tube packaging.

Summary of Key Takeaways:

A modern, efficient steel tube packing system is not an isolated function but an integral part of the manufacturing value chain. Key considerations involve:

• Automation: Strategically automating counting, bundling, and strapping processes to enhance speed, consistency, and safety, while reducing labor costs.
• Material Science: Carefully selecting strapping materials (steel vs. PET) based on a nuanced understanding of product characteristics (e.g., sharp edges), TCO, and safety.
• System Integration: Creating seamless workflows from tube production through packing to warehousing, supported by integrated machinery and information systems.
• Data Utilization: Leveraging data from automated systems and quality control technologies for continuous process improvement and better decision-making.
• Safety and Compliance: Designing and operating systems in strict adherence to safety regulations (e.g., OSHA) and relevant industry standards (e.g., ASTM, API).

Emerging Technologies and Trends:

The future of steel tube packaging will likely be shaped by the following advancements:

• Increased Robotics and Artificial Intelligence (AI): The adoption of robotics is expected to expand beyond simple automated strapping to encompass more complex tasks such as intricate bundle manipulation, automated dunnage placement between layers or bundles, and sophisticated in-line quality inspections using AI-powered vision systems.¹¹ AI algorithms will also play a greater role in optimizing packing line parameters in real-time and enabling predictive maintenance for critical equipment, minimizing unplanned downtime.
• Advanced Data Analytics & Industrial Internet of Things (IIoT): The proliferation of sensors on packing machinery and within warehousing environments (IIoT) will generate vast amounts of data. Advanced analytics platforms will process this data to provide real-time performance monitoring, predictive quality control (identifying potential issues before they lead to defects), enhanced traceability throughout the supply chain, and data-driven insights for strategic decision-making.²²
• Sustainable Packaging Solutions: Environmental considerations will continue to drive innovation in packaging materials and practices. This includes a push for strapping materials with higher recycled content (as seen with PCR-based PET), exploration of biodegradable or bio-based strapping options (if they can meet the demanding strength requirements for steel tubes), and overall packaging designs optimized to reduce material consumption and waste.⁶
• Enhanced Customization and Agility in Packing Systems: As end-markets demand more tailored steel tube products, including smaller batch sizes and a wider variety of specifications ¹, packing systems will need to become more agile and easily reconfigurable. This means shorter changeover times, programmable automation that can quickly adapt to different bundle sizes and shapes, and more flexible material handling solutions.
• Smart Warehousing Technologies: The evolution towards "smart factories" will extend into the warehouse. This will involve greater integration of Automated Storage and Retrieval Systems (AS/RS) specifically designed for long and heavy products like tube bundles, coupled with Autonomous Guided Vehicles (AGVs) or other automated transport systems. These physical automation layers will be managed by sophisticated Warehouse Management Systems (WMS) and ERP systems, enabling high-density storage, optimized material flow, and real-time inventory accuracy.²¹

By embracing these emerging technologies and adhering to best practices, the steel tube industry can continue to advance its packing operations, ensuring that high-quality products are delivered safely, efficiently, and sustainably to customers worldwide.

Works cited
