In industrial conveying systems—particularly those dealing with heavy materials such as steel coils, bars, or castings—the choice of roller structure plays a critical role in performance, safety, and lifecycle cost. While sleeved rubber or polyurethane (PU) coatings may suffice in light-duty applications, they fall short under heavy-duty conditions.
This article explores the technical reasons why bonded rubber rollers, followed by precision machining, are the standard for high-load conveyors, and why sleeved coatings are not a suitable alternative.
The Temptation: PU/Rubber Sleeves on Metal Rollers
On the surface, it may seem efficient to slide or press-fit a pre-molded rubber or PU sleeve onto a metal roller core. This method is commonly seen in lighter-duty systems due to its lower cost, simplicity, and ease of replacement.
However, when these rollers are subjected to:
- High compressive loads
- Impact forces
- Dynamic torque from acceleration/deceleration
- Thermal cycling from ambient conditions
…the interface between the sleeve and the core becomes a critical point of failure.
The Core Problem: Interface Gaps and Slip
1. Micro-Gaps Are Inevitable
No matter how tight the fit, sleeve-based coatings always leave microscopic gaps between the inner surface of the rubber/PU and the outer surface of the metal roller. These gaps may not be visible, but they become mechanically significant when:
- The system is under load
- The roller rotates at speed
- The environment fluctuates in temperature or humidity
Over time, these gaps permit relative movement between the sleeve and the core—this is called interface slip.
2. Slip Under Load and Speed
In heavy-duty use, rollers are often subject to:
- Axial torque from motor drive
- Radial load from conveyed material
- Impact during loading/unloading
A non-bonded sleeve is prone to slip, rotate, or even shear off under these conditions. This results in:
- Uneven rotation
- Surface warping
- Internal delamination
- Vibrations or noise
- Reduced control of material movement
Why Bonded Rubber + Machining Is Essential
🔧 1. Molecular Adhesion Eliminates Slip
Bonded rollers are manufactured by:
- Applying chemical adhesives to the metal surface
- Vulcanizing or hot-pressing rubber/PU directly onto the core
- Allowing thermal and chemical bonding at the interface
This process fuses the elastomer to the metal at a molecular level, preventing any form of micro-movement or separation, even under extreme loads.

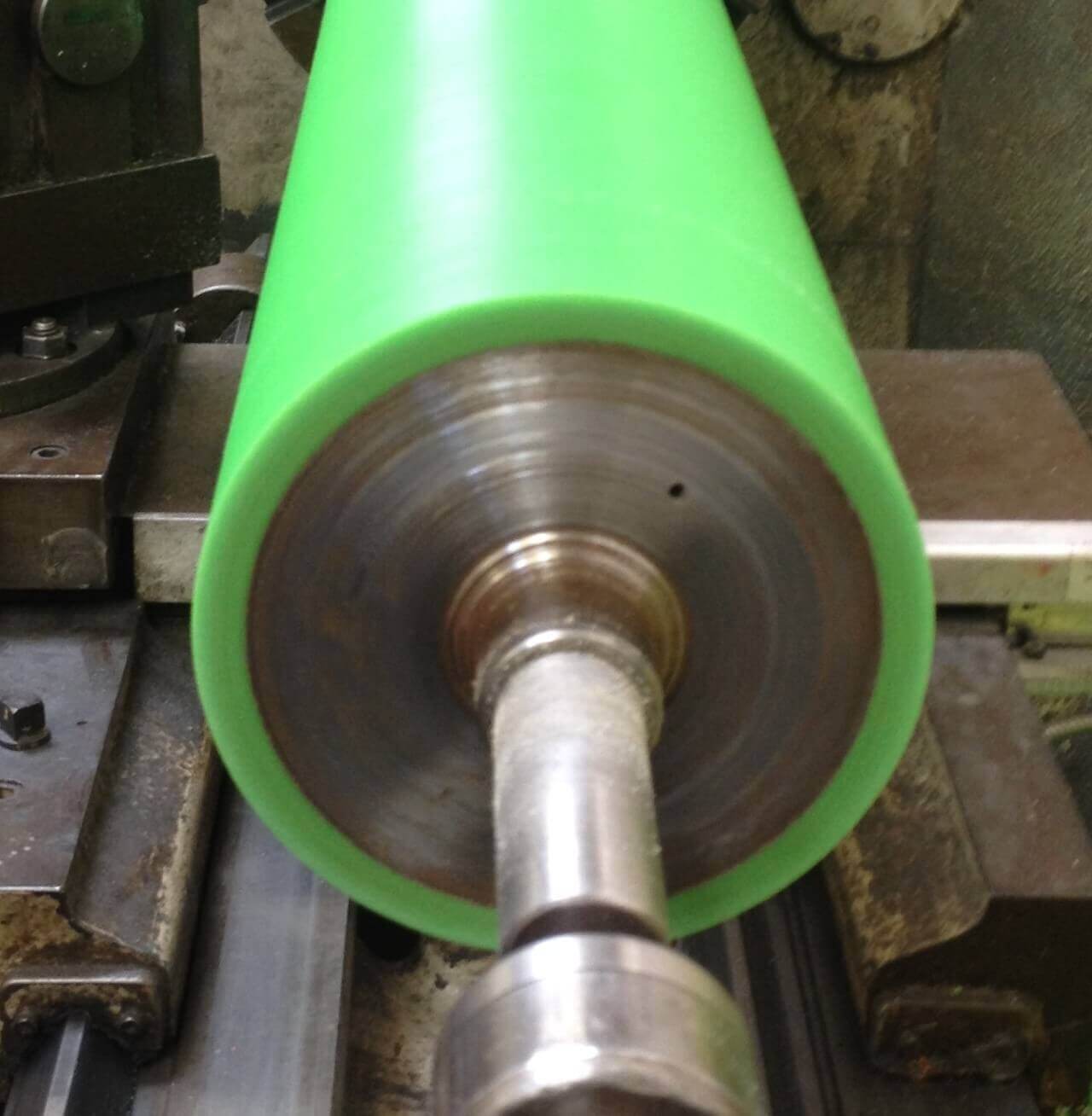

🌀 2. Precision Machining After Bonding
Once the elastomer is cured, the roller is:
- Turned or ground to achieve exact concentricity
- Balanced to prevent vibration at speed
- Profiled to match application-specific tolerances
This level of finish simply isn’t possible with pre-molded sleeves, which come with inherent dimensional variances and cannot match post-machined accuracy.
🛠 3. Customization and Load Optimization
Bonded rollers allow engineers to:
- Design custom thicknesses or hardness profiles
- Use multi-layer structures (e.g., soft outer + tough inner)
- Tune rollers for shock absorption, grip, or wear resistance
Sleeves, on the other hand, are limited to standard shapes and hardness ranges.
Real-World Risks of Using Sleeves in Heavy-Duty Systems
| Problem | Sleeved Rollers | Bonded Rollers |
|---|---|---|
| Interface Slip | Common under load | Eliminated |
| Vibrations | Likely at high speed | Minimally present |
| Concentricity Accuracy | Hard to control | Precisely machined |
| Surface Wear | Uneven, may delaminate | Uniform and repairable |
| Replacement Cost | Frequent due to failures | Less frequent, serviceable |
Conclusion: Bonding Isn’t Optional—It’s Engineering Logic
For high-load, high-performance conveyor systems, bonded rubber rollers are not just better—they are essential. The risk of failure from interface slip, dimensional inaccuracies, or premature wear makes sleeved rollers a liability in demanding environments.
By bonding and machining rollers, engineers ensure:
- Structural integrity
- Precision operation
- Longer lifespan
- Lower total cost of ownership
In heavy industry, reliability isn’t just about saving parts—it’s about keeping production lines moving.
📌 If you’re specifying rollers for any high-duty conveyor system, choose bonded rubber rollers—and insist on precision machining. It’s not just best practice. It’s best engineering.
