Enhancing Logistics with Automated Side Press Pallet Changers

Modern supply chains demand unprecedented levels of efficiency, safety, and hygiene. Manual pallet exchange processes are increasingly becoming bottlenecks, posing risks to both personnel and product integrity. Addressing this critical need, the automated Side Press Pallet Changer represents a significant advancement in material handling technology, engineered to streamline operations within demanding industrial environments.

This sophisticated equipment facilitates the seamless exchange of pallets beneath stacked loads without disrupting the product arrangement. Leveraging principles often detailed in material handling patents (e.g., innovations in clamping mechanisms and load stabilization, potentially referencing concepts similar to those in patents concerning automated load handling), these machines offer a robust solution for diverse industries.

Operational Mechanism and Technological Integration

The core functionality of the Side Press Pallet Changer involves a precisely controlled mechanism that applies gentle, uniform pressure to the sides of the load. This action secures the goods, allowing the base pallet to be withdrawn and replaced. Key technological aspects include:

• Hydraulic/Pneumatic Actuation: Provides the controlled force necessary for secure clamping and smooth operation, optimized for energy efficiency and reliability as highlighted in fluid power engineering studies.
• Advanced Sensor Technology: Integrated sensors detect load presence, dimensions, and positioning, ensuring accurate operation and preventing damage. This aligns with trends discussed in industrial automation publications regarding smart sensing for adaptive machine control.
• PLC Control System: A Programmable Logic Controller (PLC) governs the machine's sequence, safety interlocks, and operational parameters, often featuring a user-friendly Human-Machine Interface (HMI) touchscreen for setup and diagnostics. Research in industrial control systems emphasizes the reliability and flexibility offered by PLC-based automation.
• Structural Integrity: Built upon a heavy-duty steel frame, designed using Finite Element Analysis (FEA) principles to withstand rigorous industrial use and ensure long-term durability, a common focus in mechanical engineering design papers.

Technical Specifications Overview

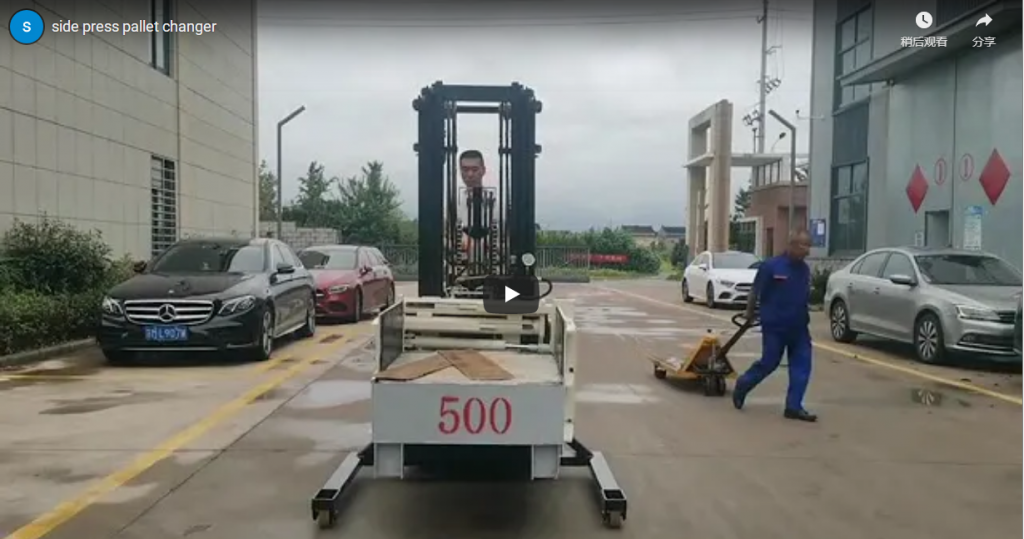

Please note: The parameters listed below are indicative and may not precisely match the equipment shown in the video. For detailed specifications tailored to your application, please contact our engineering team.

• Machine Type: Automated Side Press Pallet Changer
• Control System: PLC with Touchscreen HMI
• Actuation: Hydraulic Side Press Mechanism
• Typical Load Capacity: Up to 1500 kg (Higher capacities available)
• Maximum Load Dimensions (W x H): Up to 1200mm x 1500mm (Customizable)
• Compatible Pallet Types: Wood (GMA, CHEP), Plastic, Metal, Hygienic
• Average Cycle Time: Approx. 45-60 seconds (Application dependent)
• Frame Construction: Heavy-duty welded steel
• Safety Features:
  • Emergency Stop Circuits
  • Safety Light Curtains / Area Scanners (Optional/Standard)
  • Controlled Lateral Pressure System
  • Interlocked Guarding
• Power Requirements: 220V/380V/480V, 50/60Hz, 3-Phase (Region specific)
• Required Air Pressure (if applicable): Typically 6 bar
• Operating Noise Level: Engineered to be typically below 75 dB
• Compliance: CE Marked, ISO 9001 Manufacturing Standards

Key Advantages Driving Adoption

The implementation of Side Press Pallet Changers delivers quantifiable benefits, frequently cited in logistics and manufacturing efficiency reports:

• Enhanced Throughput: Automating the pallet exchange process significantly reduces cycle times compared to manual methods or less efficient machinery, boosting overall operational speed.
• Improved Worker Safety: Eliminates strenuous manual lifting and handling, reducing the risk of musculoskeletal injuries and aligning with occupational health and safety guidelines (e.g., OSHA recommendations).
• Product Integrity Protection: Gentle side clamping minimizes stress on the load, drastically reducing the potential for product damage during transfer – a critical factor for high-value or fragile goods.
• Operational Versatility: Easily handles various load types and facilitates switching between different pallet standards (e.g., wood to plastic for hygiene, in-house vs. shipping pallets).
• Hygiene Control: Essential for industries like food, beverage, and pharmaceuticals, enabling transfer from external pallets to sanitized internal pallets, supporting HACCP and GMP compliance.
• Reduced Operational Costs: Lower labor requirements, minimized product damage, and optimized workflows contribute to a significant return on investment (ROI), a key metric discussed in capital equipment justifications.

Industry-Specific Applications

The versatility of the Side Press Pallet Changer makes it invaluable across multiple sectors:

1. Logistics and Distribution Centers: Crucial for optimizing inbound/outbound flows, cross-docking operations, and managing diverse pallet pools (e.g., CHEP, PECO, proprietary). Enables quick adaptation to customer or internal handling requirements.
2. Food and Beverage Processing: Facilitates compliance with stringent hygiene regulations by allowing seamless transfer to food-grade plastic or aluminum pallets before entering production or cleanroom environments. Prevents cross-contamination risks associated with external wooden pallets.
3. Pharmaceutical Manufacturing: Ensures product purity and meets regulatory demands (e.g., FDA, EMA) by enabling pallet exchange in controlled environments, crucial for maintaining sterile conditions.
4. Chemical and Industrial Manufacturing: Safely handles bagged goods, drums, or IBCs, allowing transfers to specialized pallets (e.g., spill containment, chemically resistant) or preparing goods for specific storage or shipping protocols.
5. Printing and Packaging: Manages delicate stacks of paper or finished packaging materials, preventing damage during pallet exchange processes inherent in the production workflow.

For detailed application analysis or to discuss how a Side Press Pallet Changer can be integrated into your specific workflow, please reach out.
