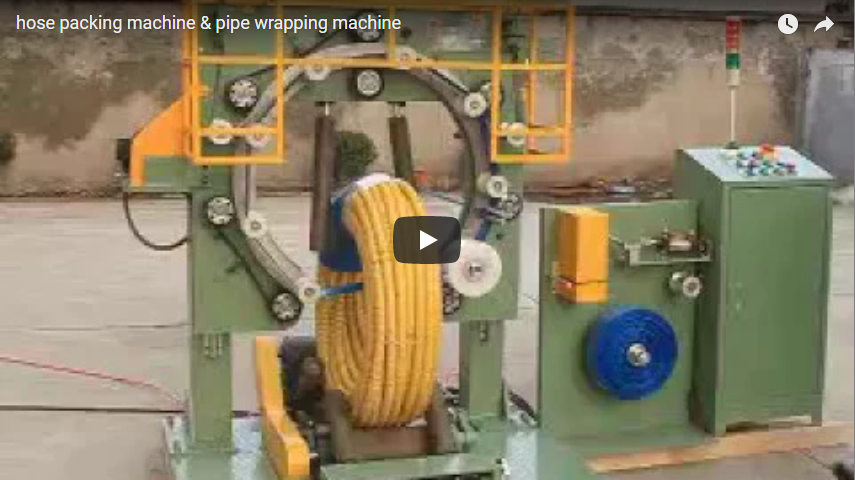

hose packing machine & pipe wrapping machine

Mastering Hose and Pipe Protection: A Fabricator's Guide to Automated Wrapping Machines

In the demanding world of fabrication and manufacturing, protecting finished products like hoses and pipes during storage and transit is paramount. Scratches, corrosion, contamination, and handling damage can lead to costly rejects or customer dissatisfaction. Manual wrapping methods are often slow, inconsistent, and labour-intensive. This is where automated hose packing machines and pipe wrapping machines step in, offering a robust solution for efficient and reliable product protection.

These machines aren't just about speed; they bring a level of consistency and material optimization that manual methods struggle to match. Let's delve into the specifics of these essential pieces of industrial packaging equipment.

1. Why Automate Hose and Pipe Wrapping? The Fabricator's Edge

Switching from manual to automated wrapping presents several tangible benefits directly impacting a fabricator's bottom line and operational flow:

1.1 Enhanced Product Protection

Automated wrappers apply materials like stretch film, VCI (Volatile Corrosion Inhibitor) film, paper, or woven plastics with consistent tension and overlap. This uniform cocoon shields products from:

• Abrasion and Scratches: Preventing damage during handling and shipping.
• Moisture and Corrosion: Especially critical for metal pipes, VCI films actively protect against rust.
• Dust and Contaminants: Maintaining product cleanliness, vital for hydraulic hoses and sensitive components.
• UV Degradation: Some films offer UV resistance for products stored outdoors.

1.2 Boosting Operational Efficiency

Time is money on the shop floor. Automation drastically improves packaging throughput:

• Increased Speed: Machines can wrap coils or bundles significantly faster than manual labour.
• Reduced Labour Costs: Frees up personnel for more value-added tasks.
• Consistent Results: Eliminates variability inherent in manual wrapping, ensuring every product is packaged to the same standard.
• Optimized Material Usage: Precise control over film stretch and overlap minimizes waste compared to manual application.

1.3 Improving Safety and Ergonomics

Manually wrapping heavy hose coils or long, awkward pipes poses ergonomic risks. Automation mitigates these by:

• Reducing Manual Handling: Minimizing lifting and awkward postures.
• Creating Safer Workflows: Integrating wrapping into automated conveying lines reduces forklift traffic and manual movement in packing areas.

2. Deep Dive: Hose Packing Machines (Coil Wrapping Focus)

These machines are typically orbital wrappers specifically designed for coils of hose, wire, cable, or tubing.

2.1 The Mechanics: How Orbital Coil Wrappers Work

The core principle involves passing the packaging material through the center (the eye) of the coil as the coil itself is rotated or held stationary while the wrapping ring rotates around it.

1. Loading: The hose coil is placed onto support rollers or a conveyor section.
2. Wrapping Cycle: A rotating ring carries a spool of wrapping material (e.g., stretch film). As the ring rotates, it dispenses the film, passing it through the coil's eye and wrapping it around the circumference.
3. Overlap Control: The machine precisely controls the rotation speed of the coil (or the linear speed of the ring) relative to the ring's rotational speed to achieve the desired film overlap for optimal protection and stability.
4. Cutting & Sealing: Once the wrap cycle is complete, the film is automatically cut and secured (often via a heat seal or wipe-down mechanism).
5. Unloading: The fully wrapped coil is discharged.

2.2 Key Specifications to Consider

When selecting a hose coil wrapper, fabricators should evaluate:

• Coil Dimensions: Minimum/Maximum Inner Diameter (ID), Outer Diameter (OD), and Width the machine can handle.
• Coil Weight Capacity: Maximum weight the support system can manage.
• Wrapping Speed: Typically measured in RPM of the ring or coils per minute.
• Wrapping Materials: Compatibility with stretch film (various gauges), VCI film, paper, etc.
• Control System: PLC (Programmable Logic Controller) with HMI (Human-Machine Interface) for setting parameters like overlap percentage, ring speed, tension control, and number of wraps.
• Automation Level: Standalone machine vs. integration into a fully automated packaging line.

2.3 Operator Insights & Common Applications

From experience, operators find modern machines relatively user-friendly thanks to touchscreen HMIs. Key considerations include:

• Film Threading: Ensuring the film path is correct is crucial for consistent wrapping.
• Tension Adjustment: Proper tension is vital – too loose, and the wrap is ineffective; too tight, and it might damage softer hoses or waste film. This often requires fine-tuning based on the specific hose type and coil density.
• Maintenance: Regular cleaning of rollers and checking the cutter/sealer mechanism prevents downtime.

Common applications include wrapping hydraulic hoses, industrial hoses, garden hoses, wire coils, and cable reels across automotive, construction, and manufacturing sectors.

3. Understanding Pipe Wrapping Machines (Length/Bundle Focus)

Designed for long, straight products like individual pipes, tubes, bars, or bundles, these are also typically orbital wrapping machines, but the product moves horizontally through the wrapping ring.

3.1 Orbital Wrapping for Long Products

The process differs slightly from coil wrapping:

1. Infeed: Pipes or bundles are fed onto a conveyor system (often with V-rollers or flat belts) that transports them towards the wrapping ring.
2. Wrapping: As the product moves horizontally through the center of the rotating ring, the film is dispensed and wrapped spirally along its length.
3. Overlap & Tension Control: The speed of the conveyor relative to the ring's rotation determines the wrap overlap. Film tension is critical to ensure a tight, secure wrap, especially on bundles.
4. Cutting & Sealing: As the trailing end of the product exits the ring, the film is automatically cut and secured.
5. Outfeed: The wrapped product continues onto an outfeed conveyor.

3.2 Critical Parameters for Pipe Wrappers

Selection factors include:

• Product Profile: Minimum/Maximum diameter or cross-section dimensions (for bundles).
• Product Length: Minimum/Maximum length the conveyor system can handle.
• Product Weight: Maximum weight per meter and total weight capacity.
• Wrapping Speed: Ring RPM and conveyor speed (meters per minute).
• Wrapping Materials: Stretch film, VCI film, barrier films. Some machines can apply multiple layers or different materials simultaneously.
• Conveyor System: Type (rollers, belts), height, speed control, and integration capabilities.
• Bundle Handling: Features like side guides or top presses to maintain bundle integrity during wrapping.

3.3 Real-World Application & Tips

Protecting pipes, especially those with threaded ends or specific coatings, requires care:

• Bundle Stability: Ensuring pipes within a bundle don't shift during wrapping is key. Proper infeed alignment and potentially using strapping beforehand can help.
• Tension Management: Crucial for preventing bundle 'telescoping' (pipes sliding out) and ensuring water-tightness if needed.
• VCI Application: When using VCI film for corrosion protection, ensuring complete coverage and a good seal is vital for the inhibitors to work effectively.
• End Protection: Sometimes, additional manual or automated end-capping is needed for full protection, especially for threaded pipes.

Industries relying heavily on pipe wrappers include steel service centers, pipe manufacturers, metal fabrication shops, and construction suppliers.

4. Choosing the Right Machine & Integration Factors

Beyond the core specifications, consider these points:

4.1 Factors Beyond Specs

• Vendor Support: Availability of technical support, spare parts, and service.
• Customization: Can the machine be adapted for specific product needs or unusual shapes?
• Integration: How easily does the machine fit into your existing production flow? Consider conveyor heights, communication protocols (if integrating with other automated systems), and floor space.
• Return on Investment (ROI): Calculate based on labour savings, material savings, reduced product damage, and increased throughput. A reliable machine quickly pays for itself in high-volume operations.

4.2 Material Matters

The choice of wrapping material is as important as the machine itself.

• Stretch Film: Cost-effective for general containment and dust protection. Available in various gauges and pre-stretch levels.
• VCI Film: Essential for ferrous and non-ferrous metal protection against corrosion during storage and overseas shipping.
• Paper/Woven Materials: Offer puncture resistance and sometimes breathability.

Work with material suppliers to select the optimal film type, gauge, and width for your application and machine capabilities.

5. Future Trends & Conclusion

The technology continues to evolve with advancements in:

• Automation & Robotics: Fully automated loading, wrapping, labelling, and palletizing systems.
• IIoT Integration: Machines providing real-time data on performance, material consumption, and maintenance needs.
• Sustainable Materials: Growing availability and machine compatibility with recycled-content or biodegradable films.

Ultimately, Hose Packing Machines and Pipe Wrapping Machines are indispensable tools for modern fabricators and manufacturers. They provide a reliable, efficient, and cost-effective method to ensure products reach their destination in pristine condition. By carefully evaluating application needs, machine specifications, and integration requirements, companies can implement automated wrapping solutions that significantly enhance product quality, operational efficiency, and workplace safety.
