Engineering Secure and Efficient Hose Coil Packaging: The Vertical Stretch Wrapping Solution

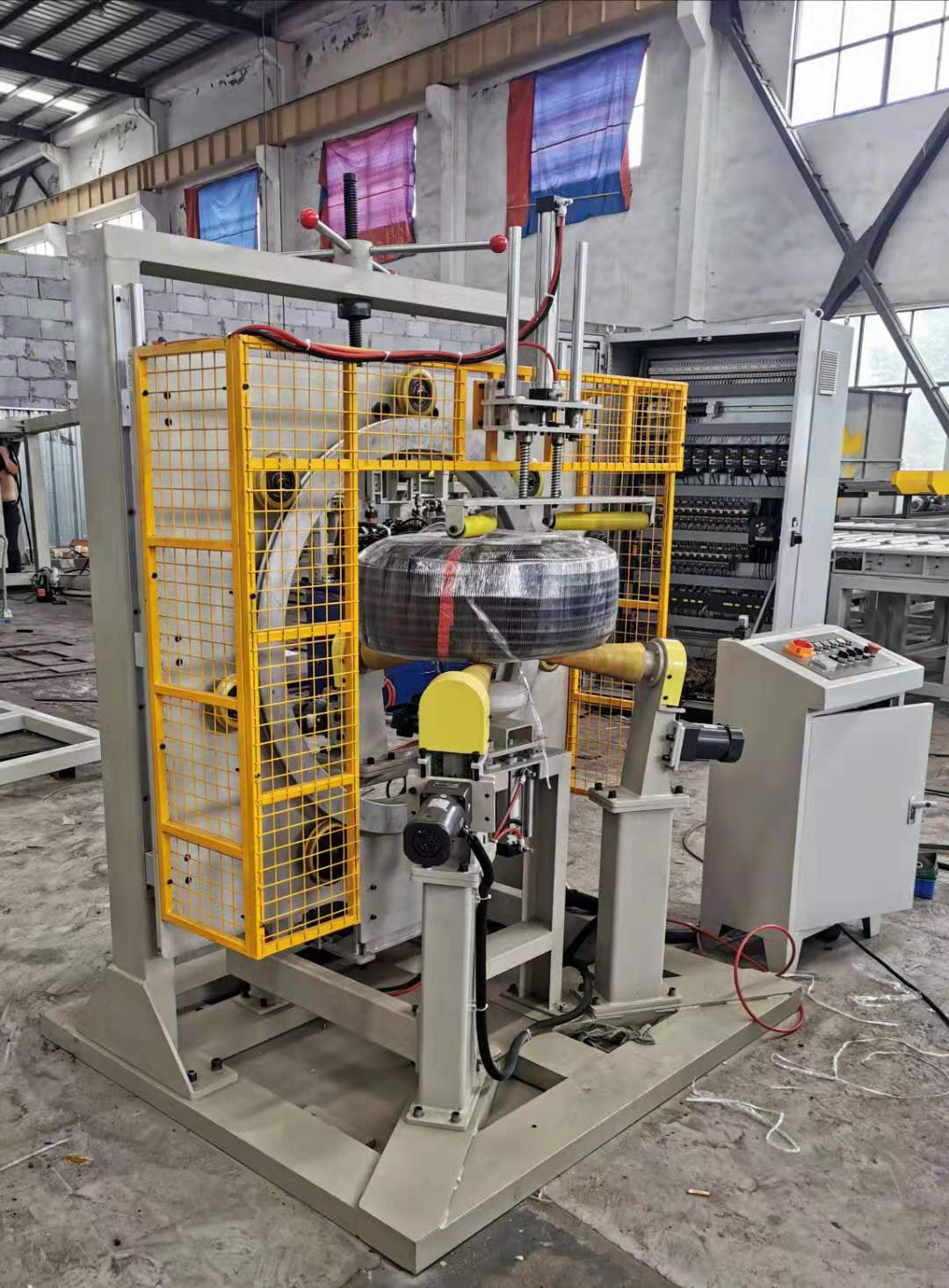

Handling large, heavy hose coils presents significant challenges in manufacturing and distribution environments. Ensuring product integrity, optimizing storage space, and facilitating safe, efficient transport requires robust packaging solutions. This horizontal stretch film wrapping machine represents an engineered approach to automating the unitization and protection of hose coils, addressing key industry demands for performance and cost-effectiveness. Designed based on principles outlined in material handling research and packaging technology patents (e.g., concepts related to film tension control and load stabilization), this system provides a reliable method for securing coils up to 1524 mm (60 inches) in diameter and weighing up to 2 metric tons.
Design Principles and Operational Mechanics
The machine employs a horizontal wrapping orientation, a configuration often favored for handling bulky, coiled products where horizontal wrapping might be less stable or space-efficient. Its core structure comprises:
- Heavy-Duty Steel Frame: Engineered for rigidity and durability to support heavy loads and withstand continuous industrial operation. The L-shaped or open-throat design variant facilitates easier loading and unloading of various coil sizes.
- Coil Support and Lifting Mechanism: Robust rollers or V-shaped supports cradle the hose coil. An integrated lifting system, often utilizing electric motors with chain or screw drives, precisely positions the coil vertically for optimal wrap application across its entire face or specific sections as needed.
- Film Carriage and Pre-stretch System: A critical component influencing both film economy and load containment. Advanced systems incorporate powered pre-stretch rollers (as detailed in patents like US Patent 4,418,511 A for film stretching apparatus) capable of elongating stretch film by up to 300% or more before application. This maximizes film yield and applies consistent, controlled tension. The carriage traverses vertically along the frame or a rotating ring/arm moves around the stationary coil.
- Tension Control System: Utilizes electronic sensors and variable speed drives, often managed by a Programmable Logic Controller (PLC), to maintain consistent film tension regardless of coil shape irregularities. This ensures a tight, secure wrap without damaging the hose material. Adjustable parameters allow users to tailor wrap force based on hose type, coil density, and transport requirements.
- Automated Film Management: Features automatic film clamping at the start of the cycle and heat sealing or cutting upon completion, minimizing operator intervention and cycle time.
Key Technical Specifications and Performance Parameters
While specific configurations may vary, typical performance characteristics include:
- Maximum Coil Outer Diameter: Up to 1524 mm (60 inches)
- Maximum Coil Weight: Up to 2000 kg (2 metric tons)
- Wrapping Material: Linear Low-Density Polyethylene (LLDPE) stretch film (various gauges and widths, typically 500mm or 750mm)
- Film Pre-stretch Ratio: Electronically adjustable, often ranging from 150% to 300%+
- Rotational Speed (Ring/Arm or Coil): Variable, typically 10-30 RPM, impacting throughput.
- Control System: PLC with Human-Machine Interface (HMI) touchscreen for parameter setting, diagnostics, and program storage (e.g., different wrap patterns).
- Power Requirements: Typically 400-480V, 3-Phase, 50/60Hz (region-dependent).
Optimizing Material Handling with Advanced Film Technology
The horizontal wrapping process inherently enhances load stability by unitizing the coil effectively. The use of high-performance stretch films, combined with precise pre-stretch and tension control, delivers several benefits:
- Load Containment: Creates a tightly bound package, preventing coil telescoping or unwinding during handling and transit, a principle well-documented in packaging engineering studies.
- Product Protection: Shields hoses from dust, moisture, abrasion, and potentially UV degradation (if using UV-inhibitor films). Perforated films can be used if ventilation is required.
- Material Efficiency: Powered pre-stretch significantly reduces the amount of film consumed per coil compared to manual or low-stretch methods, directly impacting operational costs. Research in polymer science highlights the enhanced cling and strength properties achieved through controlled film stretching.
Quantifiable Advantages and Return on Investment (ROI)
Implementing automated vertical stretch wrapping offers tangible benefits aligned with modern lean manufacturing and logistics principles:
- Enhanced Safety: Reduces manual handling risks associated with securing heavy, unstable coils. Automated systems minimize operator interaction with moving loads and machinery.
- Increased Throughput: Significantly faster wrap cycles compared to manual methods, boosting overall packaging line productivity.
- Reduced Labor Costs: Frees up personnel from time-consuming manual wrapping tasks, allowing reallocation to higher-value activities.
- Minimized Product Damage: Consistent, secure wrapping lowers the risk of damage during storage and shipping, reducing costly returns and claims.
- Improved Load Security: Ensures compliance with transport regulations and enhances safety throughout the supply chain.
Applications Across Industries
This type of hose coil wrapping machine finds application in various sectors, including:
- Hose Manufacturing (Industrial, Hydraulic, Automotive)
- Distribution Centers and Wholesalers
- Plumbing and Construction Suppliers
- Oil & Gas Equipment Providers
Conclusion: An Engineered Solution for Hose Coil Packaging
The vertical stretch film wrapping machine provides a technically sound, automated solution for preparing hose coils for storage and distribution. By integrating robust mechanical design, precise control systems, and advanced film application technology, it delivers significant improvements in operational efficiency, product protection, safety, and cost savings. Its ability to handle large-diameter, heavy coils makes it an indispensable asset for industries reliant on secure and professional hose packaging.
