Full-automatic large size wire coil wrapping and hanging for coil unloading system

Revolutionizing Heavy Coil Logistics: The Fully Automated Wire Coil Wrapping and Hanging System

Addressing Modern Challenges in Wire Coil Handling

The handling and logistics of large-size wire coils present significant operational challenges in modern manufacturing and distribution environments. Traditional methods often involve considerable manual labor, leading to inefficiencies, potential safety hazards, and risks of product damage. As highlighted in numerous industry reports and operational efficiency studies, optimizing the end-of-line processes, particularly coil wrapping and unloading, is crucial for maintaining competitiveness and ensuring supply chain integrity. The demand for faster throughput, enhanced worker safety, and consistent product protection necessitates advanced automation solutions.

Introducing an Integrated Automation Solution

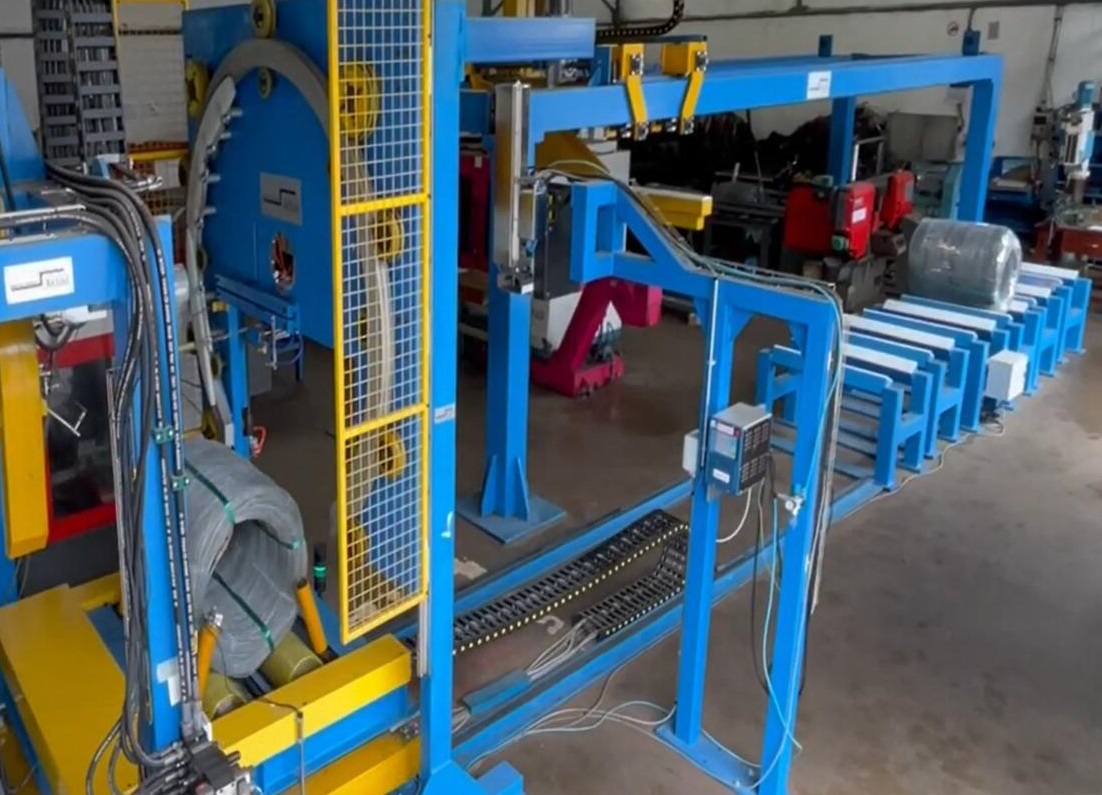

The Full-automatic Large Size Wire Coil Wrapping and Hanging System represents a significant leap forward, addressing these challenges head-on. This integrated system is engineered to automate the entire process, from protective wrapping to secure handling for unloading, streamlining operations for heavy-duty wire coils. Drawing inspiration from advancements documented in materials handling patents and automation research, this solution delivers unparalleled efficiency and reliability.

Core Functionality and Technological Advancements

This system seamlessly combines robust mechanical engineering with sophisticated automation controls to manage large and often cumbersome wire coils effectively.

Key Operational Stages:

  1. Automated Coil Reception: The system typically interfaces with upstream processes, receiving large wire coils automatically onto its conveyor or positioning mechanism.
  2. Precision Wrapping: Utilizing orbital wrapping technology, the coil is enveloped in protective material (like stretch film or VCI paper). Advanced systems often feature tension control algorithms and sensor arrays (concepts explored in packaging automation research) to ensure consistent, secure wrapping without damaging the wire product. This stage is critical for preventing corrosion and physical damage during storage and transit.
  3. Automated Hanging & Unloading: Post-wrapping, a specialized robotic arm or hanging mechanism securely grips the coil. This mechanism, often incorporating designs seen in heavy payload robotics patents, lifts and maneuvers the coil for efficient unloading or transfer to storage/shipping areas. This eliminates hazardous manual lifting operations.

Enabling Technologies:

  • PLC Control Systems: Centralized programmable logic controllers manage the entire sequence, ensuring synchronized operation and allowing for easy integration with plant-wide Manufacturing Execution Systems (MES) or Enterprise Resource Planning (ERP) software.
  • Advanced Sensor Technology: Proximity sensors, optical scanners, and load cells monitor coil position, wrapping progress, and handling operations, enhancing precision and safety.
  • Robotic Integration: High-capacity robotic arms or custom-designed manipulators provide the strength and dexterity needed for handling large coil weights reliably.
  • Safety Interlocks & Guarding: Conforming to international safety standards (e.g., ISO 13849), the system incorporates comprehensive safety measures, including light curtains, emergency stops, and physical guarding, to protect personnel.

Tangible Benefits for Operations

Implementing a fully automated wrapping and hanging system yields substantial advantages:

  • Enhanced Productivity: Drastically reduces cycle times compared to manual or semi-automatic methods, significantly boosting overall throughput. Industry benchmarks often show automation yielding upwards of 30-50% increases in packaging line efficiency.
  • Improved Workplace Safety: Eliminates strenuous and potentially hazardous manual lifting and handling tasks, directly contributing to a reduction in workplace injuries, aligning with occupational safety mandates.
  • Consistent Product Protection: Automated wrapping ensures uniform application of protective materials, minimizing the risk of damage from environmental factors or handling mishaps.
  • Labor Optimization: Frees up human resources from repetitive, low-value tasks, allowing personnel to be redeployed to more complex, value-adding roles.
  • Reduced Operational Costs: Lower labor costs, reduced material waste due to precise application, and minimized product damage contribute to a strong return on investment (ROI).
  • System Reliability: Designed for continuous operation with high uptime, reducing bottlenecks in the production or logistics chain.

System Parameters Overview

While specific configurations vary, typical parameters for such systems include:

  • Coil Size Compatibility: Designed to handle a wide range of outer diameters, inner diameters, and widths typical for large industrial wire coils.
  • Coil Weight Capacity: Engineered to manage heavy payloads, often ranging from hundreds to thousands of kilograms.
  • Wrapping Materials: Compatible with various materials like LLDPE stretch film, VCI paper, HDPE, or woven fabrics.
  • Control Interface: User-friendly HMI (Human-Machine Interface) for system monitoring, parameter adjustment, and diagnostics.
  • Cycle Time: Optimized for speed, tailored to specific production rate requirements.

Future-Ready Automation

The adoption of full-automatic large size wire coil wrapping and hanging systems aligns perfectly with the trajectory towards Industry 4.0 and smart factory initiatives. The ability to integrate these systems into networked production environments allows for real-time data collection, performance monitoring, and predictive maintenance, further optimizing operations.

In conclusion, this advanced automation solution revolutionizes the handling of large wire coils by integrating sophisticated wrapping and handling technologies. It optimizes efficiency, drastically improves safety, ensures product integrity, and provides a robust platform for future operational enhancements. Learn more about advanced Wire coil wrapping machine solutions and how they can transform your logistics processes.
