Revolutionizing Steel Coil Logistics: An In-Depth Look at Eye Vertical Stretch Wrappers
The global steel industry relies on intricate logistics, where preserving the integrity of steel coils during transit and storage is paramount. Damage from handling, moisture, or transit vibrations can lead to significant financial losses and compromise project timelines. Addressing this critical need requires specialized packaging solutions, and the Eye Vertical Coil Stretch Wrapper stands out as a cornerstone technology.
1. The Challenge: Protecting Vulnerable Steel Coils
Steel coils, particularly when positioned vertically ("eye-to-the-sky"), present unique packaging challenges:
- Surface Damage: Scratches, dents, and edge damage can occur during handling and transport.
- Corrosion: Exposure to moisture and atmospheric elements can quickly lead to rust, degrading the coil's quality.
- Instability: Improperly secured coils can shift or telescope, posing safety risks and causing damage.
- Contamination: Dust and debris can accumulate, affecting the coil's usability in subsequent processes.
Traditional manual wrapping methods are often time-consuming, inconsistent, and labour-intensive, failing to provide the robust protection required.
2. The Solution: The Eye Vertical Coil Stretch Wrapper Explained

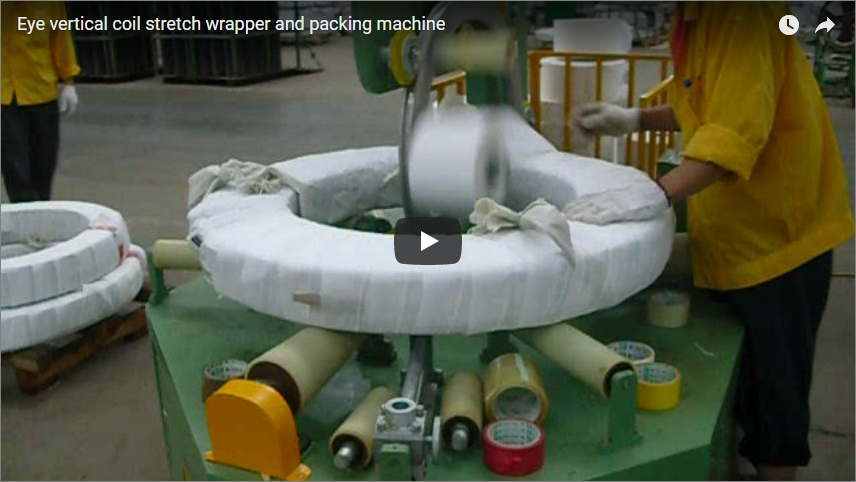

An eye vertical coil stretch wrapper is an automated or semi-automated machine specifically engineered to apply layers of stretch film through the central core (the "eye") and around the outer circumference of a vertically oriented coil. This method ensures comprehensive coverage and superior load containment compared to horizontal wrapping for this orientation.
The machine typically features a rotating ring or arm equipped with a film carriage that travels vertically as the coil remains stationary or rotates slowly, ensuring a tight, overlapping wrap.
3. Key Features and Technical Specifications (Typical Ranges)
While specific models vary, common technical parameters include:
- Coil Outside Diameter (OD): 800mm - 2000mm
- Coil Inside Diameter (ID): 400mm - 800mm
- Coil Width/Height: 500mm - 1800mm
- Coil Weight Capacity: 1000kg - 5000kg+
- Wrapping Material: LLDPE Stretch Film (various thicknesses), potentially VCI (Vapor Corrosion Inhibitor) film for enhanced rust protection.
- Control System: PLC (Programmable Logic Controller) for automated cycles.
- Wrapping Efficiency: Cycle times often range from 60 to 120 seconds per coil, depending on size and wrap layers.
- Power Requirements: Typically 380V/50Hz 3-Phase (configurable).
- Optional Features: Top sheet dispensers, integrated weighing systems, safety fencing, automated loading/unloading conveyors.
4. The Wrapping Process: A Glimpse into Automation
From personal experience overseeing installations, a typical automated cycle unfolds seamlessly:
- Loading: The steel coil is placed onto the machine's conveyor or turntable, often via crane or forklift.
- Cycle Start: An operator initiates the wrapping cycle via the HMI (Human-Machine Interface).
- Film Application: The wrapping ring or arm begins rotating, dispensing stretch film. It moves vertically through the eye and around the coil. Overlap settings ensure complete coverage.
- Film Cut & Seal: Once the preset number of layers is applied, the machine automatically cuts and seals the film tail to the coil.
- Unloading: The fully wrapped coil is moved off the machine, ready for storage or shipment.
5. Benefits Beyond Basic Protection
Investing in an eye vertical coil wrapper delivers tangible advantages:
- Superior Load Security: Consistent tension and full coverage prevent shifting and telescoping.
- Enhanced Protection: Creates a barrier against moisture, dust, and physical damage. Using VCI film adds crucial corrosion resistance.
- Increased Efficiency: Significantly faster than manual wrapping, reducing bottlenecks.
- Reduced Labor Costs: Frees up personnel for other value-added tasks.
- Material Savings: Optimized film usage compared to inconsistent manual application.
- Improved Safety: Reduces manual handling risks associated with large, heavy coils.
- Professional Presentation: Uniformly wrapped coils project a higher standard of quality.
6. Practical Insights & Considerations
Based on deploying these systems, here are key points to consider:
- Film Selection: Choosing the right gauge, pre-stretch capability, and type (standard vs. VCI) is critical for performance and cost-effectiveness. VCI film is often essential for long-term storage or sea freight.
- Integration: How will the machine fit into your existing production flow? Consider conveyor integration for truly automated lines.
- Maintenance: Like any industrial machinery, regular preventative maintenance (lubrication, sensor checks, component inspections) is vital for longevity and reliability.
- Operator Training: Proper training ensures efficient operation, understanding of different wrap programs, and basic troubleshooting.
- ROI Calculation: Factor in labor savings, reduced damage claims, material cost optimization, and throughput increases when evaluating the investment.
7. Seamless Integration into Production Lines
Modern eye vertical wrappers are designed for integration. They can communicate with upstream and downstream equipment via PLCs, becoming a vital node in a fully automated coil handling and packaging line, receiving coils from slitters or accumulators and feeding them directly to storage or shipping areas.
8. Conclusion: Elevating Your Coil Handling Standards
The eye vertical coil stretch wrapper is more than just a packaging machine; it's a strategic investment in product quality, operational efficiency, and supply chain integrity. By providing robust, consistent, and automated protection for vertically oriented steel coils, it addresses key industry challenges and helps maintain the value of your products from production to final destination.
