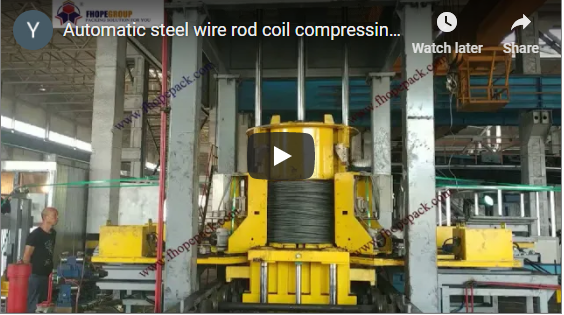

Automatic steel wire rod coil compressing with strapping machine

Enhanced Automatic Steel Wire Rod Coil Compressing and Strapping System: Technical Specifications and Operational Benefits

Handling large, dense steel wire rod coils poses significant logistical and safety challenges in the steel processing and manufacturing industries. Ensuring coil integrity, optimizing storage space, and streamlining downstream processes requires robust packaging solutions. This post details an advanced automatic system designed specifically for compressing and strapping steel wire rod coils, improving both efficiency and package security.

The Need for Automated Solutions in Coil Handling

Manual or semi-automatic handling of heavy wire rod coils is often labor-intensive, slow, and carries inherent safety risks. Inconsistent compression and strapping can lead to loose coils ("clock-springing"), shipping damage, and difficulties in stacking or further processing. Automated systems, like the one showcased, directly address these critical issues by providing consistent, reliable, and efficient packaging.

System Overview: Compressing and Strapping Technology

The featured automatic system integrates high-force compression with reliable strapping technology to produce tightly secured, unitized coils ready for transport or storage. This solution is engineered for demanding industrial environments found in steel mills and processing plants, offering significant improvements over manual methods. Our company offers customized packing solutions, integrating this core technology into both semi-automatic and full-automatic packing lines tailored to specific operational needs.

Key Technical Specifications

(Note: Specifications below represent typical capabilities and can be customized based on specific application requirements.)

• 1. Coil Compatibility:
  • Outer Diameter (OD): Typically 800mm - 1500mm
  • Inner Diameter (ID): Typically 500mm - 900mm
  • Coil Width/Height: Typically 500mm - 1200mm
• 2. Max Coil Weight: Up to 3000 kg (approx. 6600 lbs), higher capacities available
• 3. Compression Force: Hydraulically actuated, adjustable up to 20 Tons (or as required)
• 4. Strapping Head: High-performance friction-weld head (common for PET strapping) or sealer/notch head (for steel strapping)
• 5. Strap Material: Compatible with Polyester (PET) or Steel Strapping
• 6. Strap Dimensions:
  • PET: Common widths 16mm - 19mm; Thickness 0.8mm - 1.2mm
  • Steel: Configurable based on requirements
• 7. Number of Straps: Programmable via HMI, typically 3-6 radial straps
• 8. Cycle Time: Approx. 60-90 seconds per coil (compaction and strapping cycle, excluding coil transfer)
• 9. Control System: PLC-based (e.g., Siemens, Allen-Bradley) with intuitive Touchscreen HMI
• 10. Power Supply: Configurable (e.g., 380V/50Hz/3Ph, 480V/60Hz/3Ph)
• 11. Operating Mode: Fully Automatic integrated into a line, or Semi-Automatic requiring operator initiation.

Operational Workflow Breakdown

The automated process typically follows these steps:

1. Coil Loading: The wire rod coil is introduced to the machine, often via an integrated conveyor system, turnstile, or placed by crane/forklift.
2. Centering (Optional): Automatic mechanisms precisely position the coil under the press and align it with the strapping head(s).
3. Compression: The hydraulic press engages, applying controlled force to densify the coil, reducing its volume and securing loose wraps.
4. Strapping: The strapping head(s) cycle automatically: feeding the strap around the coil, tensioning it to a preset level, sealing the strap (friction weld for PET or crimp/notch for steel), and cutting it. This is repeated for the programmed number of straps at specified radial positions.
5. Press Release & Ejection: The compression platens retract, and the tightly compacted and strapped coil is moved out of the station, typically onto an exit conveyor for transfer to wrapping, weighing, labeling, or storage areas.

Advantages of Automated Compressing & Strapping

Implementing this technology yields significant operational benefits:

• Enhanced Throughput: Dramatically increases packaging speed compared to manual or semi-automatic methods, boosting overall line productivity.
• Improved Package Integrity & Safety: Consistent high compression and secure strapping prevent coil loosening, reducing risks during handling, storage, and transport. Eliminates manual handling hazards.
• Labor Cost Reduction: Frees up personnel from strenuous and repetitive manual strapping tasks, allowing reallocation to higher-value jobs.
• Optimized Logistics & Storage: Produces uniformly dense and dimensionally consistent coils, improving stackability and maximizing warehouse and shipping container space utilization.
• Material Efficiency: Precise strap tensioning ensures secure loads without over-consumption of strapping material.
• Process Consistency: Guarantees every coil is packaged to the same high standard, improving customer satisfaction and reducing damage claims.

Customization and Integration Expertise

We understand that standard solutions don't fit every need. Our engineering team excels at designing and implementing customized packing lines. By analyzing your specific coil parameters, production volume, existing infrastructure, and desired level of automation (semi-automatic to fully integrated systems), we develop tailored solutions. This includes integration with:

• Coil Upenders & Downenders
• Turntables & Indexing Conveyors
• Weighing Systems
• Automatic Label Applicators
• Stretch Wrapping Machines
• Existing Plant Control Systems (MES/ERP integration via PLC communication)

Conclusion: Investing in Efficiency and Reliability

An Automatic Steel Wire Rod Coil Compressing and Strapping Machine is a pivotal investment for modern steel processing facilities seeking to enhance operational efficiency, improve workplace safety, and ensure the reliable delivery of tightly secured products. By automating this critical packaging step, businesses can achieve significant cost savings and throughput gains.

Our commitment is to provide not just machinery, but a comprehensive packaging solution that addresses your specific challenges, from initial consultation and design to installation and ongoing support. We strive to deliver the perfect package – secure, efficiently processed, and tailored to your needs.
