Advanced Automation in Pipe and Hose Handling: A Technical Analysis of Automatic Coiling and Strapping Machines
The efficient handling and packaging of High-Density Polyethylene (HDPE) pipes and various industrial rubber hoses present significant logistical challenges in manufacturing and distribution environments. Manual coiling and strapping processes are often labor-intensive, inconsistent, and pose potential ergonomic risks. Automated coiling and strapping systems offer a robust engineering solution, dramatically improving throughput, consistency, and safety. This article delves into the design, components, technical specifications, and operational benefits of modern automatic pipe and hose coiling machinery.

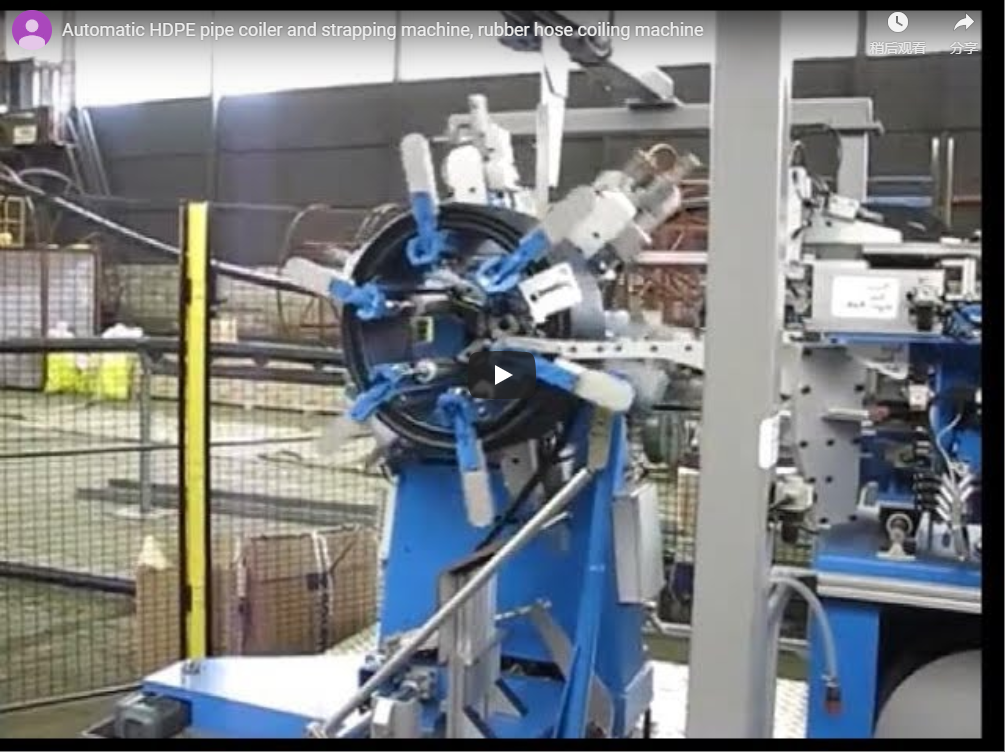

Video demonstrating the operation of an automatic pipe coiling and strapping system.
1. The Engineering Imperative: Overcoming Manual Limitations
Traditional methods for coiling and securing pipes and hoses suffer from several drawbacks:
- Inconsistent Coil Dimensions: Manual coiling leads to variations in coil diameter and winding tightness, impacting storage density and downstream processing.
- Variable Strapping Tension: Manual strapping often results in uneven tension, potentially damaging softer materials or allowing coils to loosen during transit.
- Low Throughput: The speed of manual operations is inherently limited, creating bottlenecks in production lines.
- Ergonomic Risks: Repetitive motions and handling heavy coils manually increase the risk of musculoskeletal injuries for operators.
- Labor Costs: Significant manpower is required to maintain acceptable output levels.
Automated systems directly address these issues by integrating precise mechanical actions with sophisticated control logic.
2. Core Design Principles and System Components
An automatic HDPE pipe coiler and strapping machine, adaptable for rubber hoses, is a complex system integrating several key subsystems:
- Infeed and Guiding System: Ensures the pipe or hose enters the coiling mechanism correctly aligned and without undue stress. Often includes dancer arms or accumulators to manage line speed fluctuations.
- Coiling Head/Mandrel: The core mechanism onto which the pipe/hose is wound. Designs vary, often featuring collapsible segments for easy coil removal. Variable speed drives (VSDs) precisely control rotation speed to ensure consistent winding.
- Traversing Unit: Guides the pipe/hose back and forth across the coiling mandrel width, ensuring an even, layered coil build-up. Servo motors often drive this for precise positioning.
- Length Measurement System: Typically employs encoder wheels or laser sensors to accurately measure the pipe/hose length, triggering the cutting sequence when the target length is reached.
- Cutting Mechanism: A pneumatically or servo-actuated cutter provides a clean, square cut upon reaching the desired coil length. Blade material and design are critical for different pipe/hose materials.
- Automatic Strapping Unit: Transports the completed coil to a strapping station. Applies, tensions, seals (usually via heat or friction weld), and cuts strapping material (typically PP or PET) at pre-set locations (e.g., 3 or 4 points around the circumference).
- Coil Ejection/Handling System: Automatically removes the finished, strapped coil from the coiling/strapping area, often onto a conveyor, tilting table, or accumulation rack.
- Control System (PLC & HMI): The brain of the operation, typically utilizing a Programmable Logic Controller (PLC) for sequencing machine actions and safety interlocks. A Human-Machine Interface (HMI) touch screen allows operators to set parameters (coil length, diameter, strapping positions), monitor status, and troubleshoot issues.
3. Technical Specifications Overview
When evaluating automatic coiling and strapping systems, key performance indicators (KPIs) and specifications include:
| Parameter | Typical Range / Specification | Importance |
|---|---|---|
| Pipe/Hose Diameter | 10mm - 110mm (Model Dependent) | Defines machine capability for product size |
| Maximum Coil OD | 800mm - 2000mm+ | Determines final package size |
| Adjustable Coil ID | 300mm - 1000mm+ | Accommodates different core/spool requirements |
| Coil Width | 100mm - 800mm | Influences coil stability and handling |
| Coiling Speed | 20 - 120 meters/minute (Varies with diameter) | Directly impacts production throughput |
| Length Accuracy | ± 0.1% to ± 0.5% | Ensures consistent product delivery |
| Strapping Material | PP (Polypropylene) or PET (Polyester) | Choice depends on required strength & cost |
| Strap Width/Thickness | 9mm - 19mm / 0.5mm - 1.0mm | Matched to strapping head capability & load |
| Strapping Tension | Adjustable (e.g., 100N - 800N) | Prevents product damage & ensures coil security |
| Number of Straps | 2 - 6 (Operator Selectable) | Secures coil geometry |
| Control System | Siemens, Allen-Bradley, Omron PLC (Common examples) | Reliability, support, integration capability |
| Power Requirements | 380V/415V, 3-Phase, 50/60Hz (Region specific) | Facility infrastructure requirement |
| Compressed Air | 6-8 Bar (Required for pneumatic components) | Utility requirement |
Note: These are representative values. Specific machine models will have detailed specification sheets.
4. Operational Workflow and Automation Advantages
The typical automated sequence proceeds as follows:
- Setup: Operator selects recipe/parameters on the HMI (length, diameter, strap locations).
- Infeed: Pipe/hose is fed into the machine from the extruder or payoff stand.
- Coiling: The coiling head rotates, pulling the pipe/hose. The traversing unit ensures even layering. Length measurement is continuous.
- Cutting: Upon reaching the target length, the line may momentarily pause (or use an accumulator) while the cutter activates.
- Transfer: The completed coil is transferred to the strapping position (often integrated or immediately adjacent).
- Strapping: The strapping head(s) automatically apply, tension, seal, and cut the straps at programmed locations.
- Ejection: The finished, strapped coil is automatically ejected from the machine onto a downstream conveyor or collection area.
- Cycle Repeat: The coiling head prepares to accept the leading end of the next pipe/hose length.
This high degree of automation provides significant operational benefits beyond just speed.
5. Quantifiable Benefits of Automated Systems
Implementing automatic coiling and strapping yields tangible results:
- Increased Throughput: Significantly higher coiling speeds and elimination of manual steps can boost output by 200-500% or more compared to manual methods.
- Unmatched Consistency: Precise PLC control ensures every coil meets dimensional specifications and strapping tension parameters, improving product quality and reducing rejects.
- Enhanced Operator Safety: Eliminates strenuous manual coiling, lifting, and strapping tasks, drastically reducing ergonomic risks and potential injuries. Machine guarding and safety interlocks further protect personnel.
- Optimized Material Usage: Accurate length measurement minimizes pipe/hose scrap. Consistent strapping tension prevents damage and uses strapping material efficiently.
- Reduced Labor Costs: Frees up personnel previously dedicated to manual coiling/strapping for higher-value tasks. Allows for leaner operations or increased overall output with the same staffing level.
- Improved Packaging Quality: Tightly wound, securely strapped coils are more stable for storage, handling, and shipping, reducing the risk of damage in transit.
6. Diverse Industry Applications
While prominent in HDPE pipe manufacturing for construction and utilities, these machines are vital in sectors dealing with:
- Rubber Hose Production: Automotive hoses, industrial hydraulic lines, garden hoses.
- PEX and Composite Pipe: Radiant heating, plumbing systems.
- Flexible Conduit and Tubing: Electrical, telecommunications, medical applications.
- Wire and Cable: Coiling smaller diameter products before boxing or spooling.
7. User Experience and Maintenance Insights
From a practical standpoint, usability and maintainability are key:
- HMI Interface: Modern systems feature intuitive touch screens with graphical displays, recipe storage, diagnostic reporting, and multi-language support. Ease of parameter adjustment for different product runs is crucial.
- Changeover Time: Quick-change tooling or adjustable guides minimize downtime when switching between different pipe/hose diameters or coil sizes.
- Reliability: Robust mechanical design and high-quality components (motors, sensors, PLC) are essential for minimizing breakdowns in continuous production environments.
- Maintenance: Routine tasks include lubrication, strap coil replenishment, cutter blade inspection/replacement, sensor cleaning, and pneumatic system checks. Well-designed machines offer easy access to maintenance points.
8. Selecting the Optimal Coiling and Strapping System
Choosing the right machine involves evaluating:
- Production Volume: Required coils per hour/shift.
- Product Range: Diameters, materials, flexibility, required coil sizes.
- Integration Needs: Compatibility with upstream extrusion lines and downstream palletizing or wrapping systems.
- Level of Automation: Degree of automatic adjustment vs. manual setup for changeovers.
- Budget: Initial investment vs. long-term ROI from labor savings and efficiency gains.
- Vendor Support: Availability of technical support, spare parts, and service.
Conclusion
Automatic HDPE pipe coiler and strapping machines, along with their counterparts for rubber hoses and other flexible products, represent a significant advancement in manufacturing efficiency and packaging quality. By replacing manual labor with precise, high-speed automated processes, these systems deliver substantial benefits in terms of throughput, consistency, safety, and cost reduction. As industries continue to pursue leaner operations and higher quality standards, the adoption of such advanced automation technology, like the solutions offered by Fhope, becomes increasingly critical for maintaining a competitive edge.
