Engineering Deep Dive: Automatic Cable Wire Coiling and Binding Machinery

In high-volume manufacturing environments, particularly within the electrical, automotive, and telecommunications industries, efficient and consistent cable management is paramount. Manual methods for coiling and binding wires and cables often introduce significant bottlenecks, impacting throughput, quality consistency, and operational costs, while also posing ergonomic risks. The transition to automated solutions is not just a trend but a necessity for competitiveness.

1. The Engineering Challenge: Limitations of Manual Cable Handling

Manual coiling and binding operations, while seemingly simple, face several inherent drawbacks:

• Inconsistent Coil Quality: Achieving uniform coil dimensions (ID, OD, width) and tension manually is difficult, leading to variations that affect packaging and downstream processes.
• Low Throughput: Manual processes are inherently slower than automated systems, limiting overall production capacity.
• Ergonomic Strain: Repetitive motions involved in coiling and binding can lead to musculoskeletal disorders among workers.
• Labor Costs: Significant labor resources are required, impacting operational expenditures.
• Material Waste: Inaccurate length cutting can result in unnecessary scrap.

Addressing these challenges requires sophisticated automation that integrates precision mechanics, advanced sensor technology, and intelligent control systems.

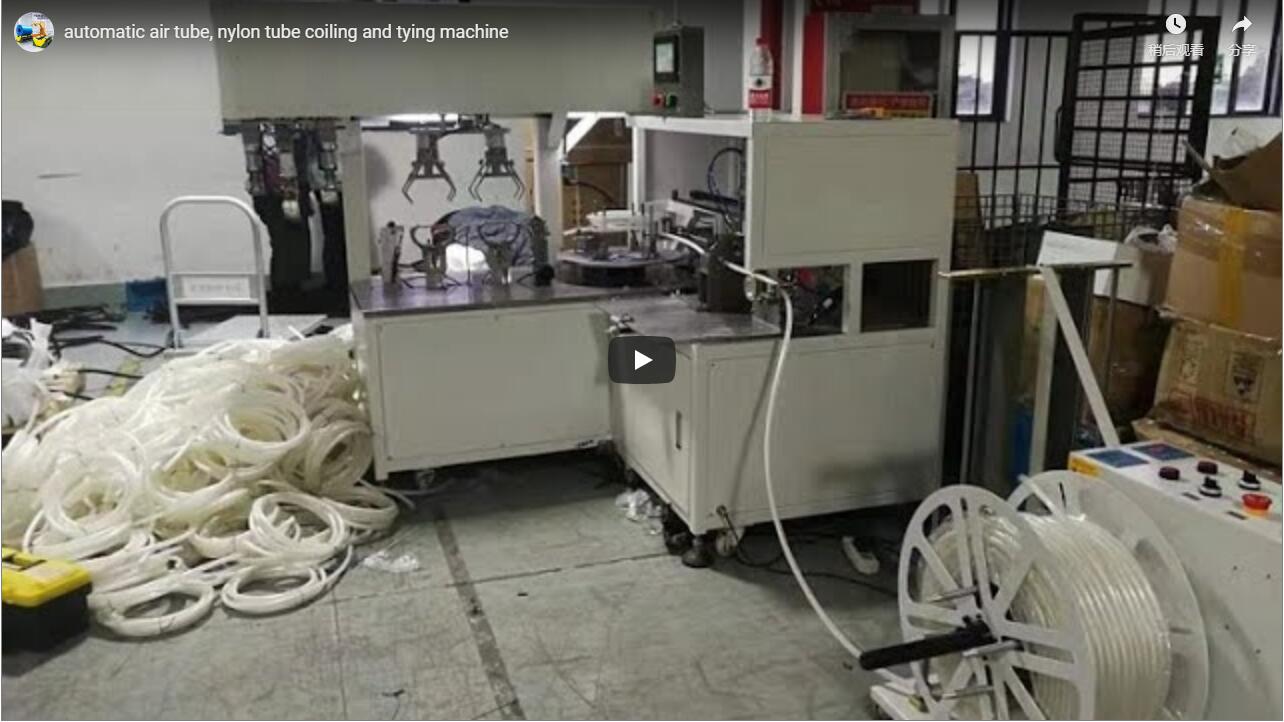

2. System Overview: The Automatic Cable Coiling and Binding Solution

The Automatic Cable Wire Coiling and Binding Machinery represents a comprehensive automated solution designed to streamline the end-of-line cable packaging process. This integrated system autonomously performs precise length measurement, consistent coiling, clean cutting, and secure binding of various cable types, transforming a labor-intensive task into an efficient, reliable operation.

3. Core Design Principles and Key Components

The performance and reliability of these automated systems stem from the careful design and integration of several critical subsystems:

3.1. Servo-Driven Coiling Head and Mandrel Design

• Mechanism: Utilizes high-precision servo motors to control the rotation and traversing motion of the coiling mandrel.
• Function: Allows for programmable adjustments of coiling speed, inner diameter (ID), outer diameter (OD), and coil width. Ensures tightly wound, uniform coils adaptable to different cable stiffness and memory properties. Advanced systems incorporate adaptive tension control algorithms to prevent cable stretching or damage, a topic frequently explored in controls engineering literature (e.g., Control Engineering Practice).
• Design Consideration: Mandrel design often features collapsible segments or quick-release mechanisms for easy coil removal.

3.2. Cable Feeding and Tension Control Unit

• Mechanism: Employs driven rollers or caterpillar belts synchronized with the coiling head.
• Function: Maintains consistent tension on the cable as it feeds into the coiler, crucial for accurate length measurement and uniform coil density. Tension values are often adjustable based on cable specifications.

3.3. Precision Length Measurement Systems

• Technology: Typically utilizes high-resolution rotary encoders coupled with measuring wheels or non-contact laser measurement devices.
• Performance: Achieves high accuracy (often within ±0.1% to 0.2%) essential for meeting product specifications and minimizing material waste. Calibration and verification protocols are critical.

3.4. Automated Cutting Mechanism

• Type: Commonly employs servo-actuated or pneumatic shear cutters.
• Design: Blade material (e.g., hardened tool steel), geometry, and actuation speed are optimized for clean, square cuts across the specified range of cable diameters and constructions without deforming the cable end.

3.5. Coil Handling and Transfer System

• Mechanism: Utilizes robotic arms, pusher mechanisms, or indexing conveyors.
• Function: Automatically transfers the completed coil from the coiling station to the binding station(s). Kinematics are designed for speed, gentle handling to maintain coil integrity, and precise positioning for binding.

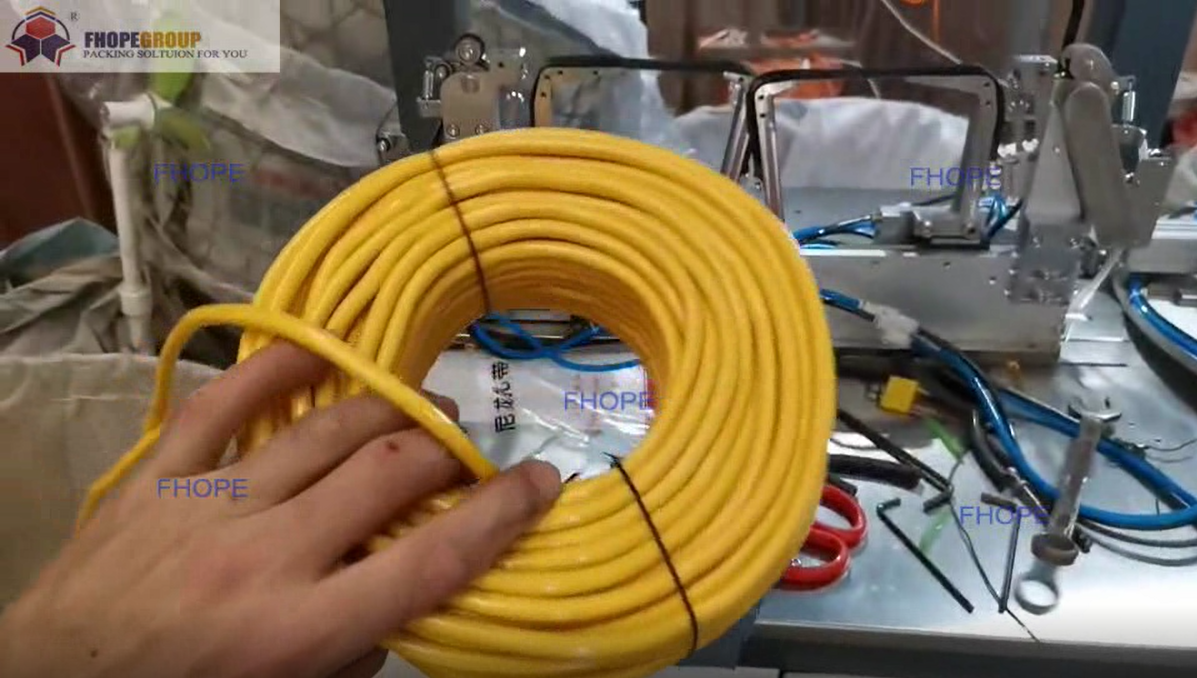

3.6. Automated Binding/Wrapping Unit

• Technology: Options include PP (polypropylene) strap binding, stretch film wrapping, or twist-tie application.
• Features: Adjustable strap tension, programmable number of straps/wraps (e.g., 1 or 2), precise strap/film placement. Some models feature dual binding stations to operate in parallel with the coiling process, maximizing throughput.

3.7. Integrated Control Architecture

• Core: Governed by a Programmable Logic Controller (PLC) (e.g., Siemens, Allen-Bradley, Omron).
• Interface: A Human-Machine Interface (HMI), typically a touchscreen panel, allows operators to:
  • Set operational parameters (length, coil dimensions, binding specs).
  • Store and recall recipes for different products.
  • Monitor machine status and production data in real-time.
  • Perform diagnostics and troubleshooting.
• Connectivity: Often designed for integration with Manufacturing Execution Systems (MES) or SCADA systems, aligning with Industry 4.0 principles for data exchange and remote monitoring.

4. Key Technical Specifications and Performance Metrics

When evaluating an automatic coiling and binding machine, consider these critical parameters:

• Applicable Cable Diameter: Ø1mm – Ø15mm (Example range, varies by model)
• Maximum Coiling Speed: Up to 150-200 m/min (Dependent on cable type, coil size)
• Coil Dimensions:
  • Inner Diameter (ID): Adjustable, e.g., 100mm – 350mm
  • Outer Diameter (OD): Max limit, e.g., up to 500mm
  • Coil Width/Height: Adjustable, e.g., 50mm – 200mm
• Length Measurement Accuracy: Typically ±0.1% - 0.2%
• Cut Length Range: e.g., 5m – 100m+
• Programmable Head/Tail Lengths: e.g., 50mm – 300mm (Precision here can be crucial, sometimes detailed in patent literature like US Patent Class B65H for winding technologies).
• Binding Type: PP Strapping (e.g., 5-9mm width), Stretch Film, PE Twist Tie
• Number of Binds: 1 or 2 (Programmable position)
• Binding Speed/Cycle Time: e.g., 15-30 seconds per coil (Includes transfer and binding)
• Throughput: Up to 120-240 coils per hour (depending on length and binding complexity)
• Control System: PLC Brand (Siemens, Allen-Bradley, etc.) + Touchscreen HMI
• Power Requirements: Voltage/Frequency/Phase (e.g., 380V/50Hz/3Ph)
• Compressed Air: Pressure & Consumption (e.g., 6-8 bar, specific CFM)

5. Operational Workflow and User Experience

From an operator's perspective, interaction with a modern automatic coiling and binding machine is typically streamlined:

1. Setup: Load the cable onto the payoff stand, thread it through the dancer/tensioner, length counter, cutter, and onto the coiling mandrel.
2. Parameter Input: Using the HMI, select a pre-saved recipe or input new parameters (length, coil ID/OD/Width, binding settings, head/tail lengths).
3. Operation: Initiate the automatic cycle. The machine autonomously feeds, measures, coils, cuts, transfers, and binds the cable.
4. Monitoring: Operators monitor the process via the HMI, observing real-time status, production counts, and any potential alarms or warnings.
5. Coil Removal: Collect the finished, bound coils from the machine's output area or integrated conveyor.
6. Changeover: Recipe management allows for quick changeovers between different cable types or specifications with minimal manual adjustments.

The HMI design focuses on intuitive navigation, clear visualization of parameters, and comprehensive diagnostic tools to minimize downtime and simplify troubleshooting.

6. Applications Across Industries

This automation technology finds critical applications in:

• Electrical Wire & Cable Manufacturing: Packaging building wire (THHN, TW), flexible cords (SJOW, SOOW), low-voltage cables.
• Automotive: Preparing wire harnesses components and battery cables.
• Telecommunications: Coiling coaxial cables, data communication cables (Cat5e, Cat6), and fiber optic patch cords.
• Appliance Manufacturing: Handling internal wiring and power supply cords.
• Medical Device Industry: Coiling specialized tubing and cables used in medical equipment.

7. Advantages and Return on Investment (ROI)

Implementing automatic coiling and binding systems yields significant benefits:

• Increased Throughput: Dramatically higher production rates compared to manual methods.
• Improved Consistency: Uniform coil dimensions and secure binding enhance product quality and appearance.
• Reduced Labor Costs: Frees up personnel for higher-value tasks.
• Enhanced Safety: Eliminates ergonomic risks associated with manual coiling and binding.
• Minimized Material Waste: Precise length cutting reduces cable scrap.
• Better Floor Space Utilization: Compact, integrated systems often require less space than multiple manual workstations.

The ROI is typically driven by direct labor savings, increased production capacity, reduced material waste, and improved quality leading to fewer rejects or returns. Industry reports from automation market analysts often quantify these benefits, showing favorable payback periods for such investments.

8. Integration and Future Trends

Modern systems are increasingly designed with connectivity in mind, allowing integration into larger factory automation ecosystems (MES/ERP) for production tracking and scheduling. Future trends may include:

• Enhanced Sensor Integration: Vision systems for quality inspection of coils and binding.
• AI and Machine Learning: Optimizing coiling parameters based on real-time cable characteristics or predictive maintenance alerts.
• Greater Flexibility: Systems capable of handling a wider range of cable sizes and types with automated changeovers.
• Collaborative Robotics: Using cobots for more complex coil handling or palletizing tasks downstream.

Conclusion: Strategic Automation for Cable Packaging Excellence

The Automatic Cable Wire Coiling and Binding Machine is a sophisticated engineered system crucial for modernizing cable production and packaging. By leveraging precision servo control, accurate sensing technology, robust mechanical design, and intelligent PLC automation, these machines deliver significant improvements in efficiency, consistency, safety, and cost-effectiveness. For manufacturers aiming to optimize operations, enhance product quality, and maintain a competitive edge in demanding markets, investing in this advanced automation technology is a strategic imperative.
