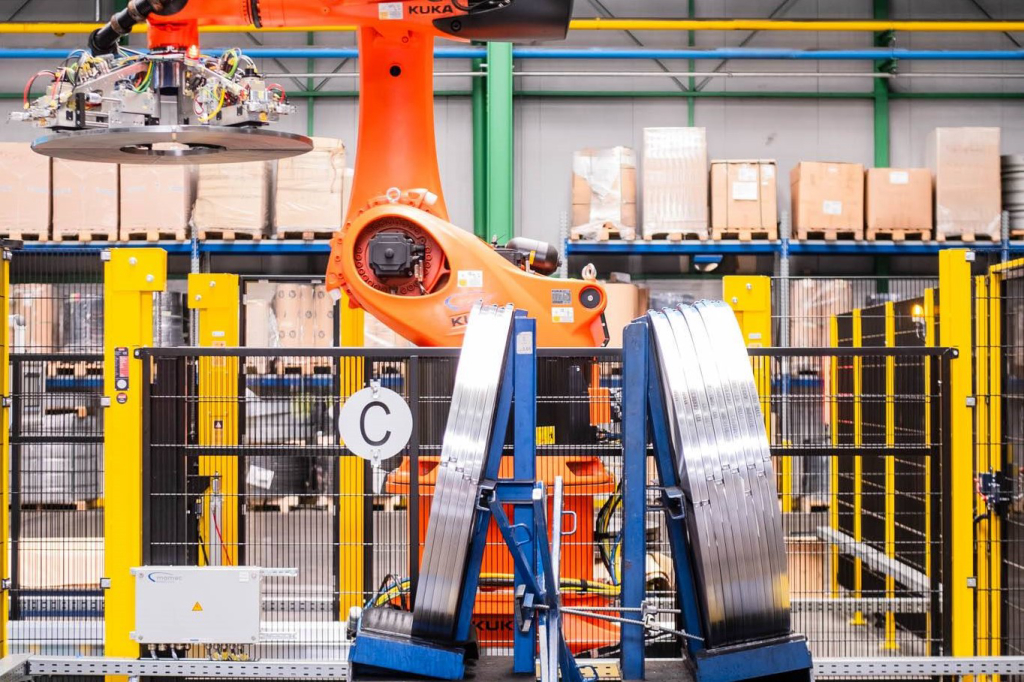

Robotic Arms for Loading/Unloading Heavy Coils
Robotic arms are a crucial component for efficient and safe loading and unloading of heavy coils. By automating coil handling processes, manufacturers benefit from increased productivity, reduced labor costs, and improved safety, making robotic coil handling solutions a worthwhile investment.
The Challenge of Heavy Coil Handling
Handling heavy coils of metal presents significant challenges in manufacturing environments. These coils are often bulky, weighing hundreds or even thousands of pounds. Manually moving these coils is physically demanding and poses risks of injury to workers. Traditional methods of handling coils, such as forklifts and cranes, can be cumbersome and time-consuming, leading to bottlenecks in production processes. The need for precision and care in coil handling further complicates matters, as damage to the coil can result in material waste and production delays
Robotic Coil Handling: A Game Changer
Robotic coil handling systems offer a transformative solution for optimizing coil handling processes. These systems utilize robotic arms equipped with specialized end-of-arm tooling (EOAT) designed for gripping, lifting, and manipulating coils of various sizes and weights. By automating these tasks, manufacturers can achieve significant improvements in efficiency, safety, and overall productivity.
Benefits of Robotic Coil Handling Systems
The integration of robotic arms into coil handling operations offers many advantages:
- Increased Productivity: Robots can work continuously without fatigue, leading to higher throughput and reduced cycle times compared to manual handling methods.
- Improved Safety: Automating coil handling reduces the risk of injuries associated with manual lifting and movement of heavy objects.
- Reduced Labor Costs: Robots can perform repetitive tasks, freeing up human workers for more skilled and value-added activities.
- Enhanced Precision: Robots can precisely position coils for processing, minimizing material waste and improving product quality.
- Flexibility and Adaptability: Robotic systems can be programmed to handle a variety of coil sizes and weights, making them suitable for diverse manufacturing operations.
Key Components of a Robotic Coil Handling System
A typical robotic coil handling system comprises several essential components:
- Robotic Arm: The robotic arm provides the necessary reach, payload capacity, and degrees of freedom to manipulate coils effectively. Heavy-duty robots are often used to handle the weight and size of coils.
- End-of-Arm Tooling (EOAT): The EOAT is a specialized gripper or attachment designed to securely grip and lift coils without causing damage. Different types of EOAT may be used depending on the coil’s dimensions and material. Common types include:
- Expanding Mandrel Grippers: These grippers insert into the coil’s inner diameter and expand to create a secure grip
- C-Hook Grippers: these hook grippers are designed to lift the coils from the top with a C shaped hook.
- Vacuum Grippers: used for coils with flat surfaces, providing a secure hold through suction.
- Automated Loading Systems: These are responsible for feeding coils into the robotic work cell and removing processed coils. Loading systems can include conveyors, part stackers, and transfer mechanisms.
- Control System: A sophisticated control system coordinates the movement of the robot, EOAT, and automated loading systems to ensure seamless and efficient coil handling. The control system may also integrate with other manufacturing systems, such as enterprise resource planning (ERP) or manufacturing execution systems (MES).
